HOME MADE TOOLS

Track Checking Tool & Manual Uncoupling Tool

The rocket looking tool is my very sensative track checking tool. It is a set of trucks minus the coupler with a wall screw mount (what ever it is called) mounted on it and works extremely well finding defects not easily noticed. Used with a NMRA Standards Gauge problems are quickly found. Using a boxcar to test with, has no where near the sensitivity.

The pointed round toothpick , although not home made, makes an excellent manual uncoupling tool. One box of toothpicks is cheap and you get a whole lot of uncoupling tools.

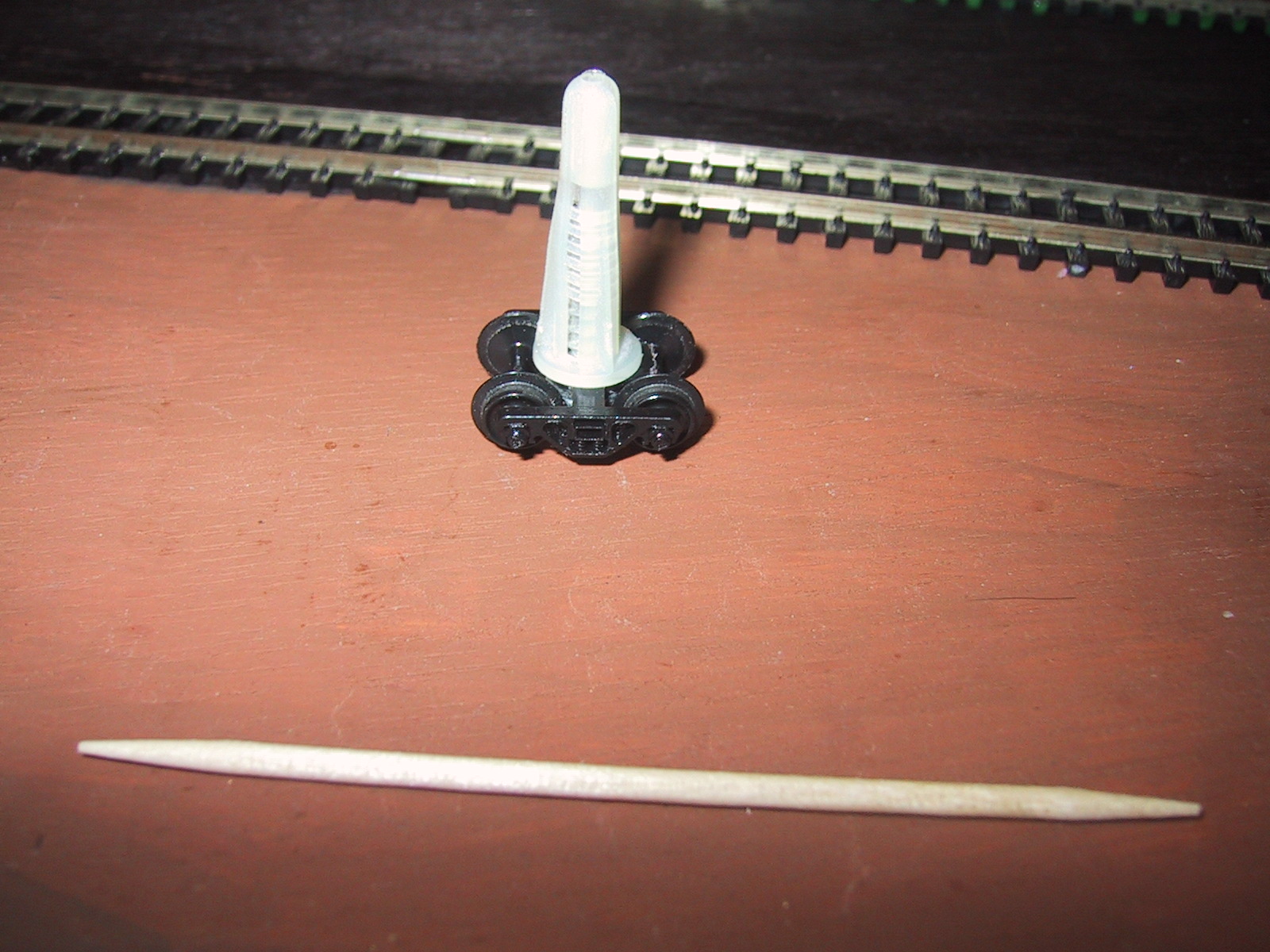

Track Tester and Uncoupling Tool

Manual Uncoupling Tool

I took the toothpick and cut one end flat (for safety while the tool is in it's storrage spot). I then drilled a vertical hole 1 size bigger than the toothpick and with the depth adjusted to keep the top of the tool 1/2 inch above the layout.

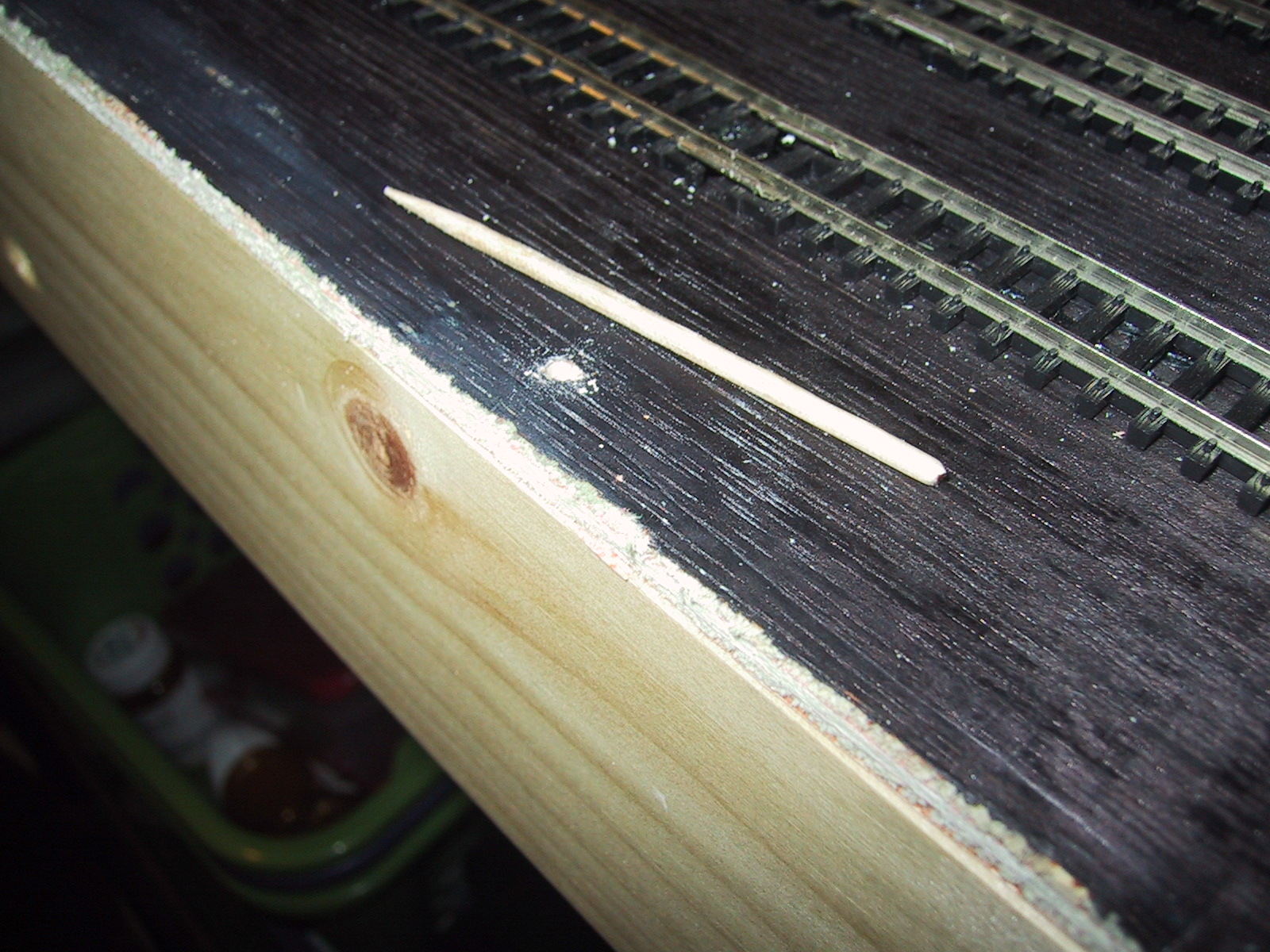

Toothpick on Layout

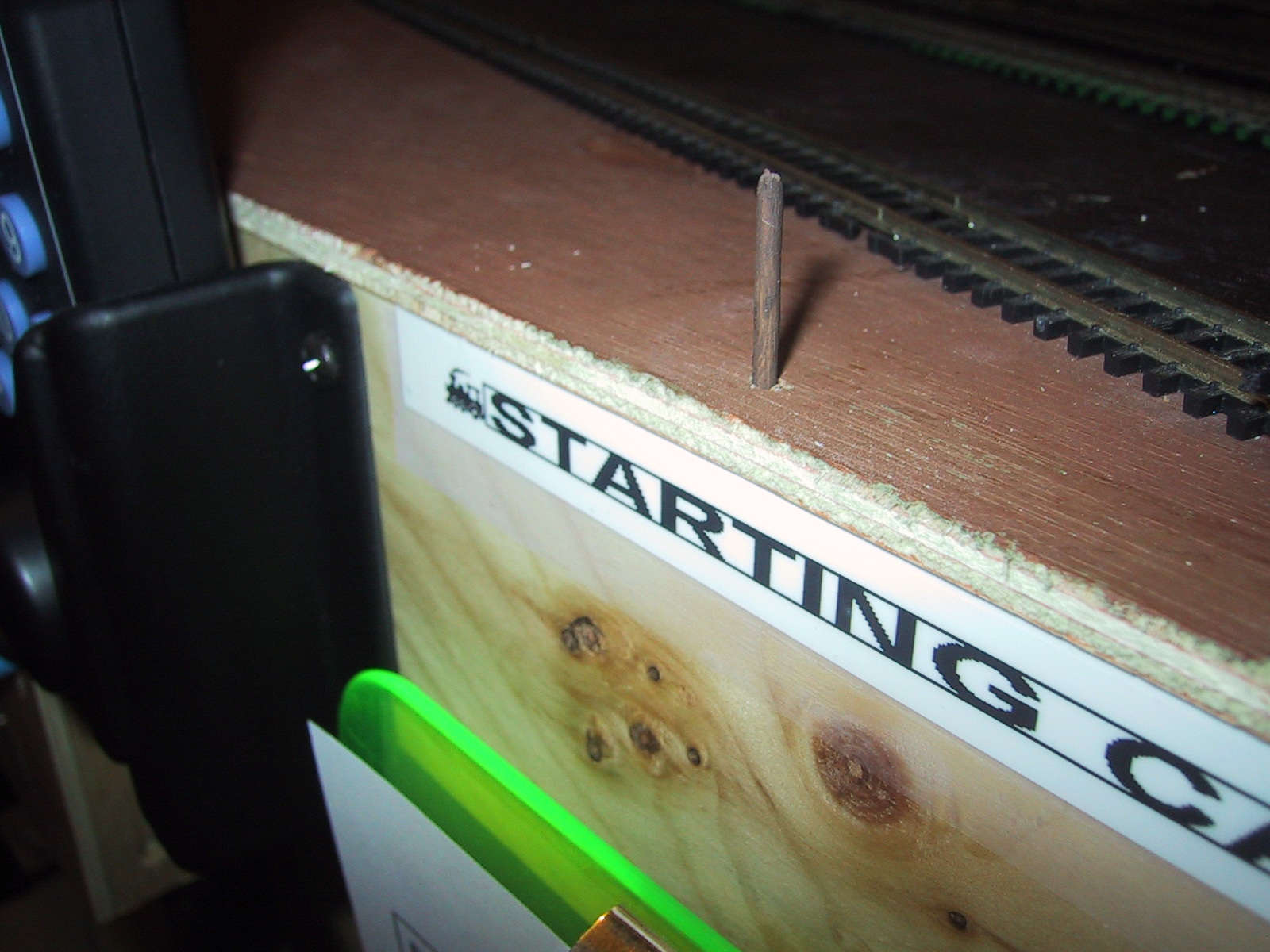

I have 4 uncoupling tools along the front of the layout where the uncoupling need is most. The top of the toothpick is painted flat brown to blend in, a bit.

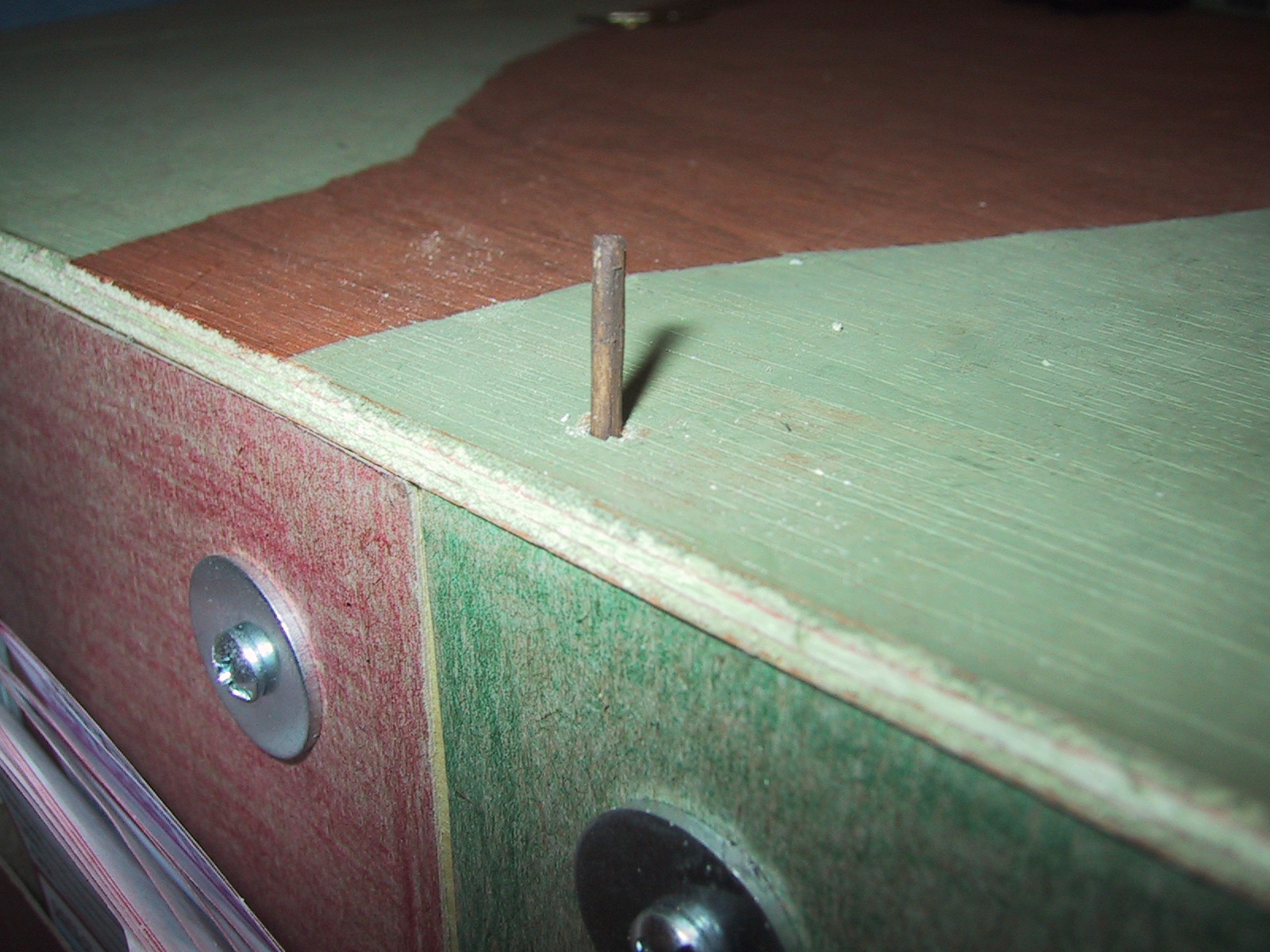

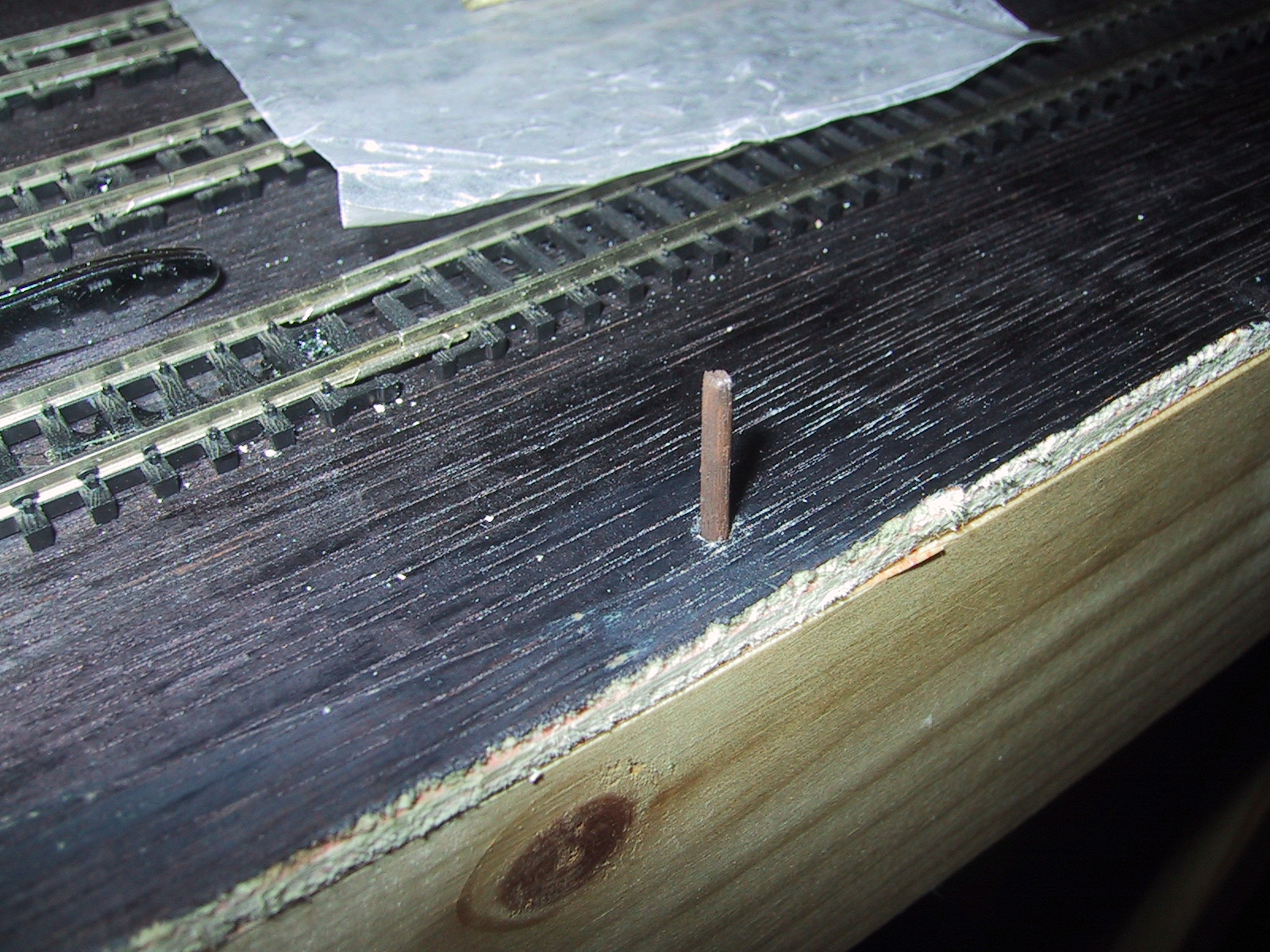

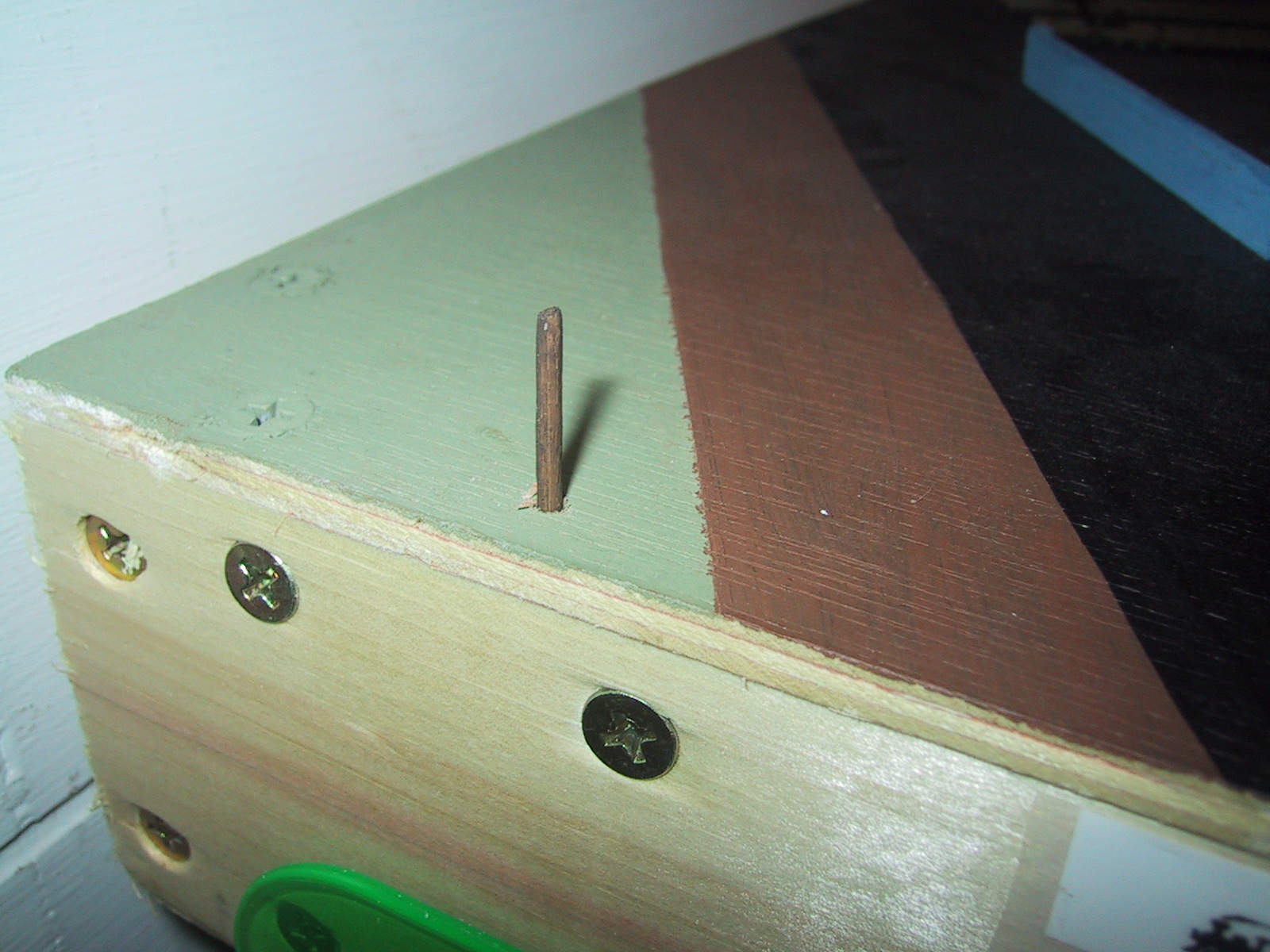

 s1 Uncoupling tool s3 Uncoupling tool in storrage.

SV Divider line

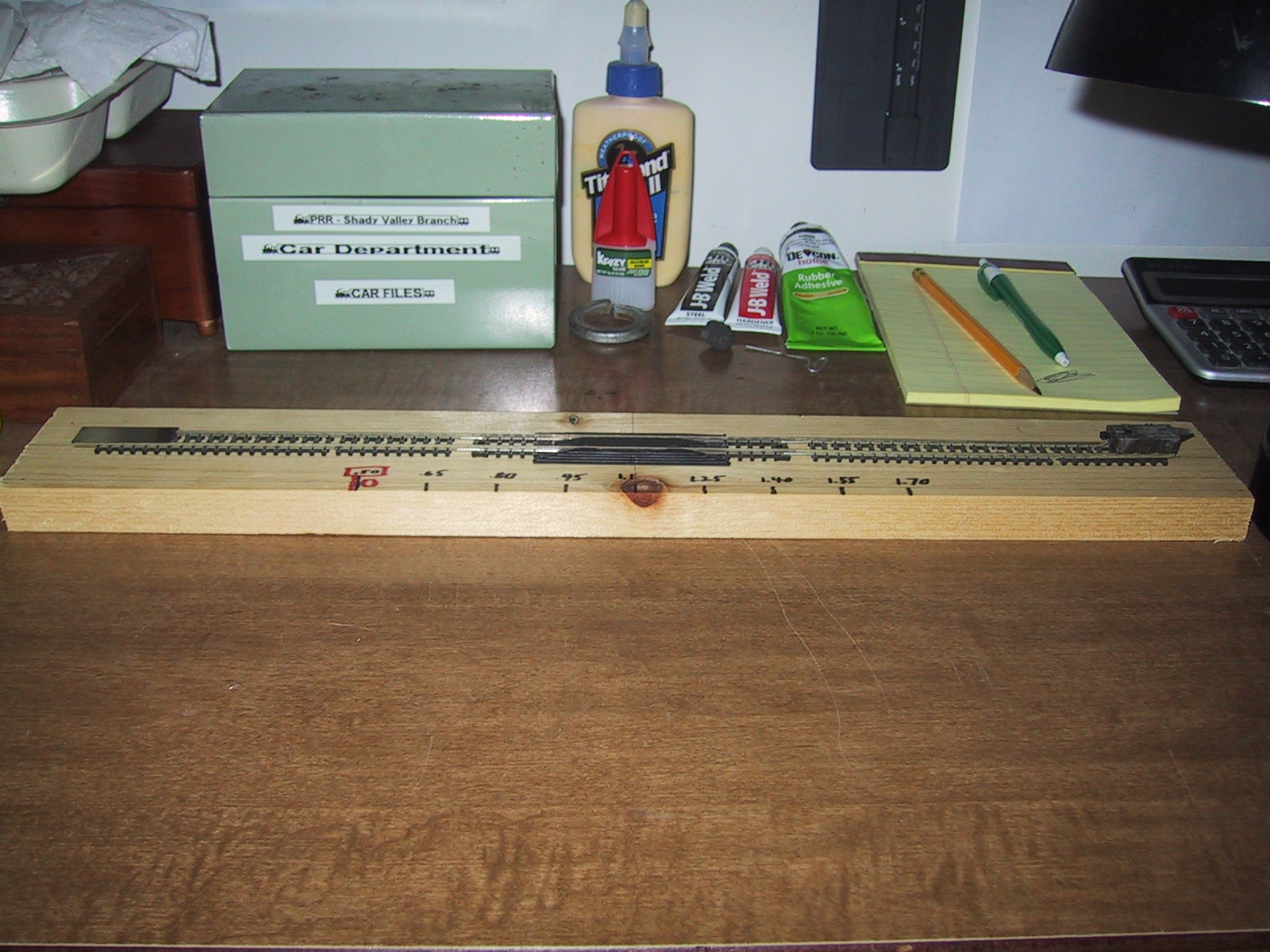

Coupler & Trip Pin Gauges and Weight Gauge board

 I got this idea from the Monon 1971 Video of Dec. 24, 2011 HO Version on U Tube and I made this N Scale version. It is shown on my work bench. It makes life a lot easier.

Coupler and weight gauge

SV Divider line

Rolling stock work cradle

 This is simple to make, but make sure to NOT use the crumbly type foam. I purposely left room on the left side to cut in a parts pocket.

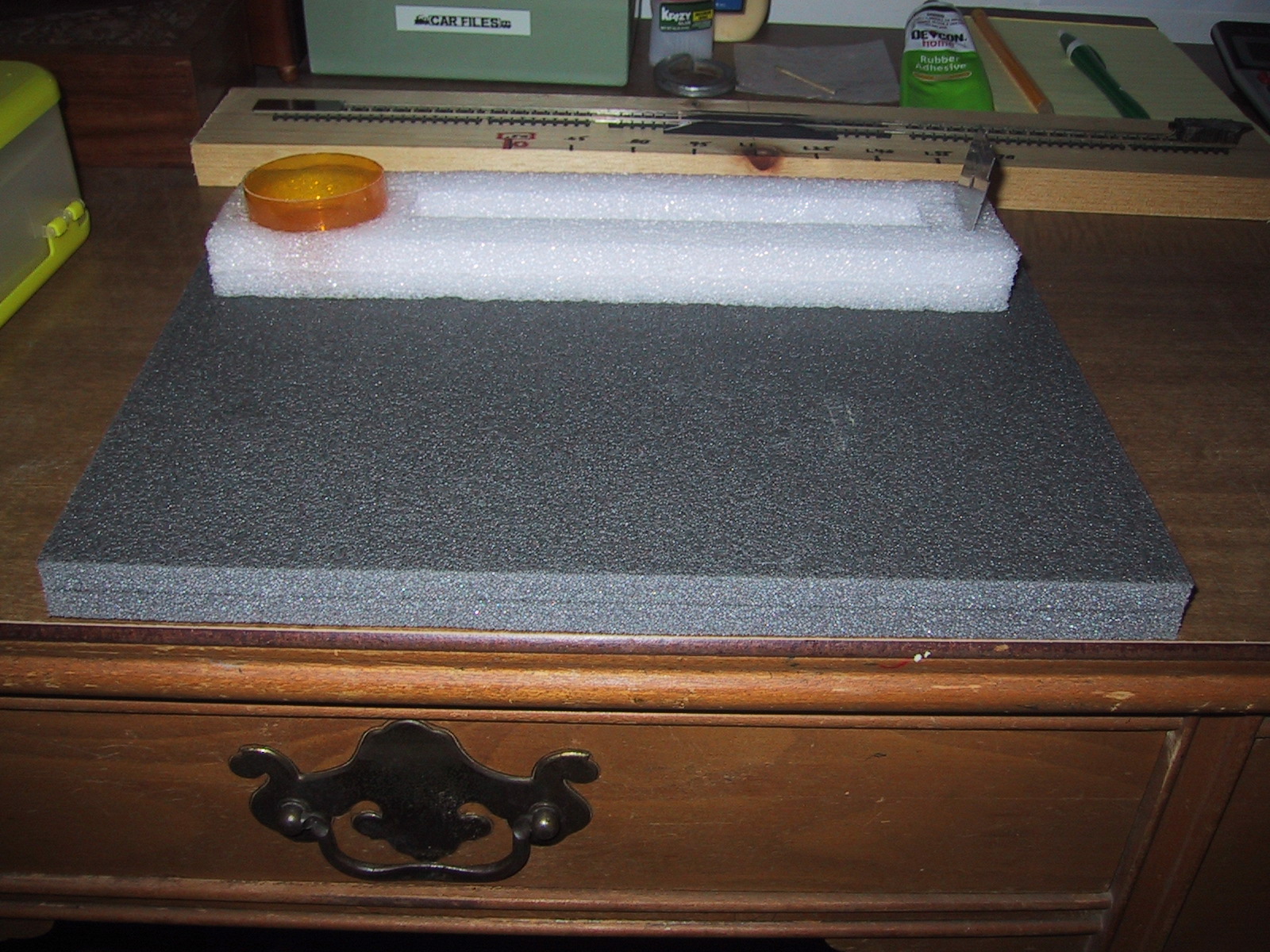

 The left picture shows the basic start. To the right is my finished (at least of what I can think of for now) Work Pad, Cradle, small parts holder and NMRA Gauge.

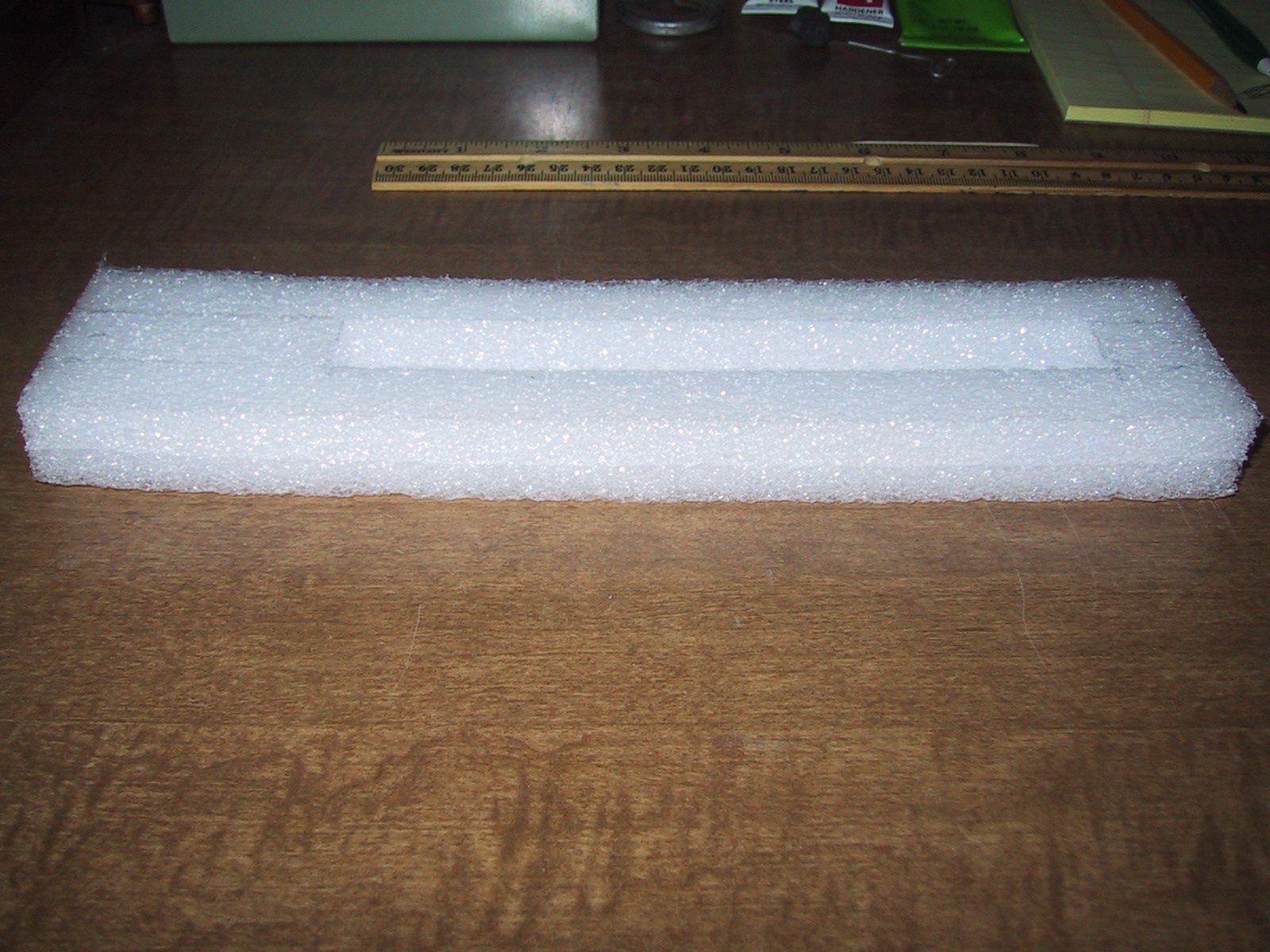

El Cheapo work cradle Work Pad Completed.

SV Divider line

New

NEW EQUIPMENT

My new track cleaning and vacuuming car is here and in service.

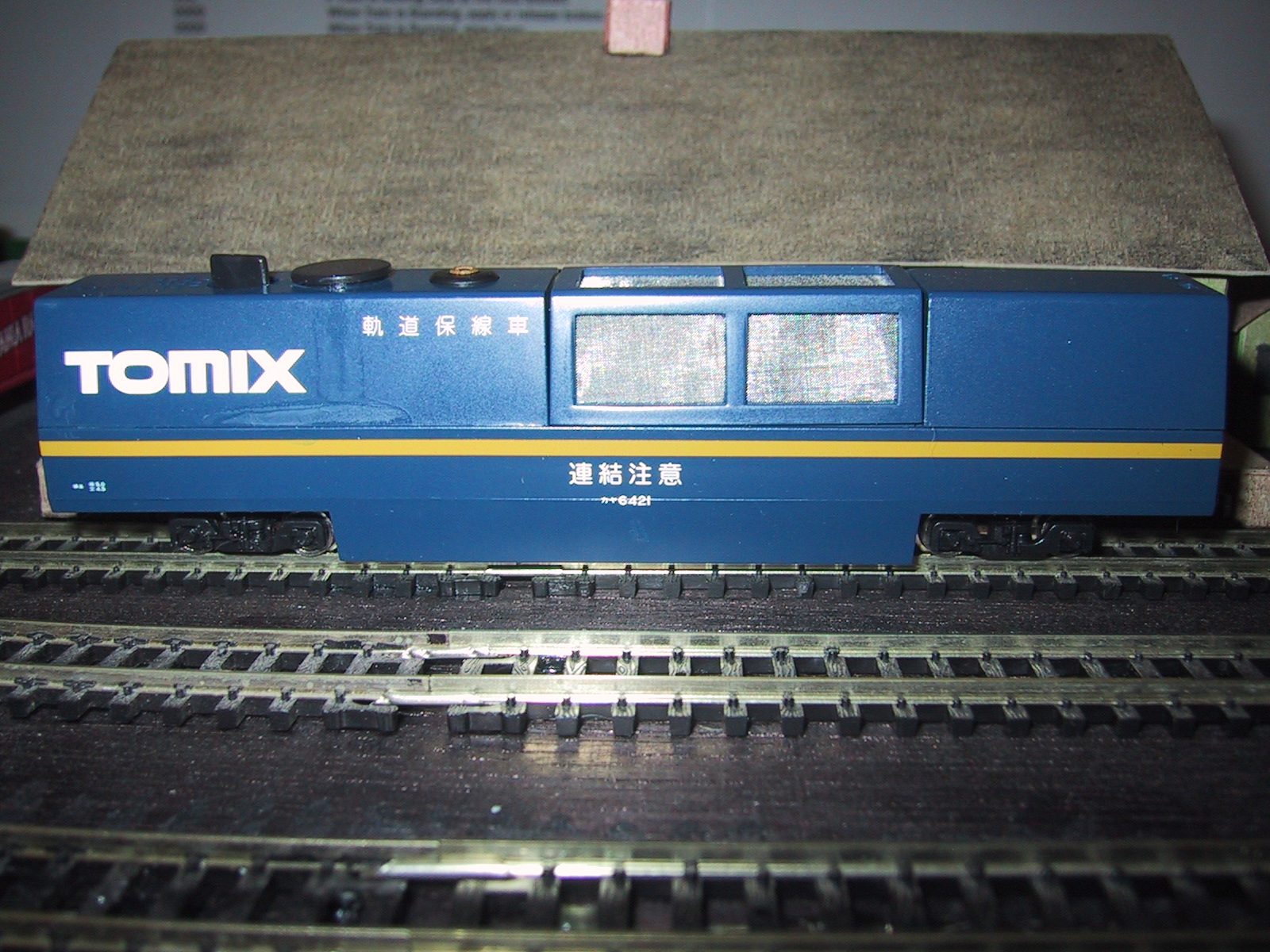

TOMIX Track Cleaner























SV Divider line

New

PROJECTS

1> I am learning how to use my new TOMIX Track Cleaning Car (That's not the easiest thing to do when the instructions are mostly in Chinese). A little thought and figuring out the pictures with the help of a half sheet of instructions in English.

2> I am in the thinking stage of designing and building a very small Grain handling Facility to go in at the end of the Foss Lumber track for loading outbound covered hoppers with locally grown grain.

3> I'M Thinking... Toughest Project of all time...
