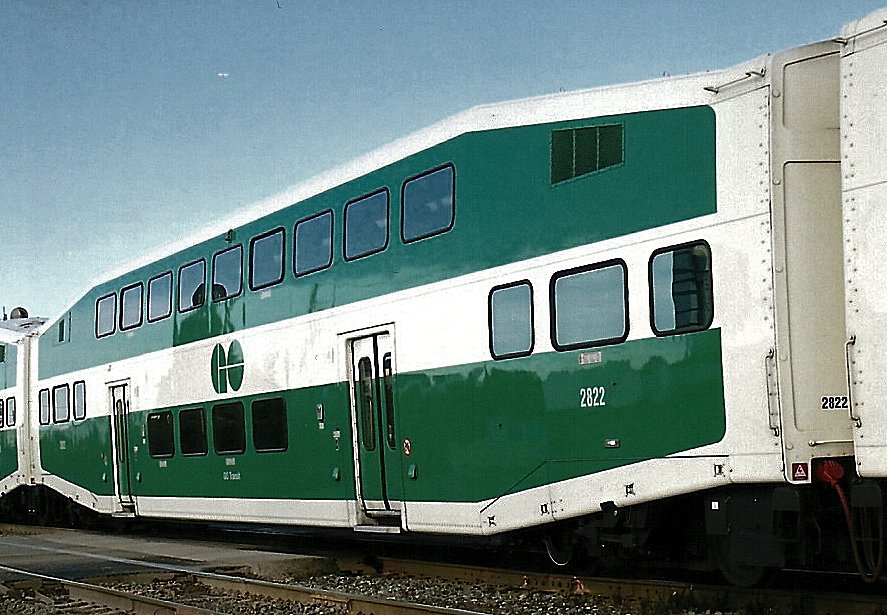

![](butgo2822.jpg) ![](butgo2841.jpg)
Click to enlarge |
BI-LEVEL DATA SHEET |
DATA | BI-LEVEL SERIES IX (BL9) |
Builder | Bombardier |
QUANTITY | 58 |
ROAD #s | 2800-2814 (2011-12) 2815-2857 (2013-15) |
Yr Purchased | See above in Road #s |
Yr Rebuilt | ongoing upgrades (click Car Roster Details) |
Weight (lbs) | 117,000lbs |
Height | 15' 11" |
Width | 9' 10" |
Length | 85' |
Seat Capacity | 151 |
Lot Number | 20-NYA |
Maximum Safe Speed | 100mph |
Operating Speed | 84mph |
Average Mileage per car | NYA |
|
FUNDAMENTAL CAR STATS:
- CAR EXTERNAL:
- . first series with all smooth sided welded panels, non-riveted
- . four windows across bottom level (windows: 9-6-4)
- . one doors insetted
- . larger windows placed in all four doors
- . exterior protruding lights at doorways and light steps when doors opened (but subject to road damage)
- . larger emergency stickers

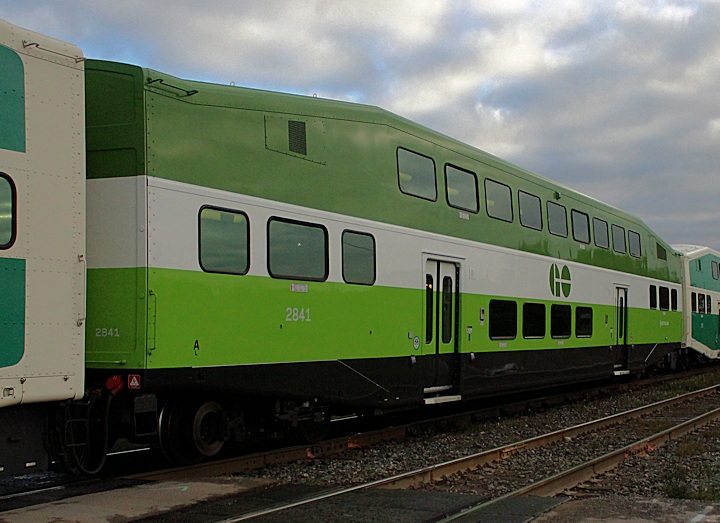

- . newer coaches in order arriving in new GO paint scheme
- CAR INTERNAL:
- . wheelchair accessible washroom on lower level (no longer on mid-level)
- . seats replace mid-level washrrom
- . window added where washroom once was located
- . brighter lighting
- . reflector tape in dark areas and walkway
- . tables and power outlets every second seat set on the intermediate, upper levels
- . door closing warning chime and lights
- . conductor controls on lower level at doorway (not second level station)
- . sliding window where conductor station once located replaced with standard tinted no-slide window
- . new emergency window handle and easier access for emergency exit
- . windows tinted green
|
