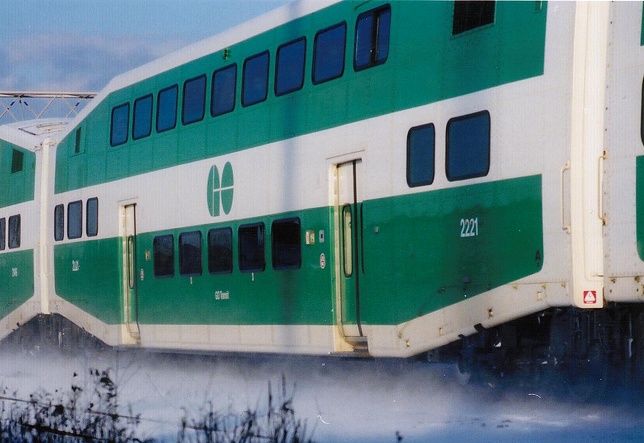

![©2003 RGBurnet](butgo2200series.jpg) Click to enlarge |
BI-LEVEL DATA SHEET |
DATA | BI-LEVEL SERIES III |
Builder | UTDC-Lavalin |
QUANTITY | 54 |
ROAD #s | 2200-2253 |
Yr Purchased | 1988-9 |
Yr Rebuilt | Click for details |
Weight (lbs) | 112000 |
Height | 15' 11" |
Width | 9'10" |
Length | 85' |
Seat Capacity | 162 |
Lot Number | 20-046 |
Maximum Safe Speed | 100mph |
Operating Speed | 84mph |
Average Mileage per car | 40,000 |
|
FUNDAMENTAL CAR STATS (when new):
- exterior riveted side panels
- 9 upper-level windows, 5/6 mezz-level windows, 5 lower level windows (9-5-5 / 9-6-5)
- washroom, mezz-level, A end only
- main power 575V, 3 phase, 60Hz
- 60 Hz convenience outlets
- public/private address system via conductor station
- cutout cocks moved to left side
- Circuit Breaker Panel modified more extensively by GO to include:
- battery charger, dampers, emergency blower
- battery storage monitor
- crankcase heater, no transformer
- modified to include 'safety strip' alarm system
- improved safety exit windows and roof top cutout lines
- wheel slip control system
- antifreeze protection added to drinking water mechanics
- improved interior
|
