GO's 2100 Bi-Levels
GO Transit - BI-LEVEL STATS - 2100 Series Commuter Cars
| 2000 Series | 2100 Series | 2200 Series | 2300 Series | 2400 Series | 2500 Series | 2600 Series | 2700 Series | 2800 Series |
| GO Coach Index | Main GO MOTIVE POWER Page |
©2003 RGBurnet

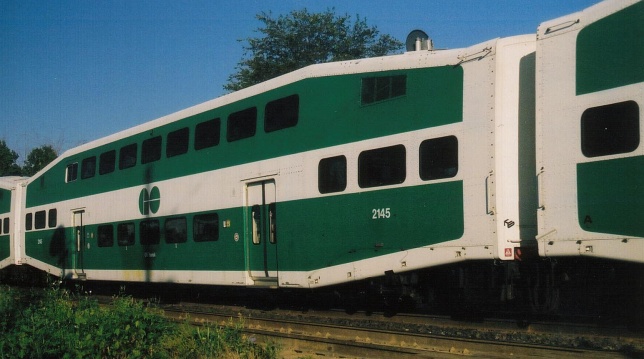

Click to enlarge
BI-LEVEL DATA SHEET
DATABI-LEVEL SERIES II
BuilderHawker-Siddeley
QUANTITY56
ROAD #s2100-2155
Yr Purchased1982-3
Yr RebuiltClick for details
Weight (lbs)109000
Height15' 11"
Width9' 10"
Length85'
Seat Capacity162
Lot Number20-037
Maximum Safe Speed100mph
Operating Speed84mph
Average Mileage
per car
40,000
(in 1978, 65,000)
FUNDAMENTAL CAR STATS (when new):

  • exterior riveted side panels
  • 9 upper-level windows, 5/6 mezz-level windows, 5 lower level windows (9-5-5 / 9-6-5)
  • washroom, mezz-level, A end only
  • main power 575V, 3 phase, 60Hz
  • 60 Hz convenience outlets
  • public/private address system via conductor station
  • cutout cocks moved to left side
  • Circuit Breaker Panel includes:
    • battery charger, dampers, emergency blower
    • no battery status monitor
    • crankcase heater, no transformer
    • modified to include 'safety strip' alarm system
  • improved safety exit windows and roof top cutout lines
  • improved interior
