Under The F59PH GO UNDER THE HOOD

Under The F59PH GO UNDER THE HOOD - RGBurnet

This is an interactive image map: a) mouse-over a highlighted coloured area for an actual photograph of the component b) for a brief explanation of the component, click on the Quick Links Best Viewed in IE6.x or better, JavaScript enabled at 1024*768 colour resolution \|\| Main RGB "GO Motive Power Site" \|\|
	Photograph and Text Quick Links: [ Prime Mover - Open/Closed \| Lube, Oil, Water ] [ Head End Power \| Dynamics \| Sight Glasses \| Layover Heater \| Air Compressor ] [ Govenor \| Turbo Exhaust Stack \| Layover Water \| Rear Maintenance Door \| Radiator Grill (Internal) \| Main Generator ] [ To 'Inside The Cab' \| To 'Cab Rear Panels' \| To 'Front Pilot Details' \| To 'Multiple Unit (MU) Cable' ]

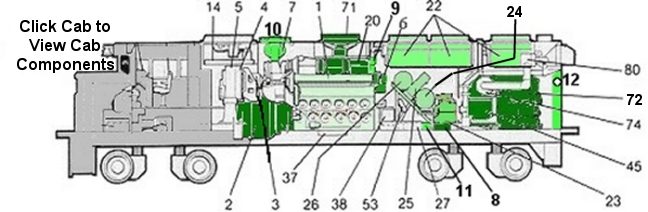

	Schematic Numeric Index [ 14 - Inertial Filter \| 5 - Traction Motor Blower \| 4 - Generator/Alternator Blower \| 10 - Engine Exhaust Silencer ] [ 7 - Turbo Exhaust Silencer \| 1 - Primer Mover \| 71 - Dynamic Brake Fan \| 20 - Exhaust Manifold ] [ 9 - Govenor \| 6 - Sight Glasses \| 22 - Radiators \| 24 - Lube Oil Filter Tank ] [ 80 - Air Cleaner \| 12 - Rear Access Door \| 72 - Head End Power \| 74 - HEP Silencer & Exhaust ] [ 45 - HEP Generator \| 23 - Air Compressor \| 8 - Layover Heater \| 11 - Layover Water ] [ 27 - Traction Motor Air Duct \| 25 - Lube Oil Cooler \| 53 - Primary Fuel Filters \| 38 - Lube Oil Strainer ] [ 26 - Main Engine Water Tank \| 37 - Oil Pan \| 3 - Auxilliary Generator \| 2 - Main Generator ]
