F59PH Air Compressor
©2004 RGBurnet

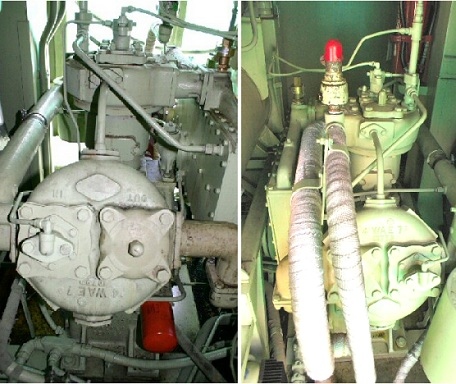

Air Compressor

Maker: Gardner Denver
Model: WLNA9AN
Type: 2 stage
# of Cylinders = 3
Main Reservoir Safety Value Pressure Setting = 1200kPa 175PSI

It is driven by a drive shaft directly coupled to the engine crankshaft
It supplies the necessary air pressure for the brakes and other pneumatic devices.

Pneumatic Brake: 26LU-L
Dynamic Brake Grid Current: 700 Amps
NOTE: Pneumatic and Dynamic Brakes are blended together
