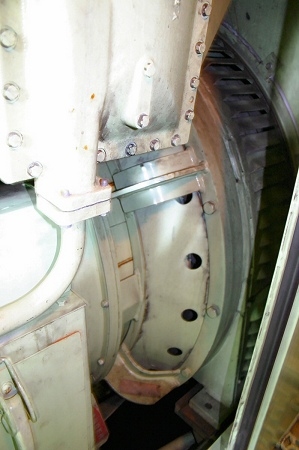

F59PH Main Generator
©2004 RGBurnet
Main Generator Assembly AR15/CA5A
Traction Alternator AR15WBC
Number of Poles = 10
NominalRectified Voltage 600VDC
Maximum Continuous Current Rating: 4680Amps
Excitation Alternator: CA5A
Nominal Voltage: 230 VAC
Number of Poles = 16
Frequency at 900RPM: 120Hz
Auxiliary Generator
Delco Products
Model: A-8589
Voltage Rectified: 74 VDC
Rating: 18Kw
This component is driven by the engine gear train at three times engine speed
Its rectified 55 VAC output provides the 74 VDC current to excite the excitation alternator and supply power for the the control circuits
