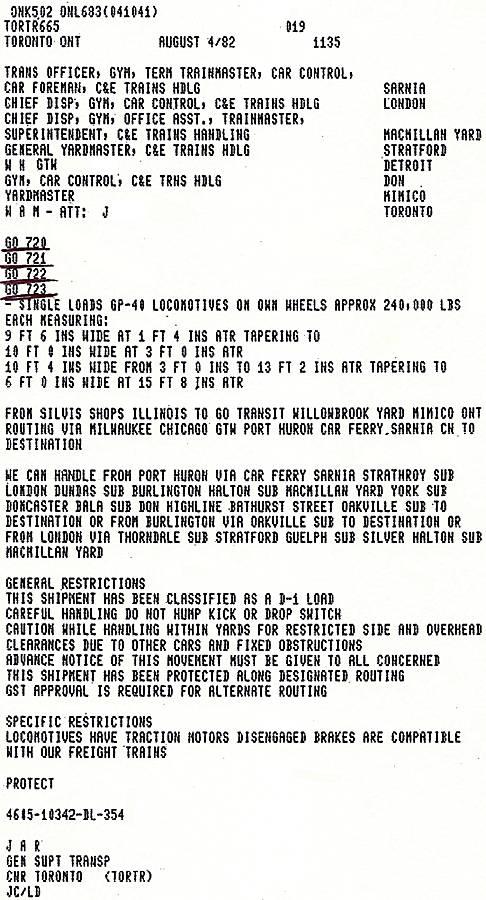

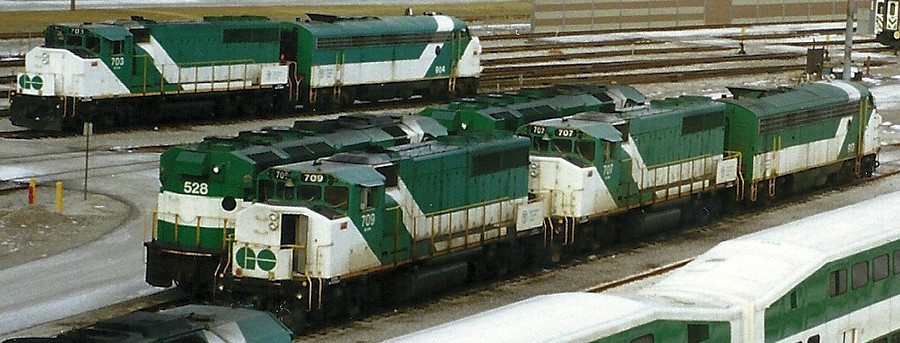

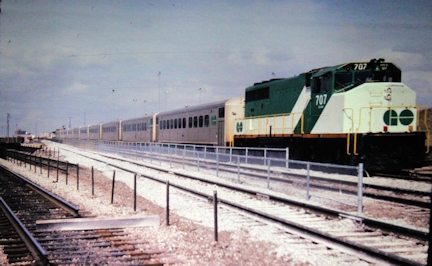

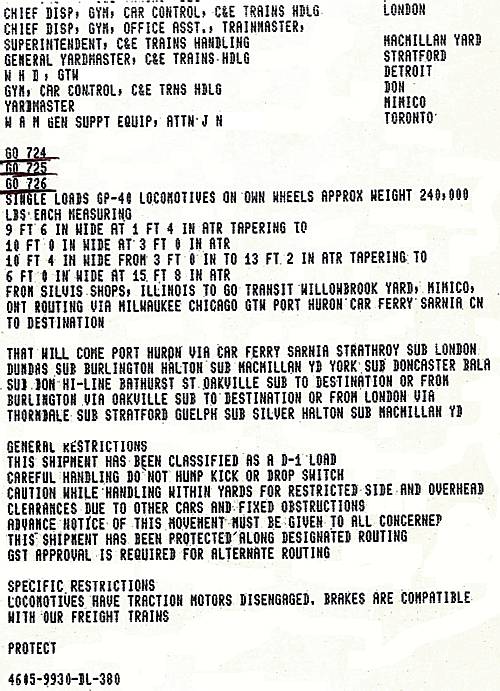

| 500-515 Stats | 520-568 Stats | 600 Stats | 800 Stats | 900 Stats | | CN Dispatcher Memo RE: Inital Shipping GO 720, 721, 722, 723 | CN Dispatcher Memo RE: Inital Shipping GO 724, 725, 726 | GO 707 Scarborough Jct Mar 1979 (Pre-Ditch Lights) |
UNIT # | 700 | 701 | 702 | 703 |

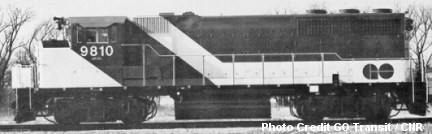

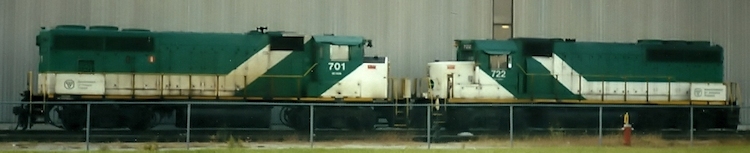

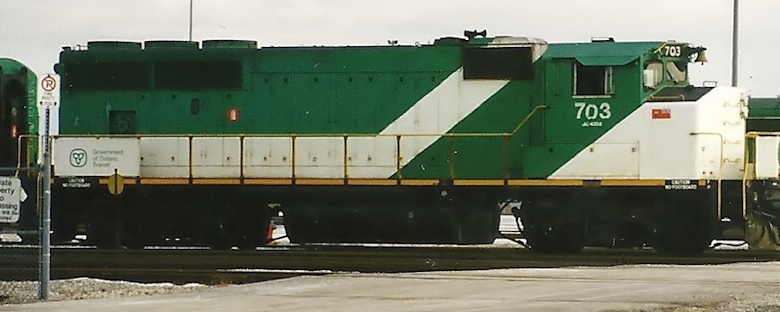

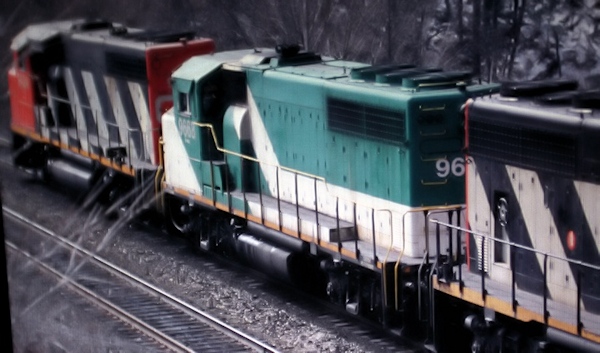

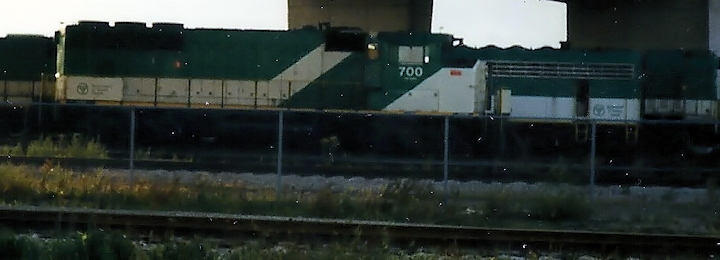

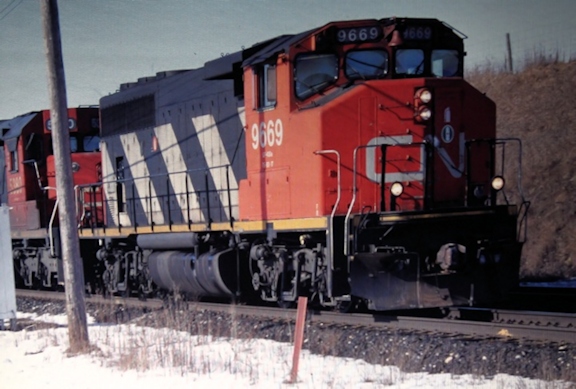

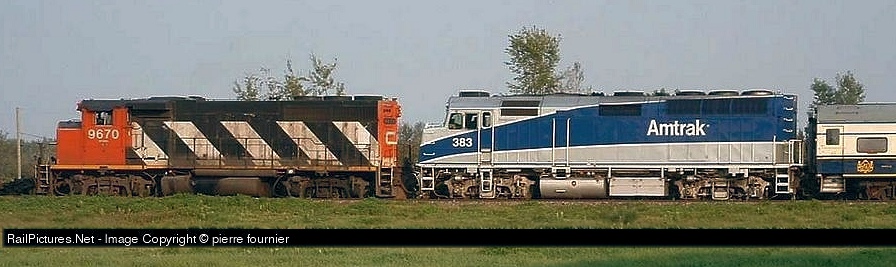

RENUMBERED TO | 1973: 9808 1975: 700 (Pix) 1991: CNR 9668 (Pix) | 1973: 9809 1975: 701 (Pix) 1991: CNR 9669 (Pix) | 1973: 9810 (Pix) 1975: 702 (Pix) 1991: CNR 9670 (Photo Credit Pierre Fournier) | 1973: 9811 1975: 703 (Pix) 1991: to Tri-Rail Miami, Florida ?: to Aberdeen Carolina & Western - leased by TBRX, North Carolina |
MODEL CLASS | GP40-2(W) reclassed 8/1/74 GRE-430c (original GRE-30c) / GO class:GC-430b | GP40-2(W) reclassed 8/1/74 GRE-430c (original GRE-30c) / GO class:GC-430b | GP40-2(W) reclassed 8/1/74 GRE-430c (original GRE-30c) / GO class:GC-430b | GP40-2(W) reclassed 8/1/74 GRE-430c (original GRE-30c) / GO class:GC-430b |
H.P. | 3000 | 3000 | 3000 | 3000 |
BUILT | Dec 12 1973 | Dec 12 1973 | Dec 12 1973 | Dec 12 1973 |
BUILDER NUMBER / ORDER # | DD A-2938 / C-361 | DD A-2939 / C-361 | DD A-2940 | DD A-2941 / C-361 |
WEIGHT | 258,000 | 258,000 | 258,000 | 258,000 |
GEAR RATIO | 59:18 | 59:18 | 59:18 | 59:18 |
TRUCKS | B-B | B-B | B-B | B-B |
SPECIAL FEATURES | Click update link:GO700s / ACPU Update engine: 16-645-E3 - Brake Equipmt: 26LUM/Single Show Brakes | Click update link:GO700s / ACPU Update engine: 16-645-E3 - Brake Equipmt: 26LUM/Single Show Brakes | Click update link:GO700s / ACPU Update engine: 16-645-E3 - Brake Equipmt: 26LUM/Single Show Brakes | Click update link:GO700s / ACPU Update engine: 16-645-E3 - Brake Equipmt: 26LUM/Single Show Brakes |
DISPOSITION |

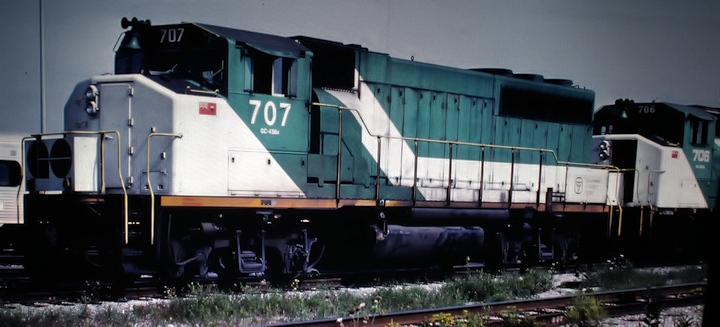

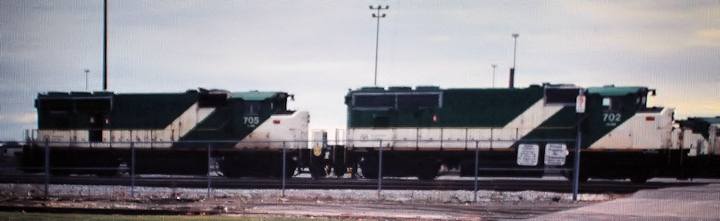

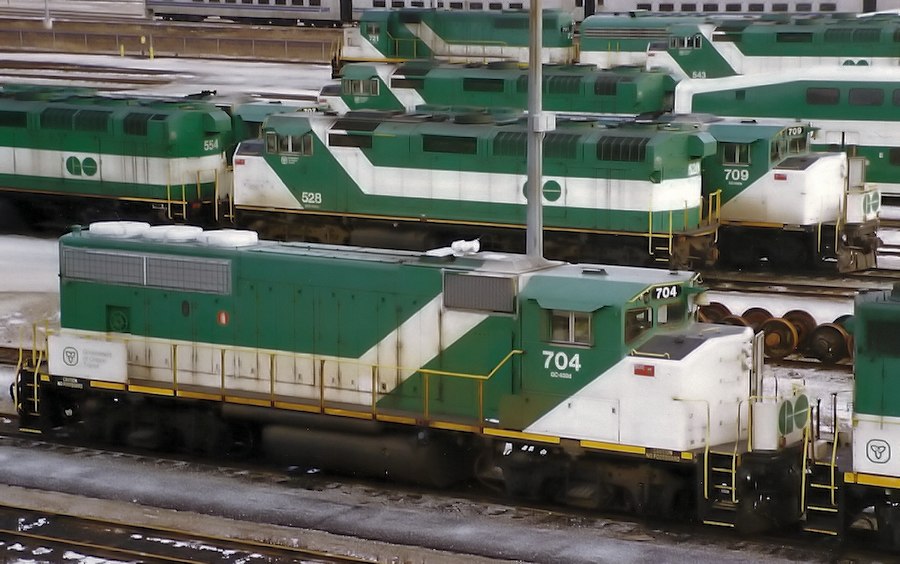

UNIT # | 704 | 705 | 706 | 707 |

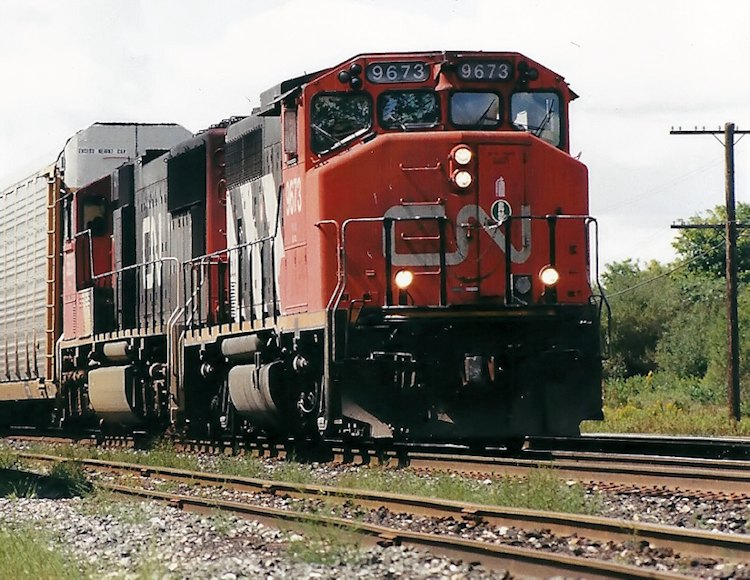

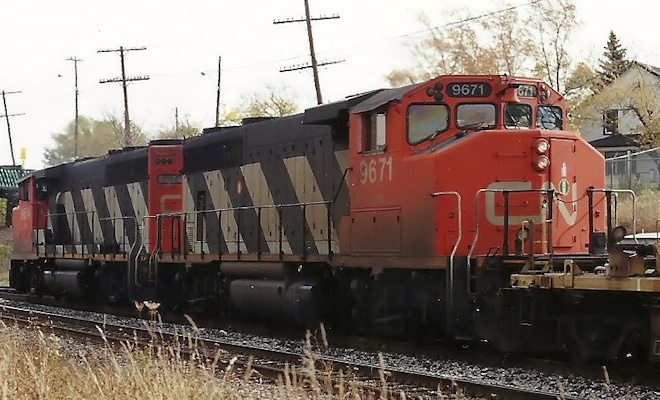

RENUMBERED TO | 1973: 9812 1975: 704 (Pix) 1991: CNR 9671 (Pix) | 1973: 9813 1975: 705 (Pix) 1991: CNR 9672 (Pix) | 1973: 9814 1975: 706 (Pix) 1991: CNR 9673 (Pix) | 1975: 707 (Pix) 1991: CNR 9674 (Pix) |
MODEL CLASS | GP40-2(W) reclassed 8/1/74 GC-430c (no previous) | GP40-2(W) reclassed 8/1/74 GC-430c (no previous) | GP40-2(W) reclassed 8/1/74 GC-430c (no previous) | GP40-2(W) GC-430d |
H.P. SPEED | 3000 83 | 3000 83 | 3000 83 | 3000 83 |
BUILT | Nov 1974 | Nov 1974 | Nov 1974 | 1975 |
BUILDER NUMBER ORDER # | GMD A-3163 / C-375 | GMD A-3164 / C-375 | GMD A-3165 / C-375 | GMD A-3306 / C-380 |
WEIGHT | 258,000 | 258,000 | 258,000 | 258,000 |
TRUCKS | B-B | B-B | B-B | B-B |
SPECIAL FEATURES | Click update link:GO700s / ACPU Update engine: 16-645-E3 - Brake Equipmt: 26LUM/Single Show Brakes | Click update link:GO700s / ACPU Update engine: 16-645-E3 - Brake Equipmt: 26LUM/Single Show Brakes | Click update link:GO700s / ACPU Update engine: 16-645-E3 - Brake Equipmt: 26LUM/Single Show Brakes | Click update link:GO700s / ACPU Update engine: 16-645-E3 - Brake Equipmt: 26LUM/Single Show Brakes |

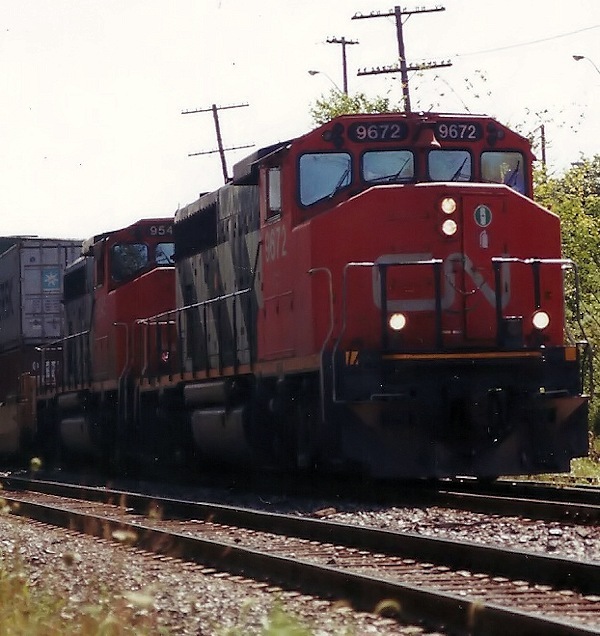

DISPOSITION | to CNR 1991 to road #9671 . used on American Orient Express 1998 | to CNR 1991 to road #9672 . used on American Orient Express 1998 | . 2nd GO unit to receive ditch lights May 84 . involved in 05 Sep 1989 Oakville Sub accident proving stability & safety of bi-level cars . to CNR 1991 to road # 9673 | . 3rd unit to recive ditch lights Oct 84 .to CNR 1991 to road # 9674 |

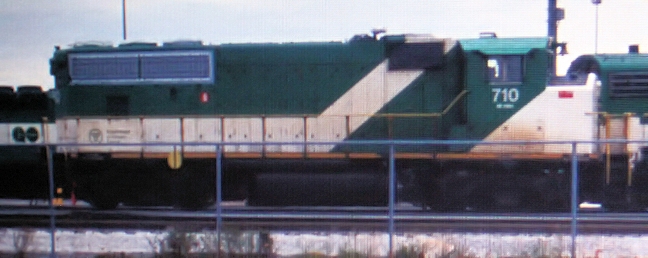

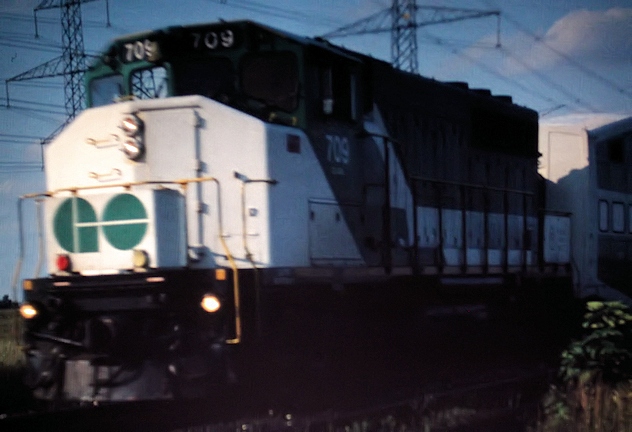

UNIT # | 708 | 709 | 710 | 720 |

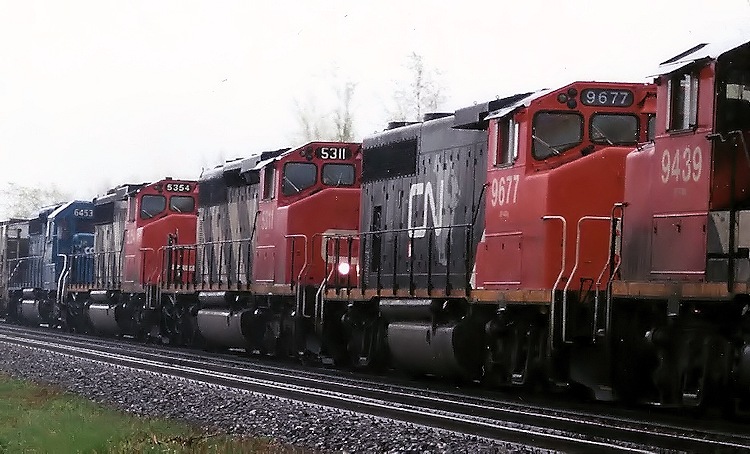

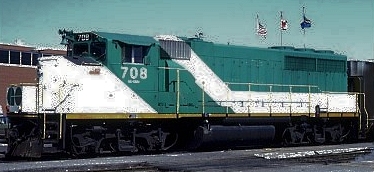

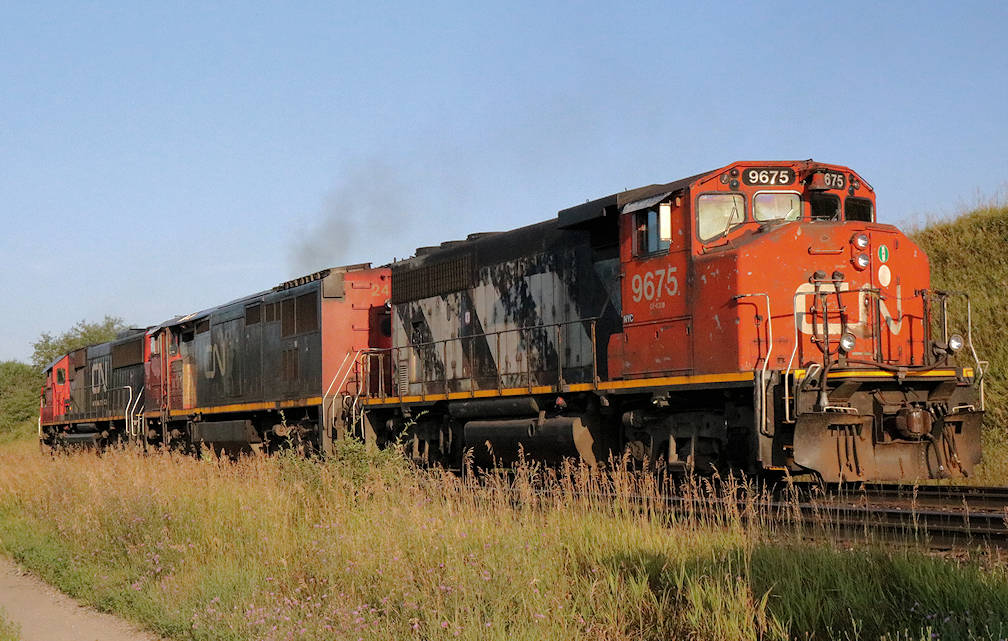

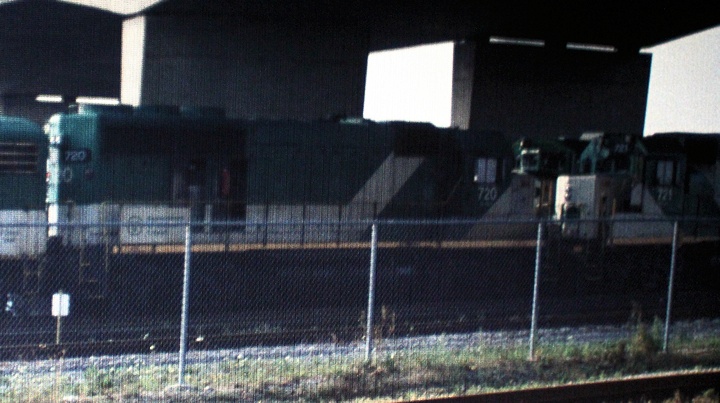

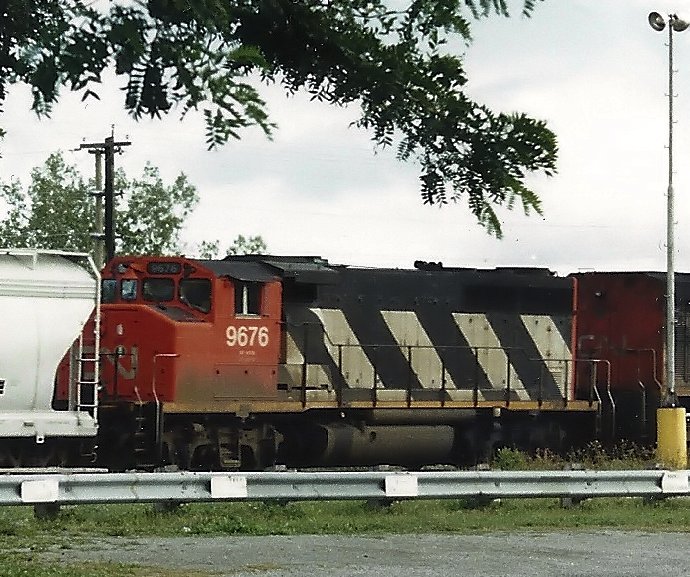

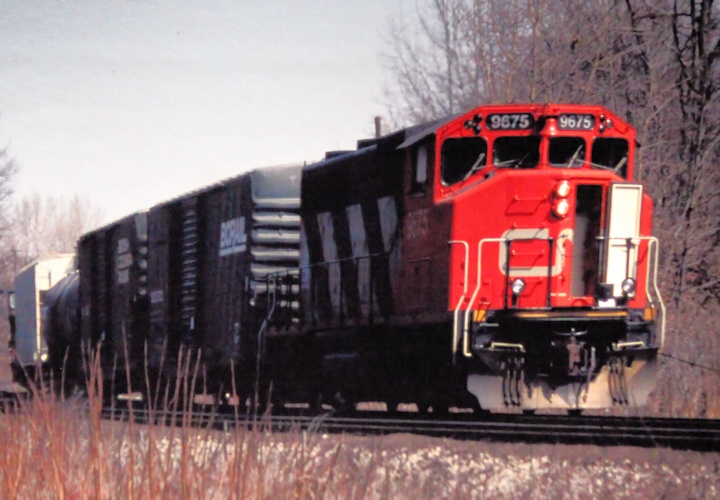

RENUMBERED TO | 1975: 708 (Pix) 1991: CNR 9675 (Pix) 2019: CNR 9675 (Pix) (with CN 5470 & CN 2444) | 1975: 709 1991: CNR 9676 (Pix) | 1975: 710 (Pix) 1991: CNR 9677 (Pix) | 1967(8): Rock Island 3005, RI 374 acquired GO 1982: 720 |
MODEL CLASS | GP40-2(W) GC-430d (no previous) | GP40-2(W) GC-430d (no previous) | GP40-2(W) GC-430d (no previous) | GP40-M-2 GC-430f |
H.P. SPEED | 3000 83 | 3000 83 | 3000 83 | 3000 83 |
BUILT | 1975 | 1975 | 1975 | 1967-8 |
BUILDER NUMBER / ORDER # | GMD A-3307 / C-380 | GMD A-3308 / C-380 | GMD A-3309 / C-380 | EMD 32600 / ? |
WEIGHT | 258,000 | 258,000 | 258,000 | 258,000 |
TRUCKS | B-B | B-B | B-B | B-B |
SPECIAL FEATURES | Click update link:GO700s / ACPU Update engine: 16-645-E3 - Brake Equipmt: 26LUM/Single Show Brakes | Click update link:GO700s / ACPU Update engine: 16-645-E3 - Brake Equipmt: 26LUM/Single Show Brakes | Click update link:GO700s / ACPU Update engine: 16-645-E3 - Brake Equipmt: 26LUM/Single Show Brakes | Click update link:GO700s / ACPU Update - engine: 16-645-E3 - Brake Equipmt: 26LM/Clasp Brakes |
DISPOSITION | to CNR 1991 to road # 9675 | to CNR 1991 to road # 9676 | to CNR 1991 to road # 9677 |
UNIT # | 721 | 722 | 723 | 724 |

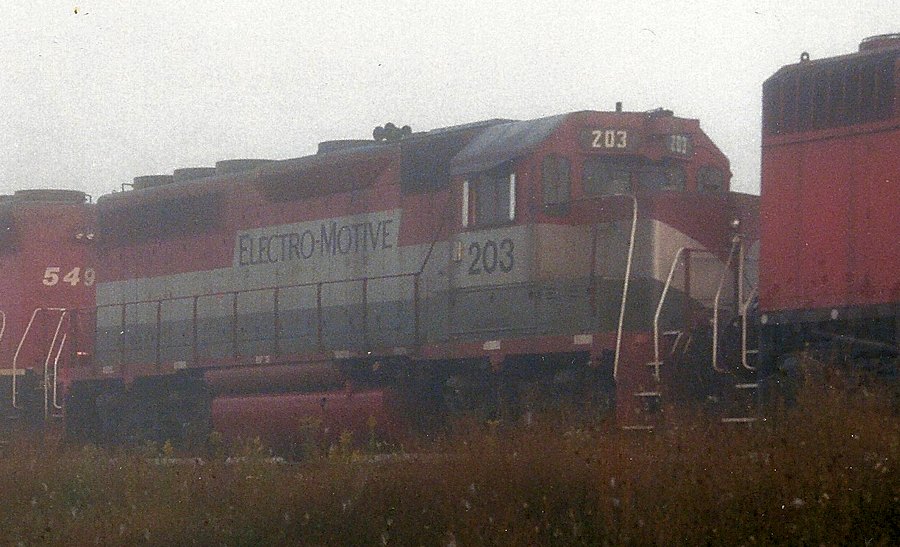

RENUMBERED TO | 1967(8): Rock Island 3002, RI 375 acquired GO 1982: 721 | 1967(8): Rock Island 3003, RI 376 acquired GO 1982: 722 | 1967(8): Rock Island 3001, RI 377 acquired GO 1982: 723 | 1967(8): Rock Island 3006, RI 379 acquired GO 1982: 724 |
MODEL CLASS | GP40-M-2 GC-430f | GP40-M-2 GC-430f | GP40-M-2 GC-430f | GP40-M-2 GC-430f |
H.P. SPEED | 3000 83 | 3000 83 | 3000 83 | 3000 83 |
BUILT | 1967-8 | 1967-8 | 1967-8 | 1967-8 |
BUILDER BUILDER NUMBER | EMD 32601 | EMD 32602 | EMD 32603 | EMD 32605 |
WEIGHT | 258,000 | 258,000 | 258,000 | 258,000 |
TRUCKS | B-B | B-B | B-B | B-B |
SPECIAL FEATURES | Click update link:GO700s / ACPU Update - engine: 16-645-E3 - Brake Equipmt: 26LM/Clasp Brakes | Click update link:GO700s / ACPU Update - engine: 16-645-E3 - Brake Equipmt: 26LM/Clasp Brakes | Click update link:GO700s / ACPU Update - engine: 16-645-E3 - Brake Equipmt: 26LM/Clasp Brakes | Click update link:GO700s / ACPU Update - engine: 16-645-E3 - Brake Equipmt: 26LM/Clasp Brakes |
DISPOSITION |
UNIT # | 725 | 726 |

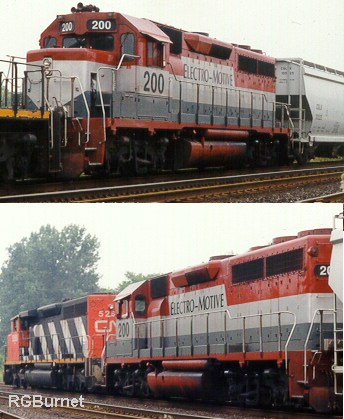

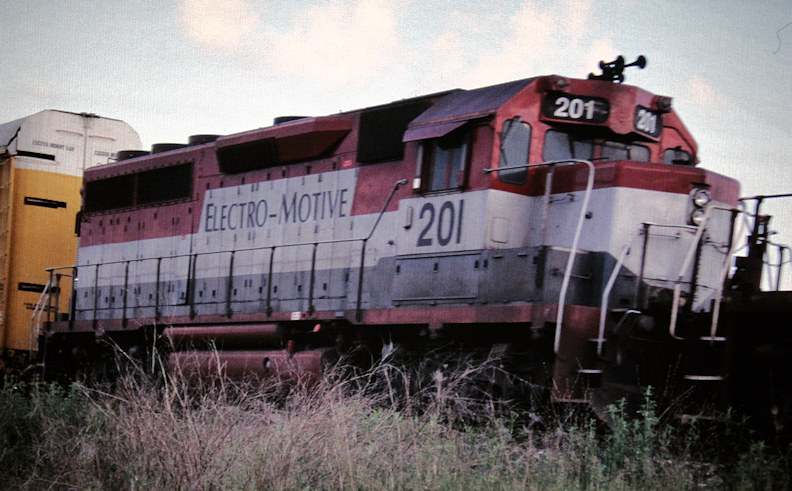

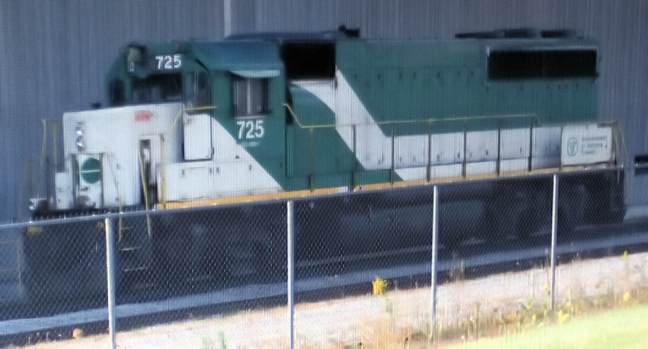

RENUMBERED TO | 1967(8): Rock Island 3004, RI 380 acquired GO 1982: 725 (Pix) | 1967(8): Rock Island 3000, RI 381 acquired GO 1982: 726 |
MODEL CLASS | GP40-M-2 GC-430f | GP40-M-2 GC-430f |
H.P. SPEED | 3000 83 | 3000 83 |
BUILT | 1967-8 | 1967-8 |
BUILDER BUILDER NUMBER | EMD 32606 | EMD 32607 |
WEIGHT | 258,000 | 258,000 |
TRUCKS | B-B | B-B |
SPECIAL FEATURES | Click update link:GO700s and ACPU Update - engine: 16-645-E3 - Brake Equipmt: 26LM/Clasp Brakes | Click update link:GO700s / ACPU Update - engine: 16-645-E3 - Brake Equipmt: 26LM/Clasp Brakes |
DISPOSITION |
