B&O Washington Branch
Modern day photo tour

Accompanying each photo below are:

Click a photo to see a larger view. Please send your comments and corrections to Steve.


Brief Historical Background: Vulcan Materials Rocky Sequel

Trackmobile 3050

Trackmobile 3050
Mile: 17.9 Date: Jan 2023
Ease: A View: E
Area: B T+:
Map: Ho 20 G 9, AA 5 E 9 Topographic Maps

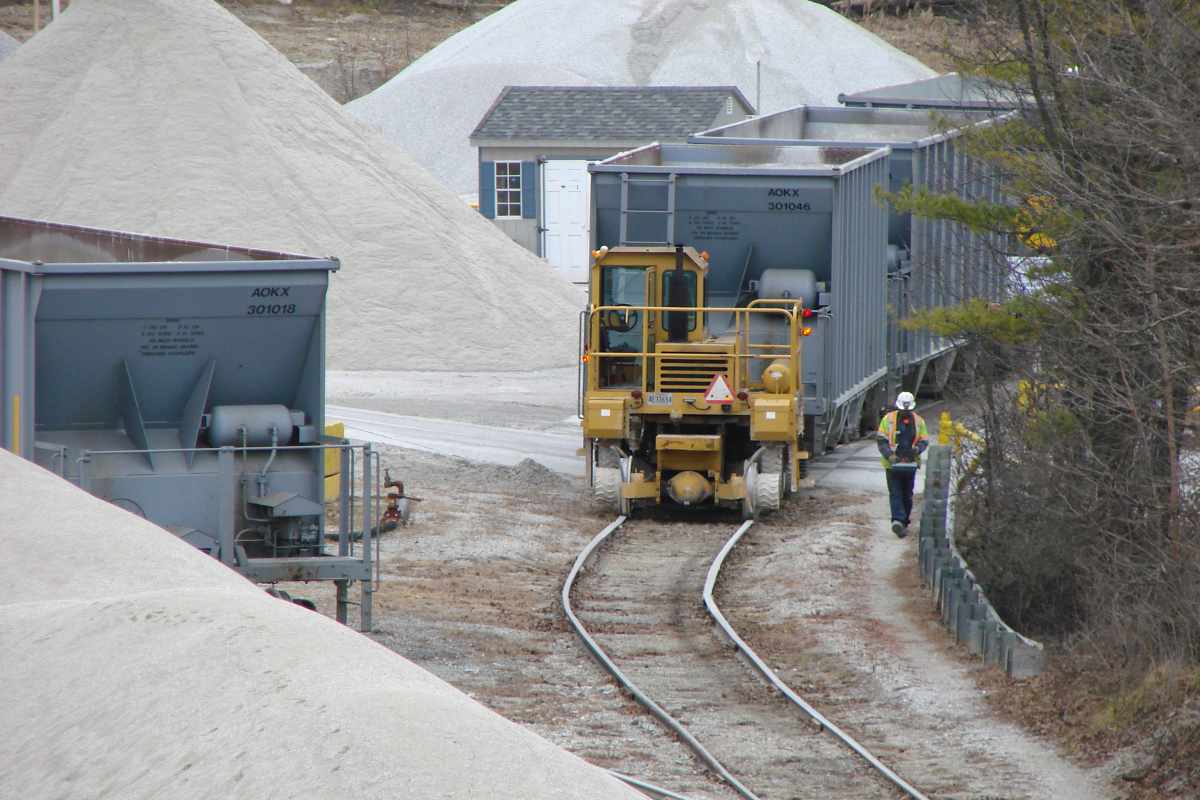

First up was this Trackmobile 3050. It may have been what was available on short notice.


Flyweight

Flyweight
Mile: 17.9 Date: Jan 2023
Ease: A View: E
Area: B+ T+:
Map: Ho 20 G 9, AA 5 E 9 Topographic Maps

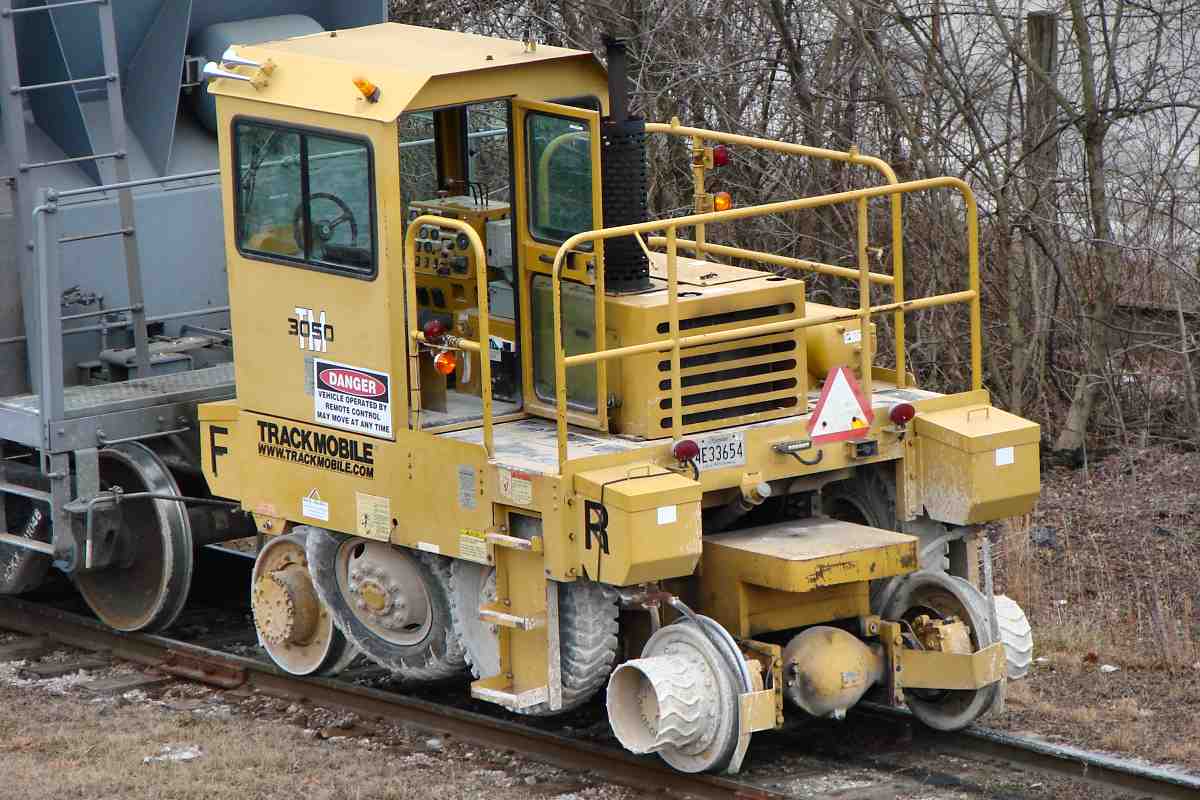

At 30,000 pounds, the Trackmobile 3050 is about 12% the weight of the U23B it replaced. It is powered by a four cylinder, turbo-charged, diesel engine.


Remote Control

Remote Control
Mile: 17.9 Date: Jan 2023
Ease: A- View: E
Area: B T+:
Map: Ho 20 G 9, AA 5 E 9 Topographic Maps

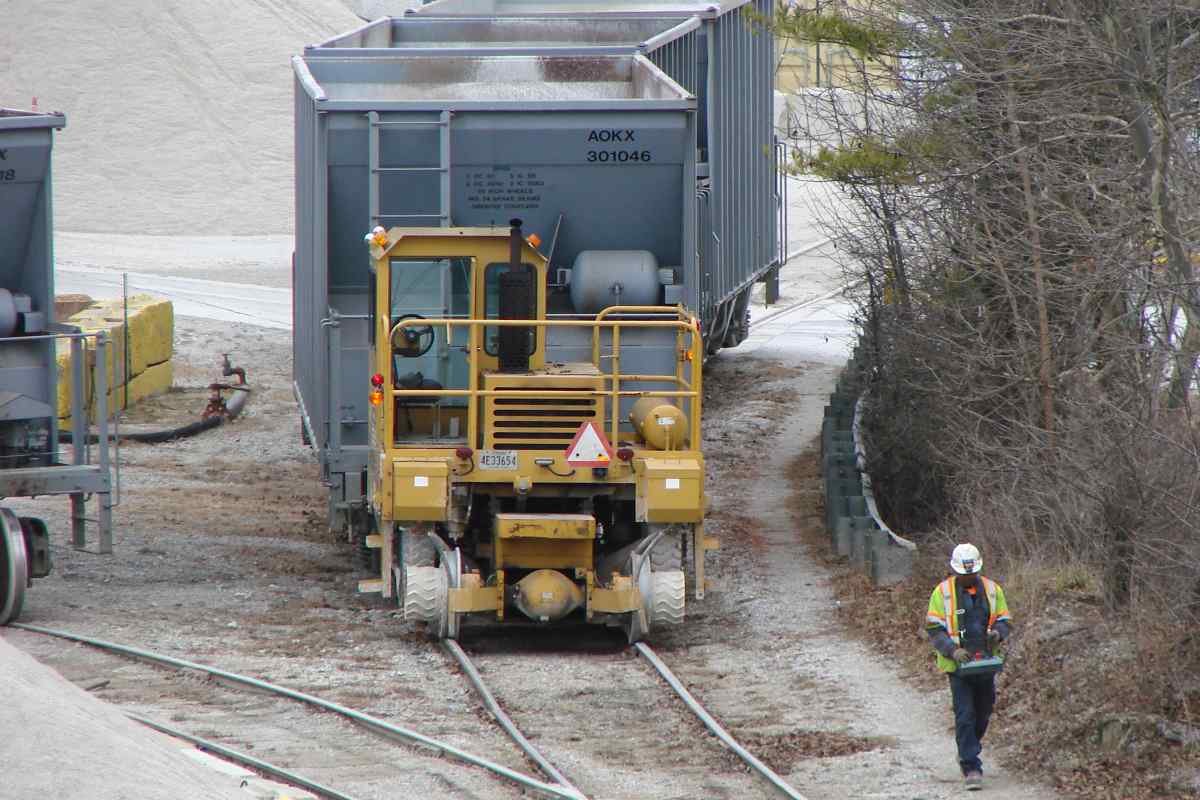

The Trackmobile can be operated remotely by the same worker who aligns track switches. NASA uses much larger Trackmobiles to move rockets onto launch pads.


Three

Three
Mile: 17.9 Date: Jan 2023
Ease: A View: E
Area: B T+:
Map: Ho 20 G 9, AA 5 E 9 Topographic Maps

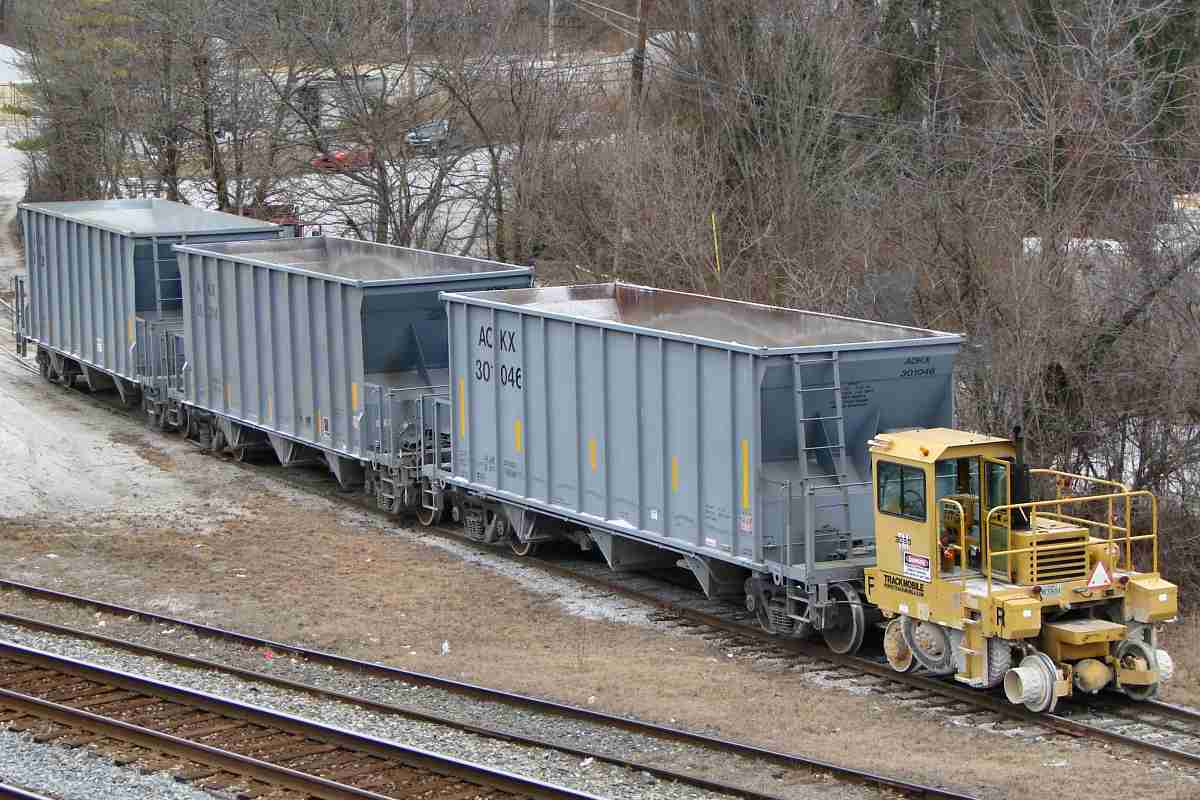

Each rocky hopper can weigh about 8 times as much as the Trackmobile 3050. VM often moves three hoppers at a time. The hoppers don't need to be lifted, of course, but rather rolled. A human can push a loaded hopper if the rolling resistance is low and footing good.


Tractive Effort

Tractive Effort
Mile: 17.9 Date: Jan 2023
Ease: A View: E
Area: B T+:
Map: Ho 20 G 9, AA 5 E 9 Topographic Maps

A motive unit's ability to push or pull is called its tractive effort, something largely determined by its weight, horsepower, and wheel traction. The Trackmobile's drive wheels are made of steel, while its rubber tires permit the unit to also operate off rails.


Backpedal

Backpedal
Mile: 17.9 Date: Jan 2023
Ease: A View: E
Area: B T+:
Map: Ho 20 G 9, AA 5 E 9 Topographic Maps

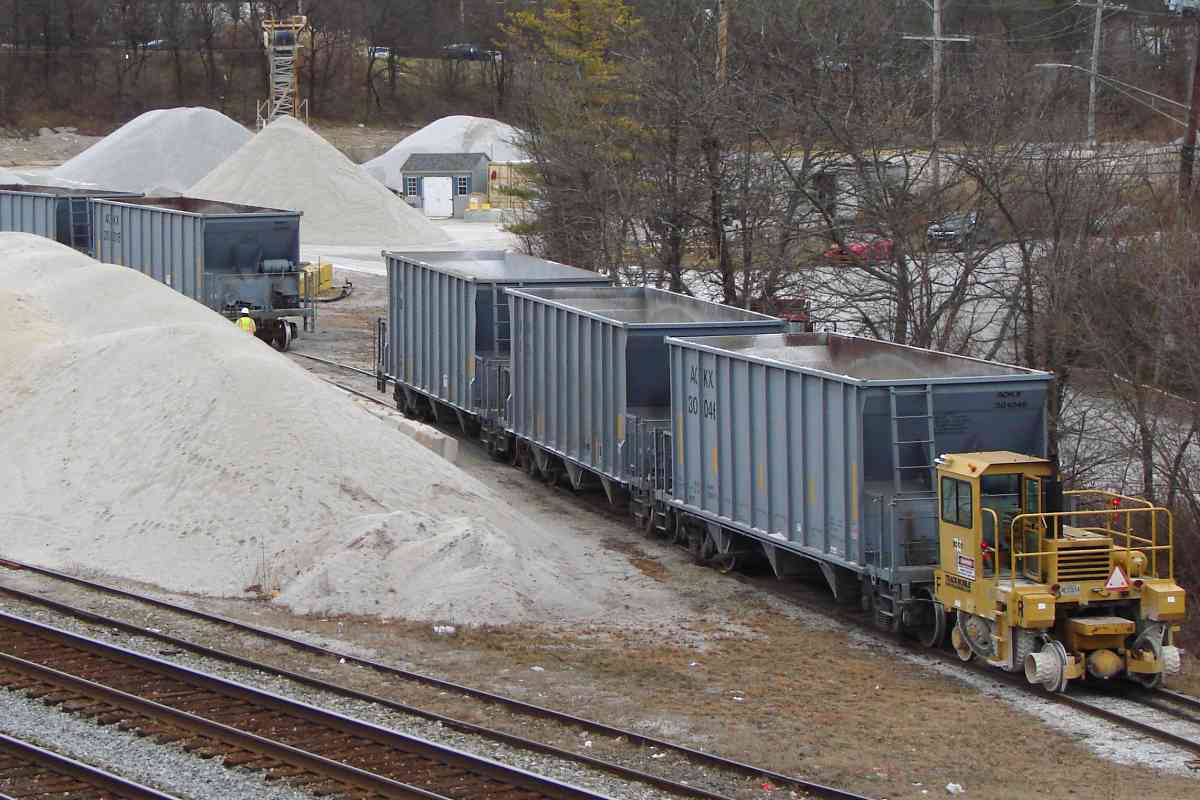

Here, emptied hoppers were being pushed into a line for pickup by CSX.


End of Round

End of Round
Mile: 17.9 Date: Jan 2023
Ease: A View: E
Area: B T+:
Map: Ho 20 G 9, AA 5 E 9 Topographic Maps

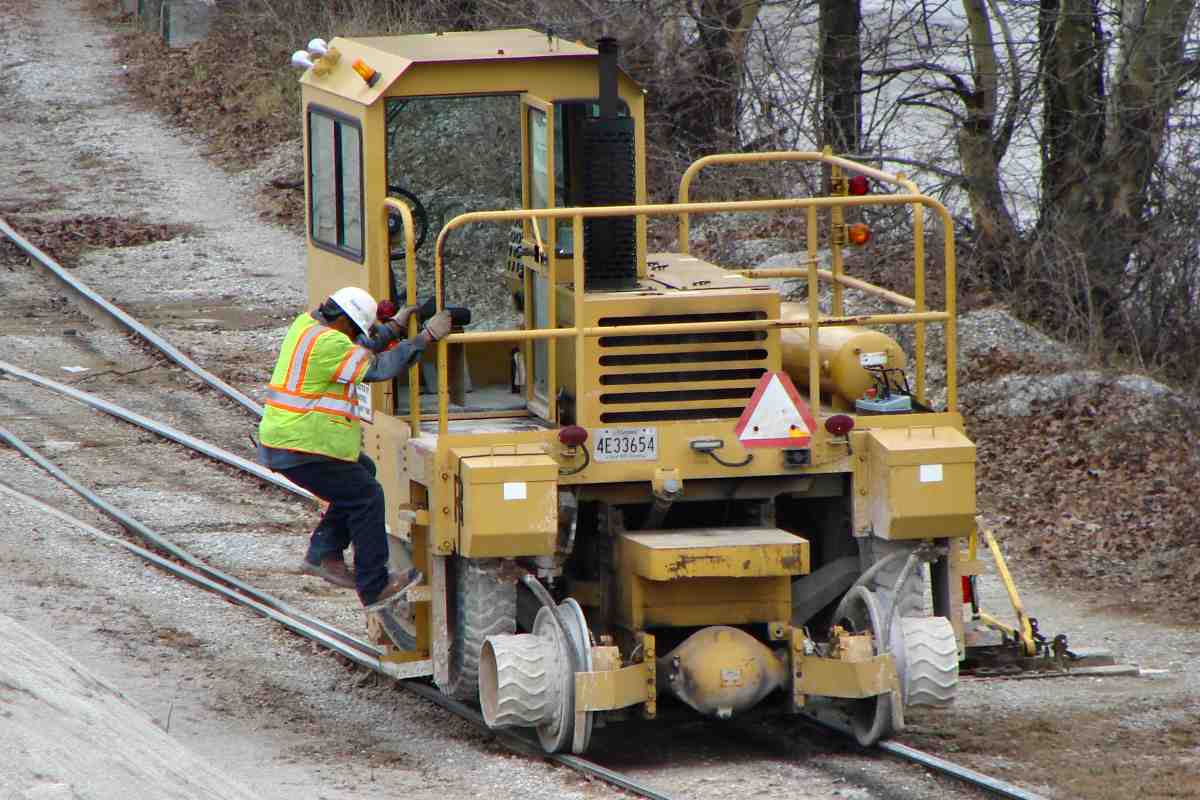

The worker climbs aboard upon completion of handling that day's delivery.


Testing

Testing
Mile: 17.9 Date: Jan 2023
Ease: A View: E
Area: B T+:
Map: Ho 20 G 9, AA 5 E 9 Topographic Maps

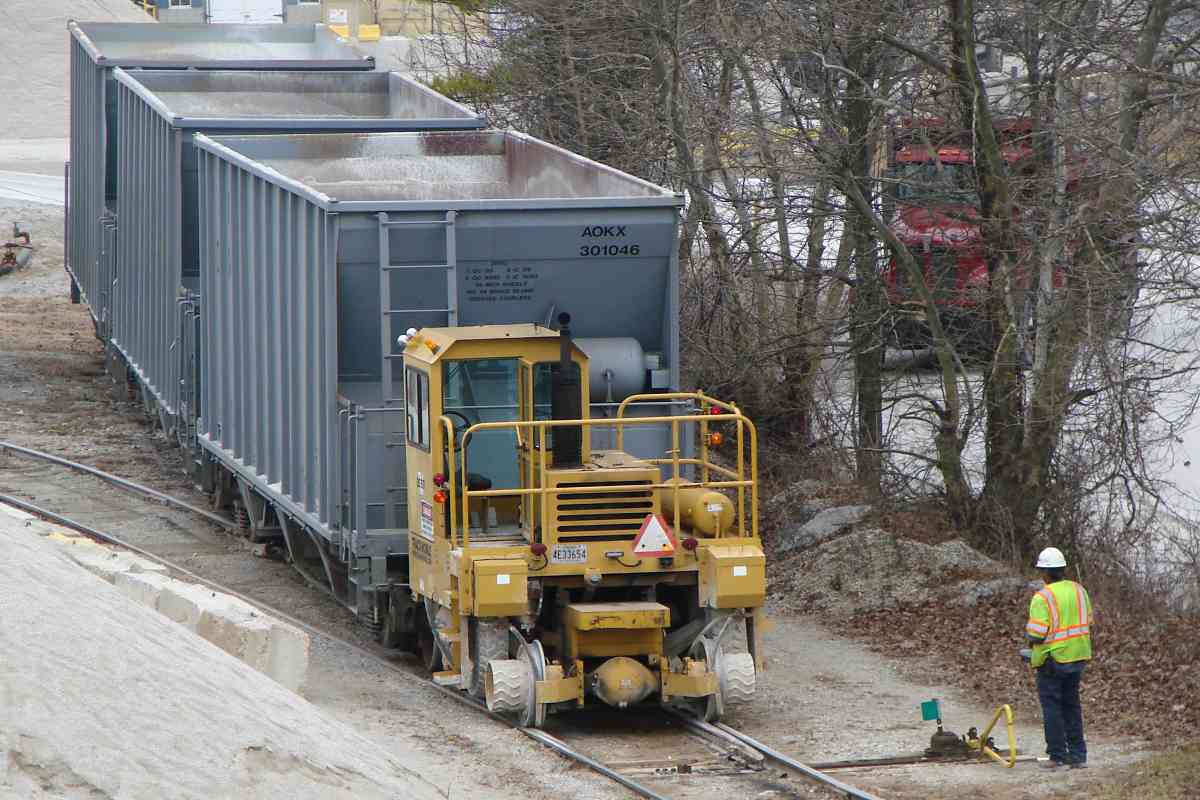

The 3050 Trackmobile apparently proved too light when rain slicked the rails. Two weeks after the delivery above, a worker was testing the unit at a switch, where it could be prone to wheel slip.


Challenger

Challenger
Mile: 17.9 Date: Feb 2023
Ease: A View: E
Area: B T+:
Map: Ho 20 G 9, AA 5 E 9 Topographic Maps

The smaller 3050 seemed to run and hide when a bigger Trackmobile challenged the following month.


Welterweight

Welterweight
Mile: 17.8 Date: Feb 2023
Ease: A View: NE
Area: B T+:
Map: AA 5 E 9, Ho 20 G 9 Topographic Maps

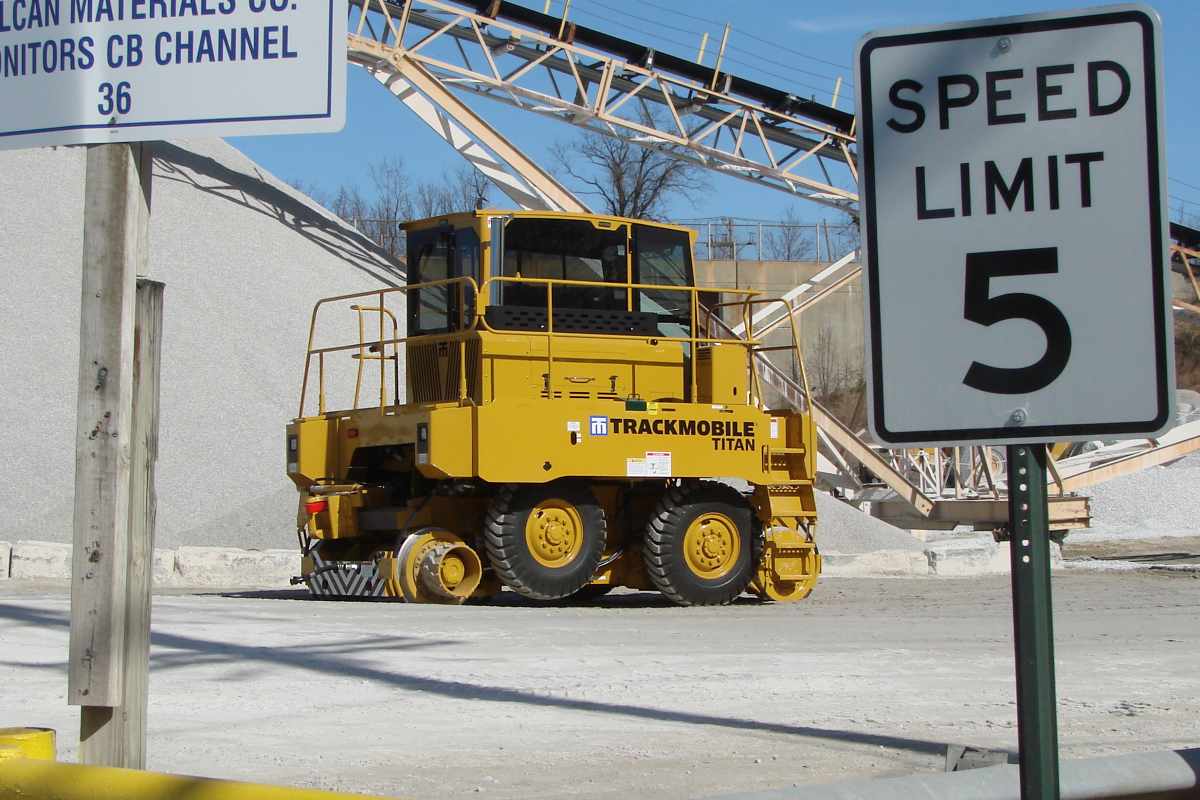

The Titan model packs almost twice the weight of the 3050, and more than twice the horsepower.

Even so, by April, both trackmobiles had left the ring...


Middleweight

Middleweight
Mile: 17.9 Date: Nov 2023
Ease: A View: E
Area: B T+:
Map: Ho 20 G 9, AA 5 E 9 Topographic Maps

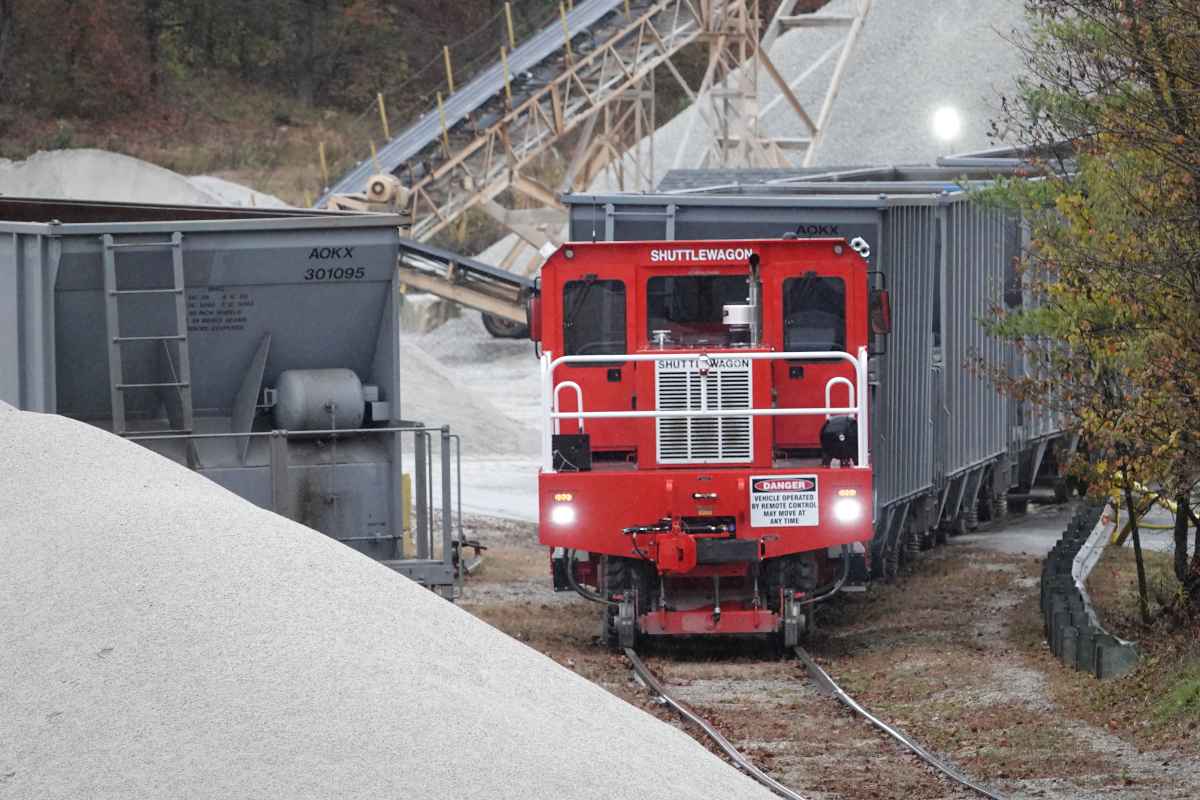

... because a blood-red Nordco Shuttlewagon had arrived with still more horsepower and about twice the weight of the Titan.


Contender

Contender
Mile: 17.9 Date: Feb 2024
Ease: A View: E
Area: B T+:
Map: Ho 20 G 9, AA 5 E 9 Topographic Maps

The Shuttlewagon was still on duty ten months later, so it would appear VM has found a unit that can go the distance.


Showing Off

Showing Off
Mile: 17.9 Date: Nov 2023
Ease: A View: E
Area: B T+:
Map: Ho 20 G 9, AA 5 E 9 Topographic Maps

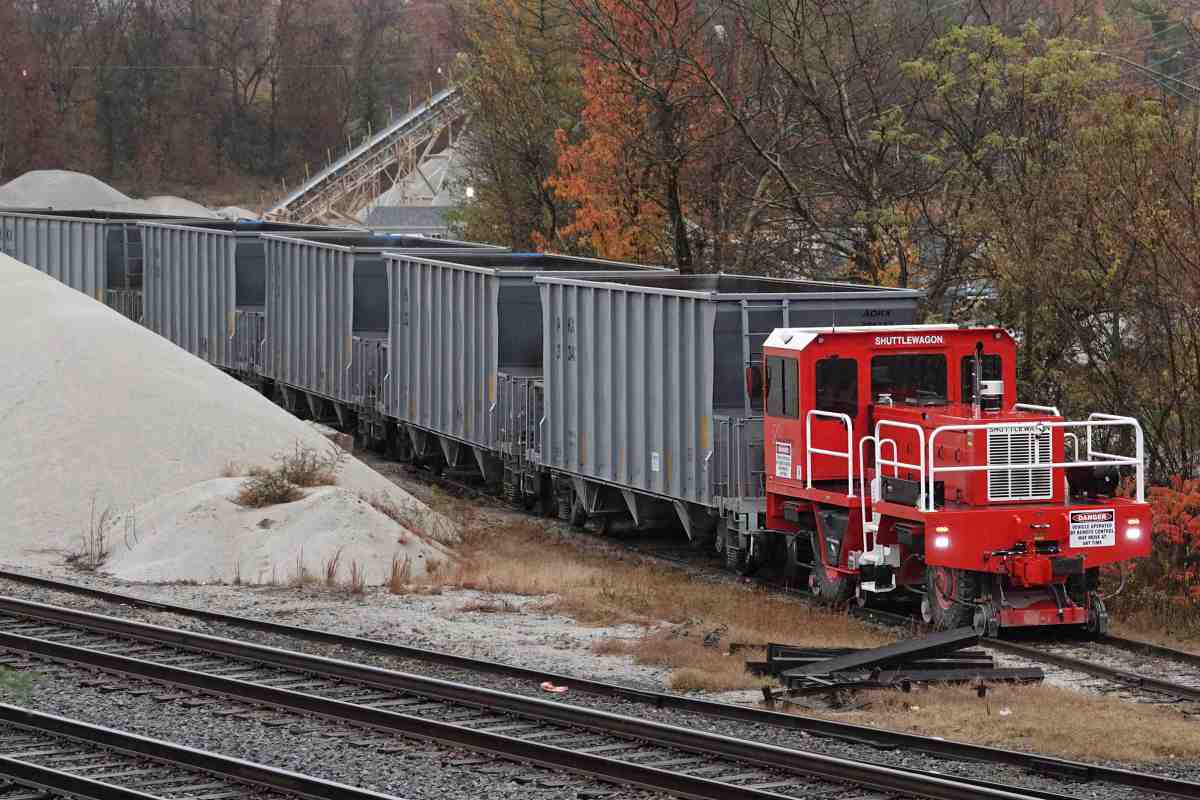

This sly machine can round-up four hoppers...


Sandboxes

Sandboxes
Mile: 17.9 Date: Nov 2023
Ease: A View: SE
Area: B T+:
Map: Ho 20 G 9, AA 5 E 9 Topographic Maps

... without breaking a sweat, though it has been known to drip sand onto the tracks.


Rubber Match

Rubber Match
Mile: 17.9 Date: Mar 2024
Ease: A View: SE
Area: B T+:
Map: Ho 20 G 9, AA 5 E 9 Topographic Maps

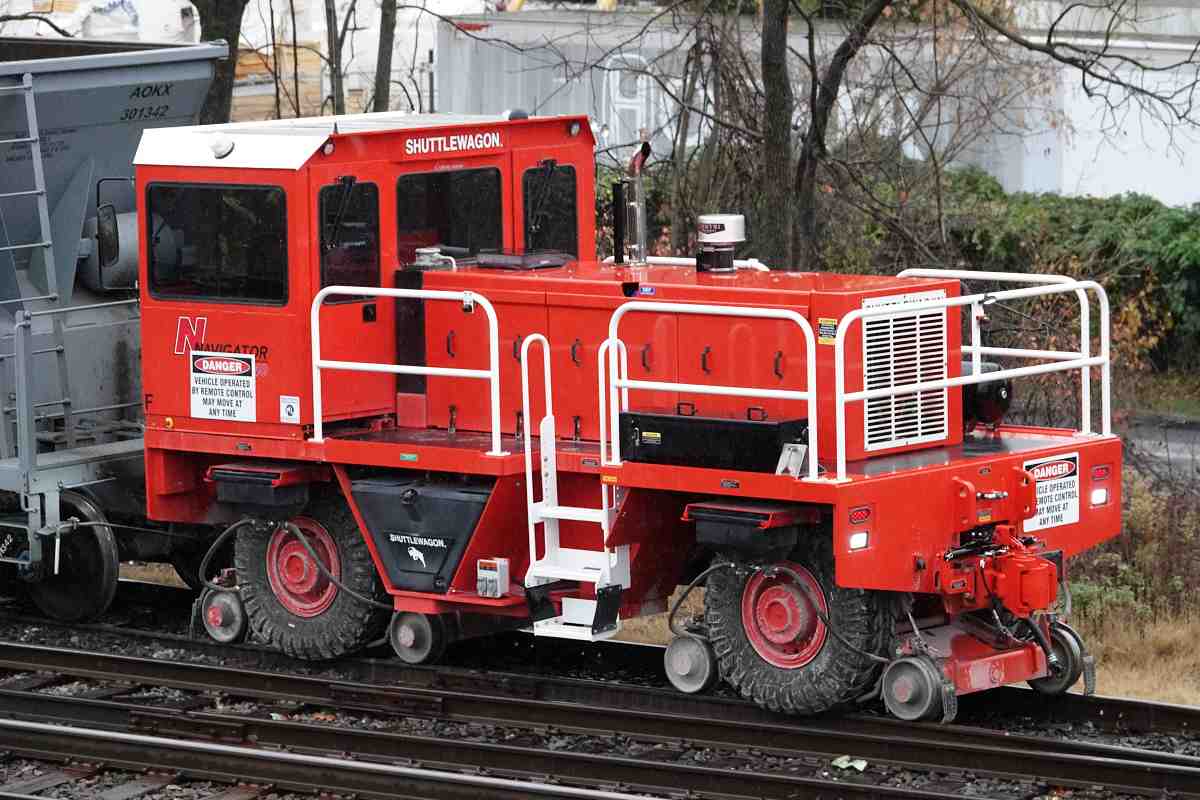

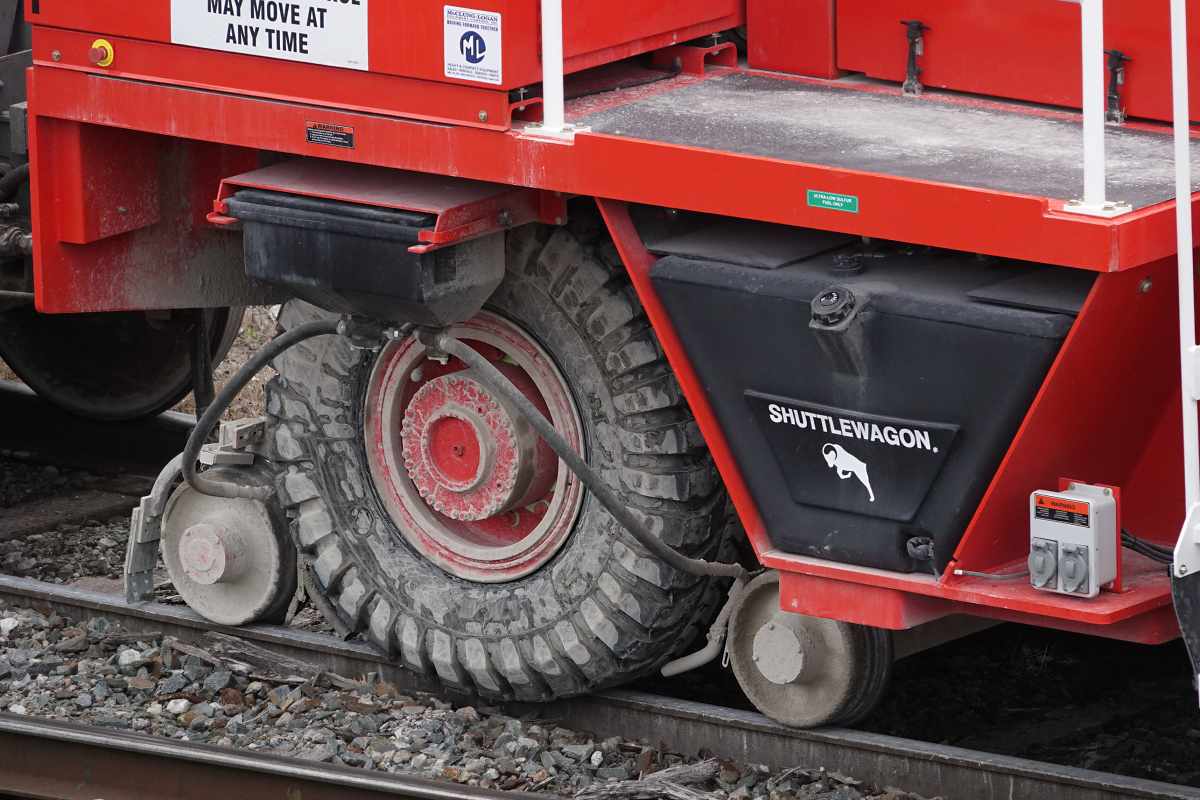

The Shuttlewagon's traction comes from four rubber wheels.


Shifting

Shifting
Mile: 17.9 Date: Nov 2023
Ease: A View: SE
Area: B T+:
Map: Ho 20 G 9, AA 5 E 9 Topographic Maps

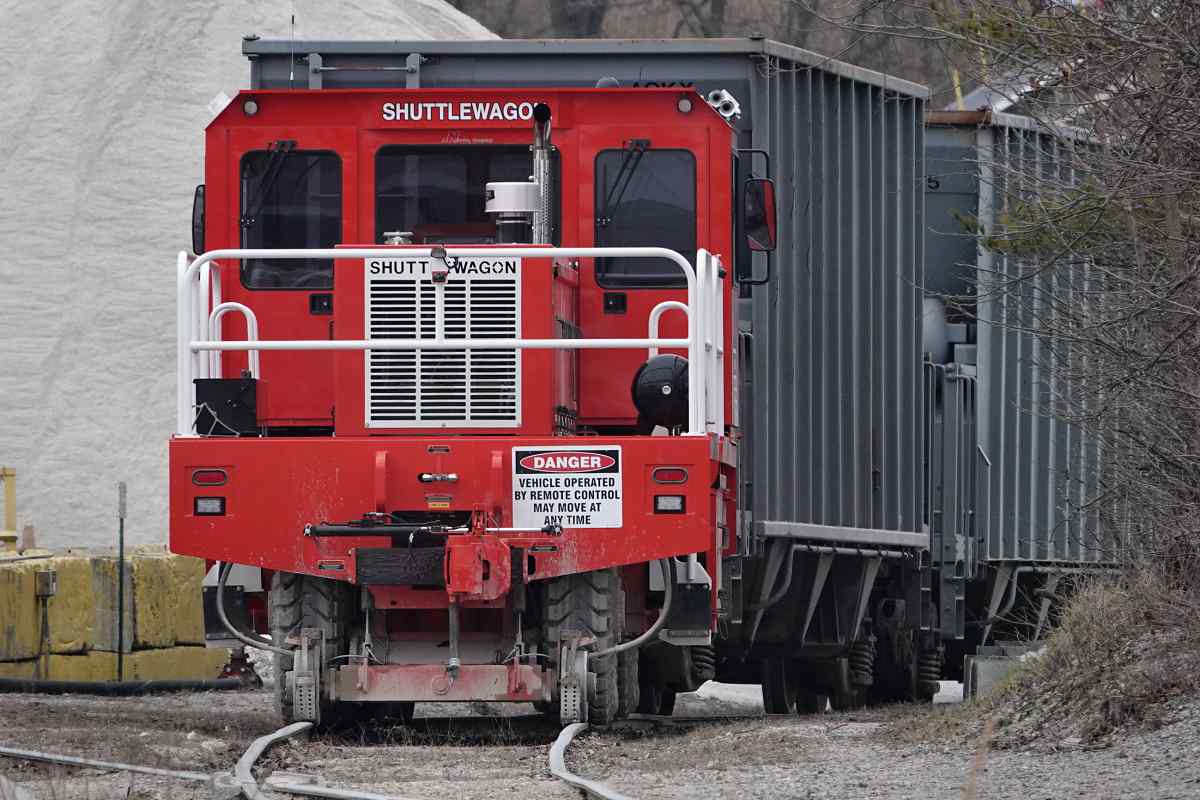

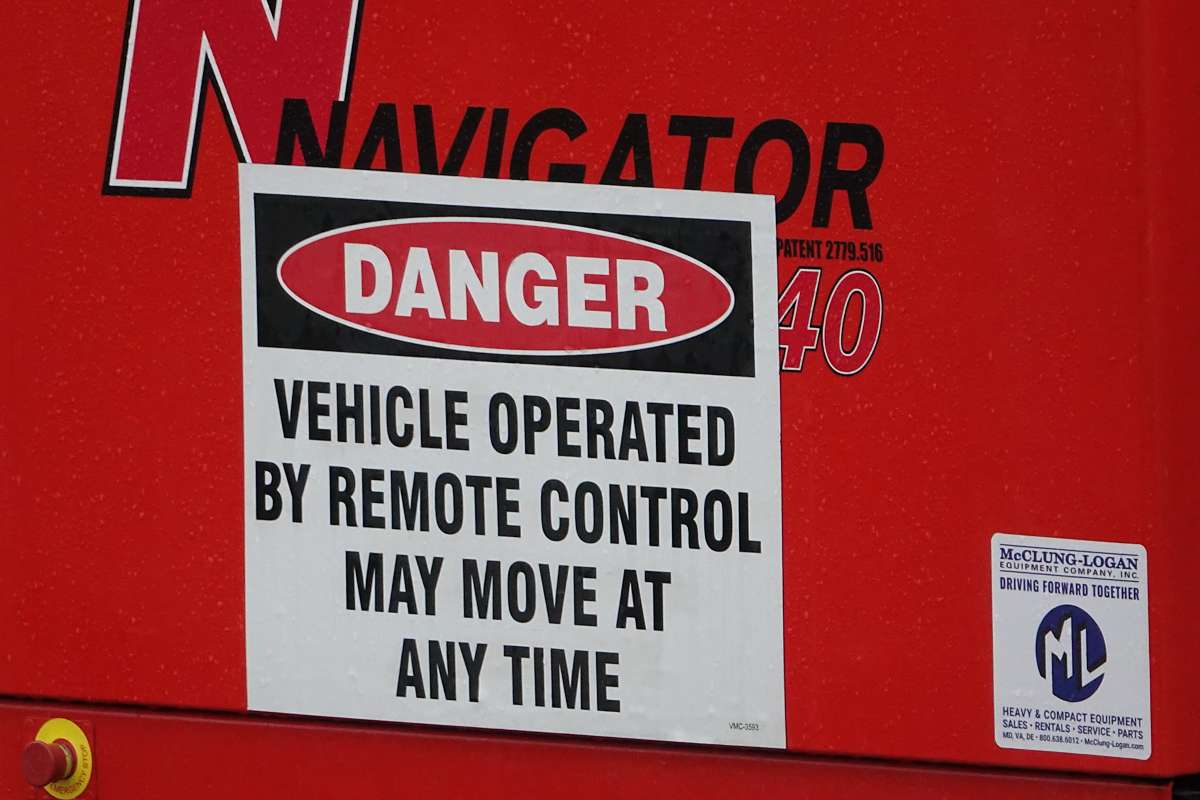

Like the Trackmobile, it can be operated remotely.


Roadwork

Roadwork
Mile: 17.9 Date: Nov 2023
Ease: A View: E
Area: B T+:
Map: Ho 20 G 9, AA 5 E 9 Topographic Maps

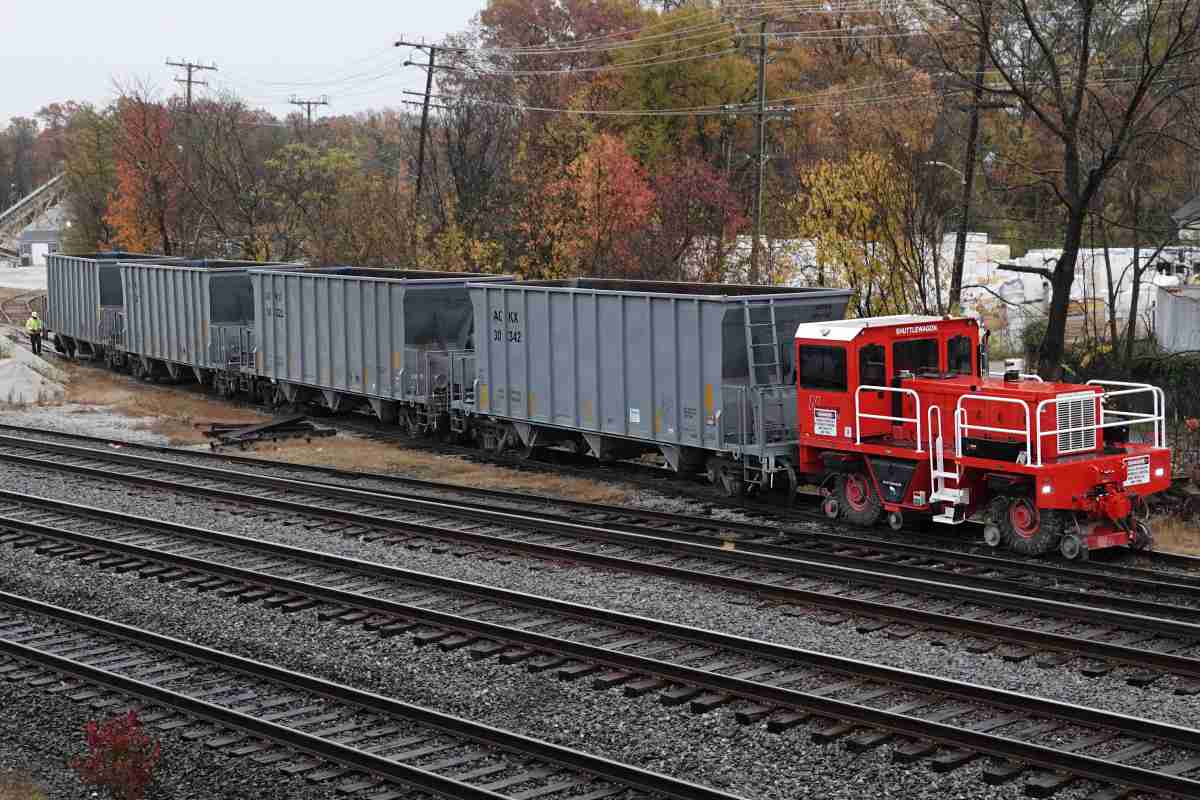

Trying hard now, and pushing empty hoppers...


Cornerman

Cornerman
Mile: 17.9 Date: Nov 2023
Ease: A View: E
Area: B T+:
Map: Ho 20 G 9, AA 5 E 9 Topographic Maps

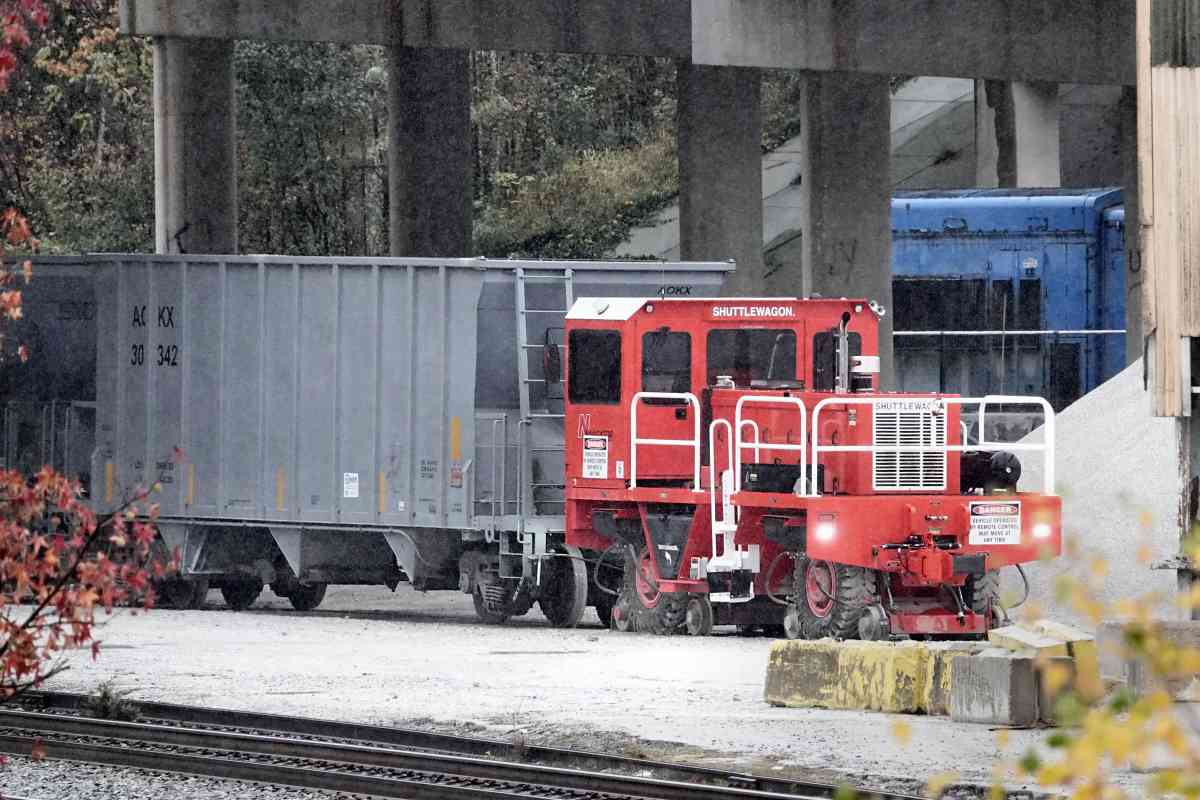

... all the way back to Philly, well, at least to MD 32. The blue U23B coaches from the corner.


Sleep

Sleep
Mile: 17.9 Date: Sep 2023
Ease: A View: E
Area: B T+:
Map: Ho 20 G 9, AA 5 E 9 Topographic Maps

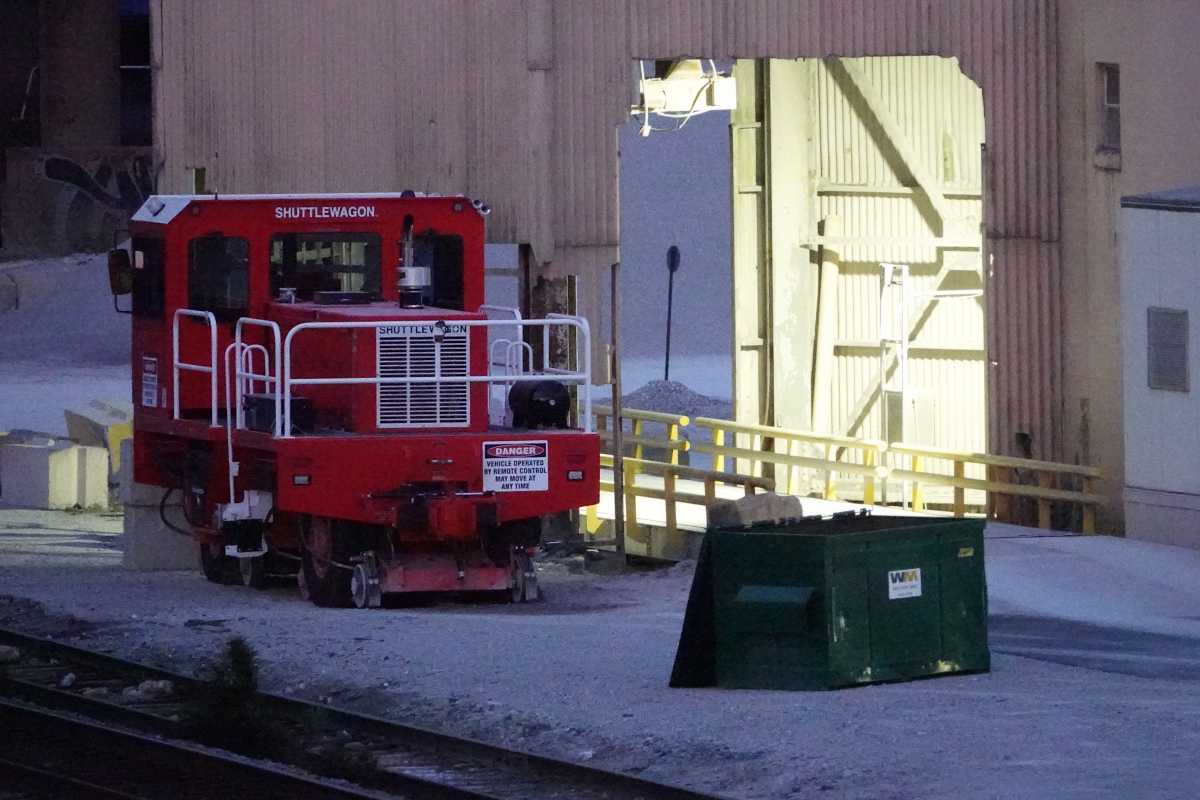

After sunset, it, too, must rest up to fight another day.



Thanks for looking.
