Overview
Vertical-lift through truss bridge over the Missouri River on the abandoned MKT Railroad in Boonville
Status
Railroad line discontinued
History
Built 1932, replacing an earlier bridge built in 1874. Abandoned in 1986.
Design
From north to south:
Three fixed, riveted, 10-panel, polygonal Warren through truss spans, each 300 ft.

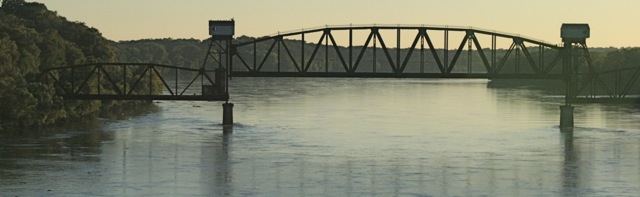

One vertical-lift, riveted, 14-panel, polygonal Warren through truss, 408 ft., weighs 2 million pounds
One fixed, riveted, 8-panel, polygonal Warren through truss spans, 247 ft.
One plate girder span, 60 ft. (removed) for Union Pacific Railroad to run taller trains
Dimensions
Length of largest span: 408.0 ft.
Total length: 1,615.0 ft.
Recognition
Eligible for the National Register of Historic Places
Also called
Missouri Kansas Texas Katy Railroad Bridge
Approximate latitude, longitude
+38.97967, -92.75437 (decimal degrees)
38°58'47" N, 92°45'16" W (degrees°minutes'seconds")
Approximate UTM coordinates
15/521275/4314549 (zone/easting/northing)
USGS topographic map
Billingsville
Inventory number
BH 21337 (Bridgehunter.com ID)
Bob Williams and I drove to "The Katy Bridge Wine Walk" in Boonville, MO, nearly 100 miles south of Silver Rails Country. We had two purposes in mind. 1. To participate in the Wine Walk, and contribute our $30 to the effort to save the bridge, and 2. To see Jen West of the West Winery who was serving their excellent wines as one of the 7 wineries represented at the event.

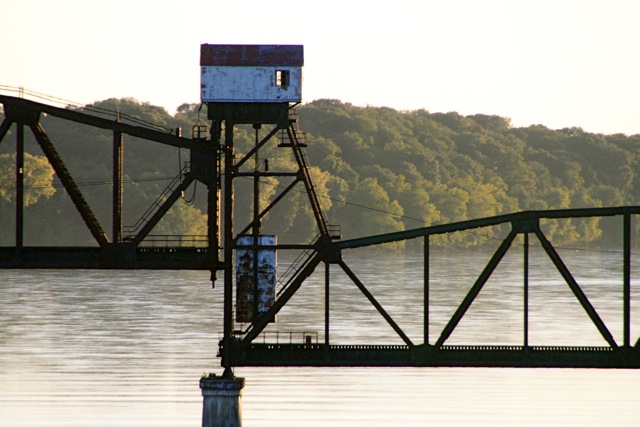

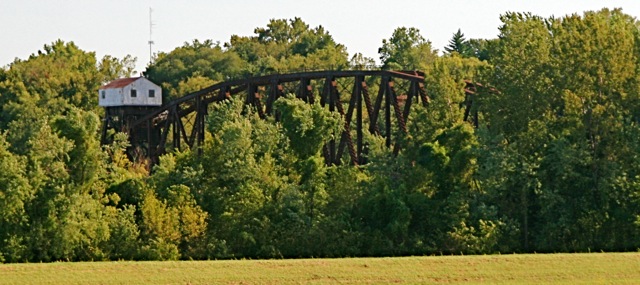

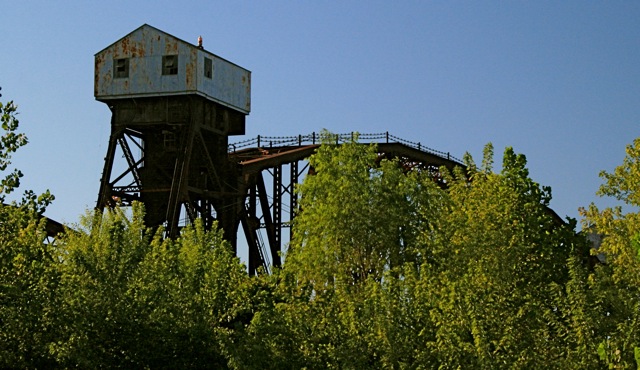

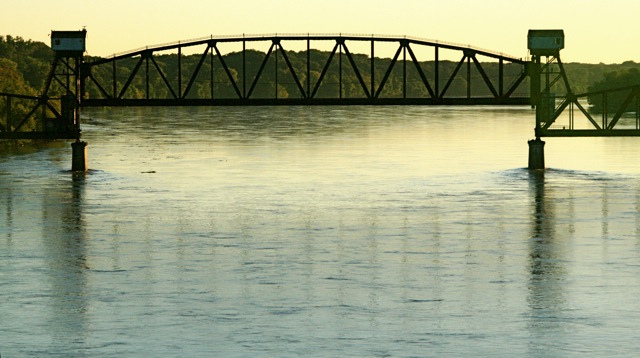

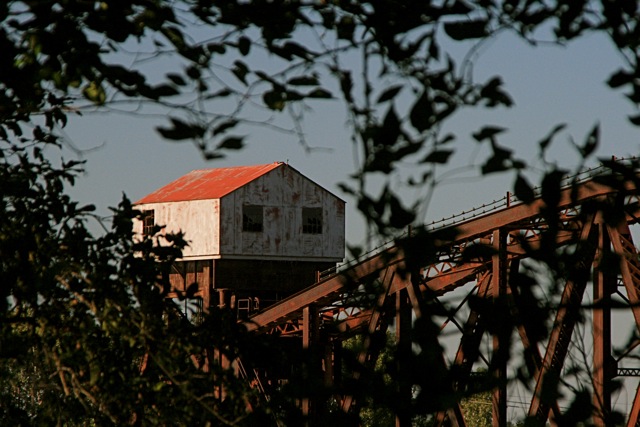

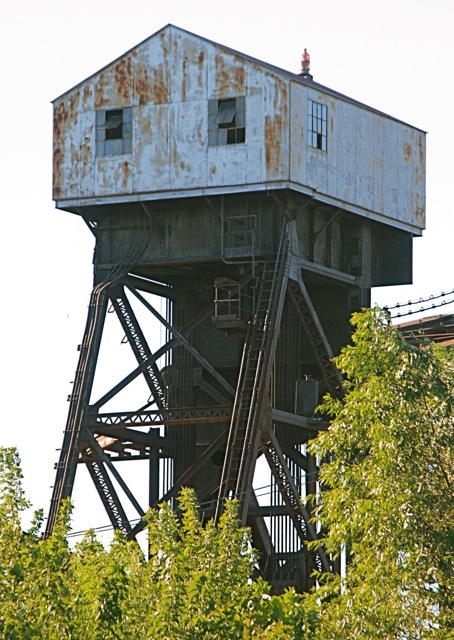

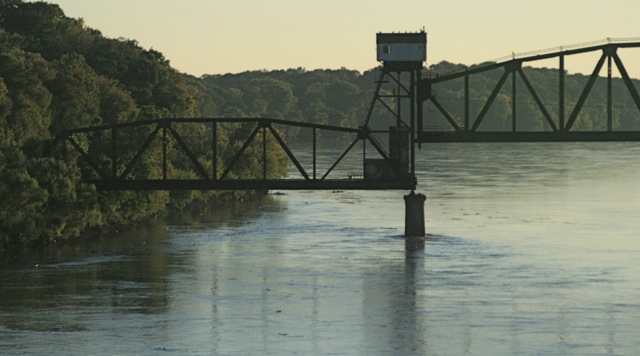

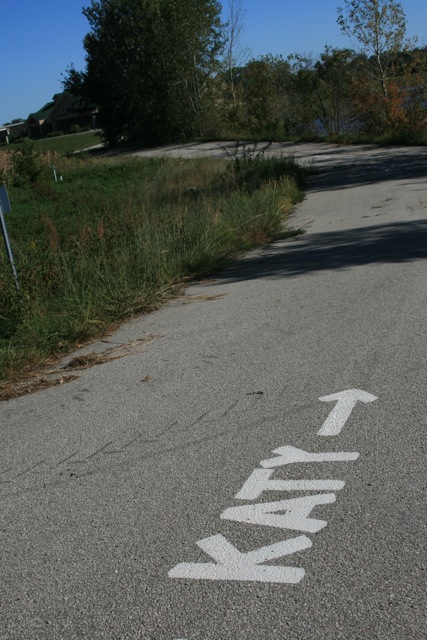

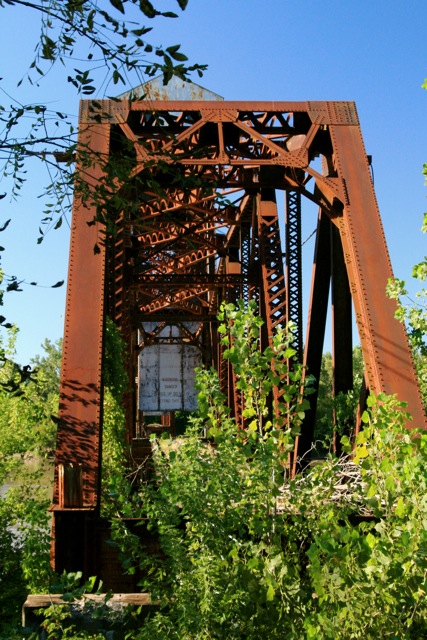

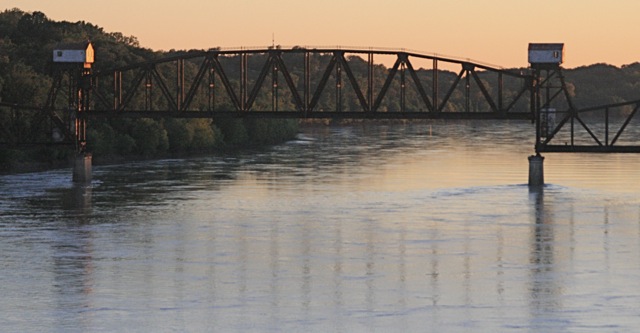

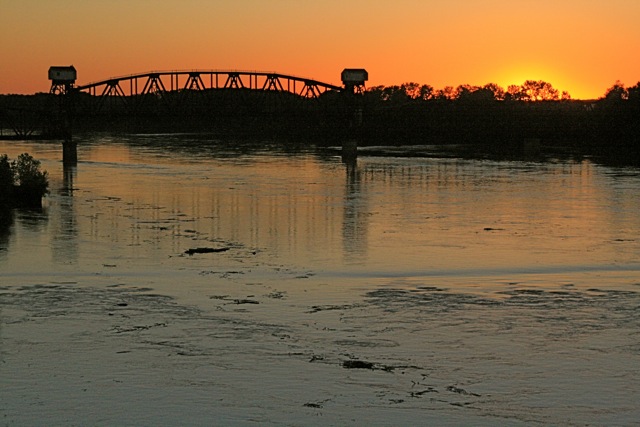

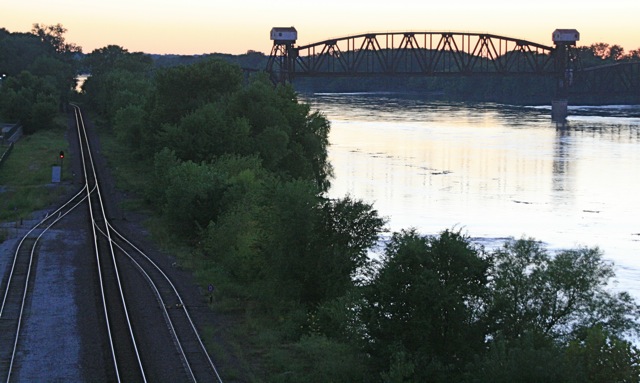

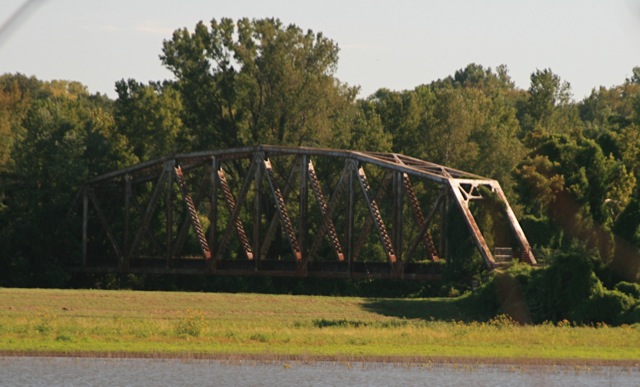

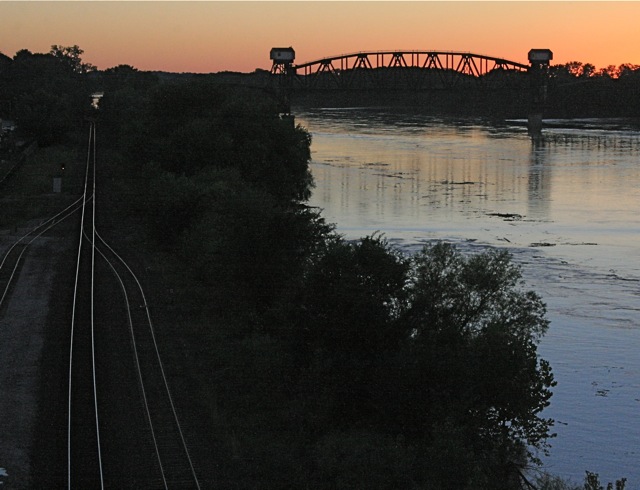

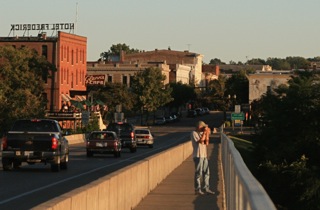

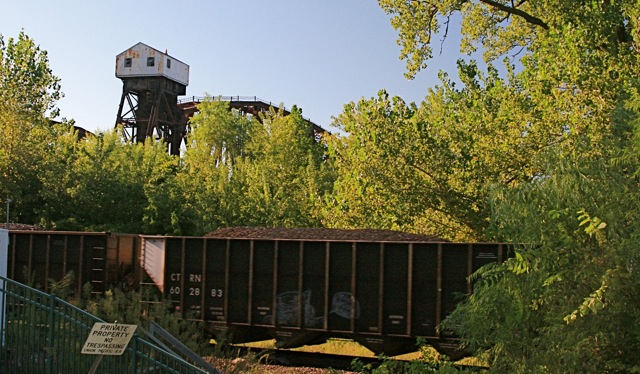

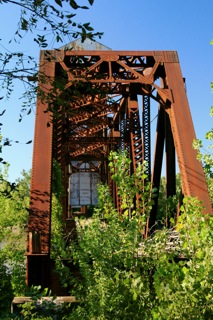

We found the Katy Trail, on which Bob had ridden his bike on a portion of, across the Missouri River at a former town site of Flanklin, MO, founded by the sons of Daniel Boone. From there, we spotted the Katy Bridge and took a few photos of the approach bridge. We then crossed the Hwy. 40 bridge back into Boonville, and tried to find another vantage point to photograph the abandoned bridge. We finally concluded that the best vantage point for photographs of the bridge would be from the wide walkway on the Hwy. 40 bridge at sunset.
The following photos are from those 3 vantage points and I'll add photos of Boonville's Wine Walk as well.

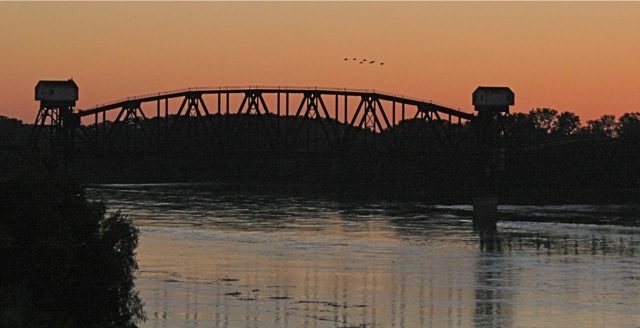

As the sun went down, and the new moon glowed above Boonville, MO, we walked back into town to continue our "Save the Katy Bridge Wine Walk."
|
|
|

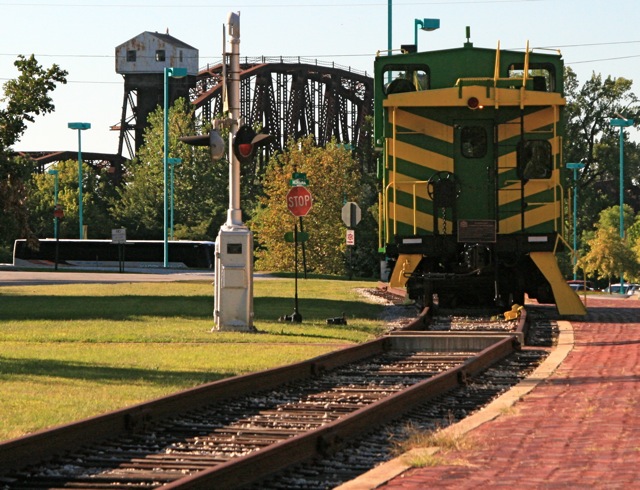

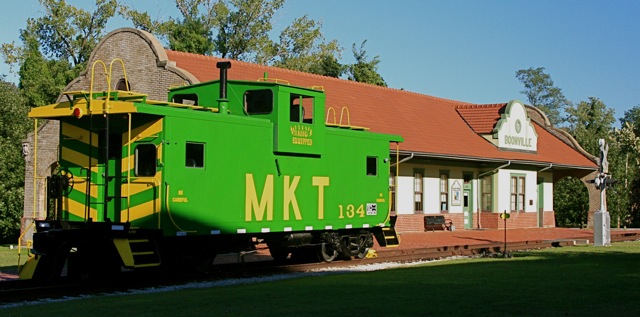

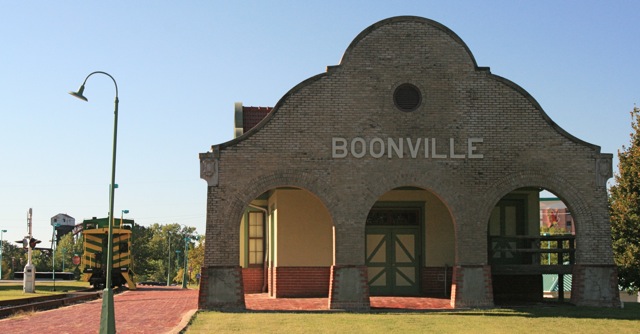

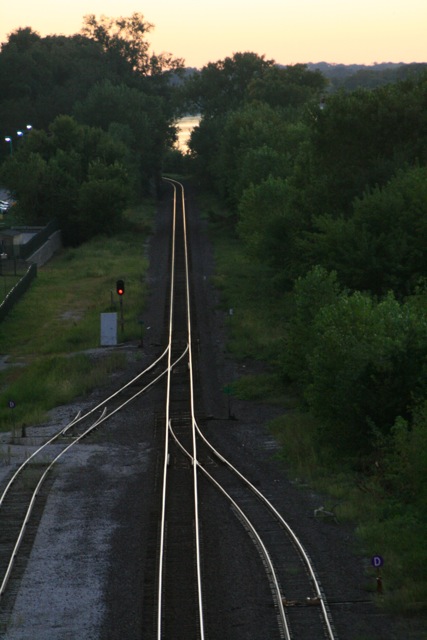

Earlier in the day, we wanted to photograph the Boonville, MO, MKT Station. It has been well-preserved with a MKT caboose and a short section of track leading the way to the Katy Bridge.
|
|
|
Photo of the station on a nearby placque. |

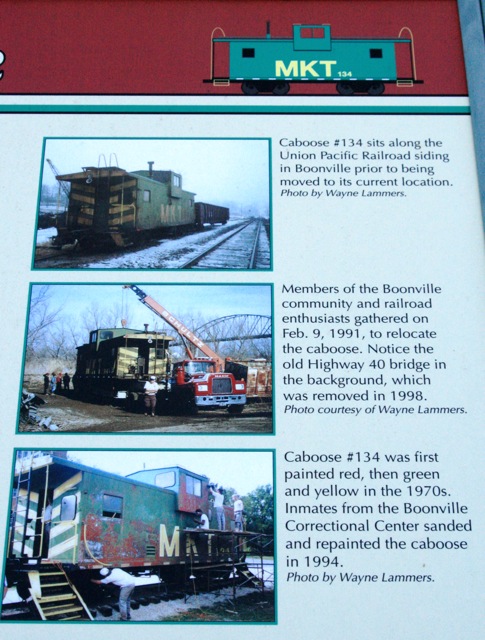

Information placque about the caboose near the station. |
|
Information about the Boonville Depot. |
|

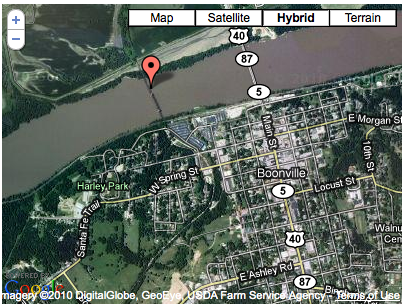

Location of the Katy RR Bridge in Boonville, MO
|

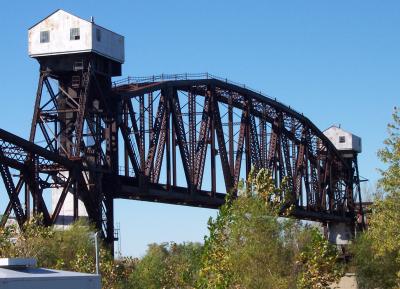

A shot of the bridge that I could not replicate because the trees have grown higher from this location at the Casino. |
