A small selection of unique Locomotives that are ideally suited to this railway. Most of these are kitbashed from commercial brands, some are scratch built. All have on board battery, R/C and sound, others will be added progressively.
To contact the CME, click on geofcoleman@optusnet.com.au
Related pages
  1. Index - Home

  2. Track Plan, Map

  3. Latest News

  4. Locomotives

  5. Rollingstock

  6. Bridges

  7. Buildings

  8. Line Side

  9. Description

  10. History

  11. Links

  12. Basement

_ _ _ _ _ _ _ _ _ _ _ _ _ _

Latest Update; 23rd August, 2022
_ _ _ _ _ _ _ _ _ _ _ _ _ _

Loco Control System options

My more frequently used Locos have electo-mechanical DIRECTION control and ELECTRONIC sound Systems (MyLocoSound).
Less frequently used Locos have electo-mechanical DIRECTION control and yet the sound Systems are more basic as discussed here.

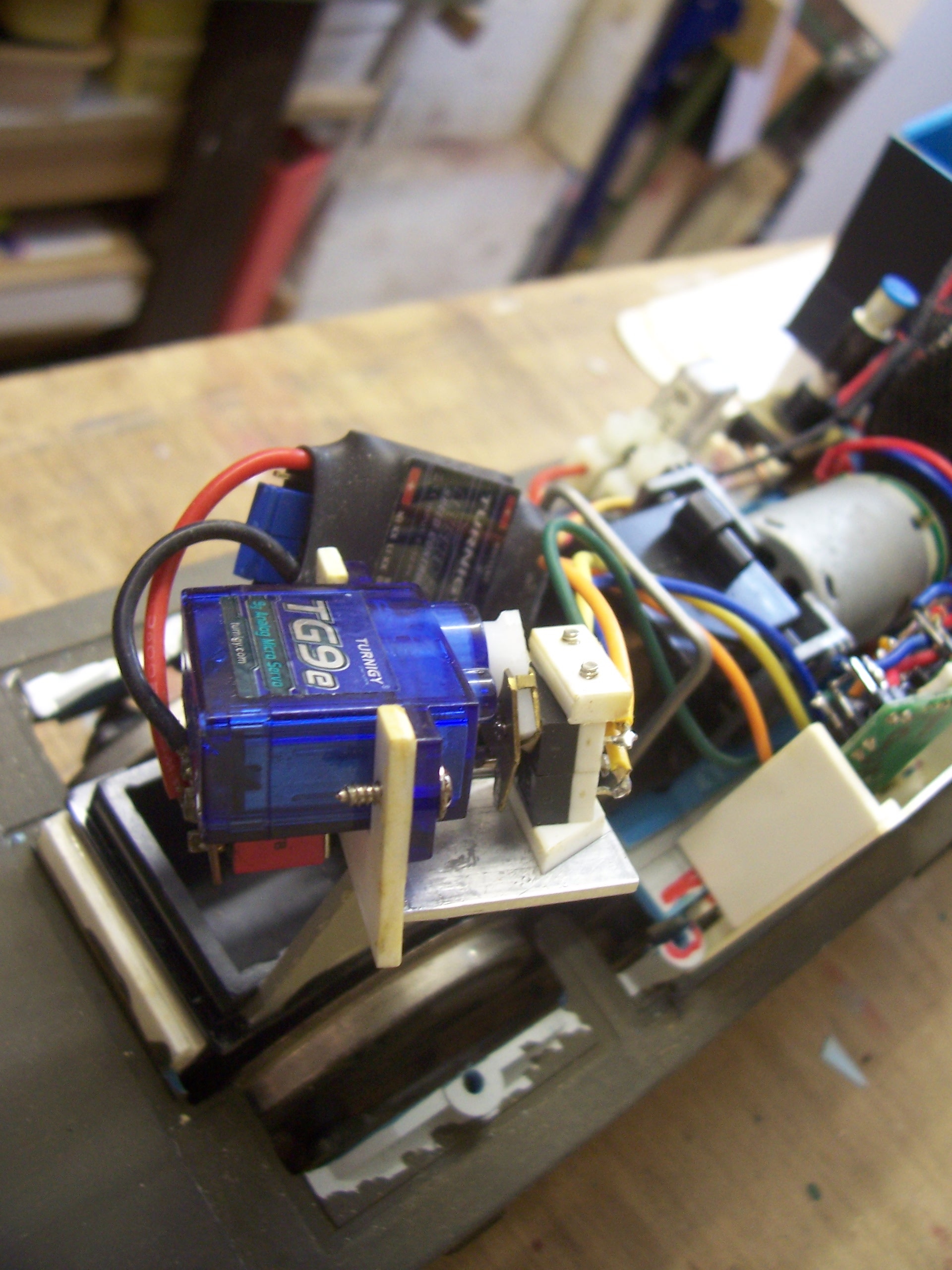

These Locos use three (3), 20 second duration, sound cards, each sound selected via Servo actuated CAMS and Micro Switches.
This arrangement is easy to build, troubleshoot and repair.
Generally, three (3) unique sounds are used;
1. Westinghouse Pump sound only ON while Loco is stationary.
2. Chuff or Diesel motor sound while Loco is in Forward or Reverse.
3. Steam Whistle or Diesel Horn [momentarily] at arc limit of actuating Servo arm travel.


The foregoing document discusses how this is designed and built.

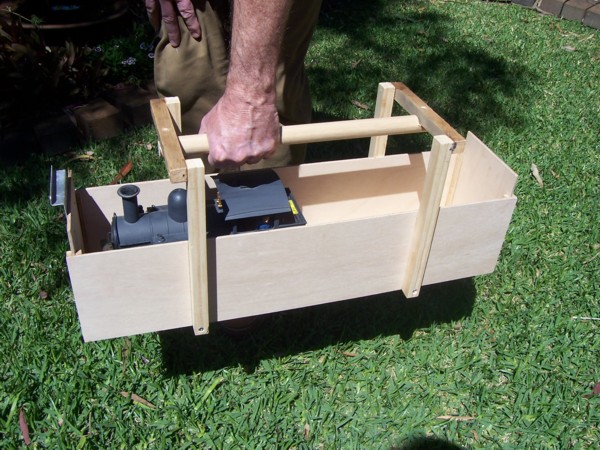

Loco Carry Box

Click on photo below to see a Video


Locomotives

Click on Left photos for Details --- click on Right photos for Video & Sounds

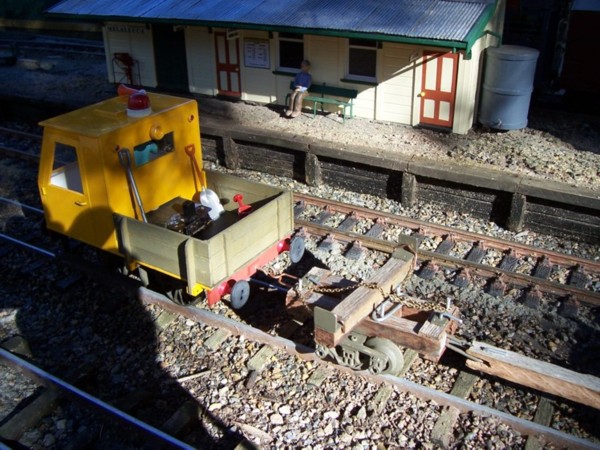

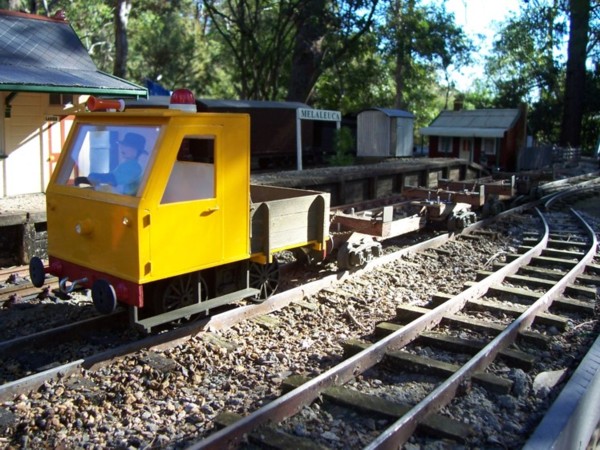

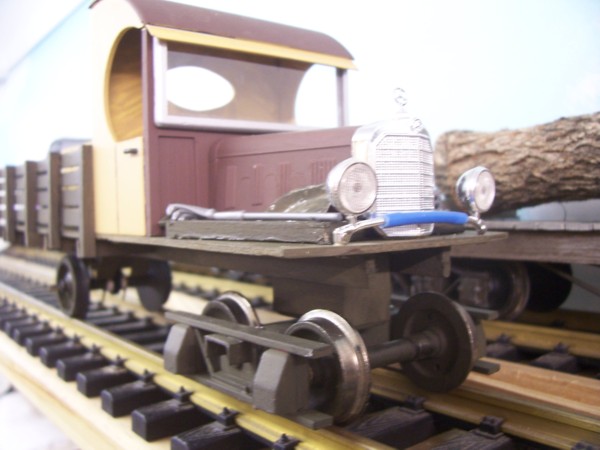

Gang "Tric" No. 1 - Perway gang maintenance car with skeleton rail (log) cars in tow.

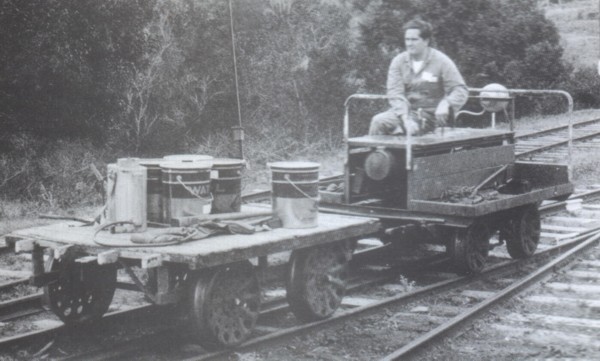

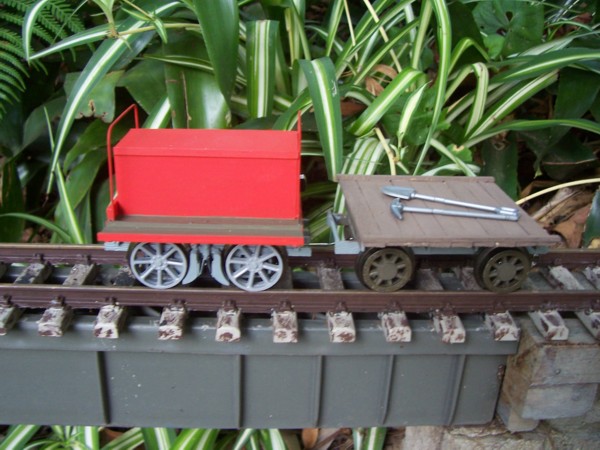

Gang "Tric" No. 2 - Perway gang tric with flat trailer.

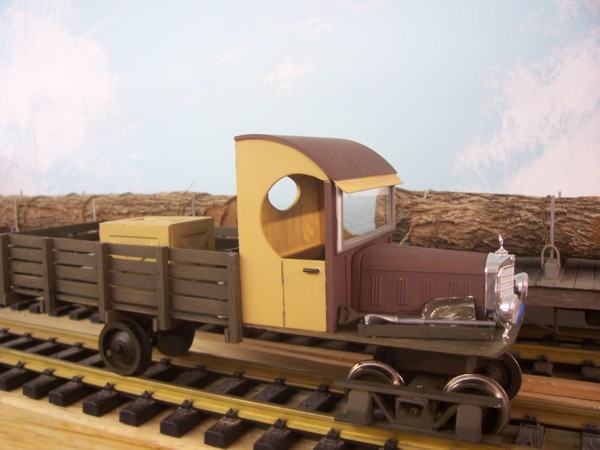

Perway Railmotor No. 3 - Perway gang truck used for general maintenance.

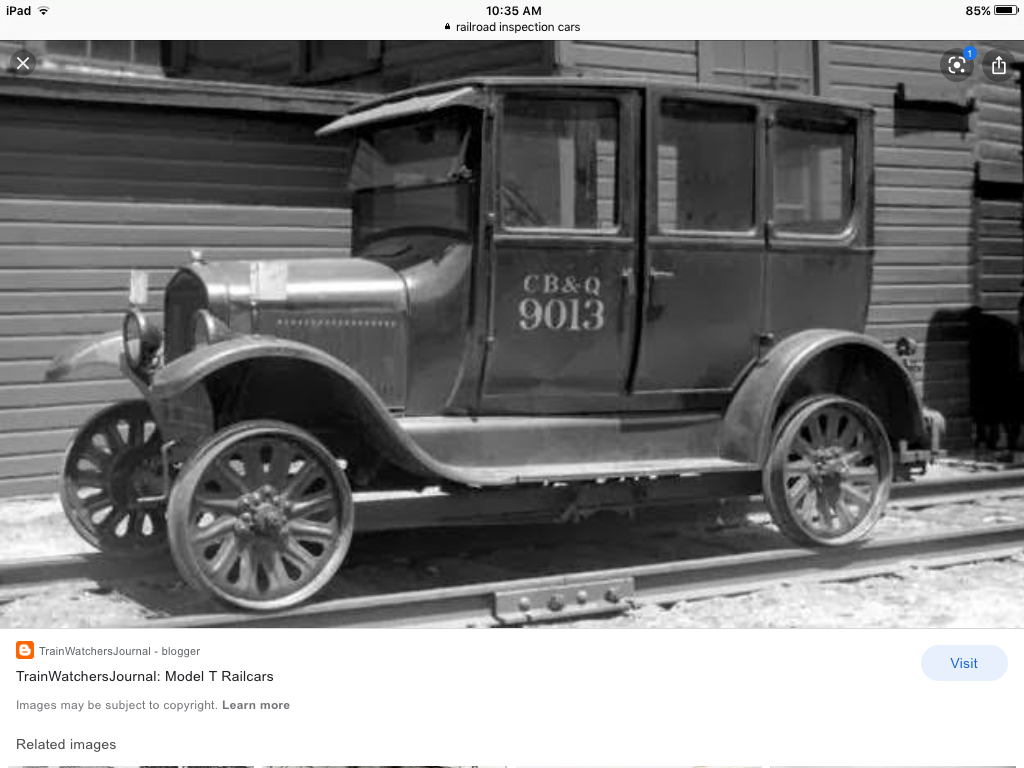

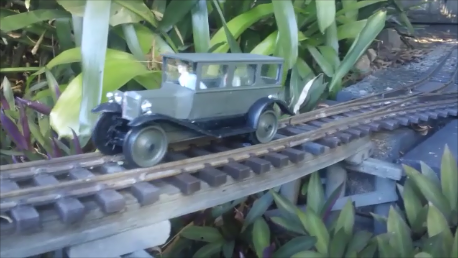

Track Inspectors Rail Car.

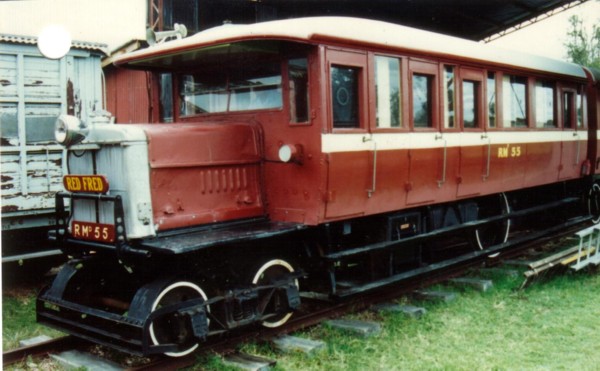

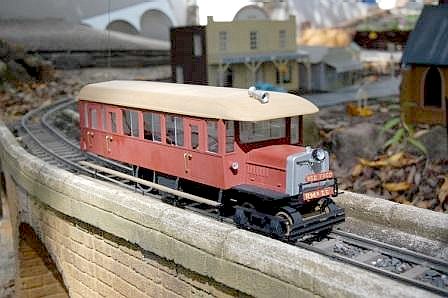

Railmotor RM55 "Red Fred" on a visit to S&TR - The prototype Red Fred.

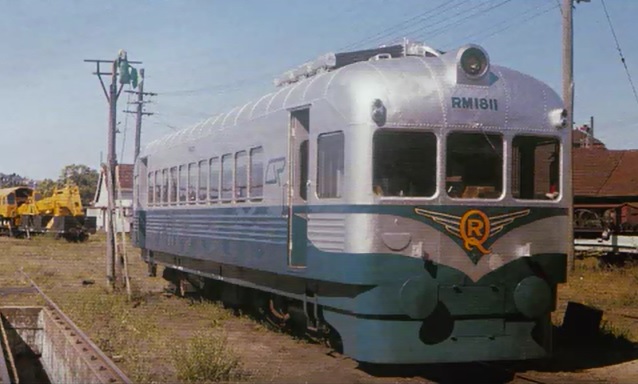

Railmotor RM1800 "Blue Lagoon".

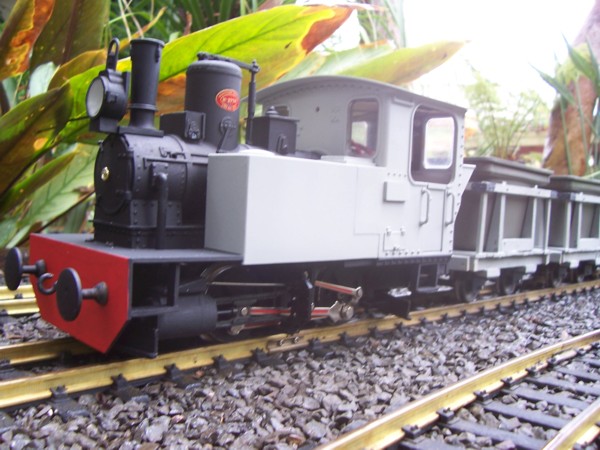

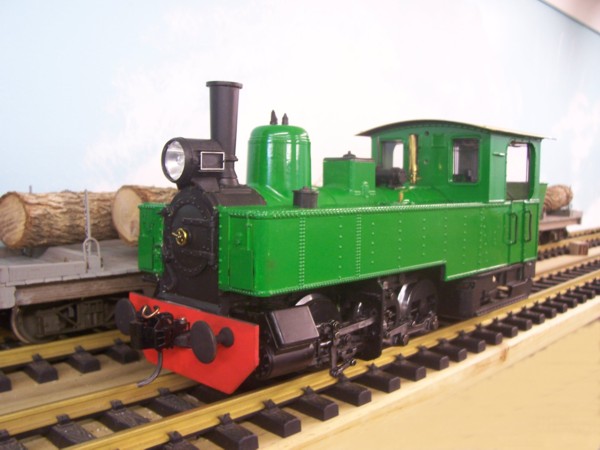

Geof reworked an LGB OTTO steam Loco to include an Open CAB among other details.

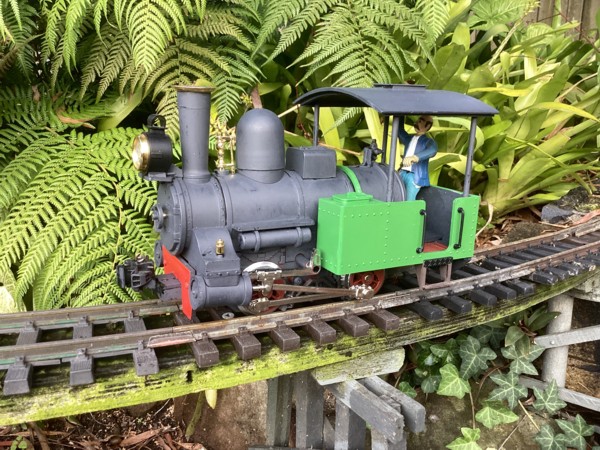

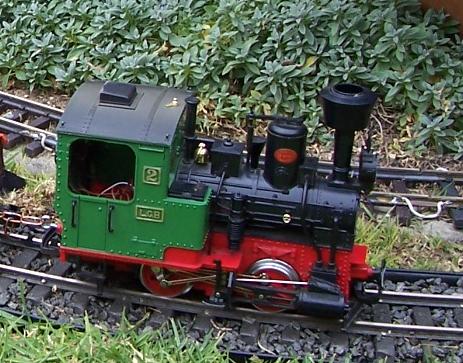

Geof's Stainz kitbashed into a Quarry Loco. The initial Stainz prior to 'kitbashing'.

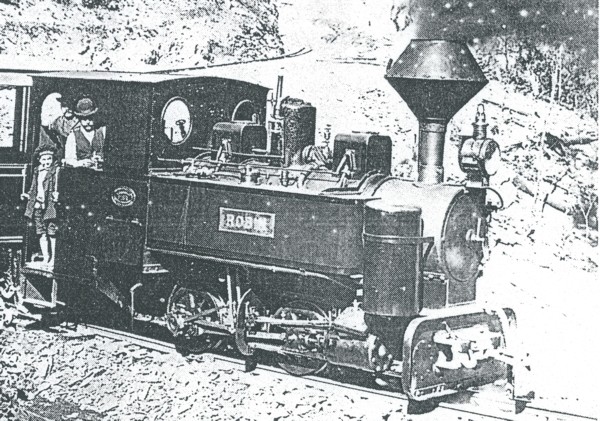

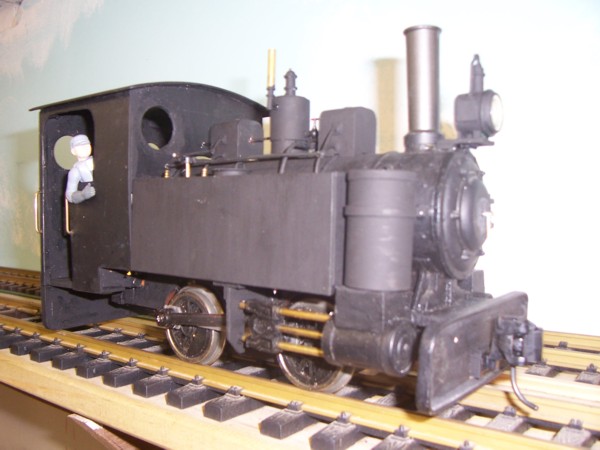

Geof's Krauss 0-4-0 is a severe modification to an old LGB model.

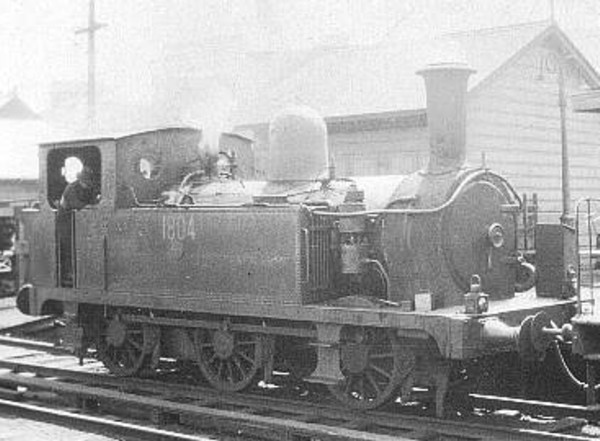

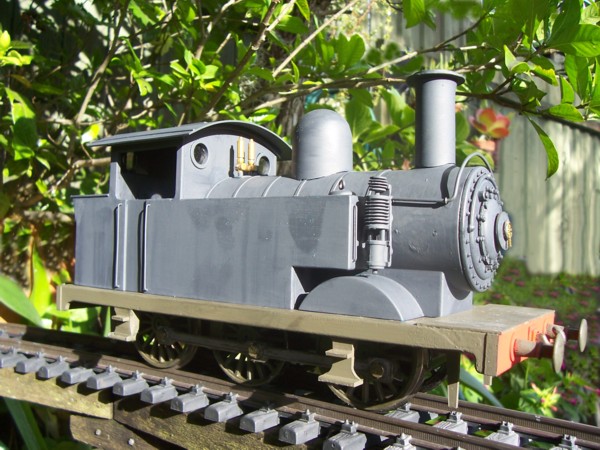

Geof has drastically re-built a THOMAS to resemble the NSWGR No. 1804.

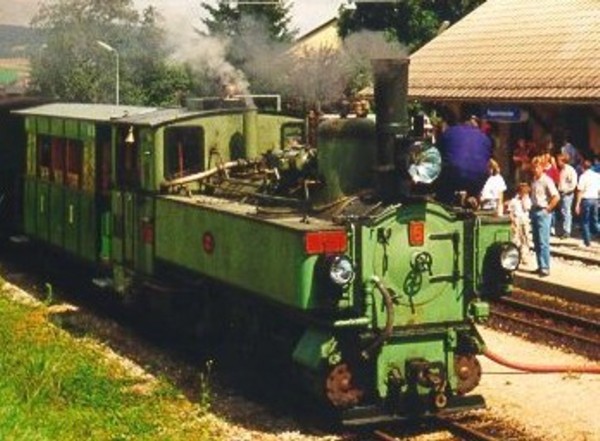

This loco is an acquisition from Europe of an Austrian Loco {an LGB #23701}.

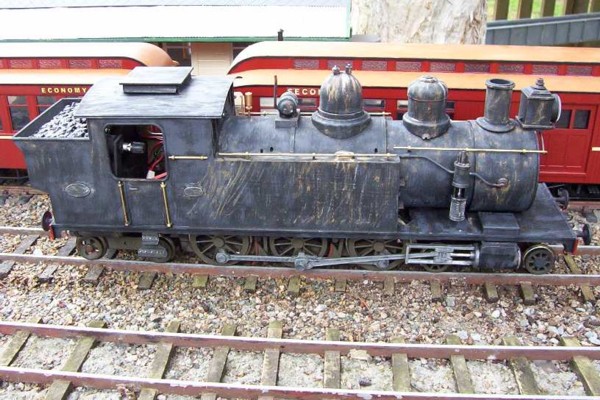

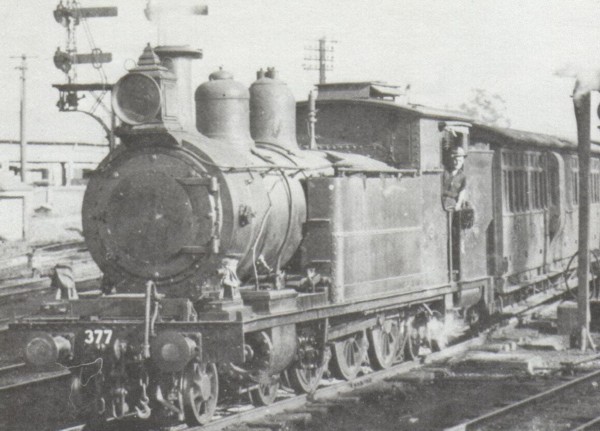

D16 tank loco, ex QR, was a Bachmann Big Hauler, on-board battery, R/C and sound.

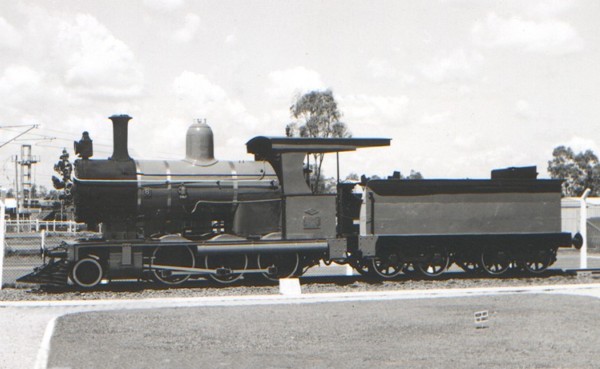

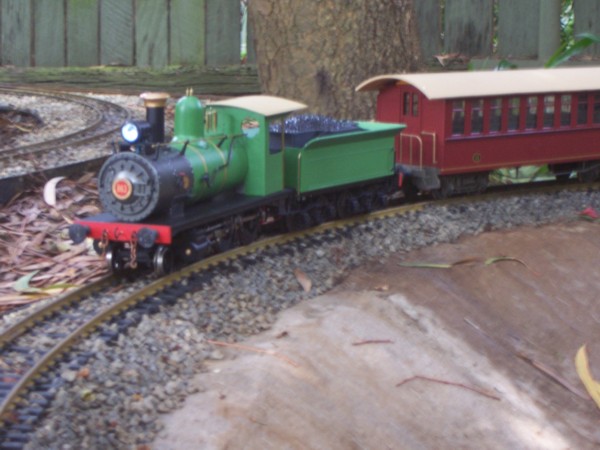

The B12 1/2 is a blend of Bachmann parts, it has on-board battery, R/C and sound.

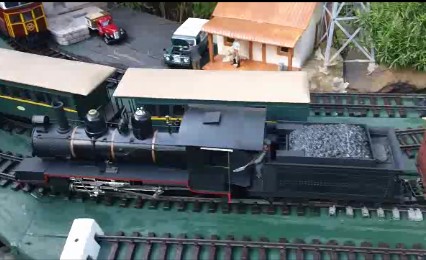

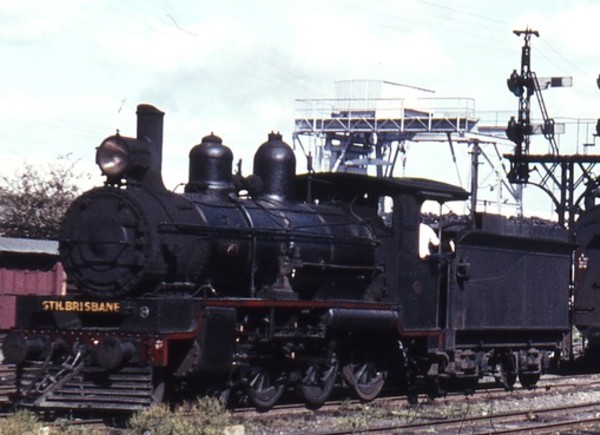

The model of a 1924 version PB15 steam locomotive built on a Bachmann 4-6-0 motor block.


Timber Tramway "Dunkirk" Loco built on an Aristo-Craft Motor Block.

In fact, a B Class Dunkirk [V2 in the cab floor] loco.
The Dunkirk is easier to model and is unique, few modellers have one.

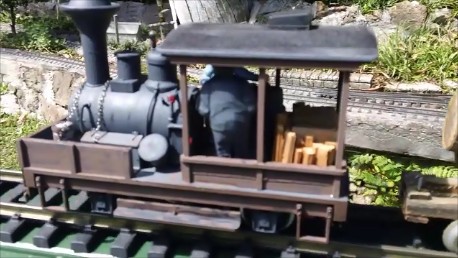

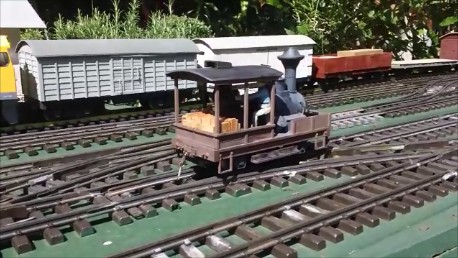

Timber Tramway "Heisler" Loco built on an HLW "Woody" Motor Block.

Geof decided on an 0-4-0 Heisler [V2 in the cab floor] loco.
Easy to model and is unique, few modellers have one.

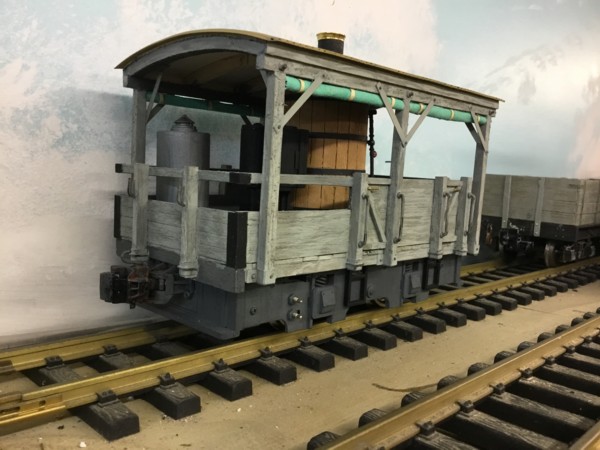

Timber Tramway "Climax/Dunkirk" Loco built on an HLW "Mack" Motor Block.

This "Drop-On" body option is one of several that will be made as time goes by.
Easy to model and is unique, few modellers have one.

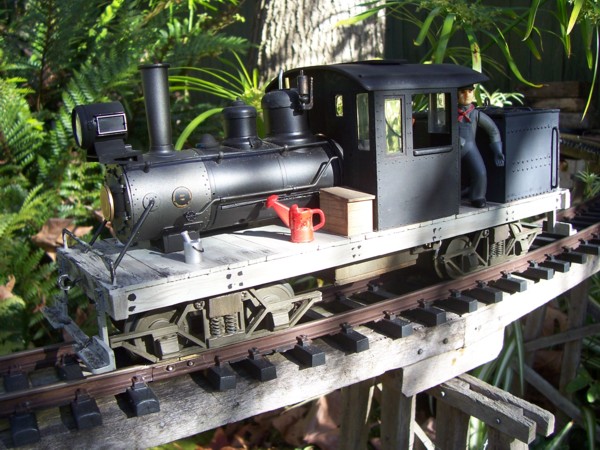

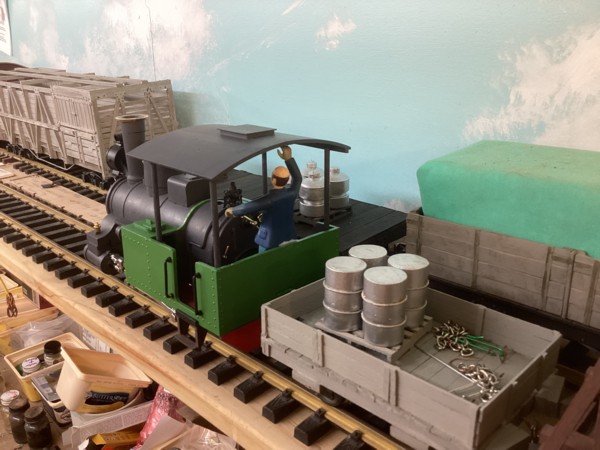

"Skirt" Steam 0-4-0 Loco built on an HLW "Mack" Motor Block.

This "Drop-On" body option is one of several that will be made as time goes by.
I really like this little Loco, strong, reliable and unique.

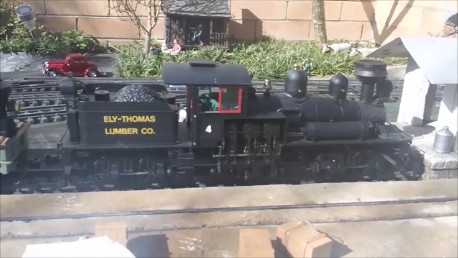

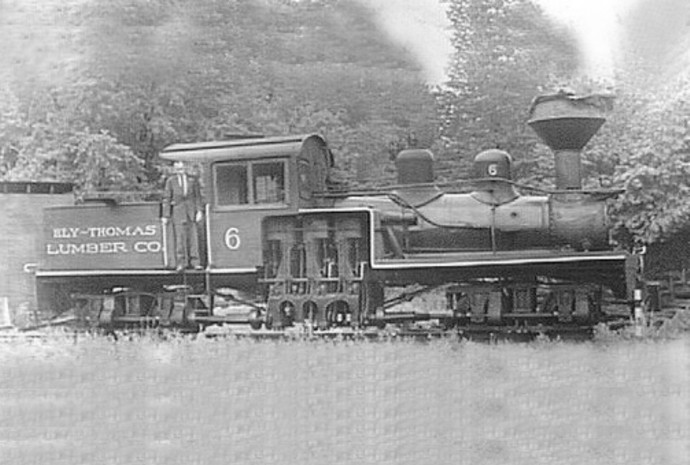

Timber Tramway "Shay" Loco is a Bachmann ETLC model.

It has sound and R/C 2.4GHz.

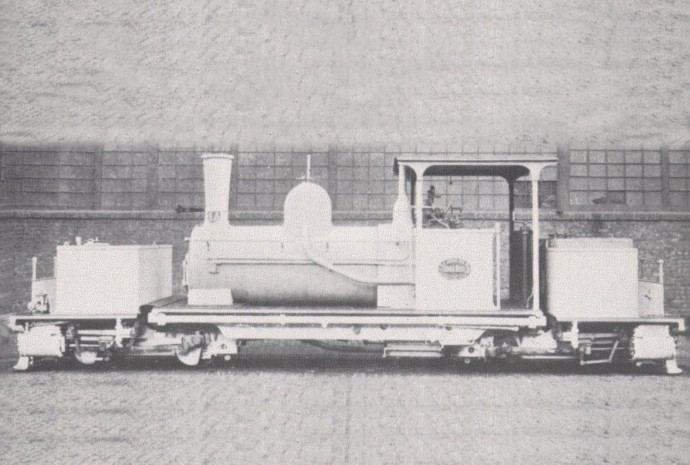

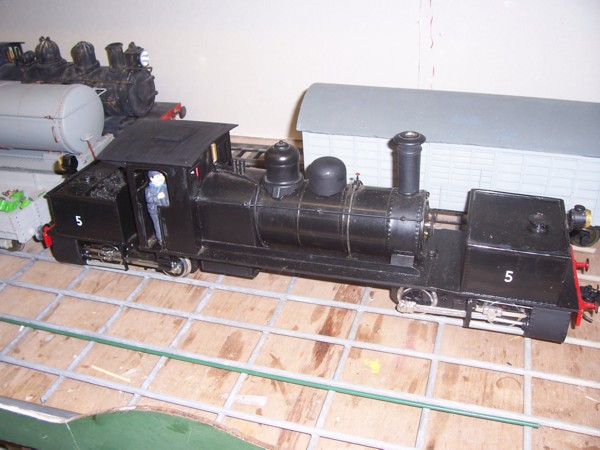

The Garratt 0-4-0 - 0-4-0 ready for work on thre BTR.

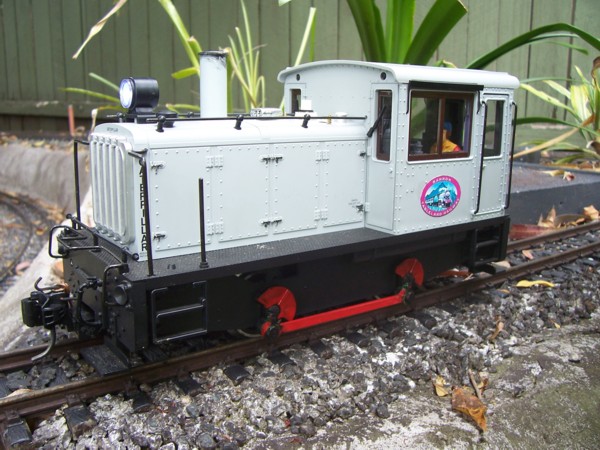

The Bo Diesel, 0-4-0 Shunter is a slight remodelling of an LGB Sumpter Valley Rwy #101.

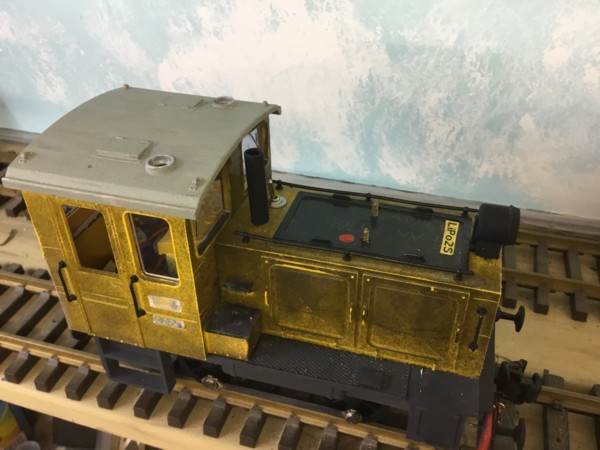

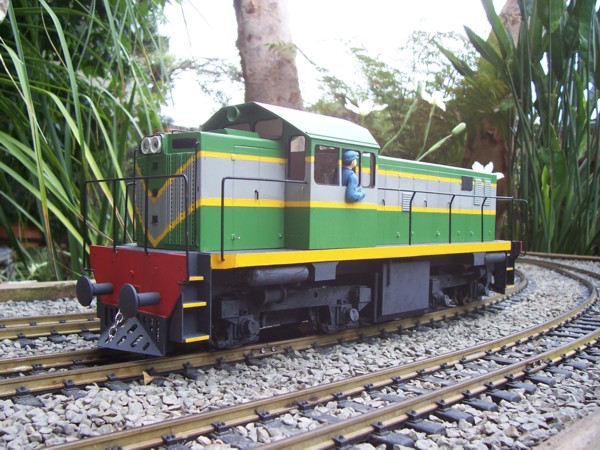

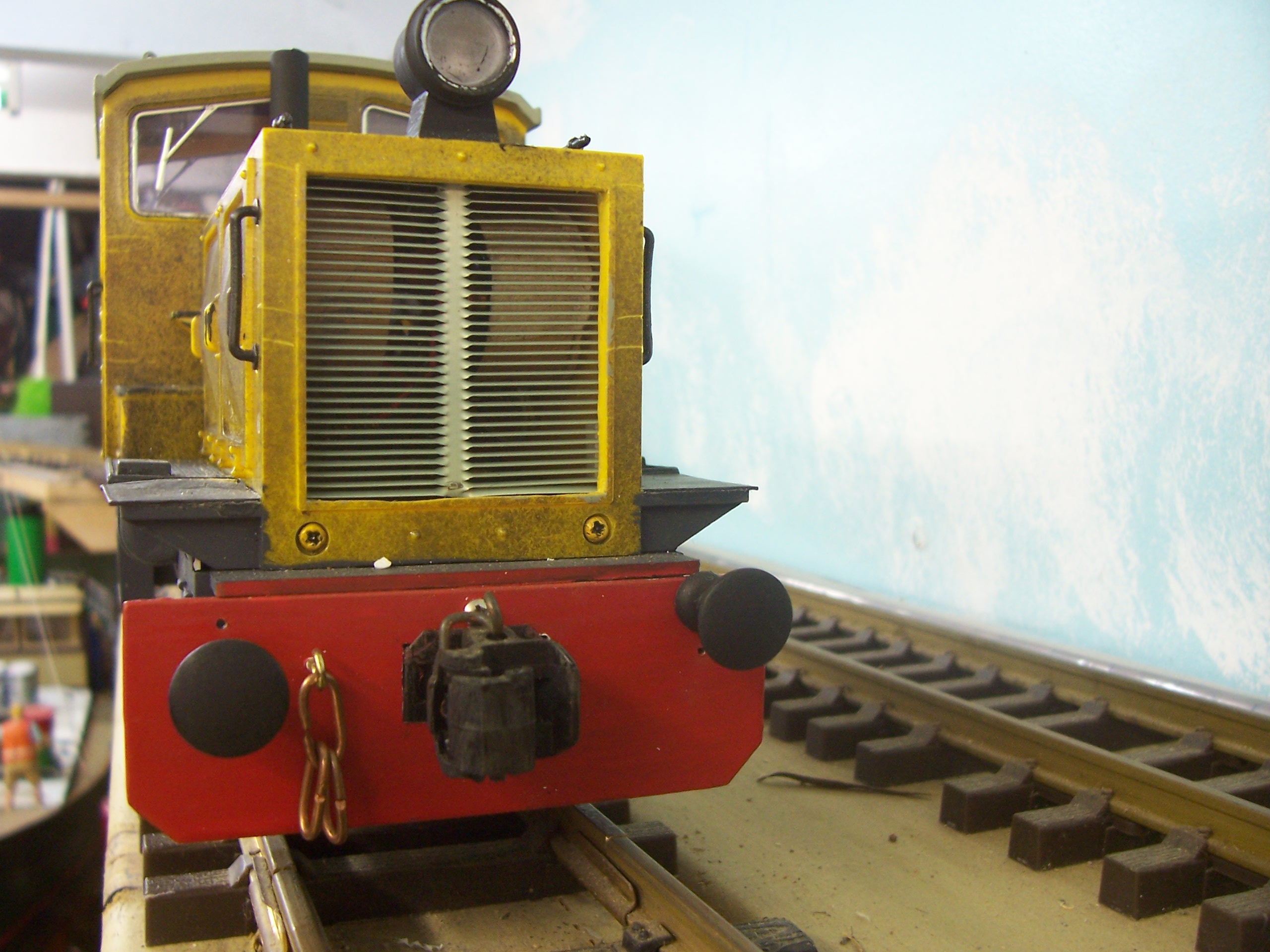

The Yellow Bo Diesel, 0-4-0 Shunter is a slight remodelling of an LGB Loco well known to most modelers.


Ex QR, DH Class, Bo-Bo Diesel. Model is built on Aristo-Craft RS3 motor blocks.

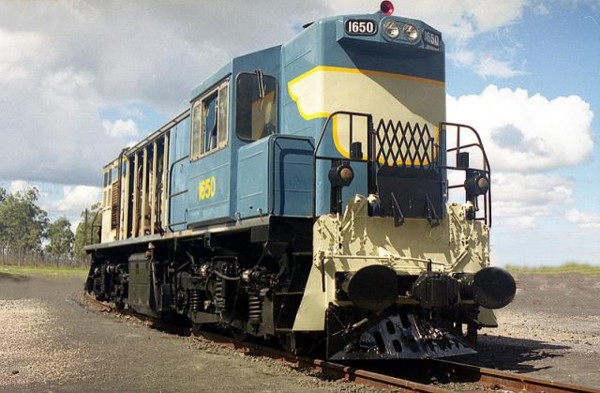

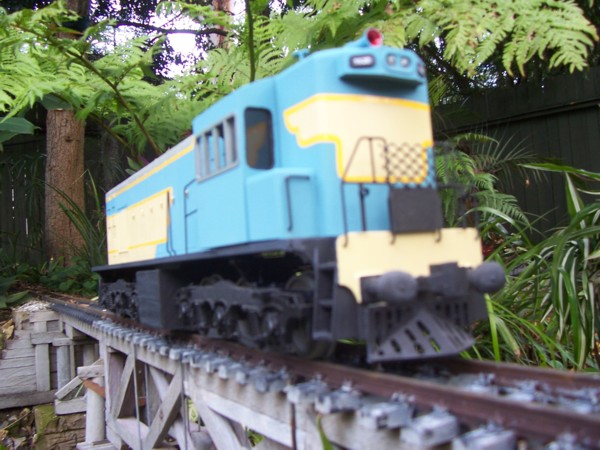

1620 Class (Ex QR) Co-Co type diesel. The model is built on USA Trains SD40 motor blocks.

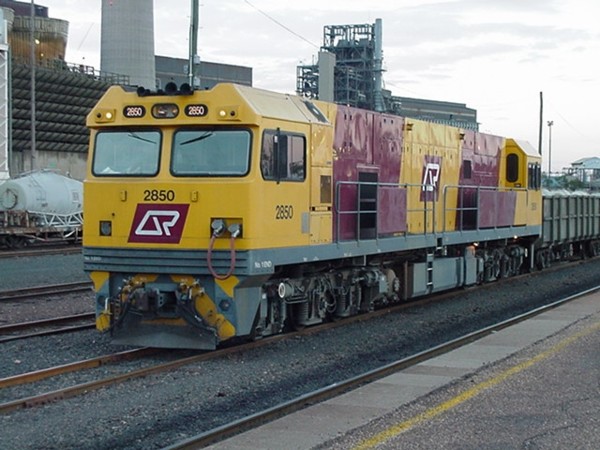

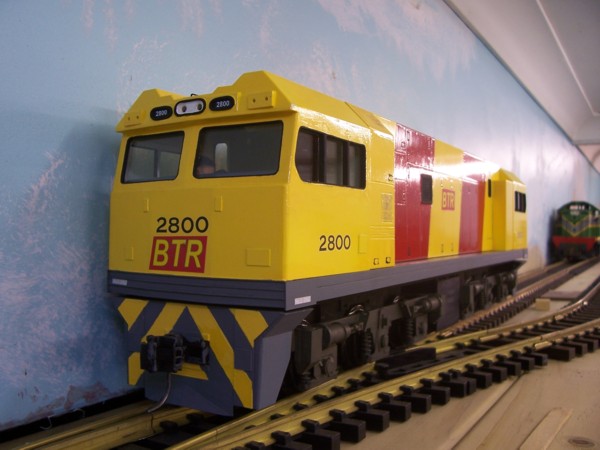

The 2800 Class (Double Cab) Co-Co Diesel. Model is built on Aristo-Craft Co-Co motor blocks.

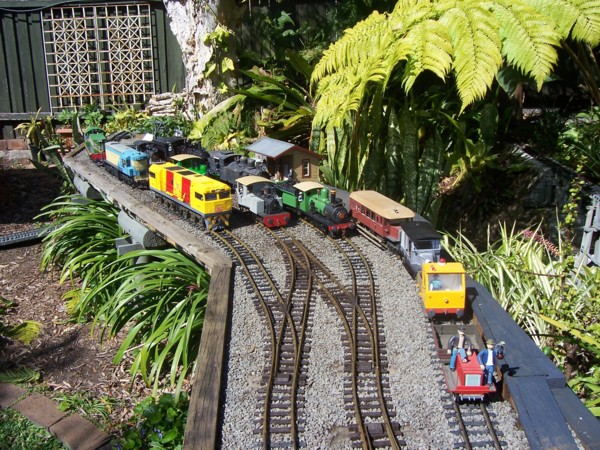

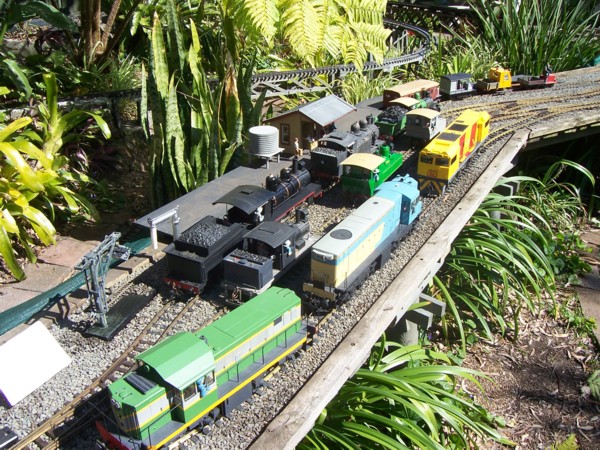

The whole FLEET of Locos owned by the BTR.
