Atlantic Coast Line 4-8-4s

Atlantic Coast Line

Class R-1 4-8-4's

the "Eighteen-hundreds"



The R-1's operated into the early 1950's until they were all retired between 1951 and 1952 and scrapped. Unfortunately, none of these engines was preserved.

Number Baldwin S/N
Date built
Retired
1800 62174 March 1938
December 1951
1801 62175 March 1938 June 1952
1802 62176 March 1938 June 1952
1803 62177 March 1938 December 1951
1804 62178 March 1938 June 1952
1805 62179 March 1938 December 1951
1806 62180 May 1938 December 1952
1807 62181 May 1938 December 1952.
1808 62182 May 1938 June 1952
1809 62183 May 1938
December 1951
1810 62184 May 1938 December 1952
1811 62185 May 1938 June 1952


The massive 8-axle tenders (24,000 gallons water, 27 tons of coal) of eight of the R-1's were purchased by the Norfolk and Western in 1953 and attached to Y-4 class 2-8-8-2 compound mallets (see below). These engines operated until 1958 when they too were withdrawn by the N&W and scrapped. The tender shown below appears to have belonged to ACL no. 1808, as a late photo of the 1808 shows apparently identical dents on the right back corner.

ACL

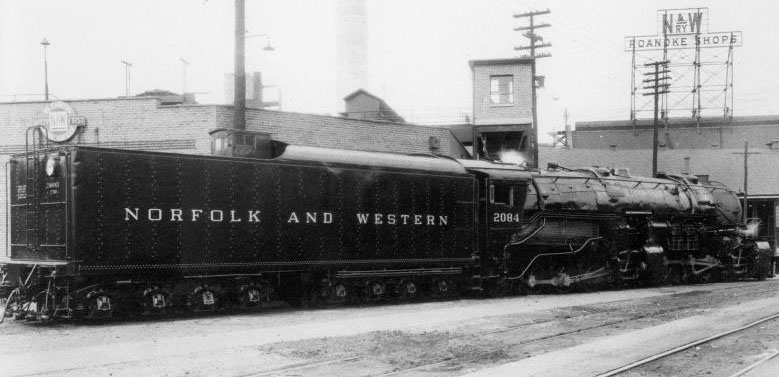

                    R-1 tender behind N&W Y-4


N&W Y-4 No. 2084 with R-1 Tender
photo from Virginia Tech N&W Collection

Note- the area where the ACL heralds were previously mounted (where "AND" appears) can be seen to be free of rivets in the above photo.
