918 December 2004 update
918
December 2004 Update


Click to enlarge


Due to the generally bad weather, progress slowed down a little this month. Nevertheless, work continued...

Fuel tank skirts and nose bondo...

Click to enlarge

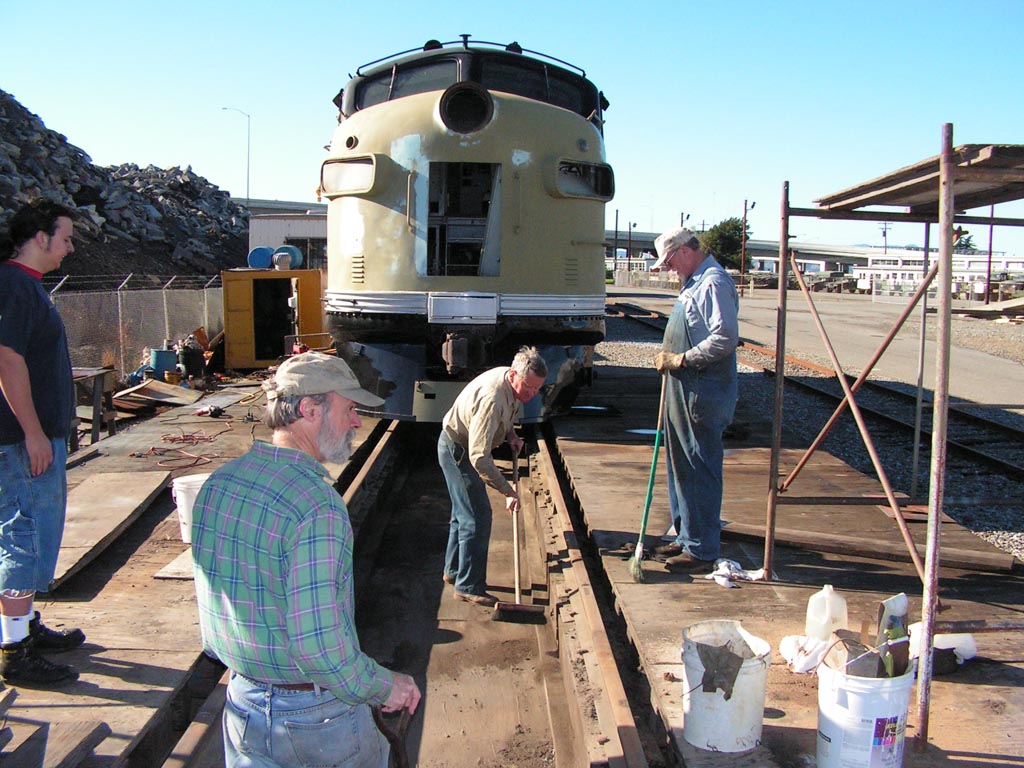

 Early in the month it was decided to back the locomotive up  a few feet and clean the pit. This was to facilitate work being done on the brakes.


Click to enlarge

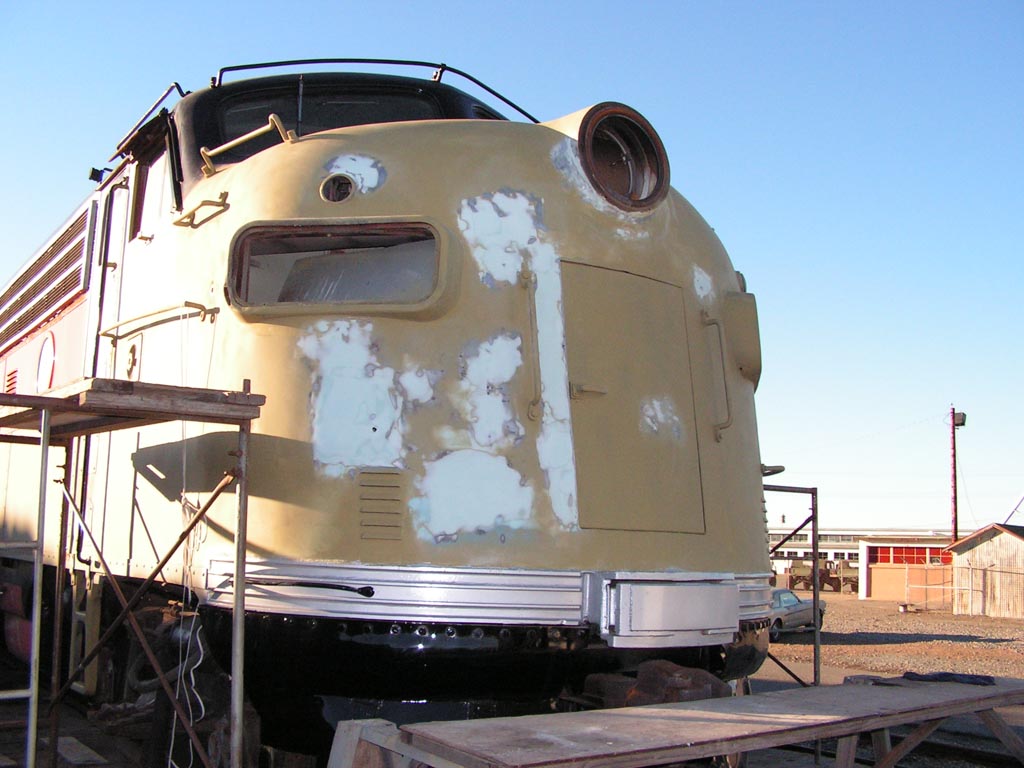

Work continued on nose bondo - a seemingly never ending job.


Click to enlarge

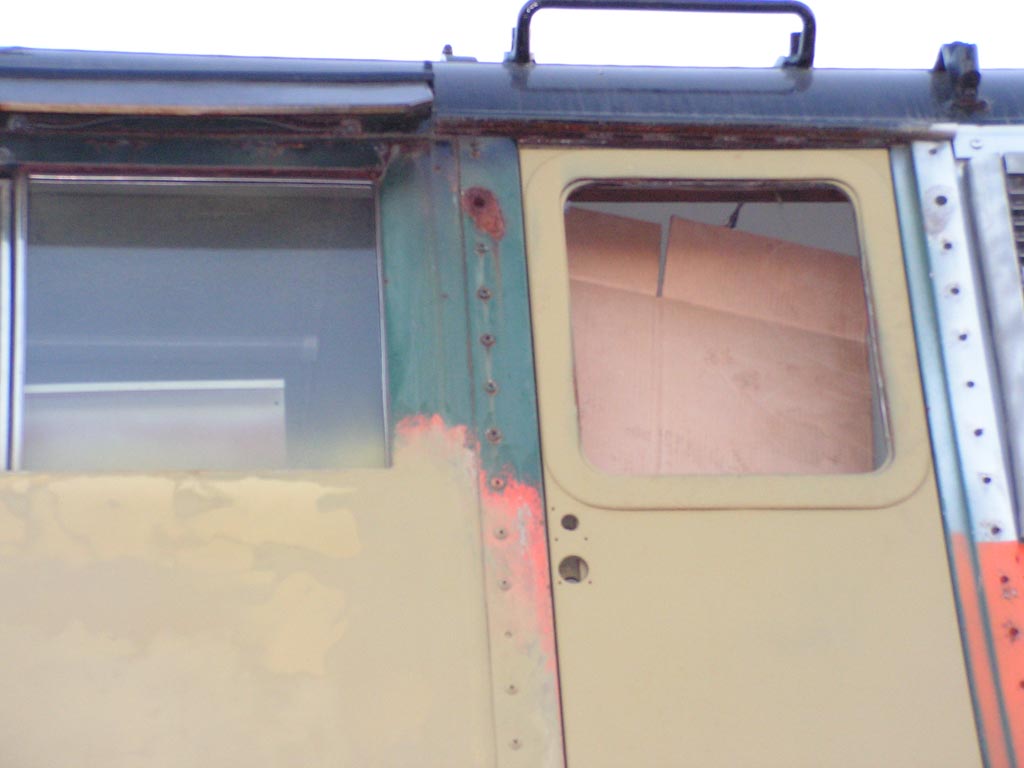

The very last patch of Perlman green, just ahead of the cab door on the right side.


Click to enlarge
More bondo...


Click to enlarge

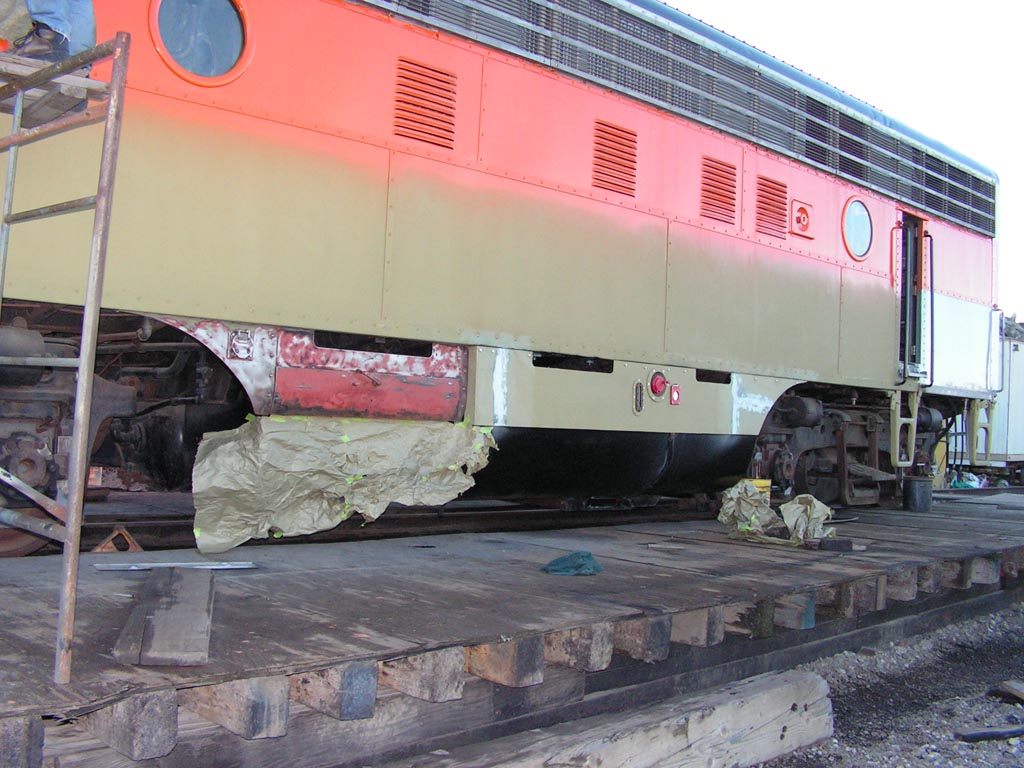

Preparing the fuel tank skirt for paint.


Click to enlarge

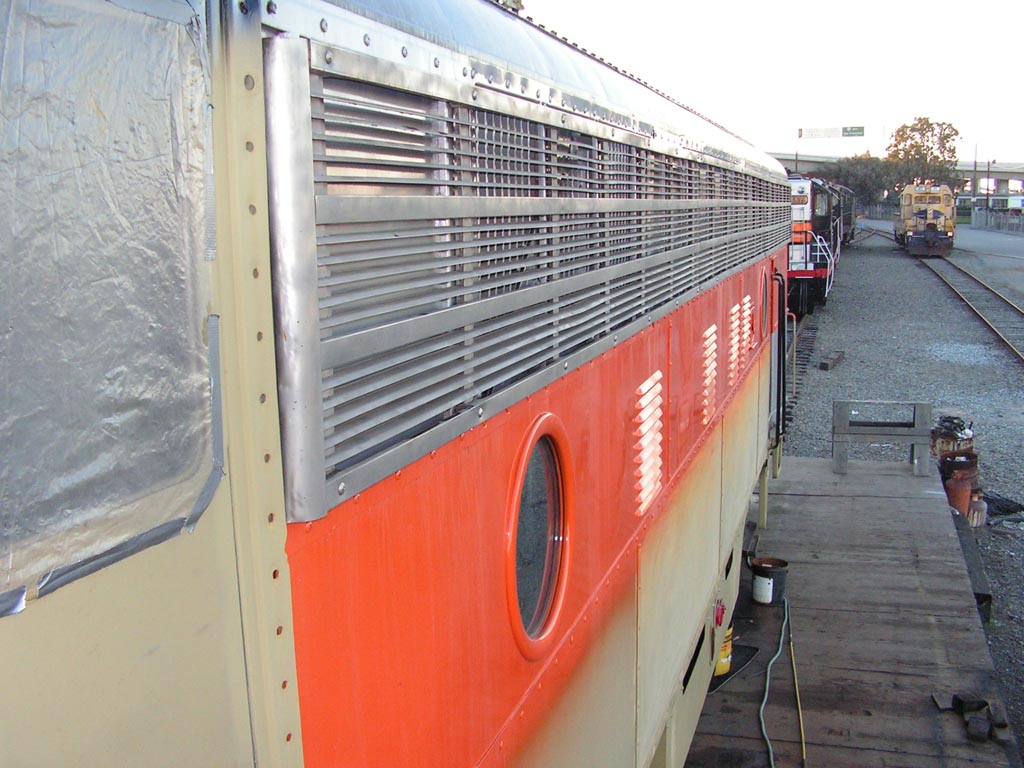

View down the right side of the locomotive. Almost looks done from this angle.

Click to enlarge

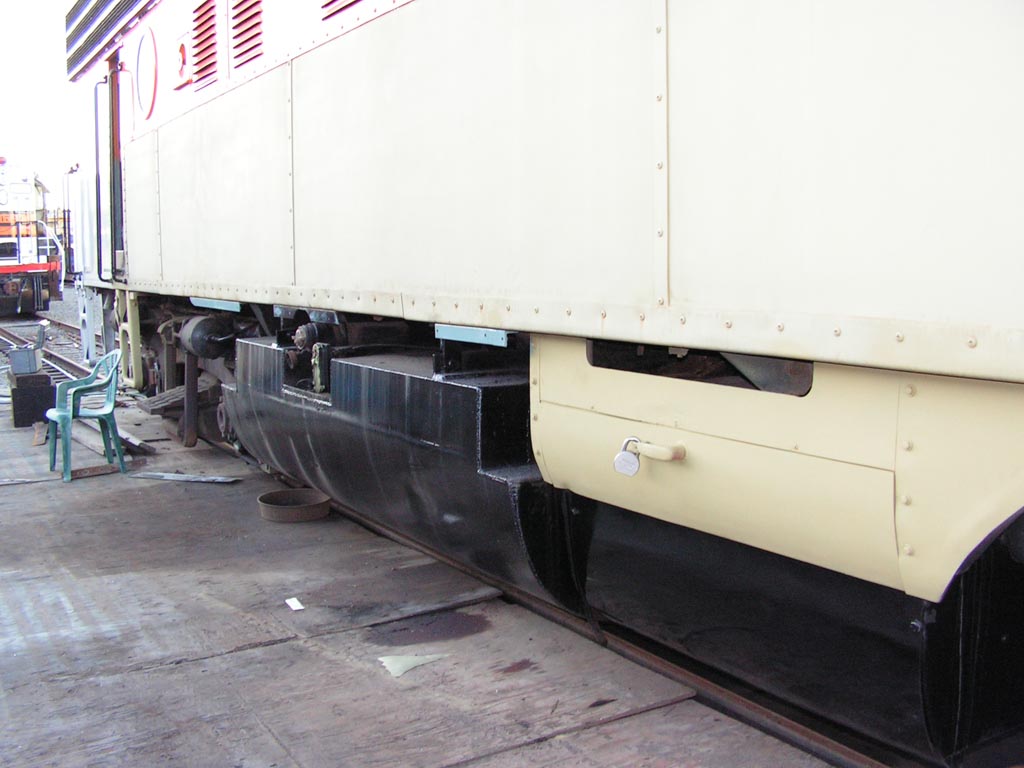

 Fuel  tank was  repainted black. Notice the new support brackets  for the skirt.


Click to enlarge

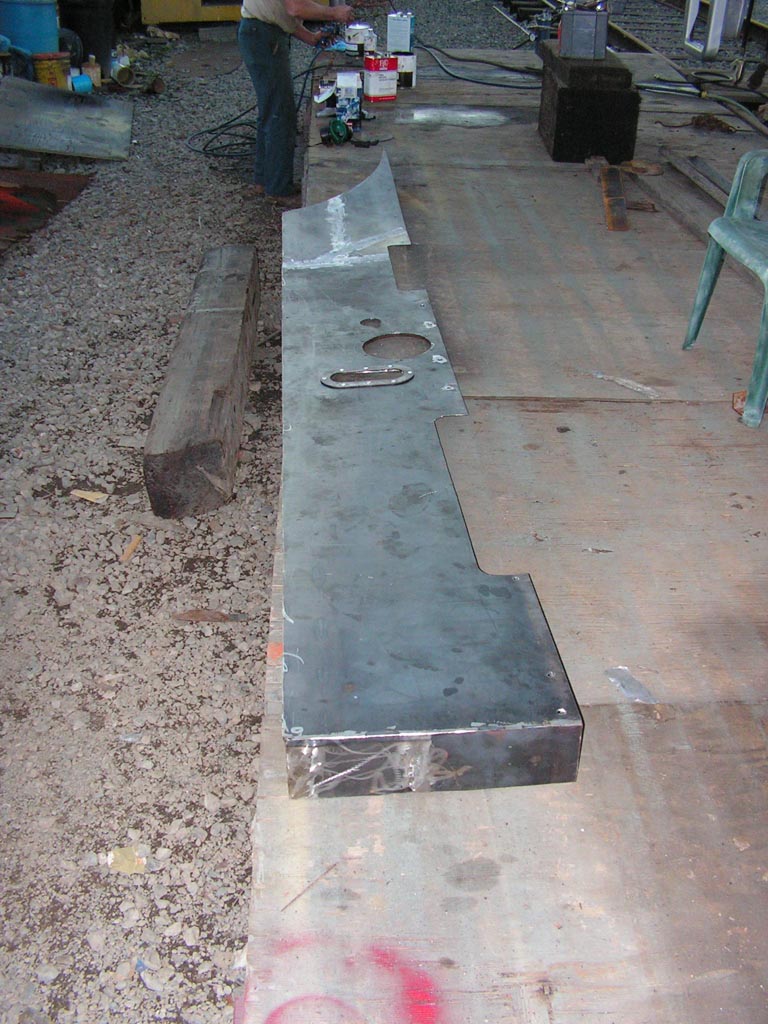

New skirt for the left side. Don McPherson designed and fabricated these after  looking at  many photos of WP f-units. No drawings or diagrams were available.

Headlight and Number board  boxes


Click to enlarge

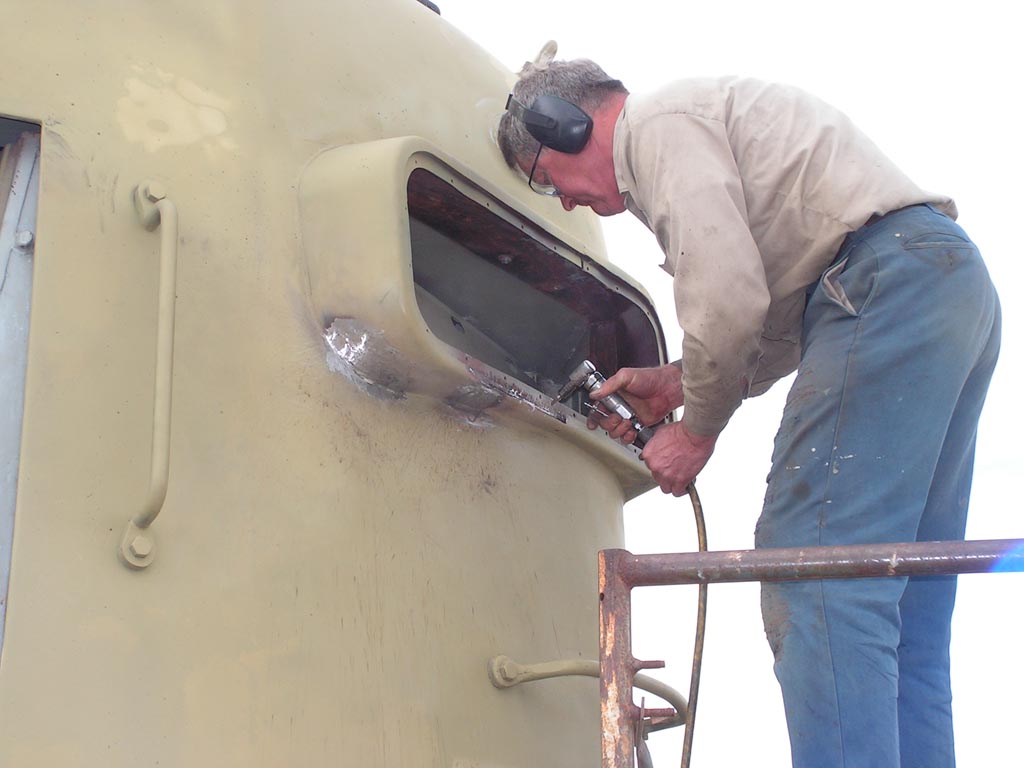

918 had been in a  number of collisions in the past. The number board boxes took quite a beating in their time. There was also quite a bit of water damage from water getting past the bezel gaskets. Here Don is seen welding in more metal onto the lower edges of the box. This was quite frustrating for him as every time he applied heat to this area,  the existing metal would disintegrate.


Click to enlarge

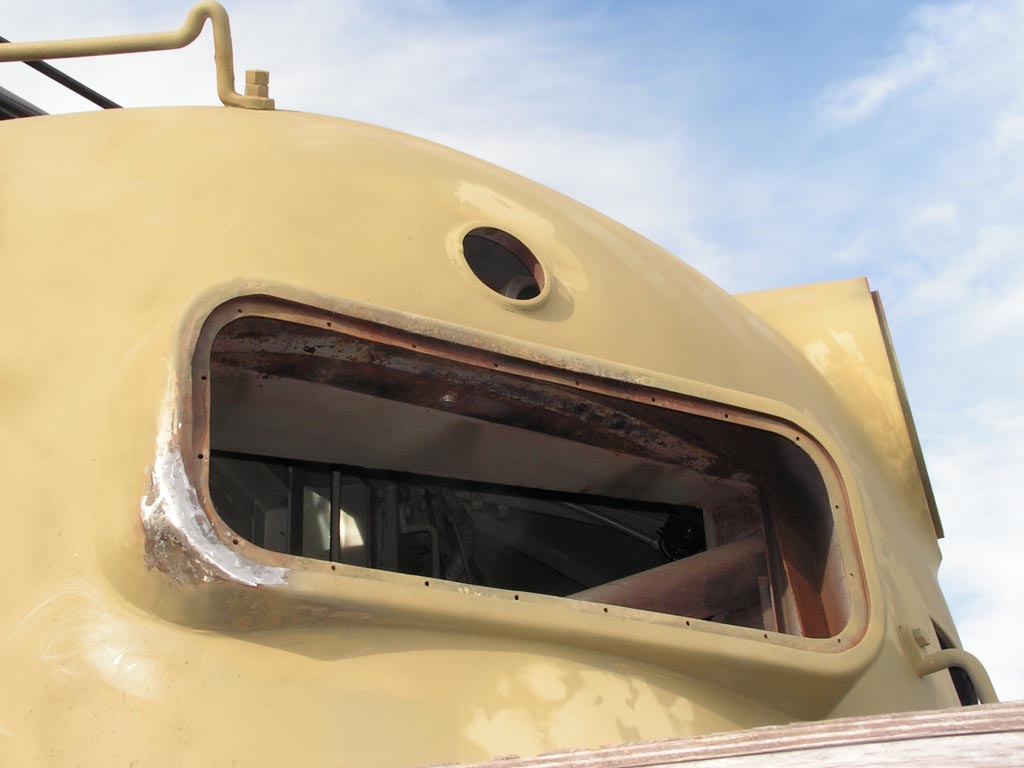

Metal  work done on the right number box. Bondo will follow later.


Click to enlarge

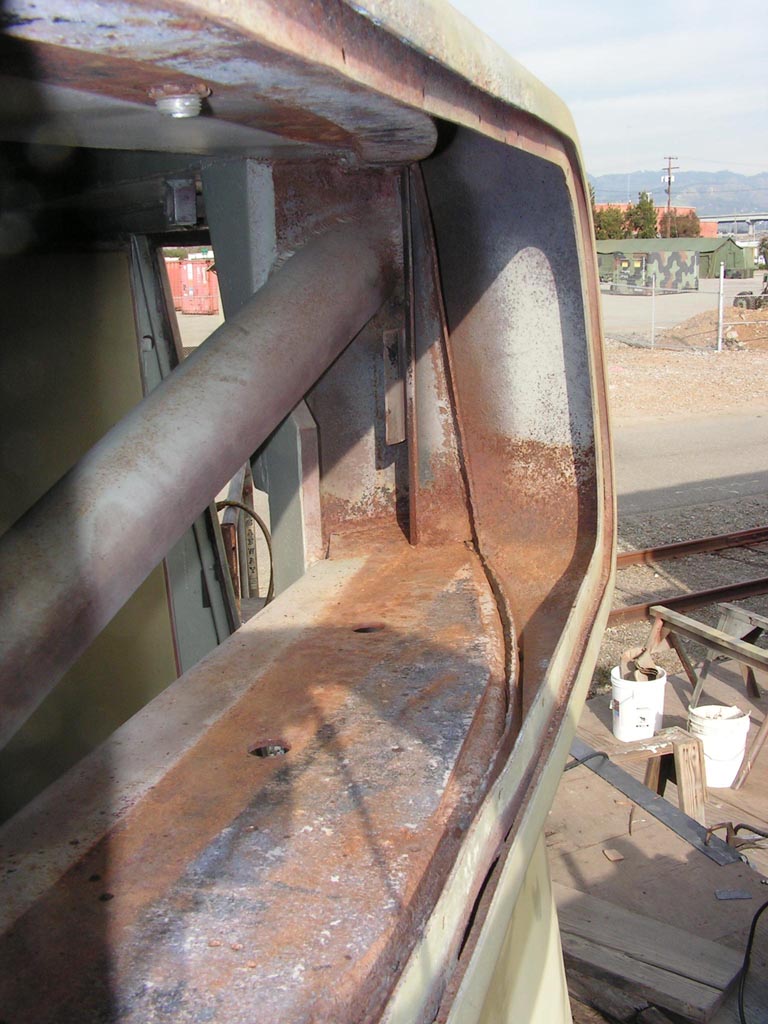

Close up look at the rust inside the number board box.


Click to enlarge

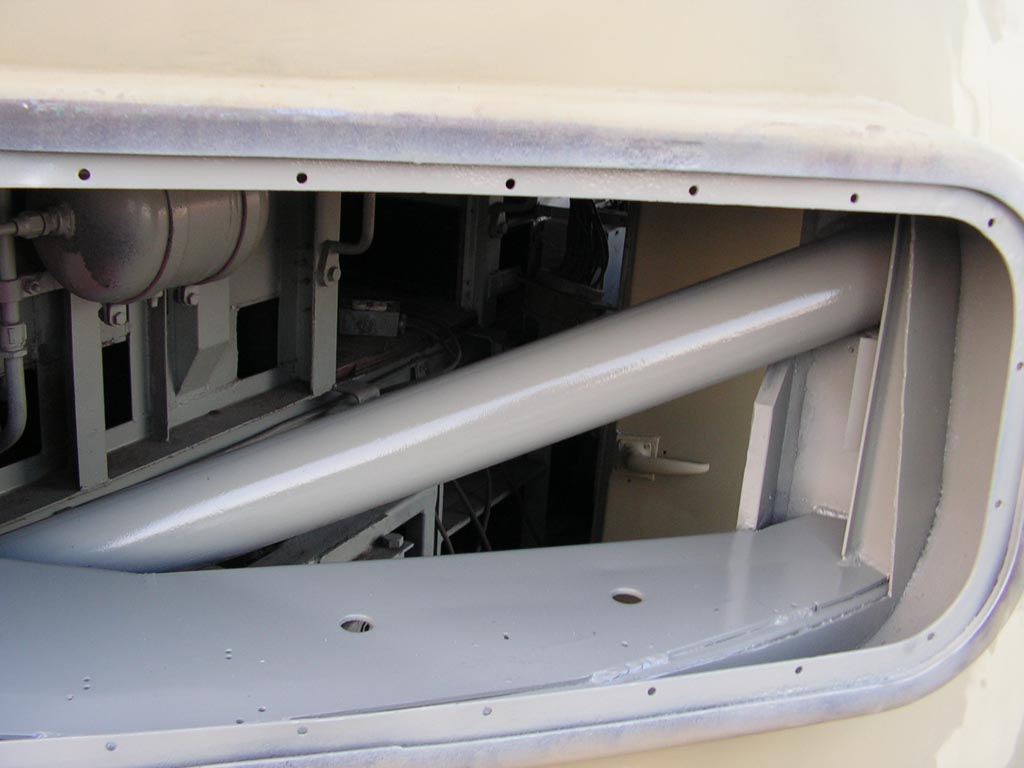

After the rust was cleaned up and the metal treated with Rust Mort, the number box was repainted interior suede gray.


Click to enlarge

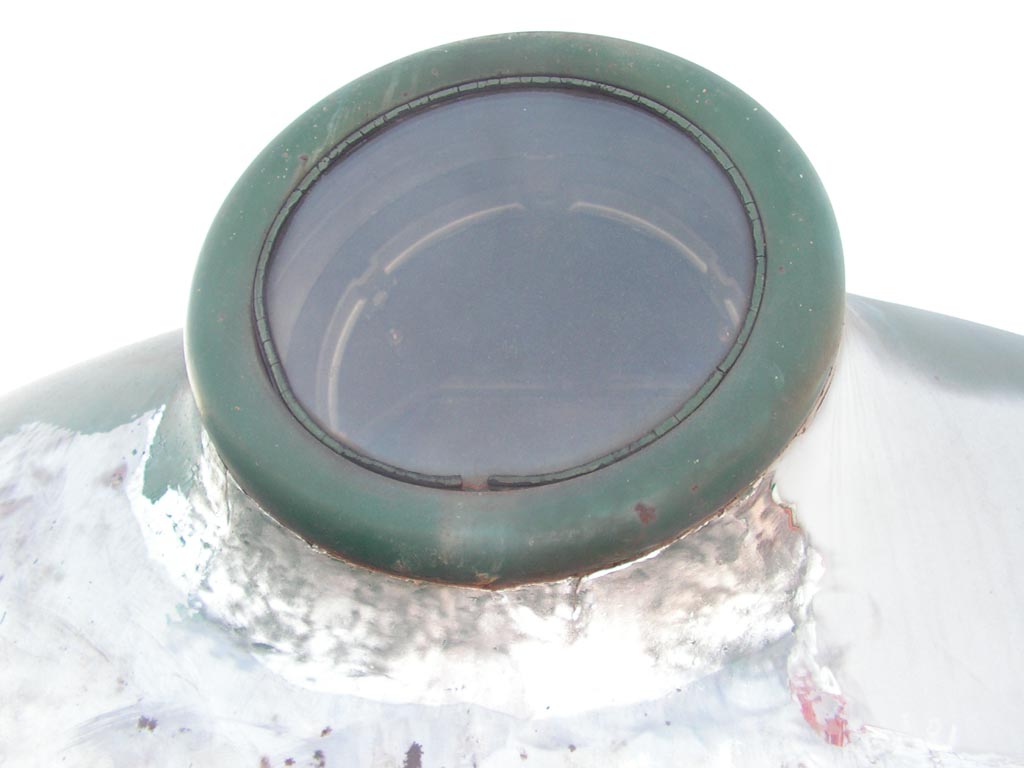

Headlight bezel  with old gasket. See January '05 update for restoration photos.

Click to enlarge

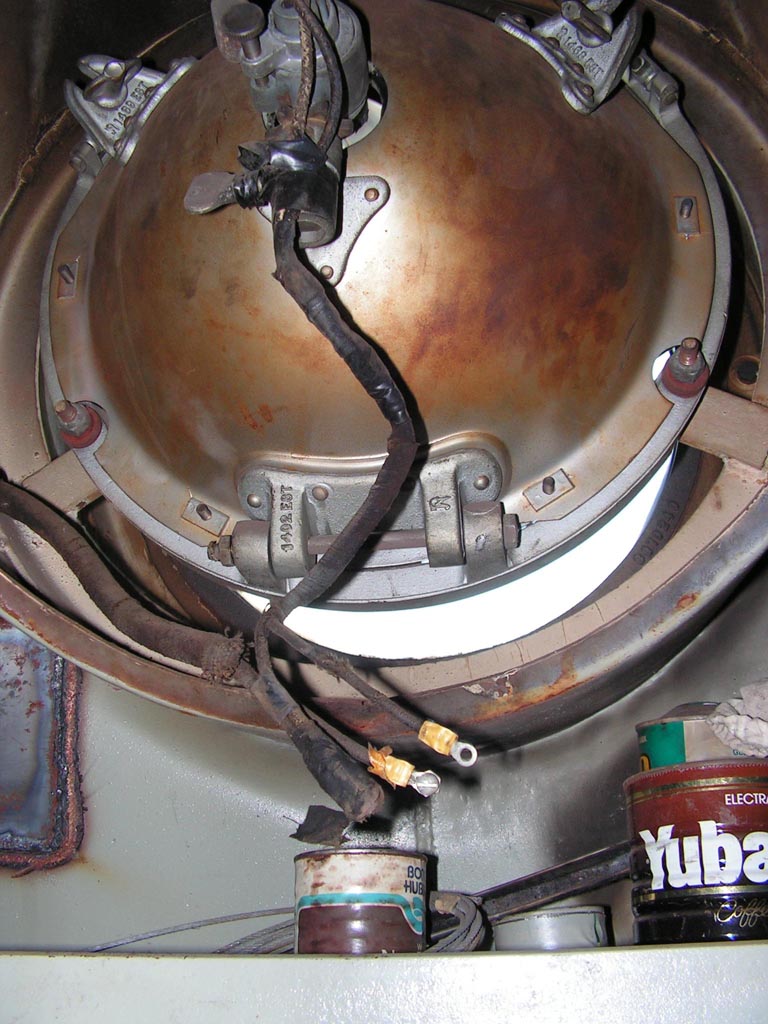

View inside headlight compartment.

Click to enlarge
Headlight before restoration.

Click to enlarge

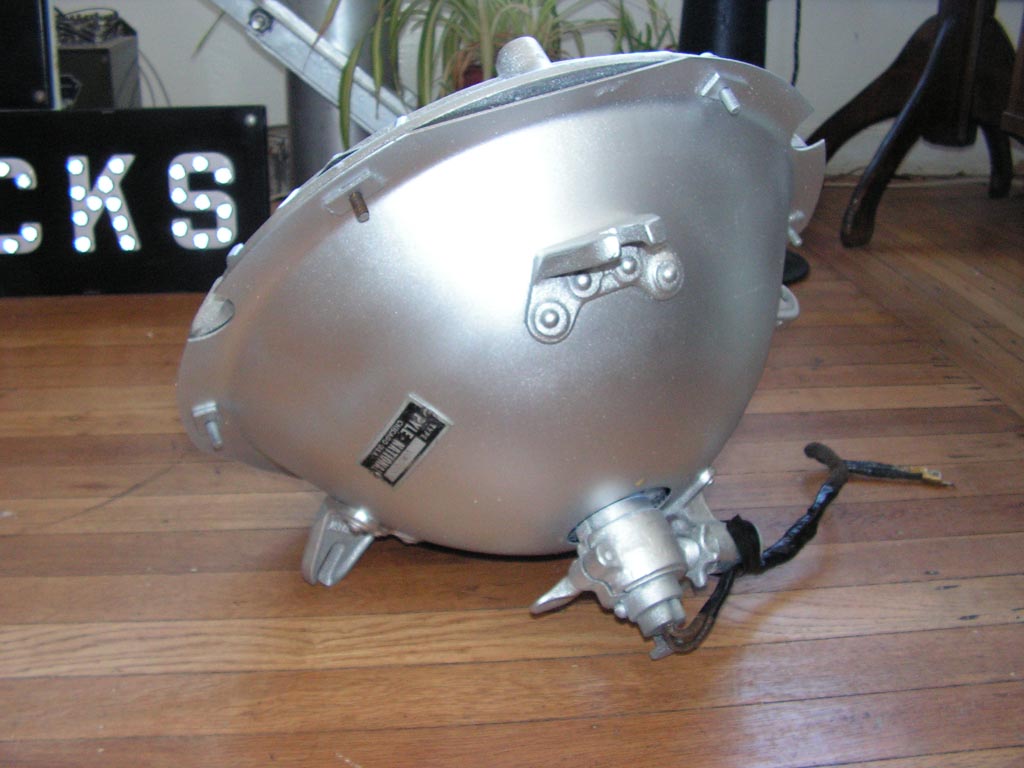

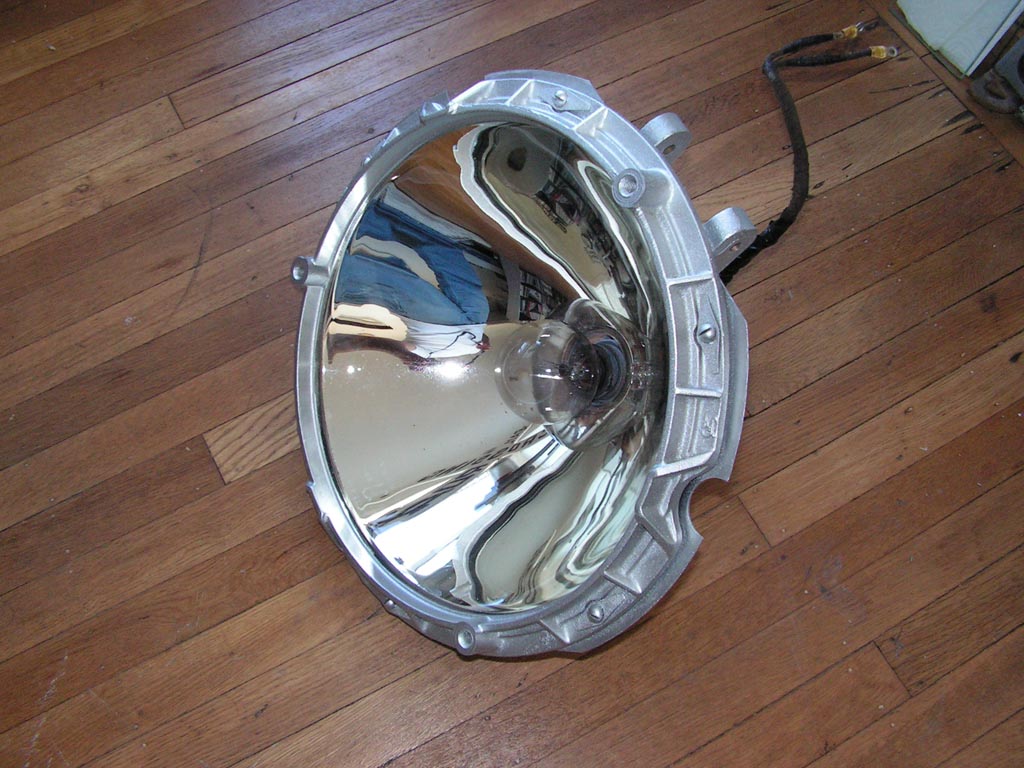

The headlight was cleaned up and the back side repainted silver. The wires were re-wrapped as well.


Click to enlarge

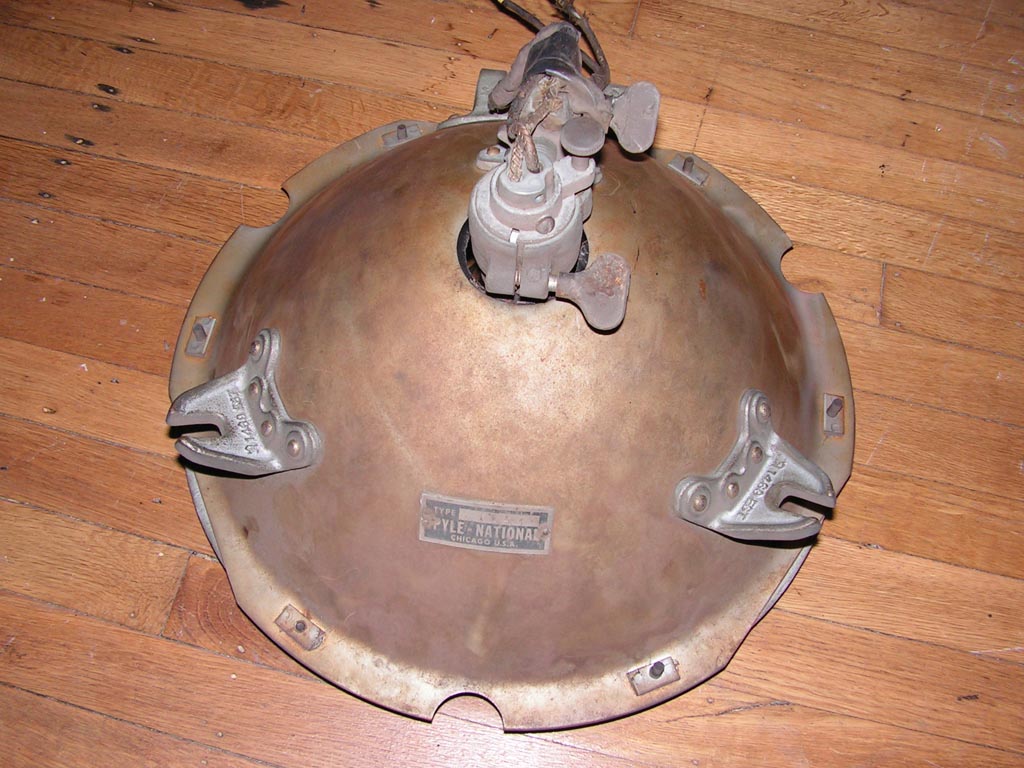

View showing the builder's plate. This was made by Pyle - National.

Click to enlarge

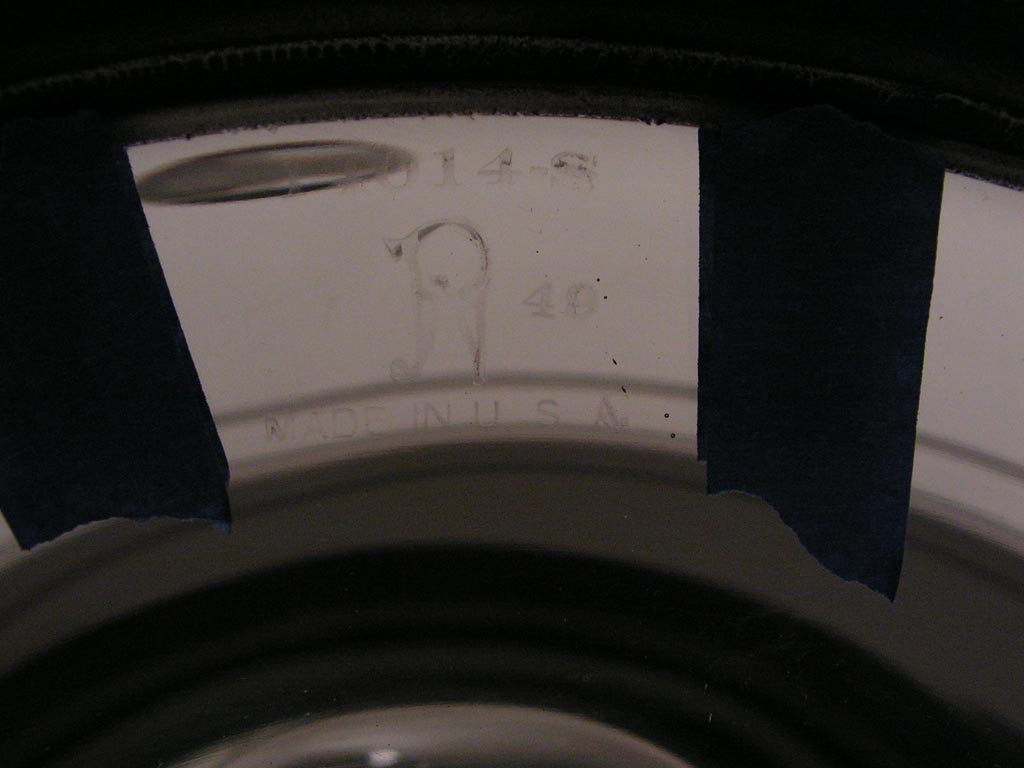

The builder's  logo  is etched in the glass mirror. If you look closely you can see the manufacture date - 7 - 49. This is probably the original headlight since 918 was finished in January 1950.


Click to enlarge
Click to enlarge

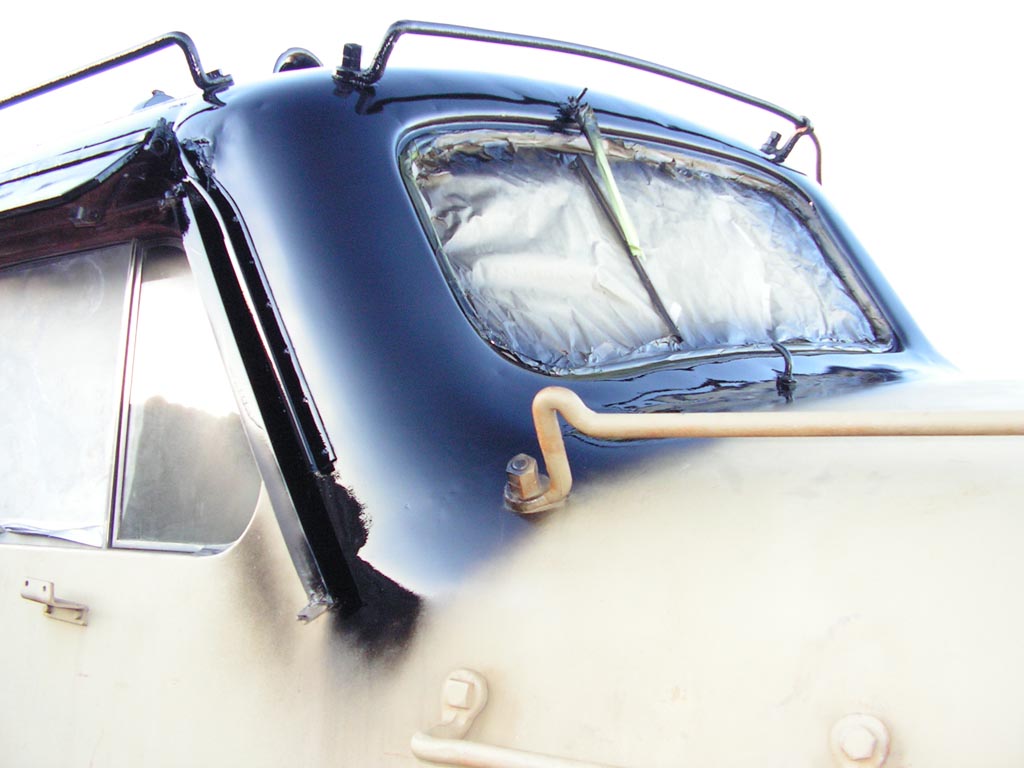

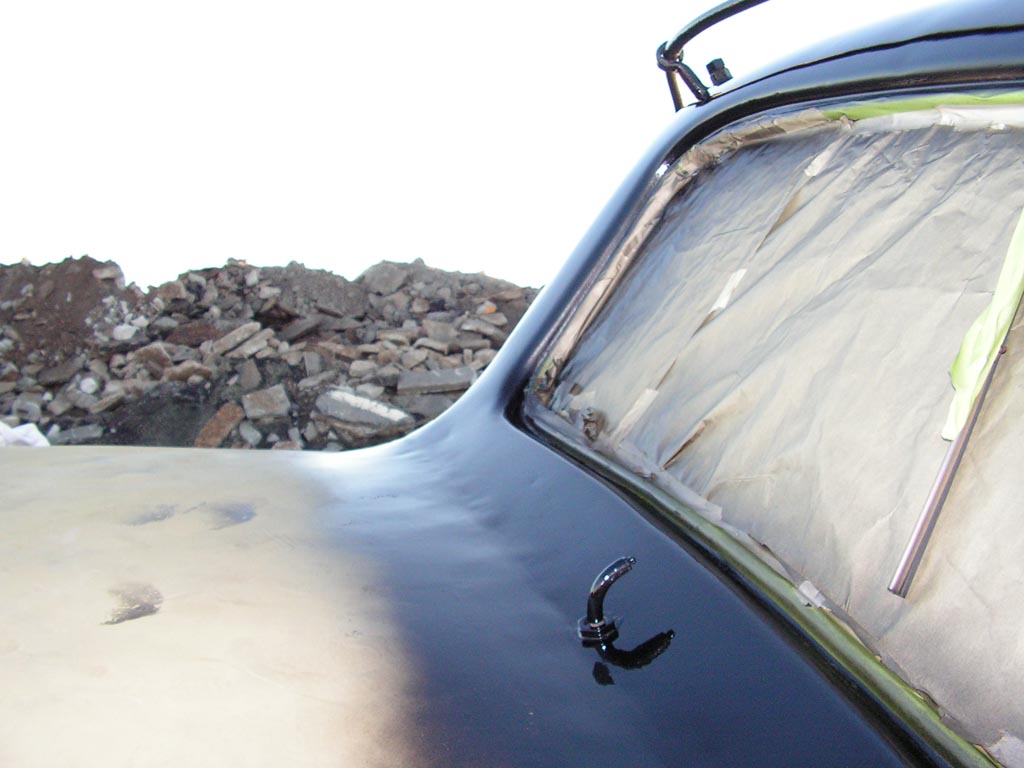

The roof got an extra coat of black paint this month too.

Click to enlarge
On Saturday December 11 we were visited by several of our local
railfan friends. Walt, John Stashik, Harry Wong chat with Howard  Wise.

Click to enlarge

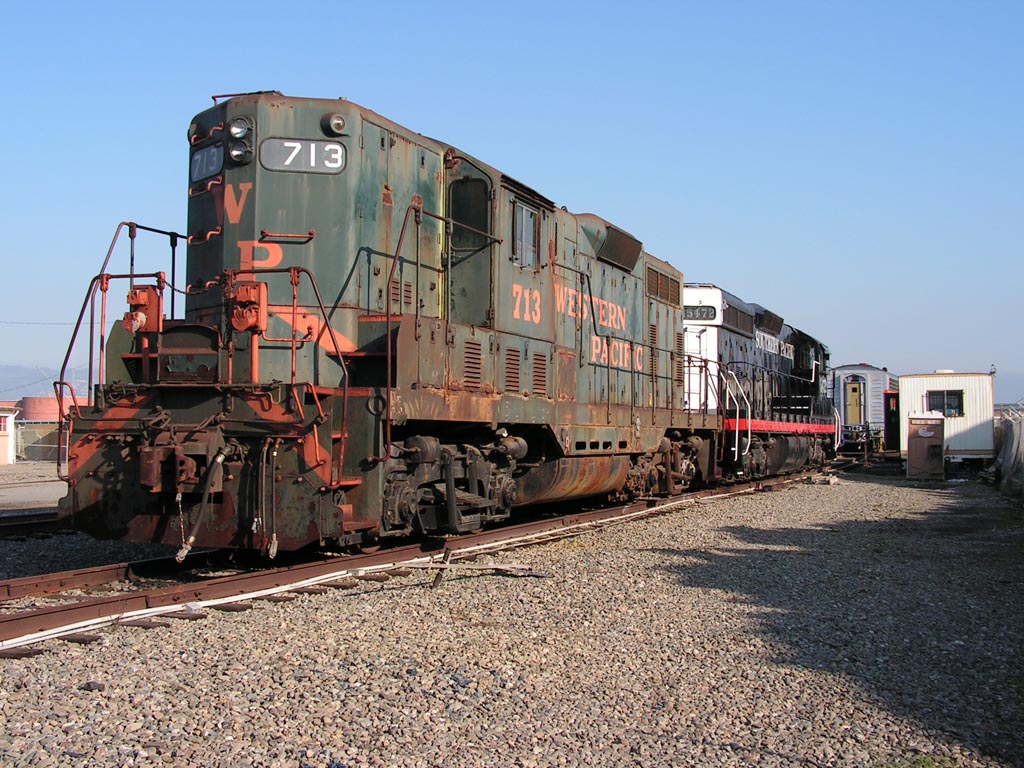

One  last view of WP 713 before it heads to the canyon with the Black Widows and the rest of the
PLA equipment  that has been stored here  for more than 15 years.

Photos and text by Dan Furtado
