Chittaranjan Loco Works

Chittaranjan Loco Works
Prakash Tendulkar, February 2005

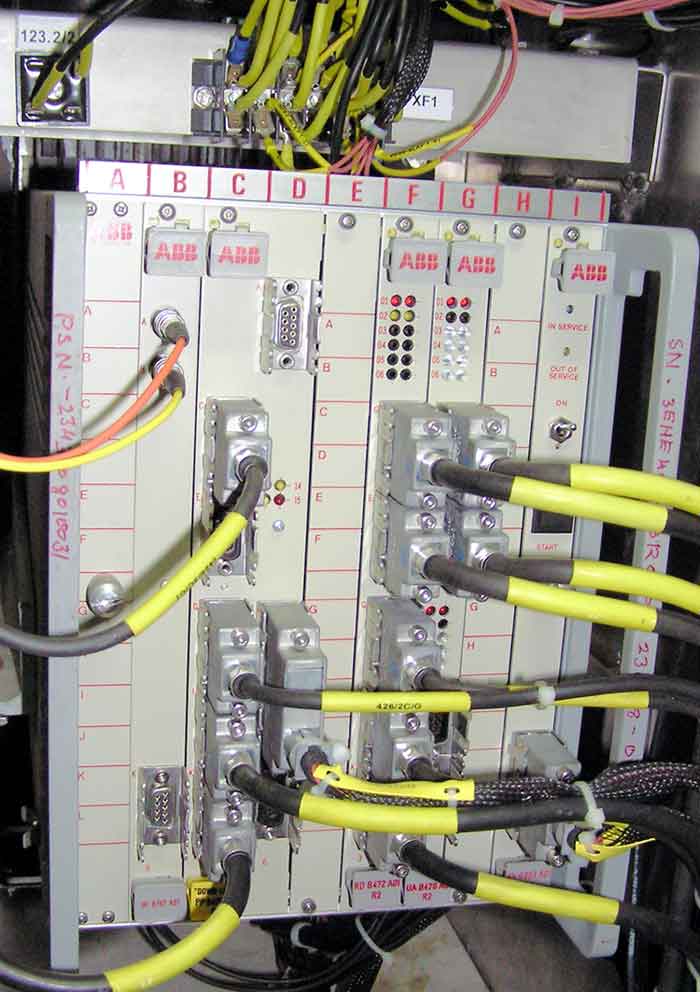

OBC.jpg (61124 bytes)  Connectors on the back of micro-processor module.

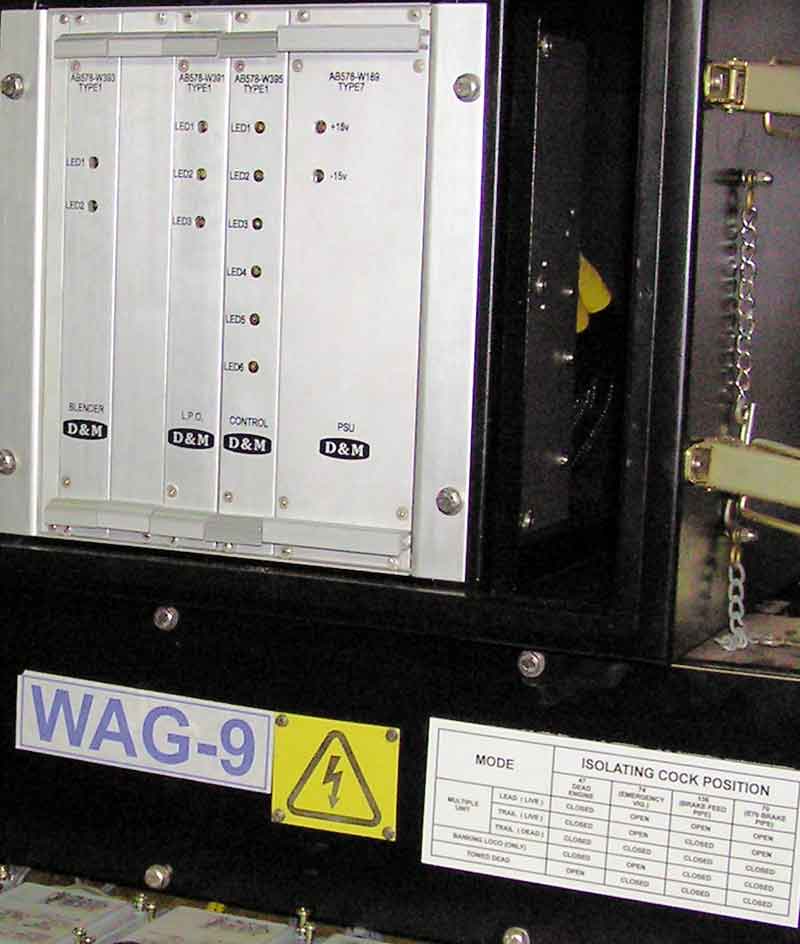

WABTEC.jpg (48453 bytes)  SAB-WABCO modules used for managing pneumatic brakes.

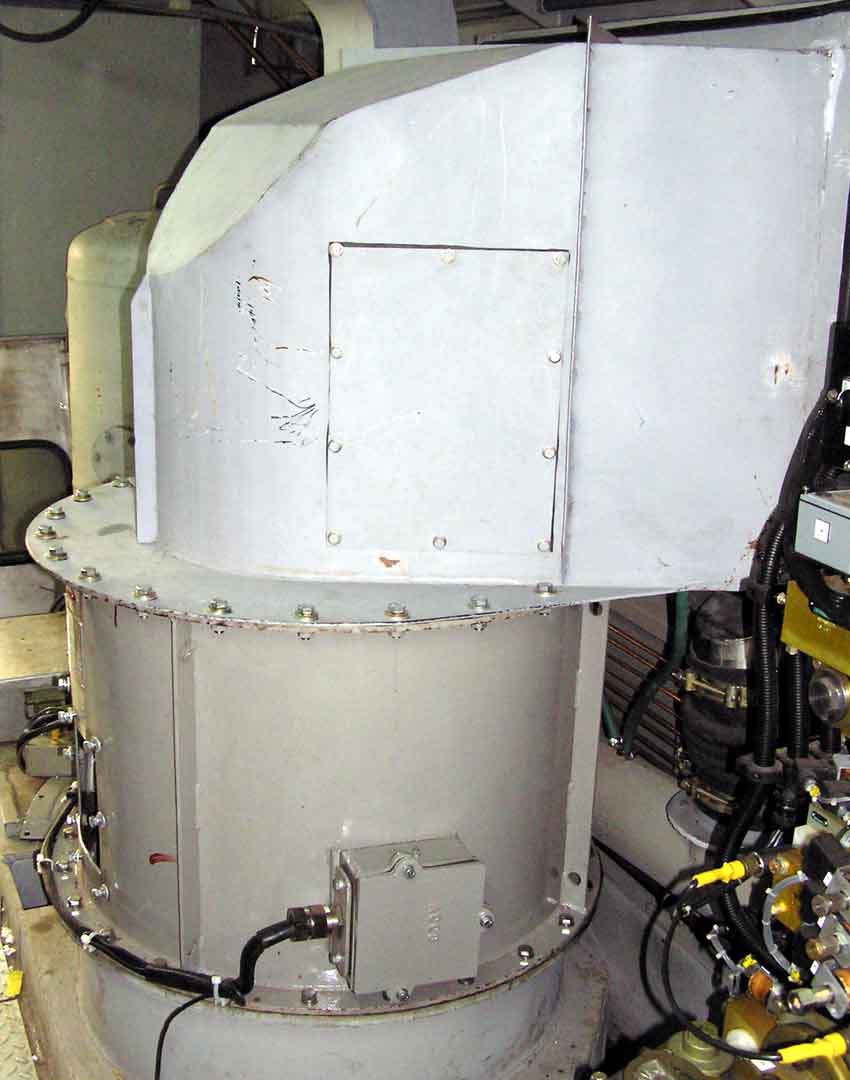

TM Blower.jpg (49921 bytes)  TM blower.

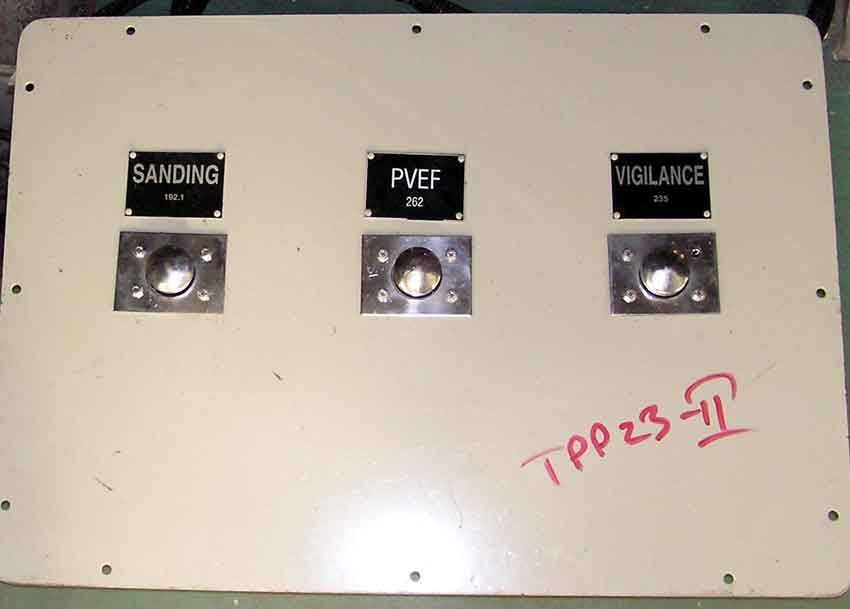

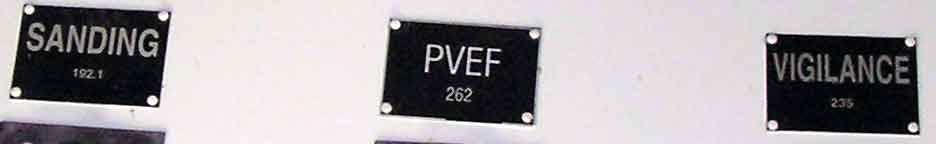

Footpanel2.jpg (6959 bytes)  A close up. Label Sanding is self-explanatory. PVEF is used when train brakes are applied and loco brakes (only) need to be released. Vigilance is depressed to acknowledge alert signal. This function is similar to (not identical to) dead man's handle.

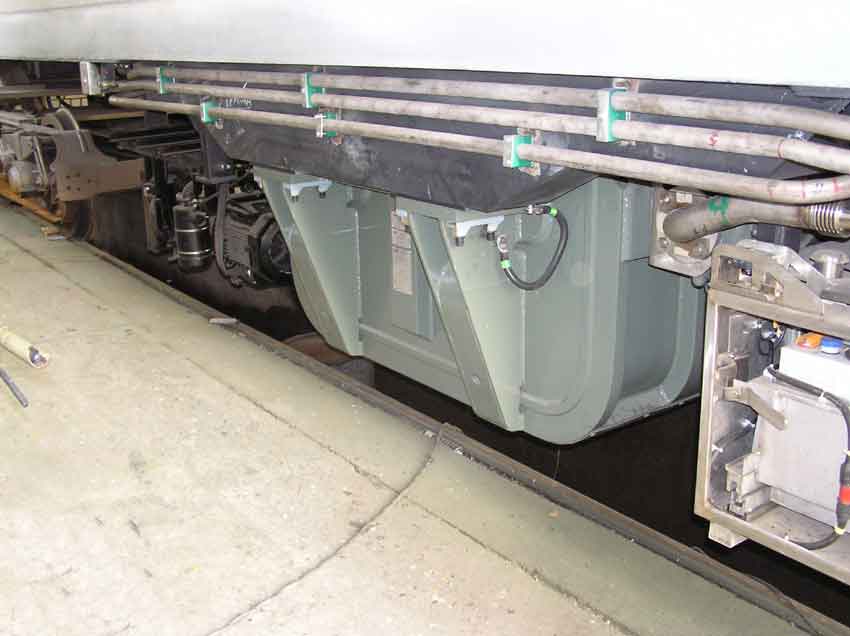

Xformer.jpg (33115 bytes)  Undercarriage of WAG-9. Transformer is visible at the center.
