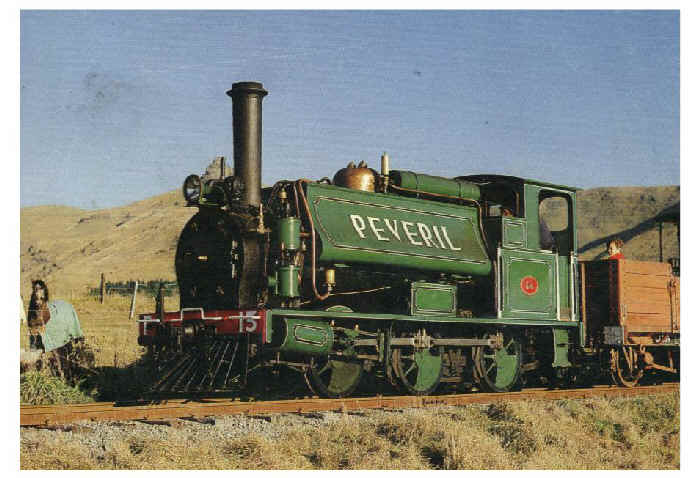

F Class
CLASS  F    0-6-0 ST


Introduced:    1872 Number in Class:    88

F Class Register




Locomotive Specifications

Builders:
  1.   Neilson & C0., Glasgow, Scotland (12)
  2.   Dubs & Co., Glasgow, Scotland (21)
  3.   Vulcan Foundry Ltd., Newton-le-Willows, England (5)
  4.   Avonside Engine Co., Bristol, England (26)
  5.   Robert Stephenson & Co., Newcastle-on-Tyne, England (12)
  6.   Yorkshire Engine Co., Sheffield, England (11)
  7.   Black Hawthorn & Co., Gateshead-on-Tyne, England (1)

Engine Weight:
19.2 tons
Tender Weight:     Total Weight:    19.2 tons Adhesive Weight:
19.2 tons
Length over Buffers:
23' 3"
Total Wheelbase:    10' 6" Engine Wheelbase:    0' 6" Coupled Wheelbase:
10' 6"
Tender Wheelbase:     Driver Wheel Dia.:    36" Cylinders HP:
Two - 10" x 18"
Cylinders LP:
Grate Area:    9.0 sq ft Evaporative Area:
486 sq ft
Superheated Area:     Working Pressure:
130 psig
Tractive Effort:
5733 lbs f
Coal Capacity:    0.95 tons Oil Capacity:     Water Capacity:
350 gals

Remarks:     During their long and successful career the 'F' class engines served on almost every section of the New Zealand railways. Despite being a light engine they "climbed like a cat" and would "walk away" with enormous loads. On level track, even an 800 ton load was not beyond their capabilities. During their life they underwent many minor variations, among them the grate area was increased to 10.5 sq ft. Boiler pressure varied over the years and when their life with the NZR had expired, the boilers went on to power bush locomotives and log haulers. The 'F' was originally introduced in 1872 and the last survivor with the NZR was not withdrawn from service until 1964.

Preserved Locomotives
  Ferrymead Museum,    Christchurch -     F 12,     Yorkshire #241/1874   Stored for parts
  Ferrymead Museum,    Christchurch -     F 13,     Neilson #1692/1872   Overhauling
  Bay of Islands Vintage Railway,    Kawakawa -     F 40,     Avonside #1090/1876   Converted to diesel
  Ocean Beach Railway,    Dunedin -     F 111,     Dubs #1233/1879   Overhauling
  Plains Railway,    Tinwald -     F 150,     Dubs #1371/1880
  Rail Heritage,    Fielding -     F 163,     Dubs #1367/1880
  Western Springs Railway,    Auckland -     F 180,     Yorkshire #244/1874   Restoring
  Bush Tramway Club,    Rotowharo -     F 185,     Dubs #1171/1878   Stored
  Lake Domain,    Hamilton -     F 230,     Dubs #1364/1880   Static Display
  Glenbrook Vintage Railway,    Auckland -     F 233,     Robert Stephenson #2593/1885   Stored
