MODEL POWER / MEHANO N-GAUGE TROLLEYS

In 1981 Model Power, a prolific U.S. model railroading importer based in Farmingdale, New York, introduced the first N-gauge ready-to-run model trolley. The operating 2-rail model, manufactured by Mehano of Yugoslavia, was based on a scale drawing in the June 1972 Model Railroader magazine of a wooden-bodied single truck streetcar design reportedly built by the J. G. Brill Company of Philadelphia, Pennsylvania for the Toronto, Ontario streetcar system. (Toronto is one of the paint schemes offered.) Model Power / Mehano made similar HO models. They also sold the N gauge trolleys in "Jolly L'l Trolley" sets with a loop of track and a power pack.

The models were sold as two-car motor/trailer pairs, even though the prototype would never have operated in multiple-unit fashion. The models came with a simple stamped metal wrench for the motor brushholder. The models are oversize in order to fit the cast metal powered chassis. That chassis' motor and drive mechanism, once surprising for their small size, are primitive by today's standards. For this reason, some modelers have re-powered these models with a more modern drive chassis. The powered chassis includes a grain of wheat light bulb, although there is no opening in the headlight. Many of these models were sold, and they still appear often in second-hand markets, generally overpriced for their real value. - R. D. Kerr


MODEL POWER / MEHANO BRILL TROLLEY WITH DUMMY (1981-about 1998)

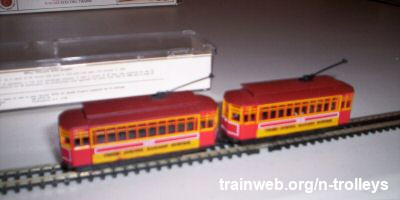

Model Power 7505 Third Avenue.jpg

Product:7505 Third Avenue
Year Made:1981-about 1998
City/System:Third Avenue Railway System (New York)
Colors:Red/yellow
Vehicle No.:1651 / 1651
Writing:Third Avenue Railway System
Notes:

Not authentic to prototype.

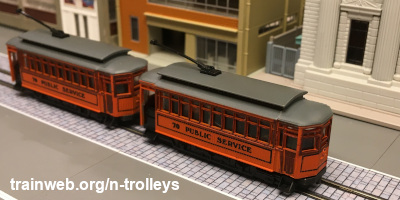

Model Power 7506 Public Service.jpg

Product:7506 Public Service
Year Made:1981-about 1998
City/System:None
Colors:Orange/black
Vehicle No.:70 / 70
Writing:Public Service
Notes:

No specific prototype; doors only on one side.
Model Power 7507 Downtown.jpg

Product:7507 Downtown
Year Made:1981-about 1998
City/System:None
Colors:Yellow/red/black
Vehicle No.:14 / 14
Writing:Downtown
Notes:

No specific prototype; doors only on one side.

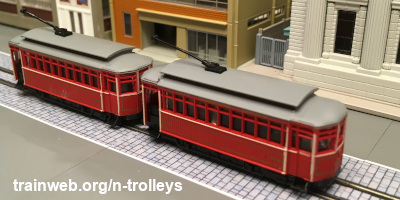

Model Power 7508 Toronto.jpg

Product:7508 Toronto
Year Made:1981-about 1998
City/System:Toronto Railway Co.
Colors:Red/white/gold
Vehicle No.:Illegible; 4 digits
Writing:Toronto
Notes:

Doors only on one side.



Images are used here for non-commercial illustrative purposes only.
