Road trip to Dunsmuir and Southern Oregon    Page 9


Roseburg
So after a quick tour of the Corp yard, we were off to to the south end of the yard.
Here they have one of those new Electrocode signals, all in one relay case and signal.
These are the newest type of block signals being installed. They are completely self-
contained, and send signals through the track for train detection.

Click to enlarge

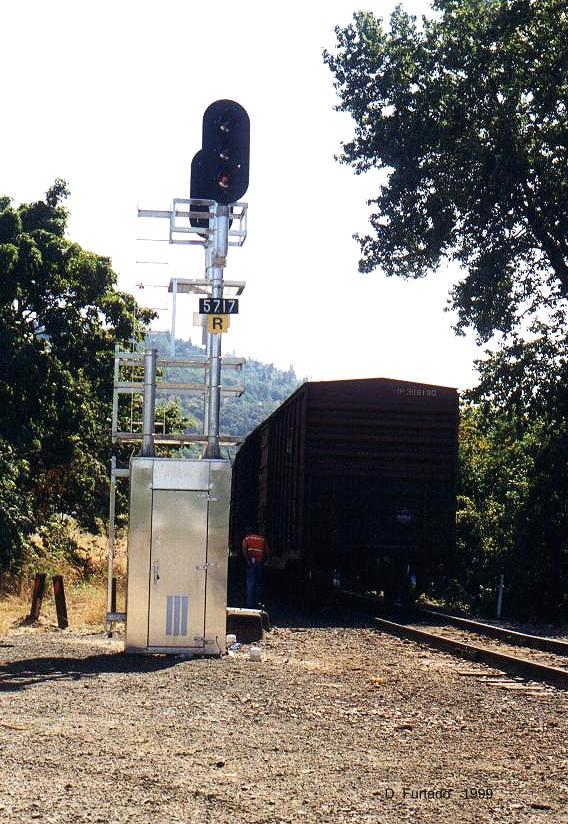

Signal 5717 at the south end of Roseburg Yard. A CORP train is being put together to the right.
The Electrocode unit replaced a set of Union Switch & Signal type H-2 searchlight signals.

click to enlarge

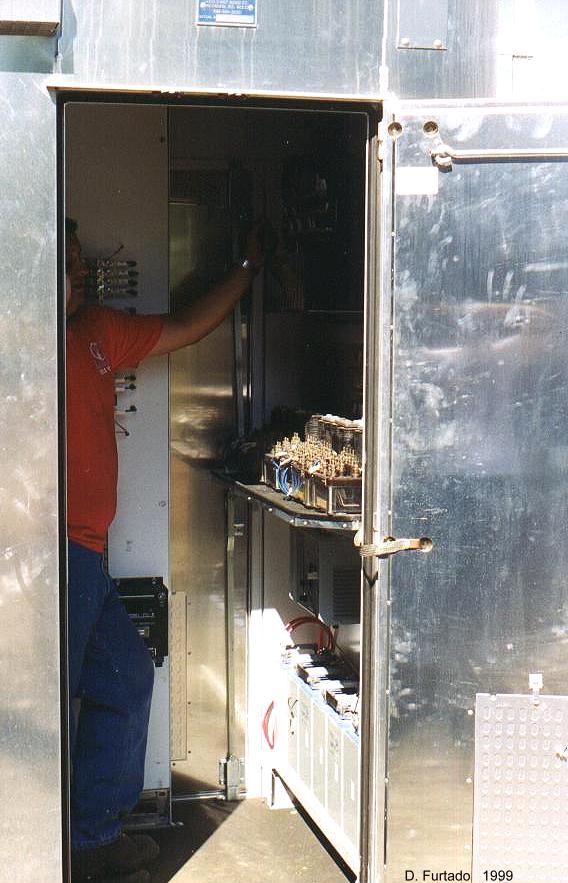

Here we get a peak inside of the Electrocode unit. Usually they don't have the old
style relays inside, but at this location they are using Elcctrocode logic in one direction,
and relay logic (still pole line there) in the other. Rick "tries" to hide from the camera.

click to enlarge

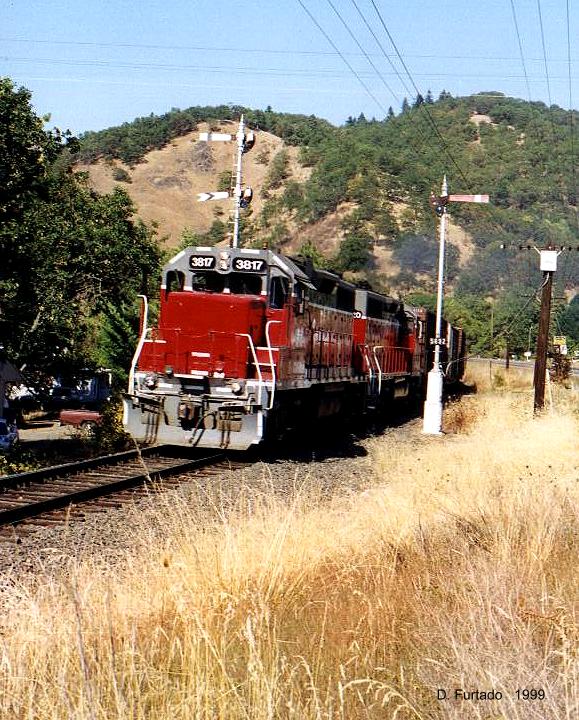

Just south of town we catch the AM Dillard Switcher headin' south.
Gp-38 trips the semaphore blades (MP 569.2).



click to enlarge

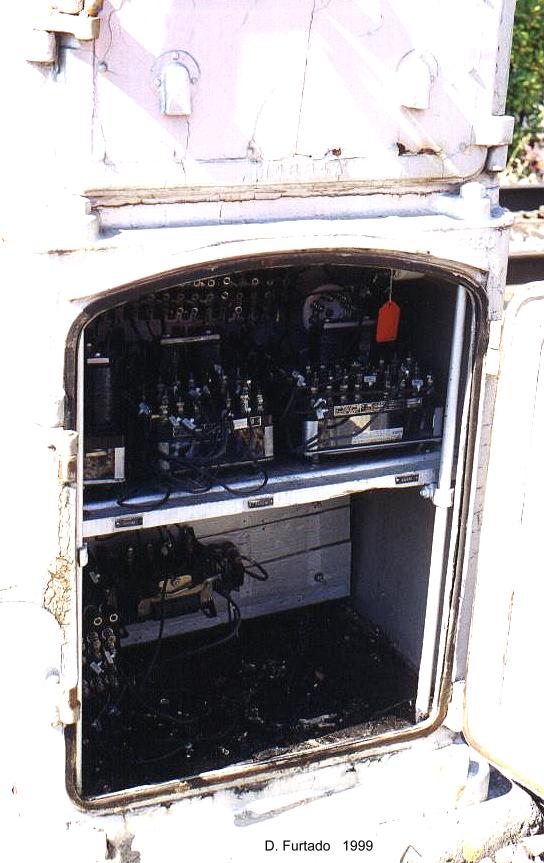

Ever seen inside a semaphore case? On the bottom level (pole line side) you have the track relays. On the other side, the batteries would be here.
click to enlarge

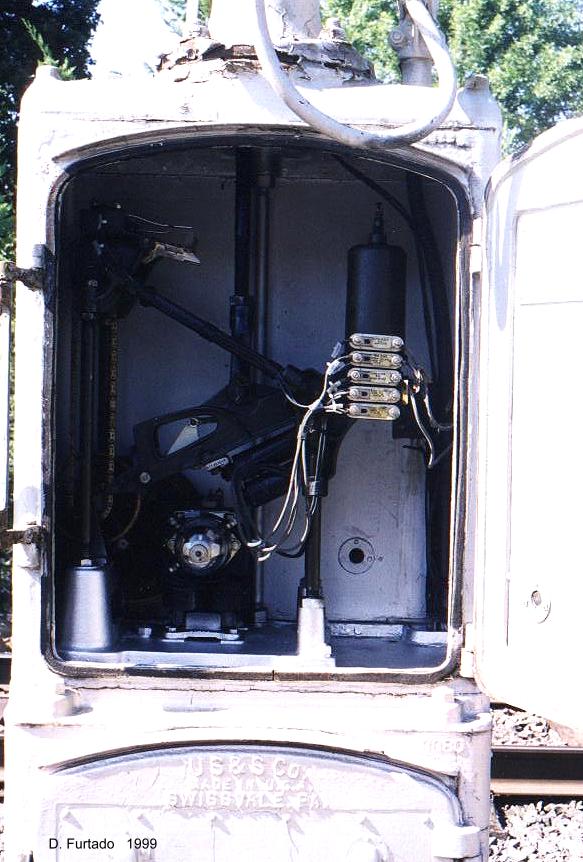

The upper case is where the mechanism lives. This is the single bladed semaphore, if it were double, there would be two sets of mechanisms.

click to enlarge

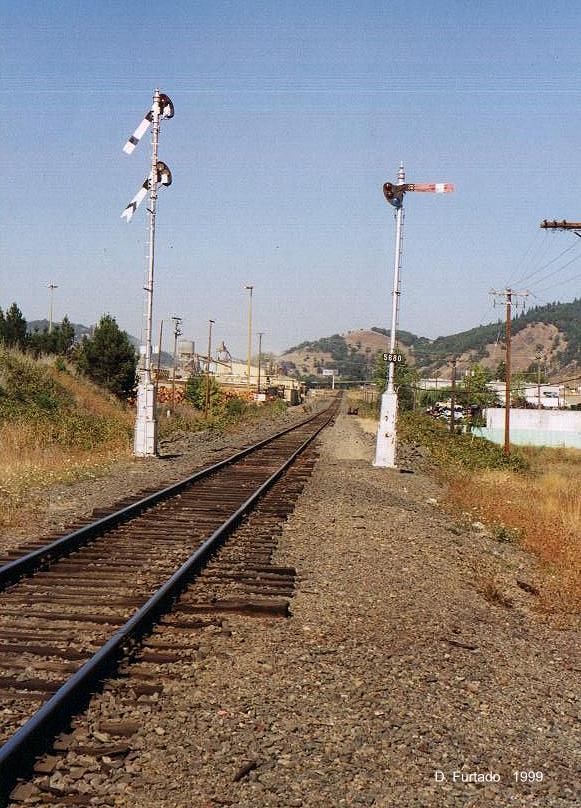

On the way out of town, I snapped a picture of this set a little further south, MP 568.0.



Once again I must say thanks to Rick for showing me around Roseburg.
It was a rare opportunity that I really appreciate. By the end of the day I was pretty wiped out, so
I headed back to Medford and got ready for the trip home the next morning.
But I still haven't shot any pictures of Medford yet....
