Ulster & Delaware Railroad
"The Only All Rail Route Through the Catskills"

Ulster & Delaware Railroad #22
New York Central #22
New York Central #802

Type: 4-6-0 Ten Wheeler
Builder: Schenectady Locomotive Works
Construction #: 5108
Year Built: 04/1899
Drivers: 60"
Cylinders: 19" x 26"
Weight: 141,000 lbs.
Notes:

Superheated. New cylinders: 20" x 26". Weight increased:
157,000 lbs.
To NYC #22 in 1932. Renumbered to #802 in 1936.
Scrapped 08/31/1948. (Source: Best)

22

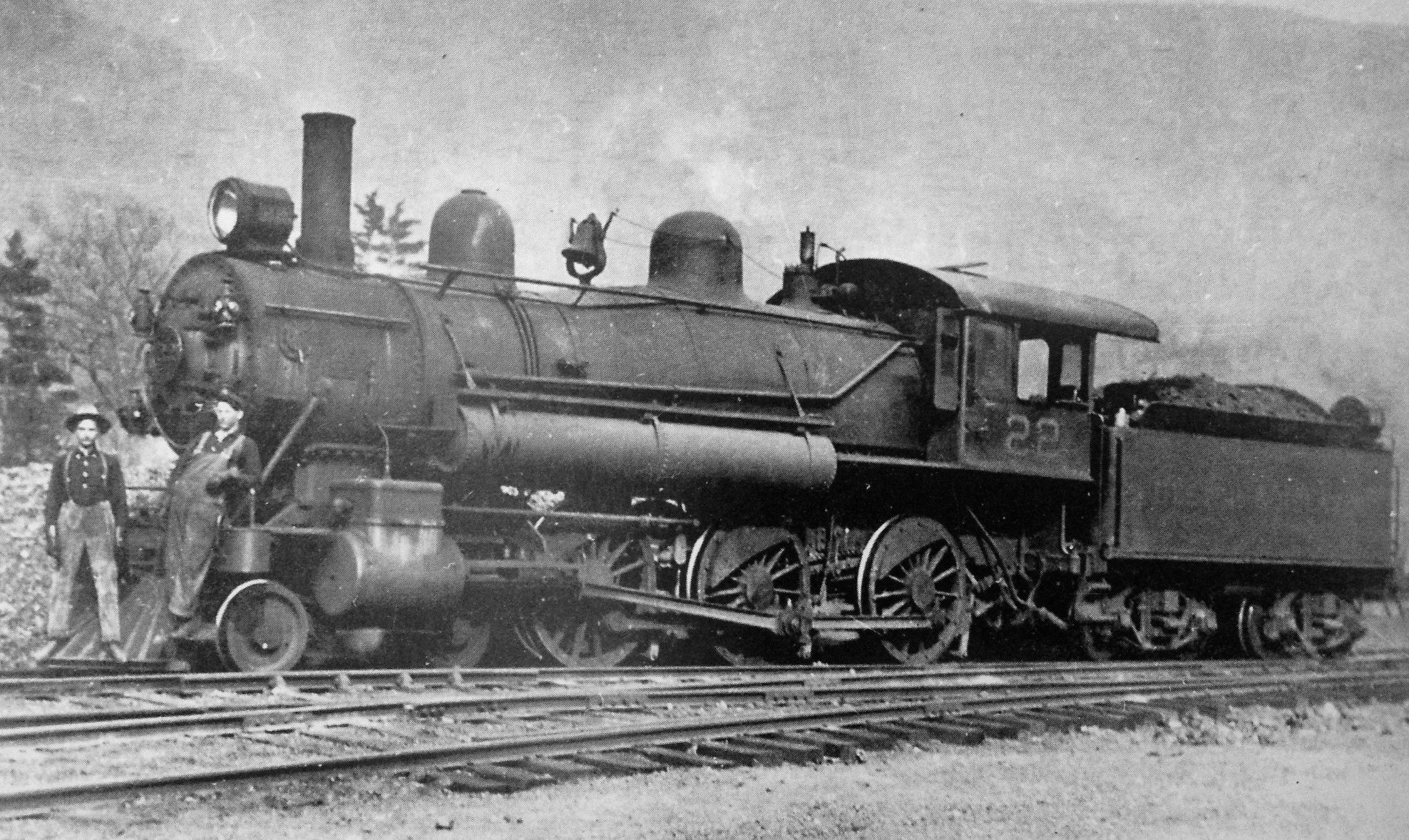

U&D 22 is seen here at Edgewood, having taken the siding to allow the Kaaterskill bound train to pass. 7/1908.

U&D 22

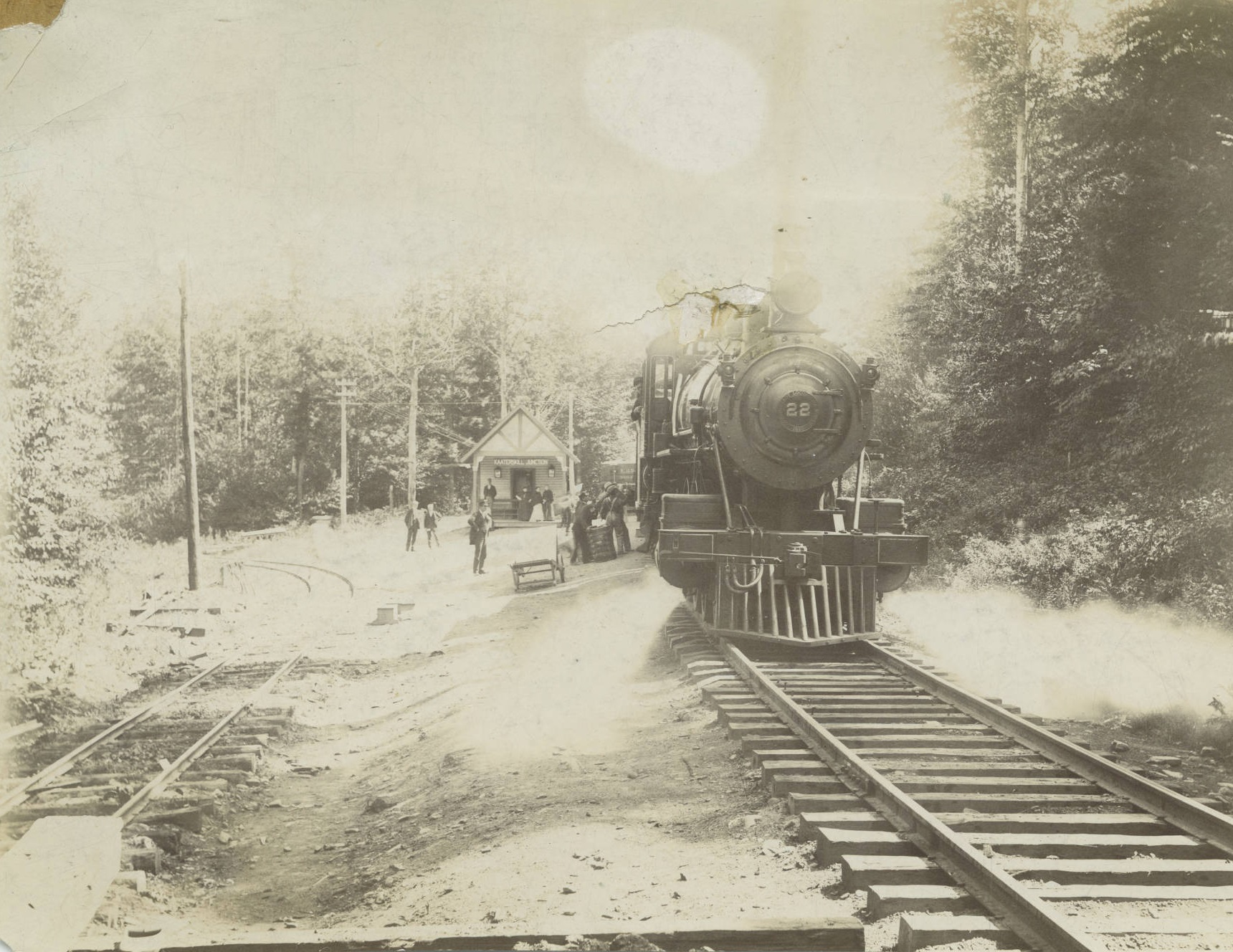

U&D 22 is seen here, with the Hunter Branch train, at Kaaterskill Junction. 1899. DeGoyler Foundation Collection.

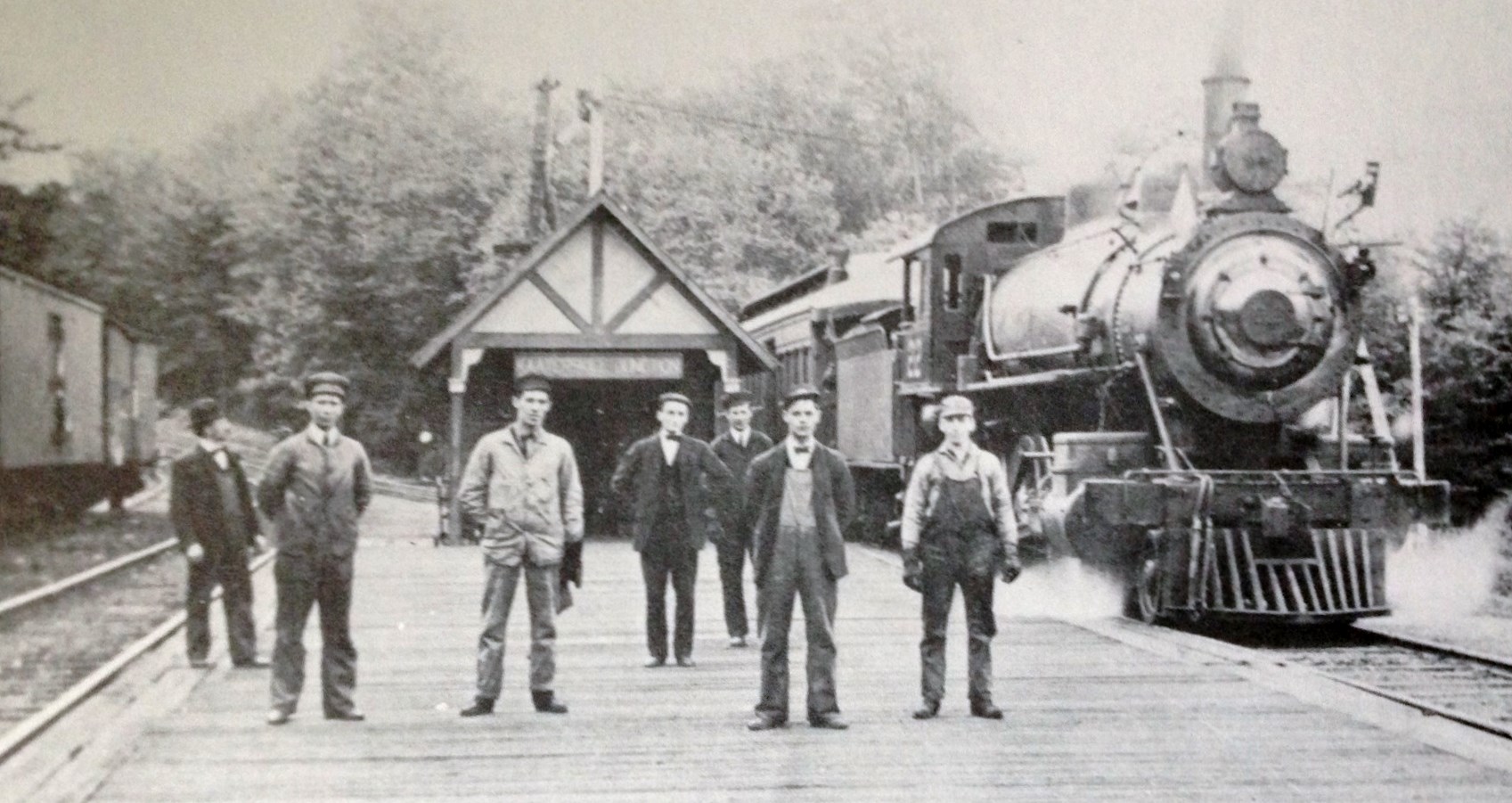

U&D 22 is seen here, with the Hunter Branch train, at Kaaterskill Junction.


NYC 22

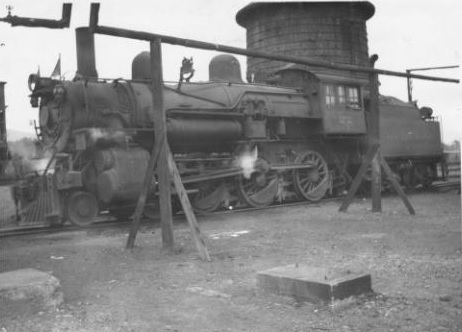

NYC 22, former U&D 22, at Oneonta. 22 was the only one of the smaller '20-class' locomotives of the U&D roster that were superheated. The U&D locomotives that were inherited by the NYC changed in appearance over the years. Among other things, it appears 22 has received a new cab as well as a new tender. 5/30/1936. Joseph A. Smith Collection.

NYC 802

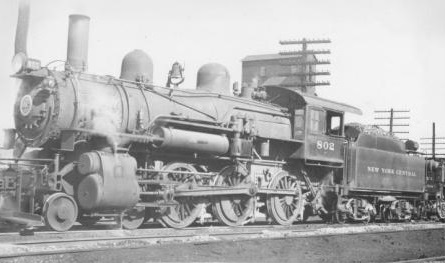

NYC 802, nee U&D 22 and NYC 22, at Kingston. Among other modifications, 802 has lost her cow catcher in favor of a pair of foot-boards. Joseph A. Smith Collection.
