Seaboard Air Line Class B-7 Box Car Roster

Seaboard Air Line

Class B-7 Box Car Roster

.

Updated : 5 / 30 / 2005

ROAD #(S)

19000-19499

BUILDER

Pullman

BUILT / BOUGHT

1941

ORDER / LOT #

3659

CAPACITY



DIMENSIONS

40' interior length, 10' interior height

SIDE  PANELS

Steel, Riveted; 5 to left of door, 5 to right of door

DOORS

6' 0"

ENDS

Pullman 4/5 without "darts" (Dartnot)

RUNNING  BOARDS

Apex and Blaw-Knox

FRAME

AAR Standard (Straight Centerbeams)

TRUCKS

ASF AAR Spring Plank

WHEELS

33"

BRAKE  SYSTEM

A-B

BRAKE  WHEEL

Ajax

COMMENTS

Total Units - 500

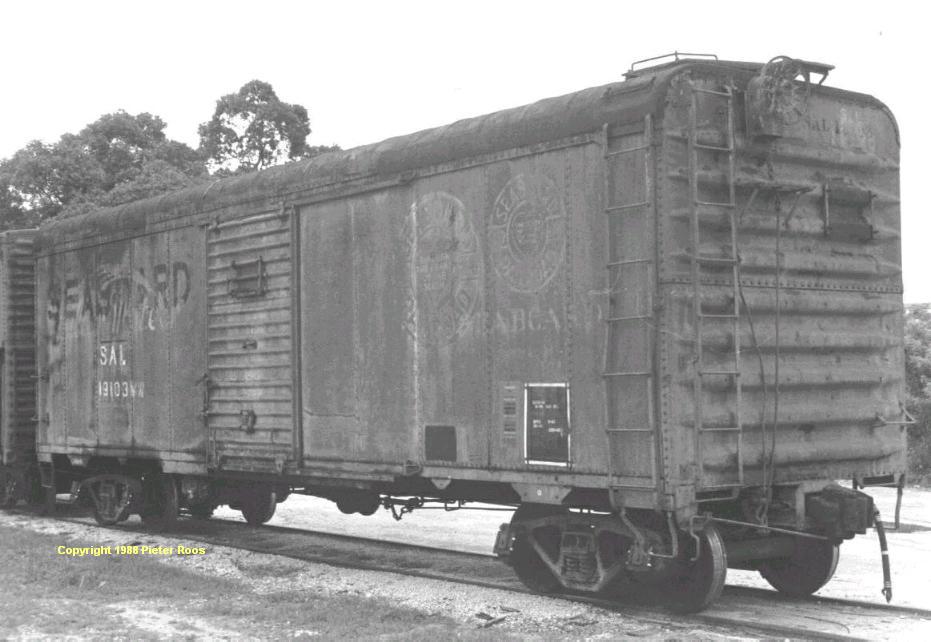

PHOTO(S)



.
