Operational Cushion Type S Scale Draft Gear Box

Operational Cushion Type

S Scale Draft Gear Box

(For Sergent Engineering Couplers)

.

Where there is a need, there should be a model or detail part to fill it.  And while comparing my S-Helper Service
cabooses to prototype photos, I found this need.

.

Model Photos

Prototype Photos





No resemblance.

.

Note how far the coupler and draft gear extend out past the walk decks of this caboose in the prototype
photos?  The model's couplers nor it's gear boxes are extended.  I wanted to achieve this look and to
offer both a working an non-working version of the draft gear.

Below is the concept for the operational version.

.

CURRENT  DESIGN

Updated : 12 / 29 / 2013

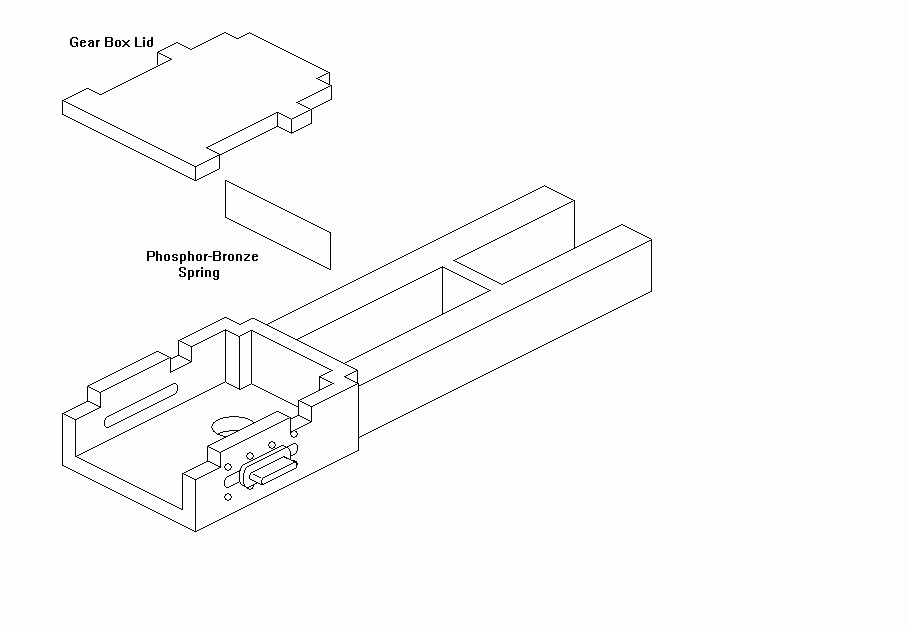

Exploded Parts Drawing
2-D drawing showing parts of gear box
( Main Box and Main Box Lid not shown )

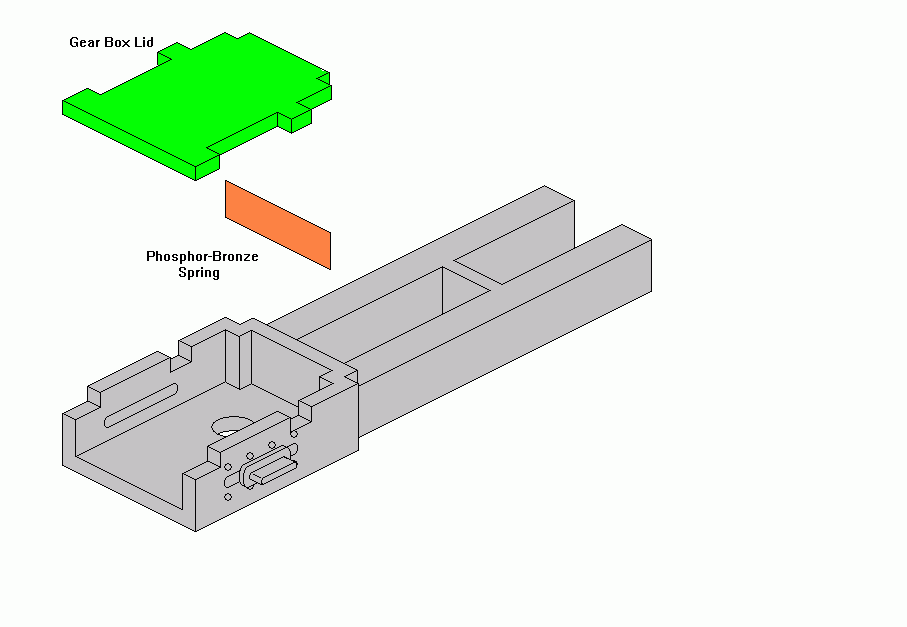

Exploded Parts Drawing (Color Coded)
Same as above with parts colored
( Main Box and Main Box Lid not shown )

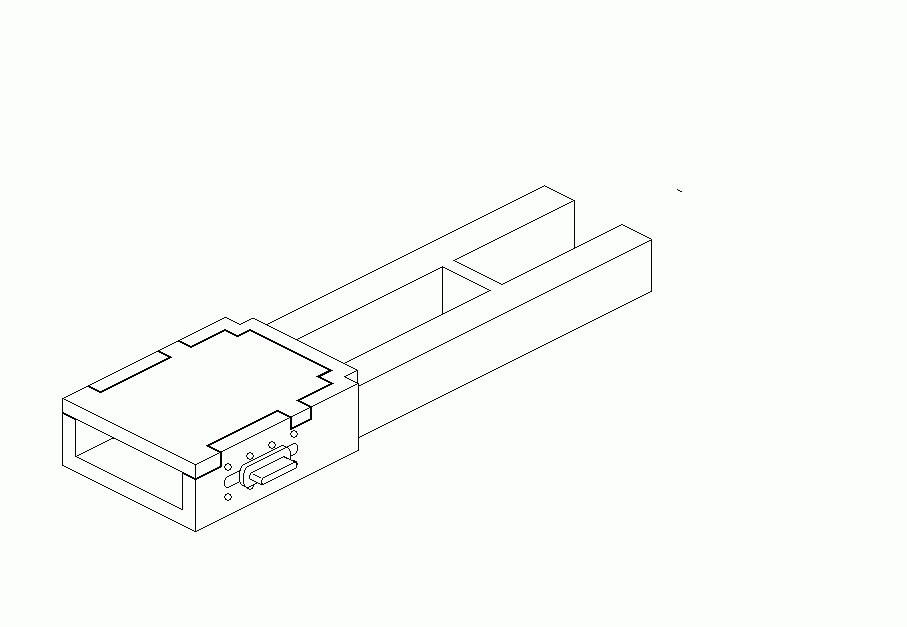

Assembly Drawing
2-D drawing showing assembled gear box
( Main Box and Main Box Lid not shown )

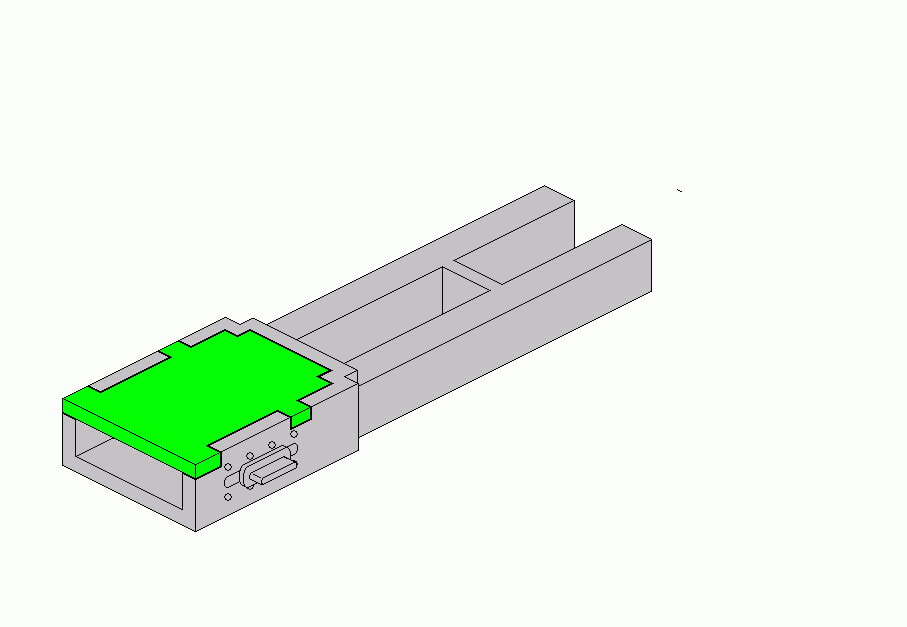

Assembly Drawing Color Coded
Same as above with parts colored
( Main Box and Main Box Lid not shown )

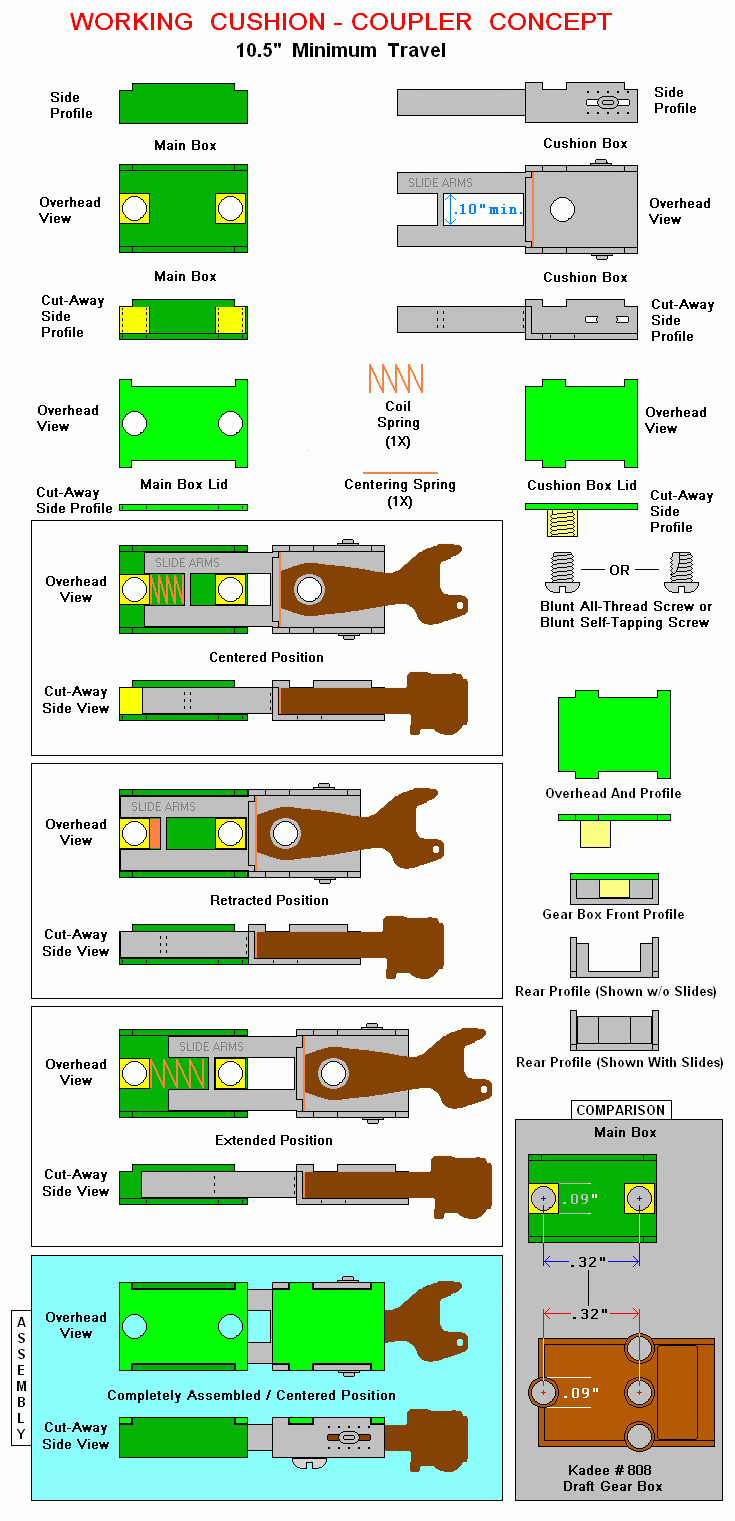

Design Diagram
Various views of parts and assembly and comparison to the SHS gear box

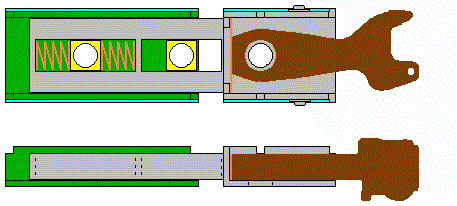

Animation
Animated GIF file showing general concept of operation
(Older version of design shown in animation)

.

More on this project soon!

.

.
