S & Sn3 Track & Wheel Standards

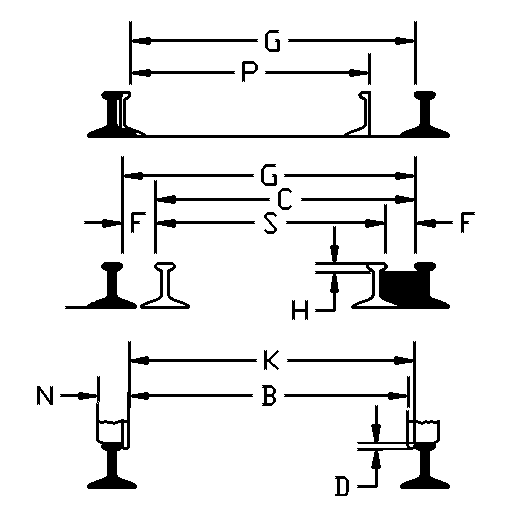

NASG Recommended Standard for

Track (S3) & Wheels (S4)

S3

S

Sn3

G min

.883

.563

G max

.905

.585

C min

.839

.519

S max

.799

.479

F max

.053

.053

H min

.030

.030

P max

.819

.499

S4

S

Sn3

K max

.839

.519

B min

.800

.480

N min

.108

.108

D max

.030

.030

Notes :

1) For further explanation of track & wheel standards and uses refer to NMRA Standards S2, S3, S4 and RP6.

2) Recommended wheel contour code 110, also see RP25.

3) These standards were jointly engineered by NASG and NMRA
