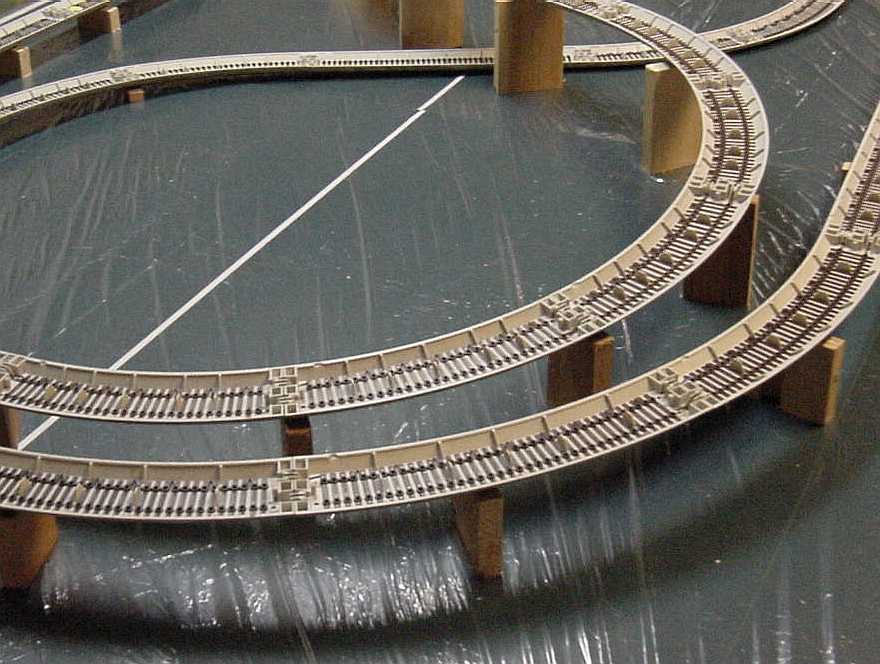

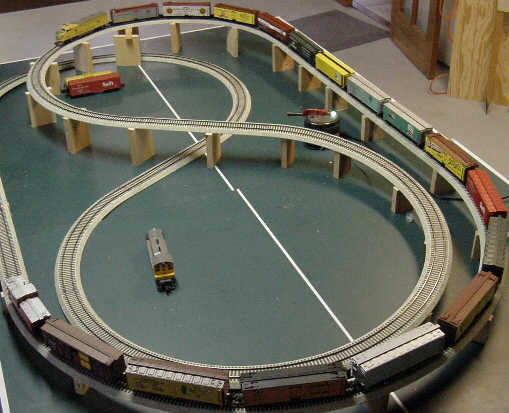

1) I used the ping pong table to lay out my track design. I cut
1x4 and other wood scraps to make the inclines. As you can see the the
gradual incline allows for long trains. more
2) I disassembled the track, put a sheet of plastic over the table. Reinstalled the track, upside down. |
 |
 |

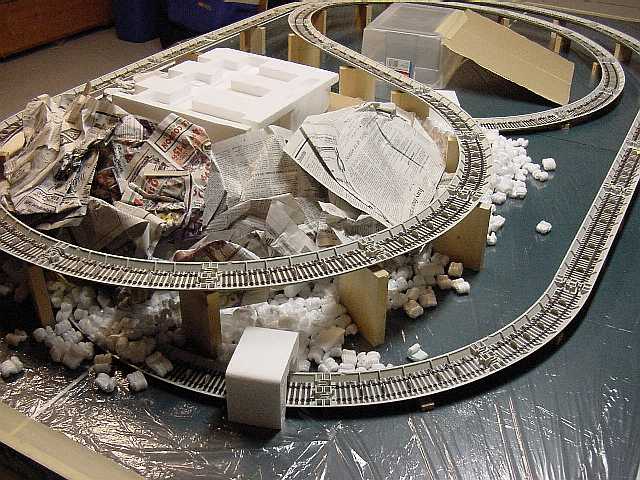

3) Gathered up all kinds of trash to define the desired contours.

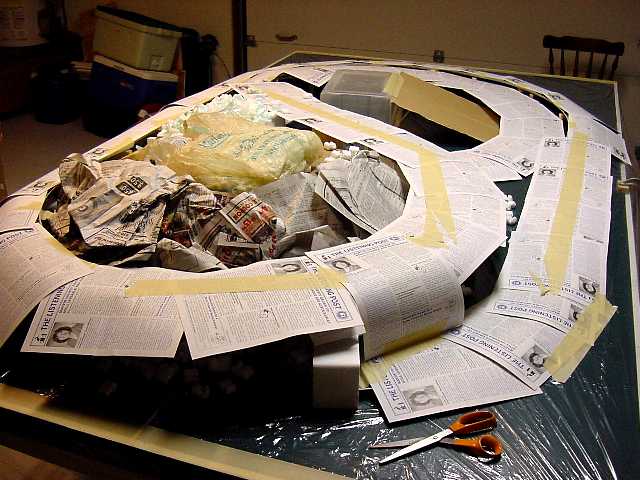

4) Bond paper & masking tape are used to cover (but not distort) the surface that will become the road bed. |
 |
 |

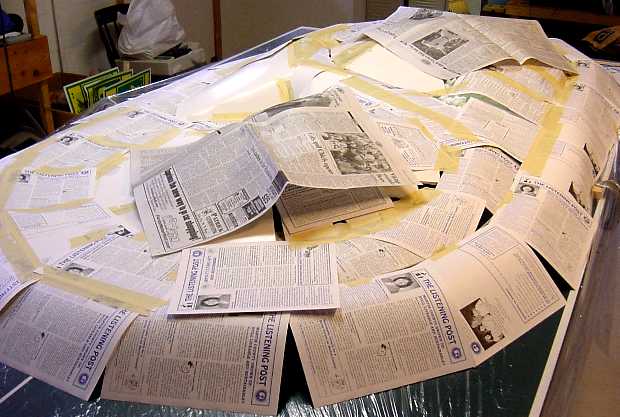

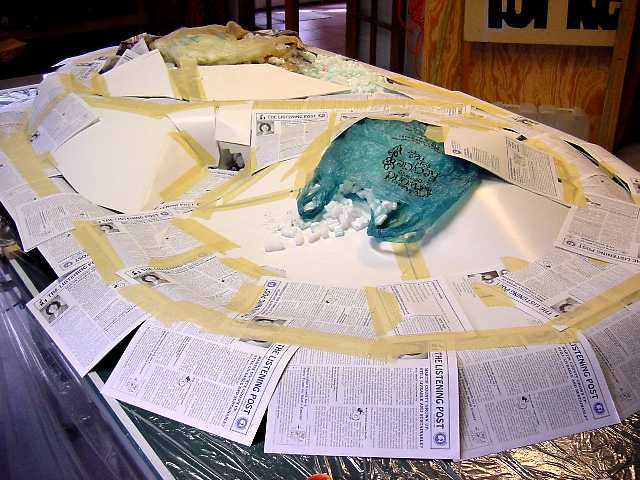

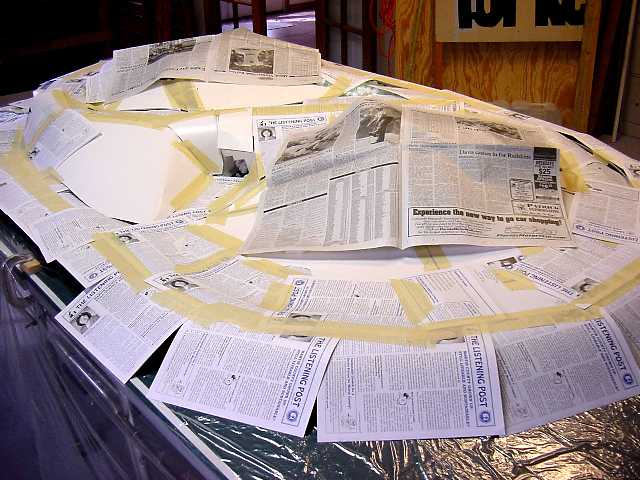

5 & 6) Contours are smoothed using poster board, bags of shipping
'popcorn' and more bond.
|
 |
 |
7) Up to this point we have only been working on the plug, that will
define the layout, all this stuff is mearly defining the contour of the
layout.

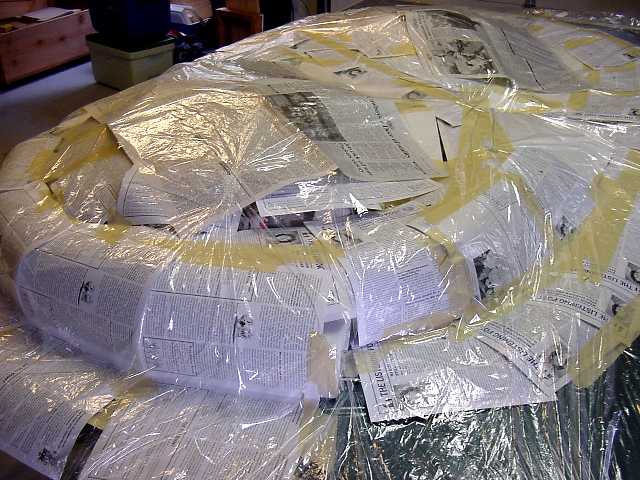

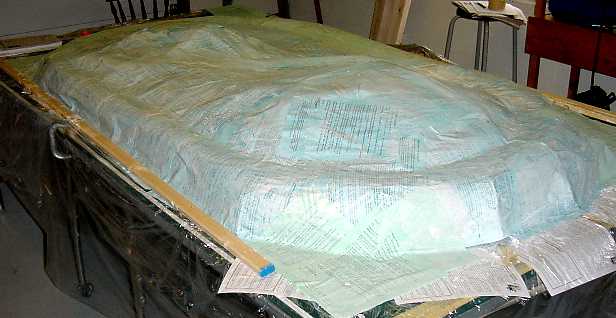

8) With a second layer of plastic in place, we can now start working on the materials that will become the layout. |
 |
 |
9) I had some drywall joint compound that I used to as paste.
The paper is left over from a political campaign. The tunnel opening
must be carefully contoured.

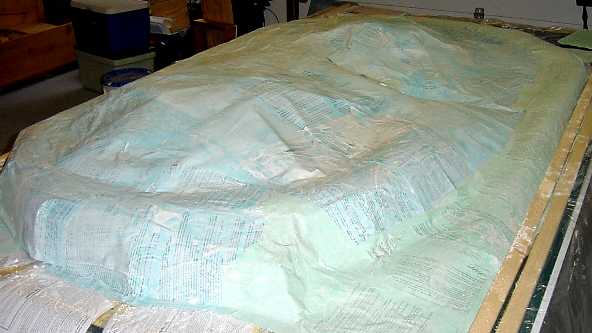

10) One full layer did not take too long. |
 |
 |
11 & 12) I added a couple boards around the edges to push the paper down against the table surface. |
 |
