Iron Road USA Trains CP Rail GP38-2 Review by Tom Matys
Review of USA Trains CP Rail GP38-2 (Item #R22218) by Tom Matys
Prototype & Model Information:

The latest release from "USA Trains" is the CP Rail GP38-2 diesel B-B locomotive in 1:29 scale. It's a very nicely detailed model, on par with the Aristo-Craft SD45. It also shares a number of inaccuracies due to the fact that most US manufacturers tend to model a generic US spec prototype to ensure a broad appeal with the largest segment of the market, which is within the United States.

The first problem with the model is that it represents an EMD (Electro-Motive Division Of General Motors Corp., La Grande, Illinois) built unit. These were manufactured from the late 60's right until 1972 and while CP owns a number of these units, all were purchased second-hand and none of them were built for CP and therefore none were ever painted in the multi-mark (Packman) paint scheme. Some of these ex US engines were painted in the "dual-flag" and some in the more recent "golden beaver" color schemes.

Most of the Canadian Pacific Railway's GP38-2 fleet (115 units) came from GMD (Diesel Division - General Motors of Canada, London, Ontario) between 1983 and '86 and these left the factory with the multi-mark paint scheme, including road numbers 3102 and 3103 which were used on the USA Trains' models.

List of noticeable differences:
1. Headlight position (should be on the nose - low hood - rather than above the cab)
2. The screen at the rear end of the long hood should be a single piece with finer mesh.
3. Absence of ditch lights, pilot and an anti-climber at the front of the engine.
4. Wrong shape air-duct on the left side behind the cab.
5. The horn should be relocated to the rear of the dynamic brake unit.
6. CP uses a brake wheel (on the low hood) not a lever as some US roads do.
7. A bell should be located above the cab.
8. A winter hatch should be covering the second fan.
9. Wrong type of antenna on top of the cab.

Then there are also some glaring manufacturer's mistakes such as the road number on the side of the cab is oversized and bellow that is printed GP38-2??? It should've been the class number "DRS-20e" (Diesel Road Switcher - 20 [x100] H.P., e [5th order])! I suppose the picture they were using to copy the graphics from was too small. A little amount of research would go a long way in avoiding these mistakes.

The one good thing is that the model is much closer to another CP engine, the GP38AC (built in 1970-71 by GMD, total of 21 units were delivered to CP Rail). The conversion will still require a fair amount of work and custom made detail parts but the result should be a unique, personalized model that is far more prototype accurate.

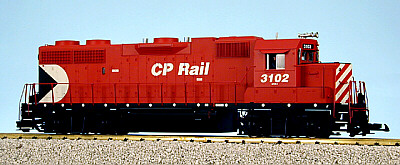

This is the model...

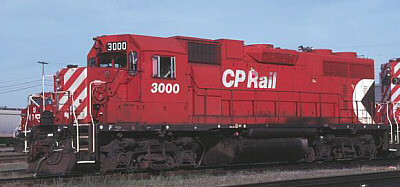

...and this is CP Rail's GP38AC #3000


General Data of Prototype (as built):
Designation GP38-2
Locomotive Type (B-B) 0440
Locomotive Horsepower 2000
Diesel Engine Model 645E
Number Of Cylinders 16
Cylinder Arrangement 45deg. "V"
Operating Principle 2 Stroke Cycle,Blower Aspirated,
Unit Injection, Water Cooled

Full Speed 904 RPM
Idle Speed 318 RPM
Supplies:
Lubricating Oil Capacity 243 Gal.
With Deep Sump Oil Pan 395 Gal.
Cooling Water Capacity 218.5 Gal.
Fuel Capacity (Basic) 1700 Gal.
w/ Extra Capacity 3600 Gal.
Sand 56 Cu. Ft.
Air Brakes Type 26L
Approximate Weight On Rails 250,000 lbs.
Weight on Drivers 100%
Major Dimensions:
Length Between Coupler Faces 59' 2"
Width Over Cab Sheeting 10' 0"
Overall Height-Top Of Rail
To Top Of Cooling Fan
15' 4-7/16"
Minimum Curve Radius-Single Unit 140' Radius

Model Pros:
Good accuracy and detail, very close to scale
Good pulling power with 2 motors & 4 traction tires
Body mounted couplers
Great cab interor detail
Very detailed side-frames
Solid metal railings and lift rings
Operating smoke units
3 free-spinning roof fans
Good value for the money
Model Cons:
Many detail parts are too fragile and break easily
Comes with "Hook-and-Loop" couplers installed
Headlights are dim even at full speed
Wrong class number on both sides of the cab
Other:
Minimum Diameter (loco only) 4 feet (LGB 11000)
Minimum Diameter (loco w/ cars) 4 feet (LGB 11000)
CP Rail road numbers released 3102 & 3103
Place of purchase Ultimate Trains
Price paid $329 Can. +Tax
