Kalyan Electric Loco Shed

Kalyan Electric Loco Shed
Prakash Tendulkar

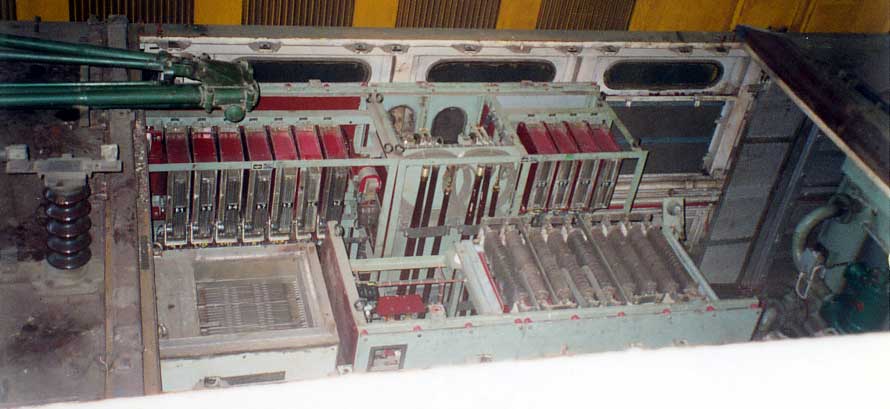

Inside WCAM3.jpg (29166 bytes)  Inside view of WCAM3

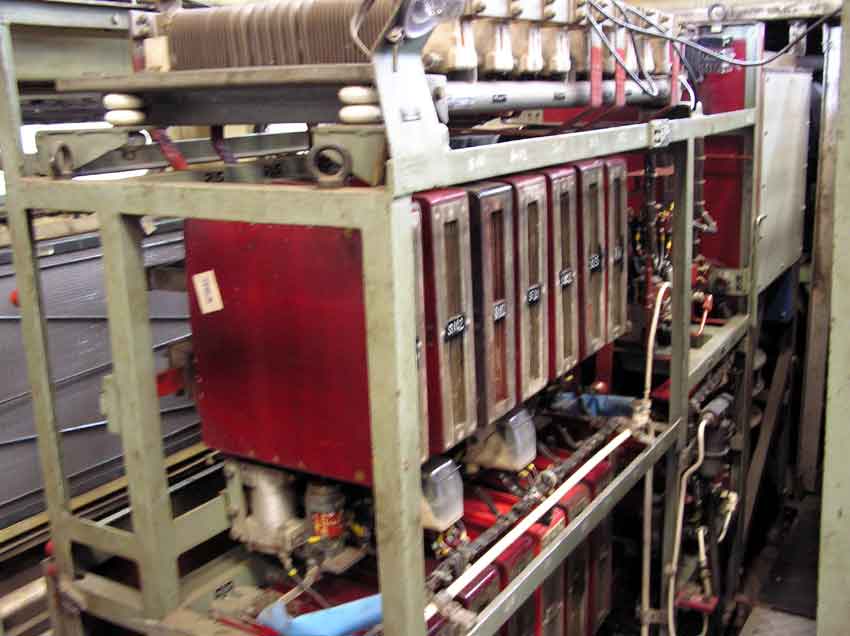

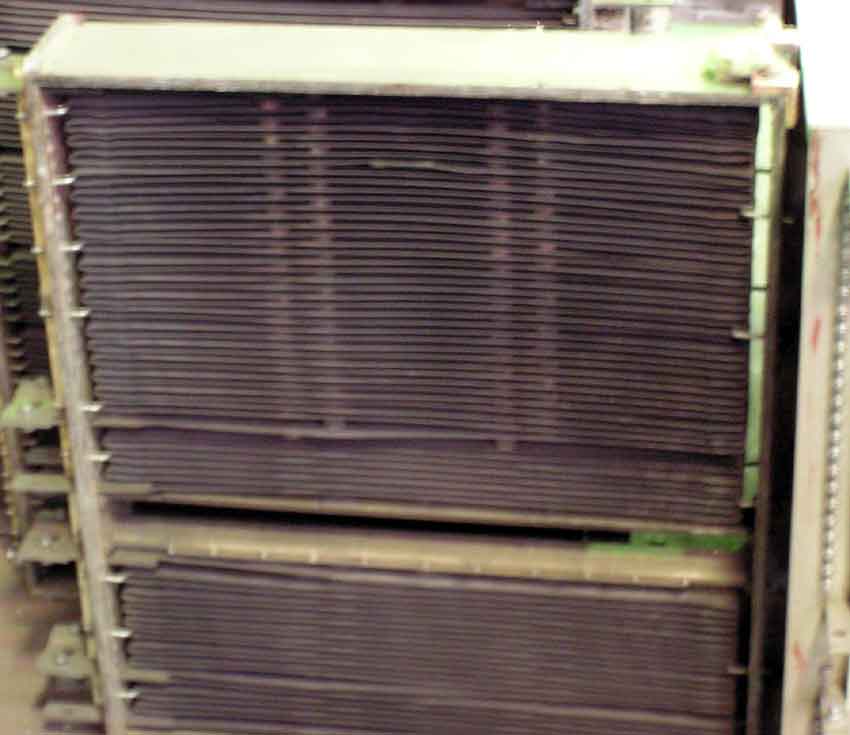

WCAM3 Resistors.jpg (34601 bytes)  Starting resistors.

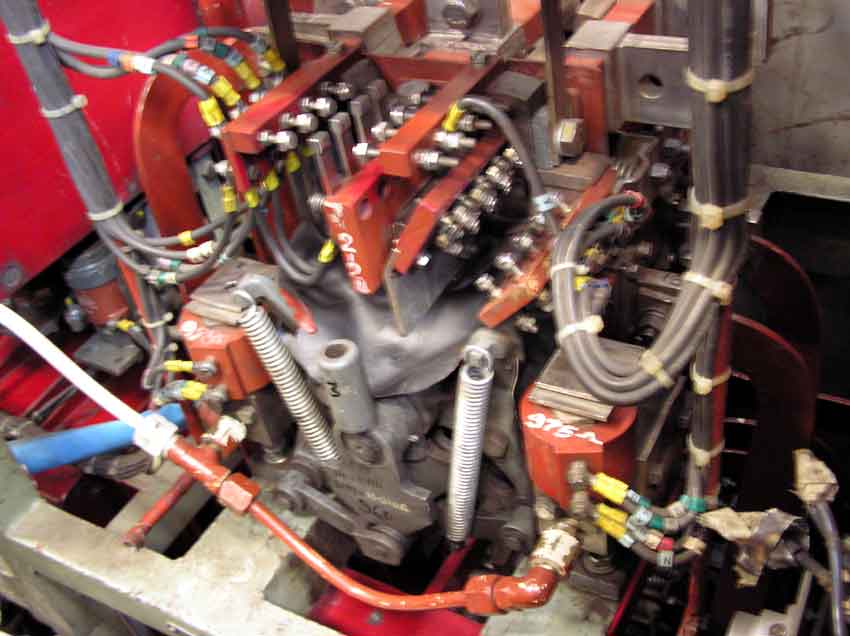

AC DC.jpg (44133 bytes)  Circuit breakers for AC or DC selection

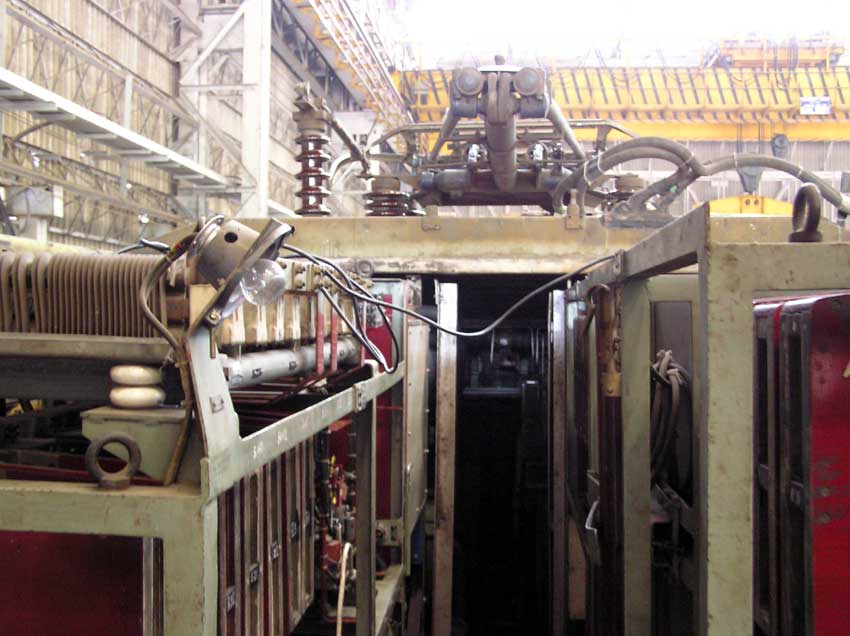

WCAM3.jpg (63537 bytes)  Convertible WCAM3? The roof has been removed during Annual Overhaul.

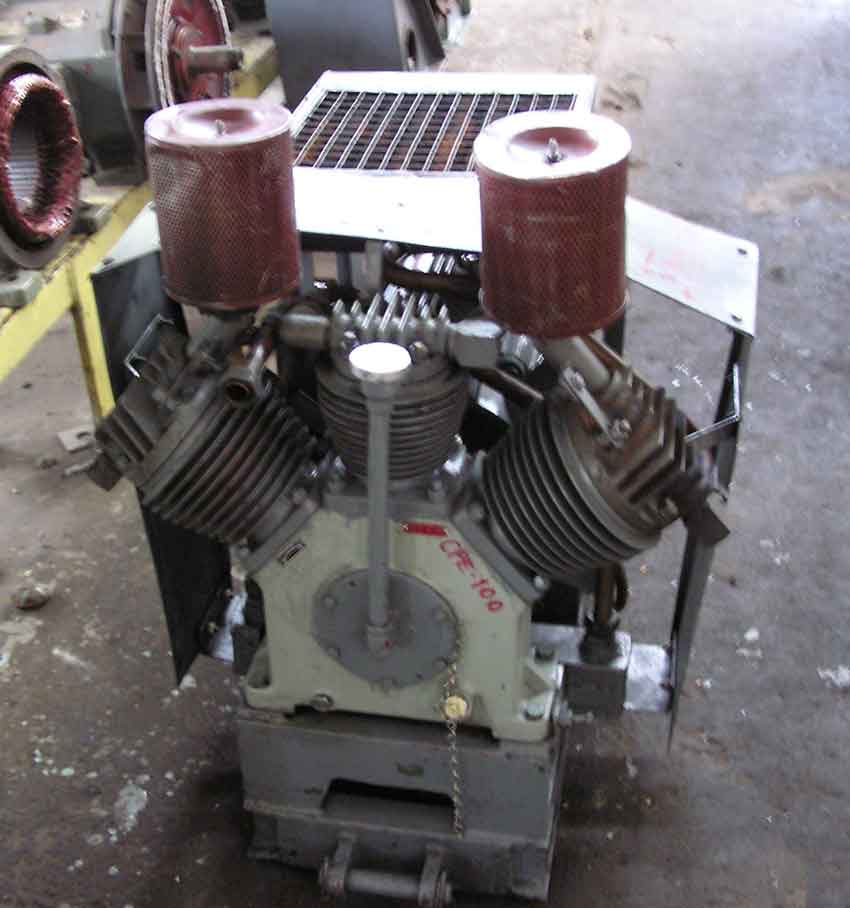

Air Compressor.jpg (44236 bytes)

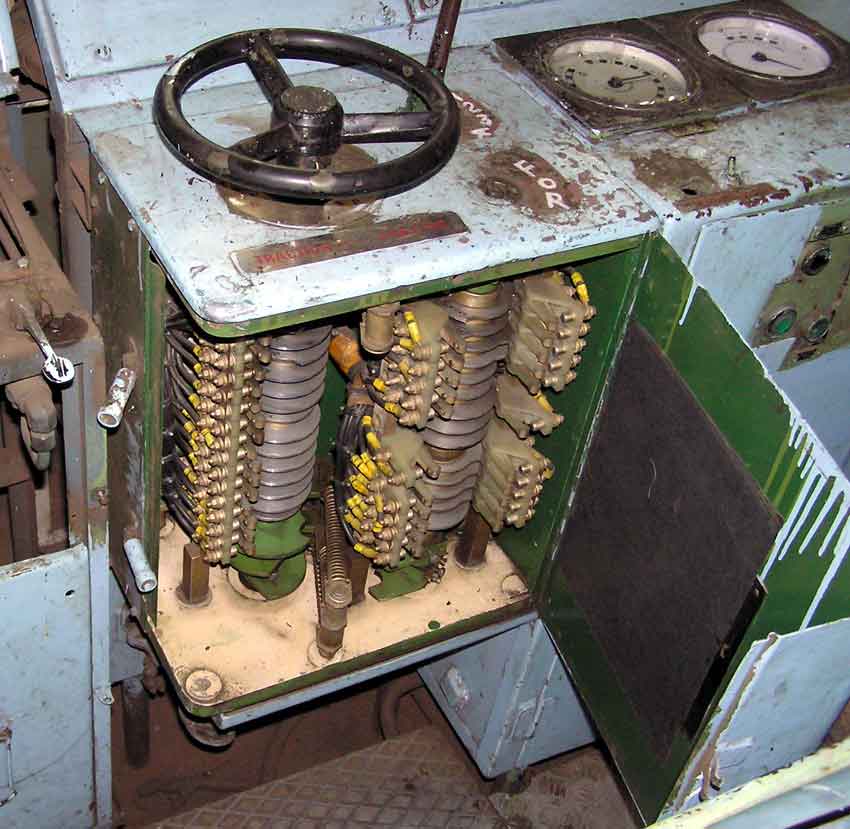

Master Controller cams.jpg (64673 bytes)  Cams in Master controller

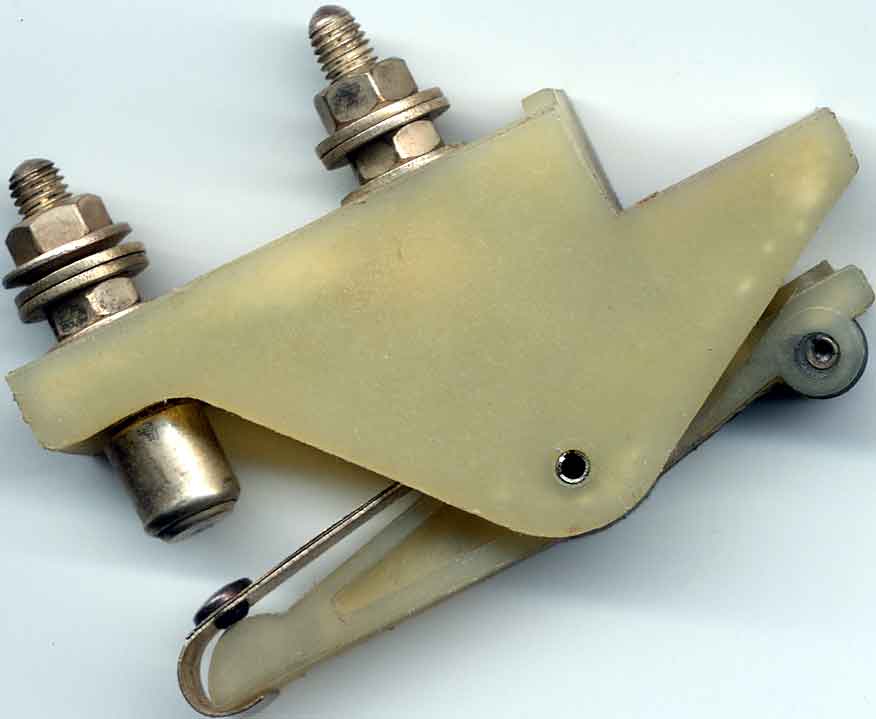

CB.jpg (22405 bytes)  Circuit breaker or contactor in Master controller. It is operated by cams.
