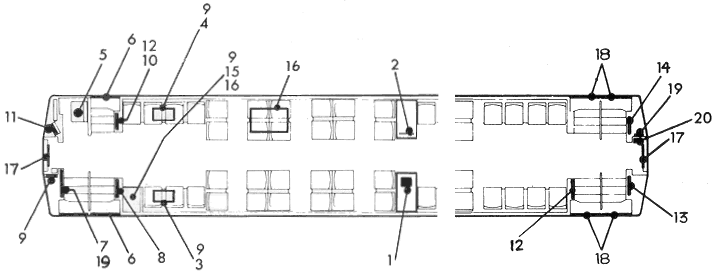

Single Level Composite Floor Plan

GO Single Level Floor Plan
  1. Radio Power Pack
  2. Thermostatic Control
  3. Emergency Kit
  4. First Aid Kit
  5. Operator's Control Cab
  6. Stairway-Door Controls & Buzzer
  7. Main Switches for AC & Heating
  8. Emergency Tools
  9. Flagman's Kit (1 of 3 Locations)
  10. Electric Control Circuit Breakers
  11. PA & Intercom Receptacles & Power Pack
  12. Door Control Cut-Out Switches
  13. Spare Jumper Cable
  14. Main Service Switches, Lights, Emergency Power
  15. Reserved
  16. Stretcher
  17. End Doors
  18. Doors with No Control Panel
  19. Emergency Value Reset
  20. Type 'B' First Aid Kit, Fire Extinguisher
GO Single Level Floor Plan
| Car Length: 84'8" | Car Width: 120" | Car Height: 154.5" | Doors/Side: 2 |
| Number Seats: 94 (93 Cab Cars) | Crush Load: 170 (169 Cab Cars) | Weight: 32,214Kg |
| Max Number Cars per Train: 10 | Max Train Speed: 100 mph | Schedule Speed: 84 mph |
| Average Annual Operating Distance per Car: 65,000 miles |
