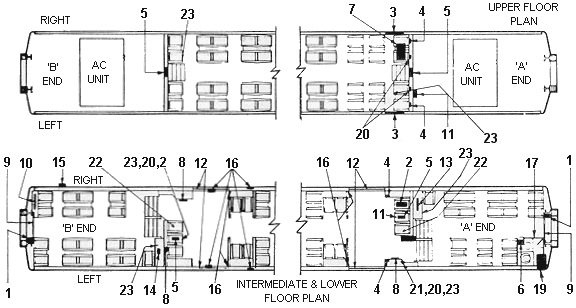

Bi-level Composite Floor Plan

  1. Handbrake
  2. Emergency Tools
  3. Door Controls, Buzzer, Conductor's
    Sliding Window
  4. P.A. & Intercom
  5. Fire Extinguishers
  6. Drinking Cup Dispenser &
    Drinking Fountain Filter
  7. First Aid Kit
  8. Route Map
  9. End Doors
  10. Lights, Emergency Power,
    Heaters, AC
  11. P.A. Amplifier
  12. Side Doors
  13. Door Cut-Out Switches
  14. Thermostat
  15. Battery Switch
  16. Emergency Door Pull Rings
  17. Lavatory (Coach Cars Only)
  18. Reserved
  19. Waste Tank
  20. Emergency Brake Value
  21. Emergency Value
  22. Isolating Trucks
  23. Convenience Receptacles
  24. Reserved
 GO Bi-Level Floor Plan

GO Bi-level Floor Plan

| Car Length: 85'0" | Truck Wheel Base: 8'6"Wheel Diameter: 33" | Car Height: 15'11" |
| Seated Passengers: 162 | Crush Load: 438 | Weight: 108,000 | Buff Strength: 800,000 |
| LH Side Windows: 19, RH Side Windows: 20 |
