Bell-Saucer overhead luminaires LEE


Stylized Bell-Saucer overhead luminaires components


Example 3.3 - Stylized BellSaucer 165-210-356 Overhead Luminaire




Main features:


- Cast material head-cup shield.
- Cast material Bell-shaped shield.
- Pressed Aluminium or steel plate Saucer-shaped shield.


More details in this page will be available later

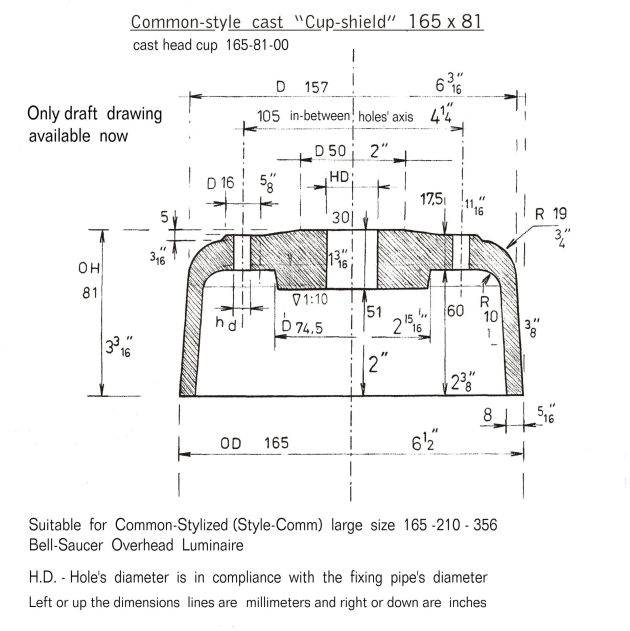

Head-Cup Shield

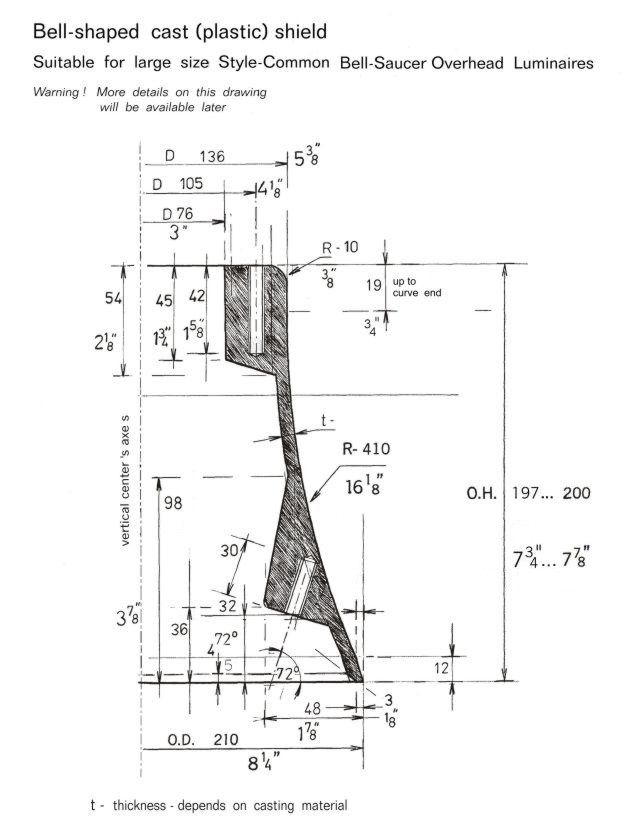

Bell-shaped Shield

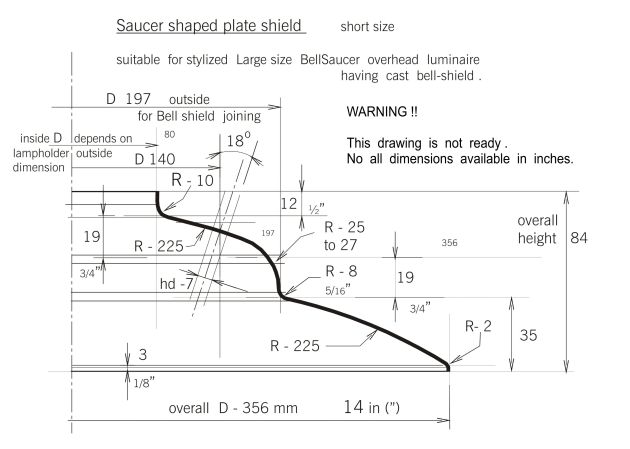

Saucer-shaped Shield
