Bell-Saucer overhead luminaires LEE


Standard Bell-Saucer overhead luminaires components

Example 2.3 - Standard BellSaucer 165-216-356 Overhead Luminaire



Main features:


- Cast material -high tapered- head-cup shield.
- Cast material -standard- Bell-shaped shield.
- Pressed Aluminium or steel plate -high- Saucer-shaped shield.

More details in this page will be available later

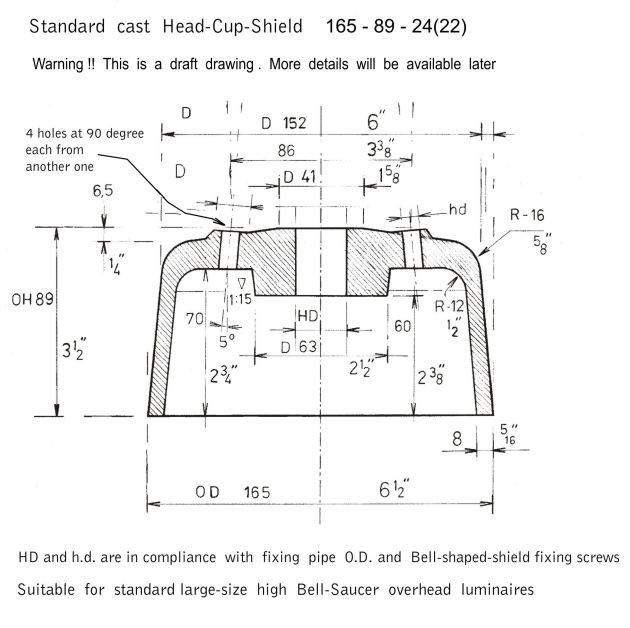

Head-Cup shield 1

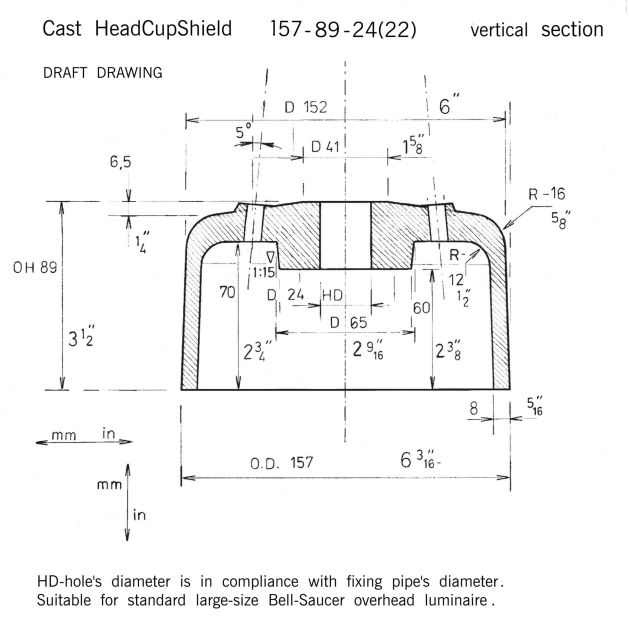

Head-Cup shield 2

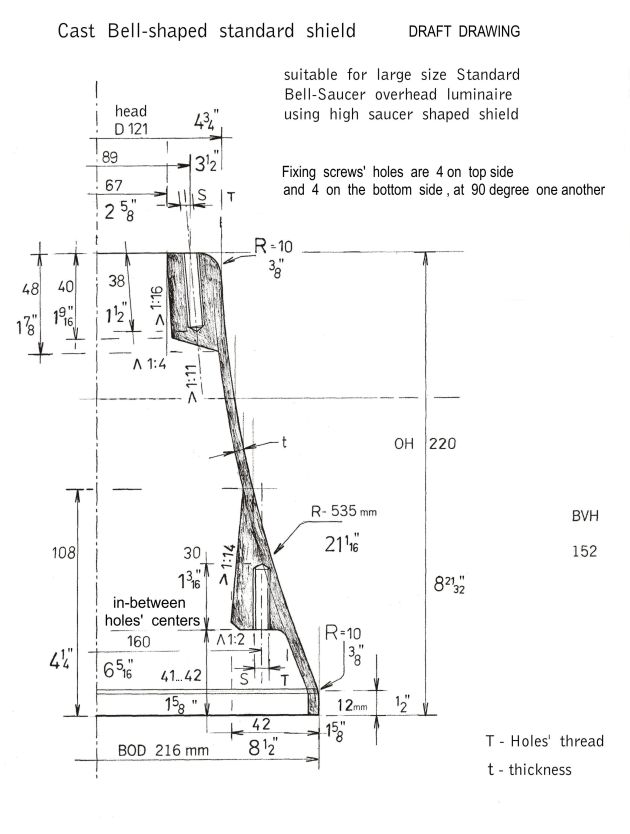

Bell-shaped shield



Saucer-shaped Shield
