Bell-Saucer overhead luminaires LEE


Standard Bell-Saucer overhead luminaires components

Example 1.1 - Standard BellSaucer 165-216-356 Overhead Luminaire



Main features:


- Pressed plate or cast material head-cup shield.
- Pressed Aluminium or steel plate Bell-shaped shield.
- Pressed Aluminium or steel plate Saucer-shaped shield.

More details in this page will be available later

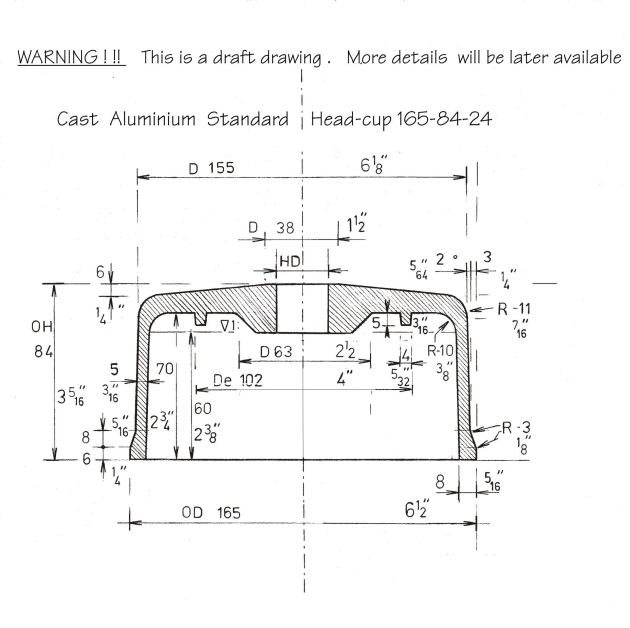

Head-Cup Shield

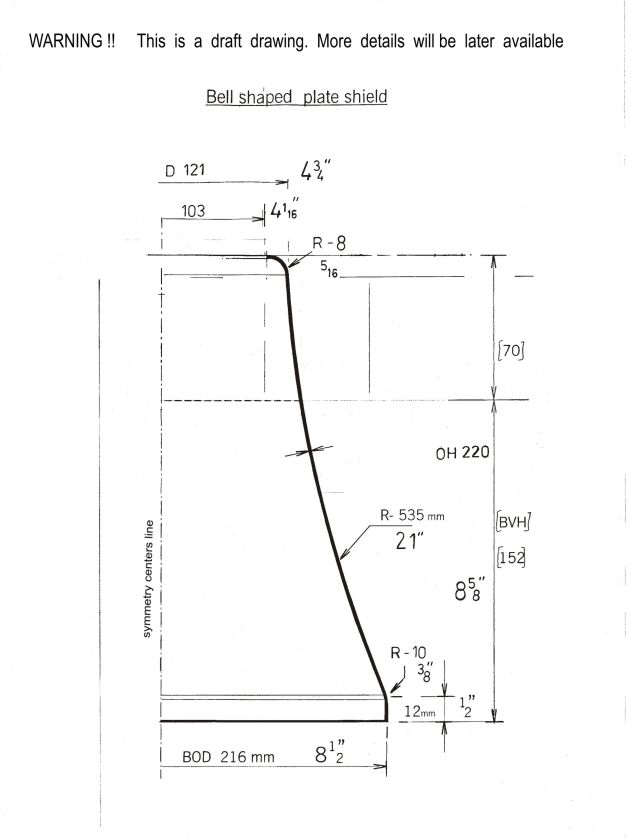

Bell-shaped Shield



Saucer-shaped shields

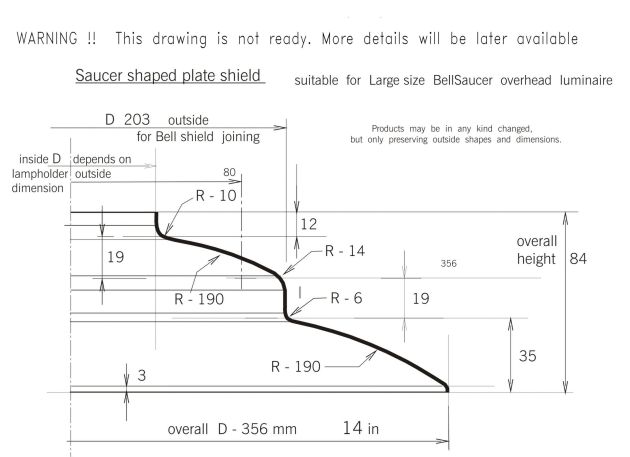

Saucer-shaped Shield 1



Saucer-shaped Shield 2

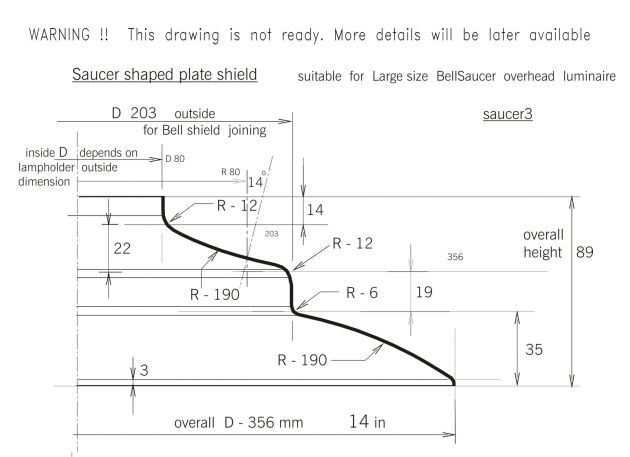

Saucer-shaped Shield 3
