Post-top Luminaires Cut-off Shields




STANDARD TALL TRUNK-CONICAL POST-TOP LUMINAIRE

Cut-off shields

The upper surface of the cut-off-shields may be rough and black
(dark coloured ) coated, whereas, the below surface may be polished and glowing.

Cut-off-shields are estimatively designed. All pieces may be redesigned
by each manufacturer for performing a higher Cutoff level.

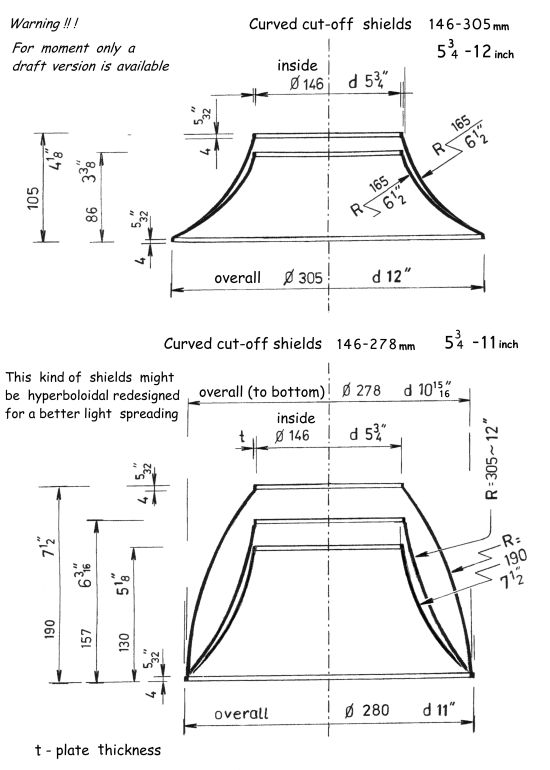

curved 146 cut-off shields



Top

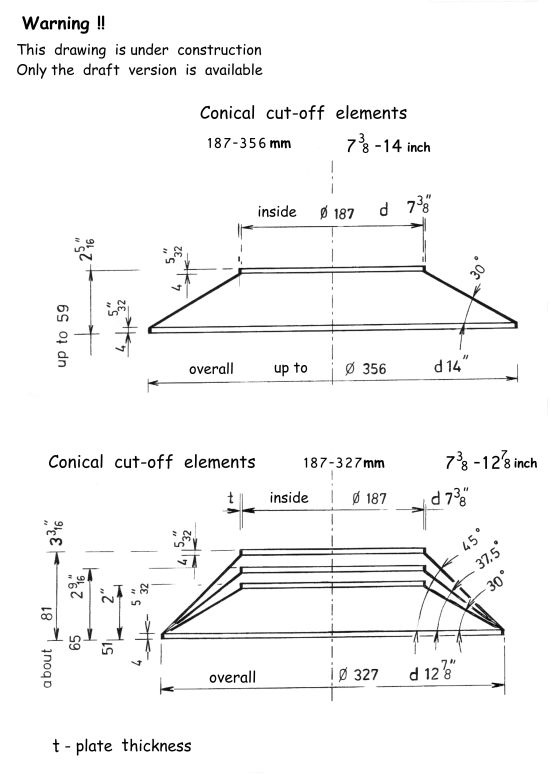

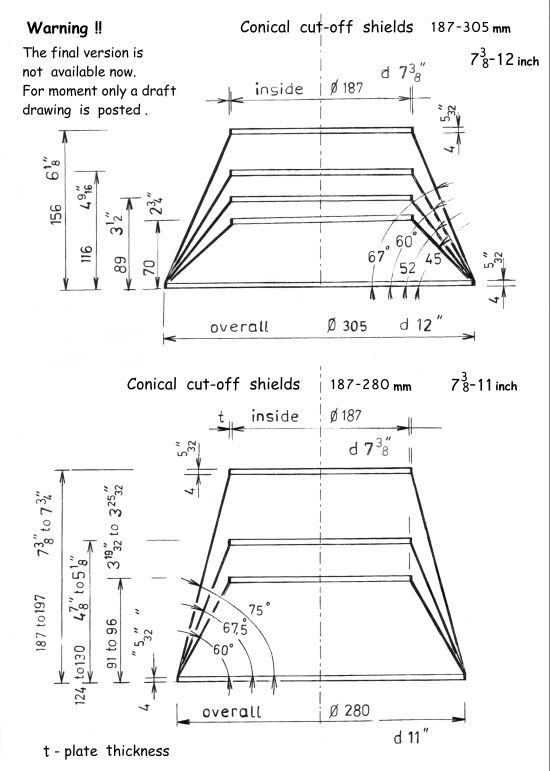

conical 187 cut-off shields



Top

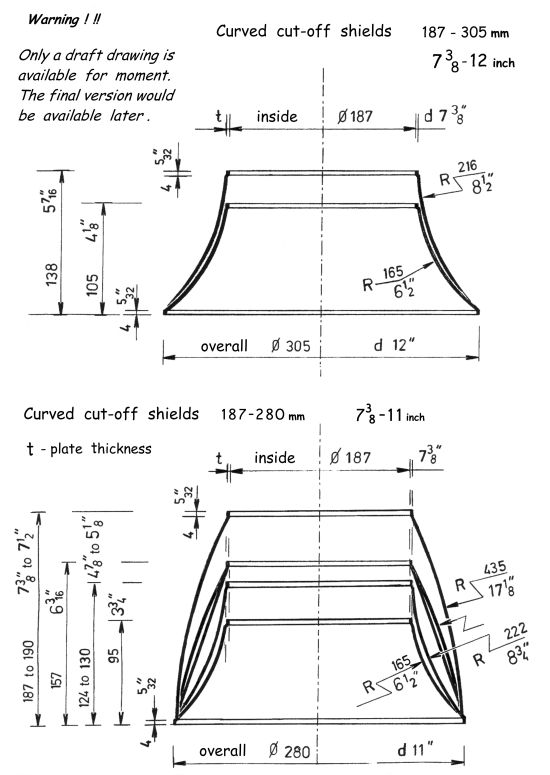

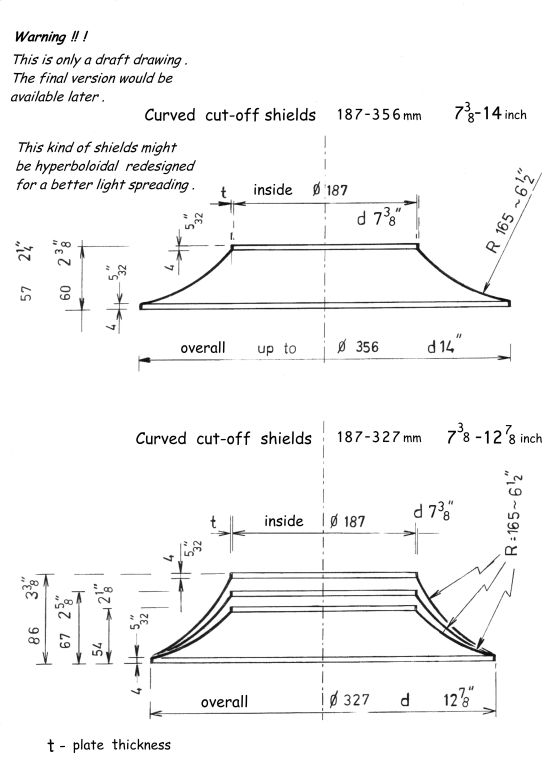

curved 187 cut-off shields



Top
