Post-top Luminaires Small Pieces


STANDARD TALL TRUNK-CONICAL POST-TOP LUMINAIRE


Small Pieces and Accessories


Please scroll down and select the piece of your interest :

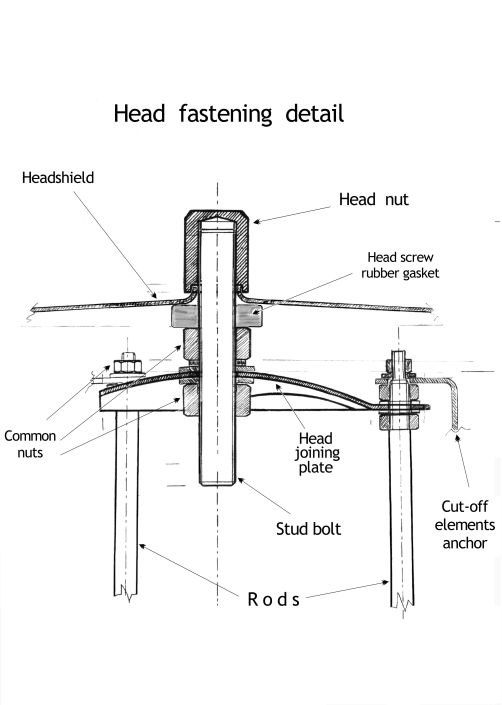

Head fastening detail

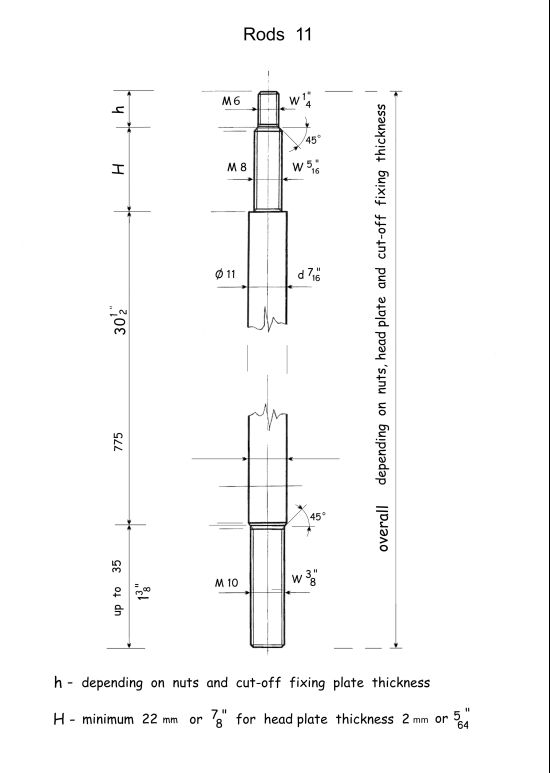

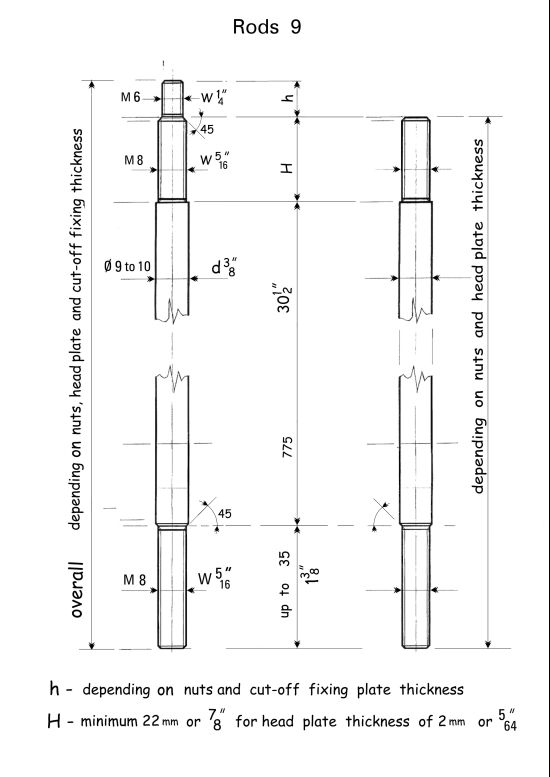

Standard long rods of 9 and 11

- suitable for Standard and Large-size post-top luminaires

The material for the rods will be chosen by each manufacturer.
( Usual medium carbon steel superficial tempered,
cadmium or zinc-coated, may be suitable )

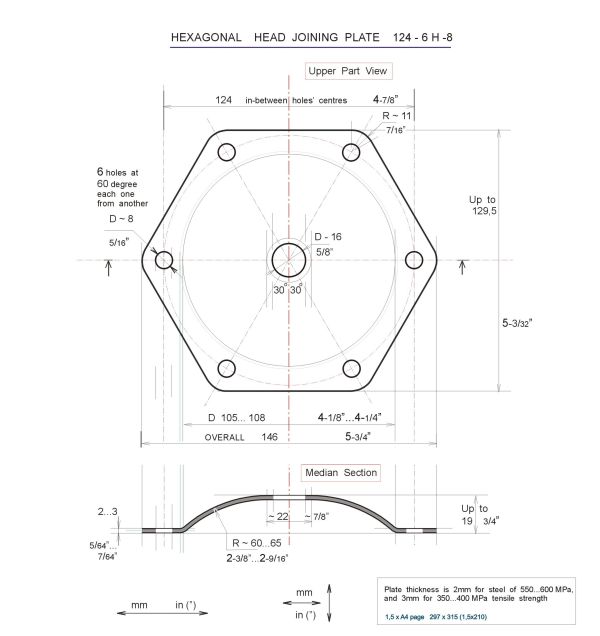

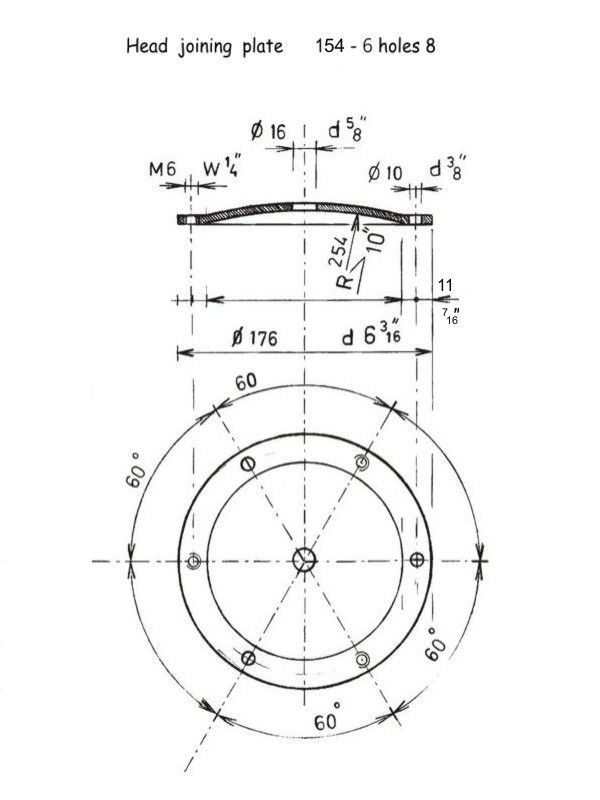

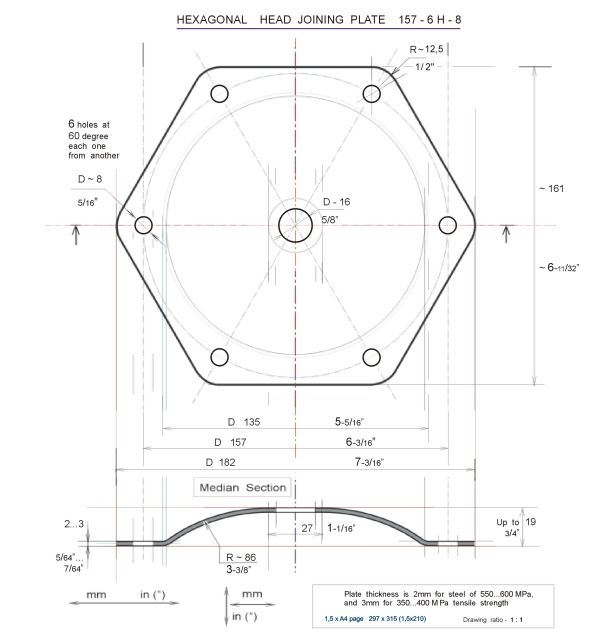

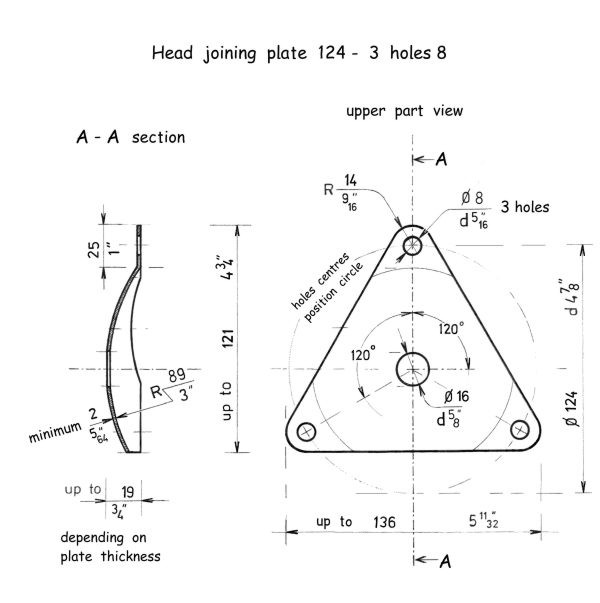

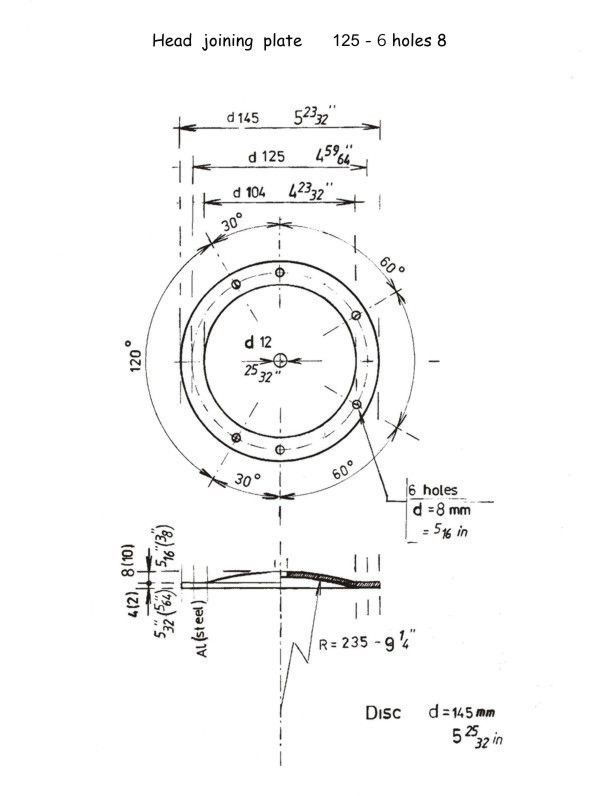

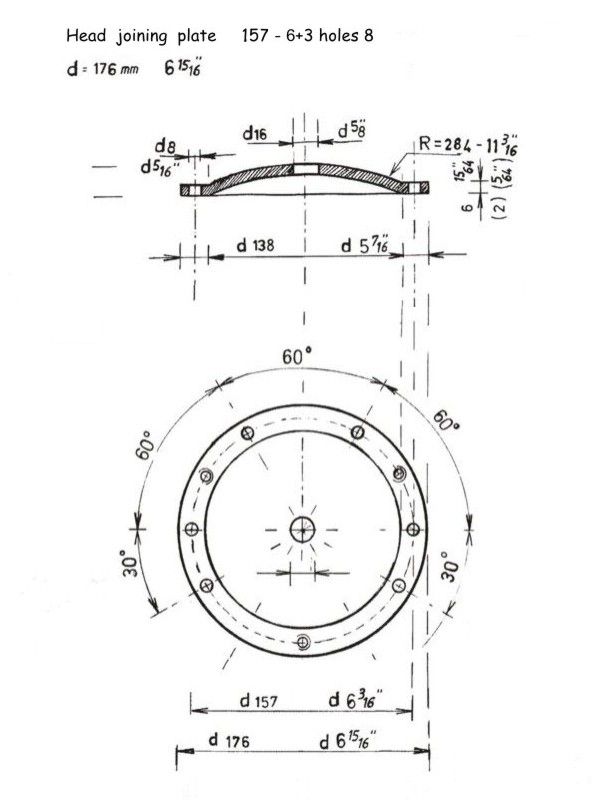

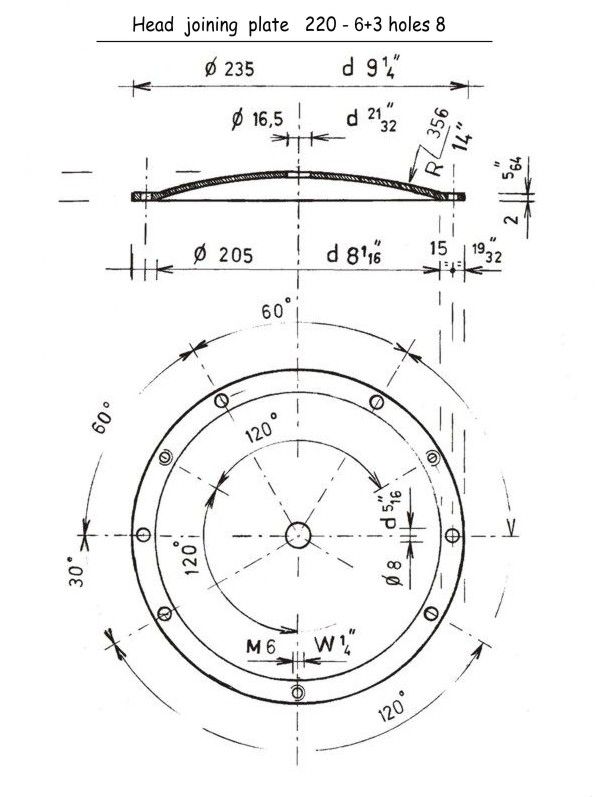

Head plates - 16

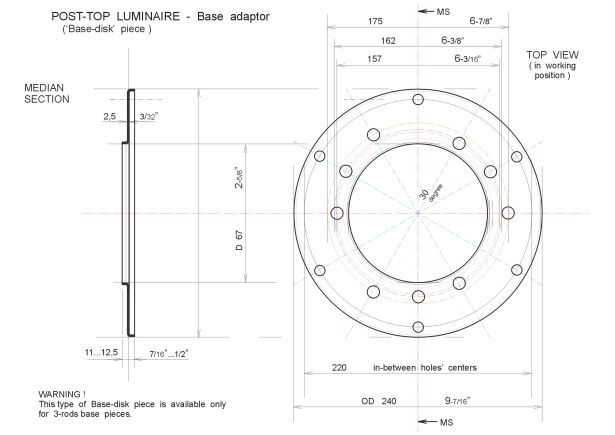

Base disk piece

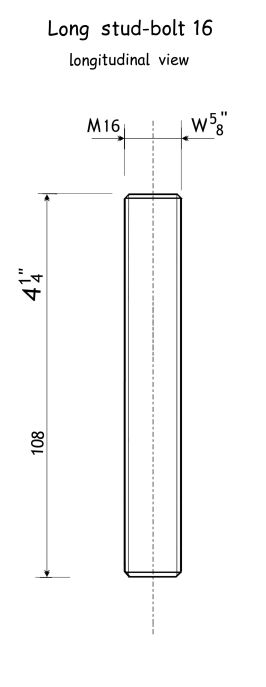

Stud-bolts - 16

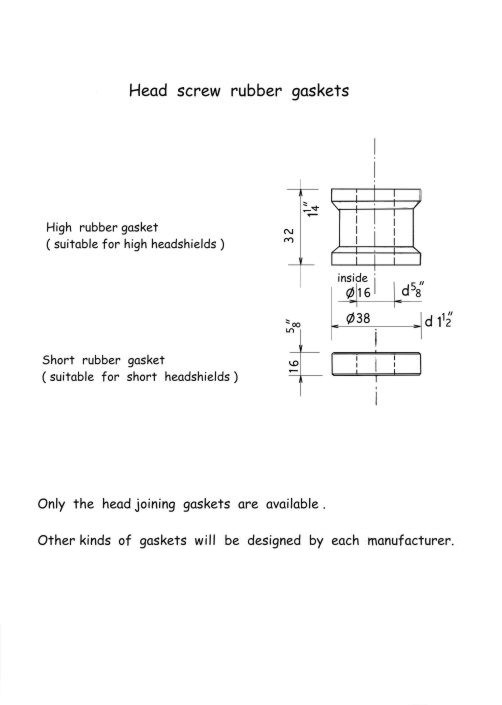

Head gaskets - 16

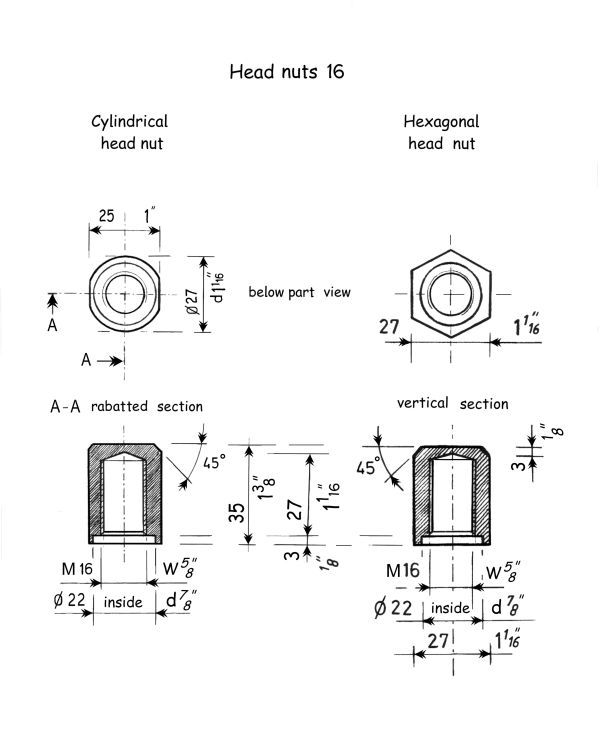

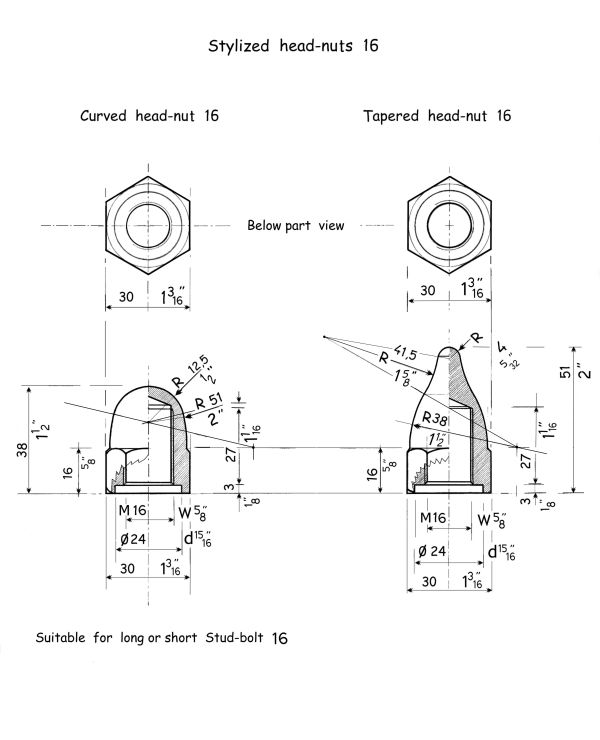

Head nuts - 16

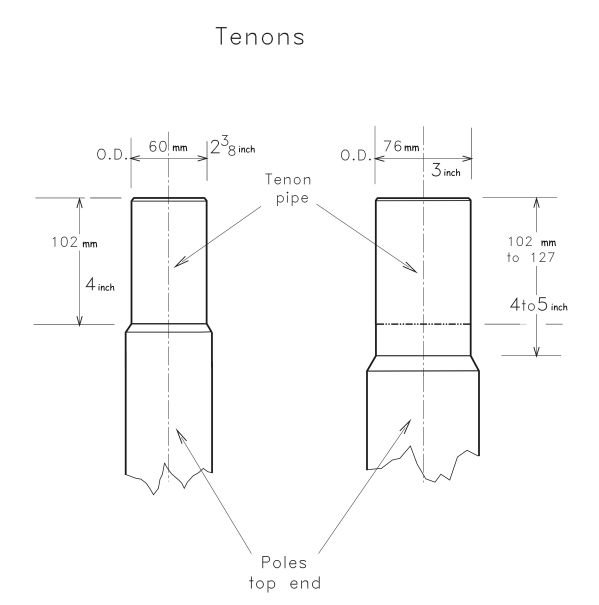

Pole top ends (Tenon pipes) of 60 and 76
