POST-TOP LUMINAIRE - SAUCER SHAPED BASES
Suitable for post-top two-pieces large size bases
Please scroll down and select the piece of your interest :

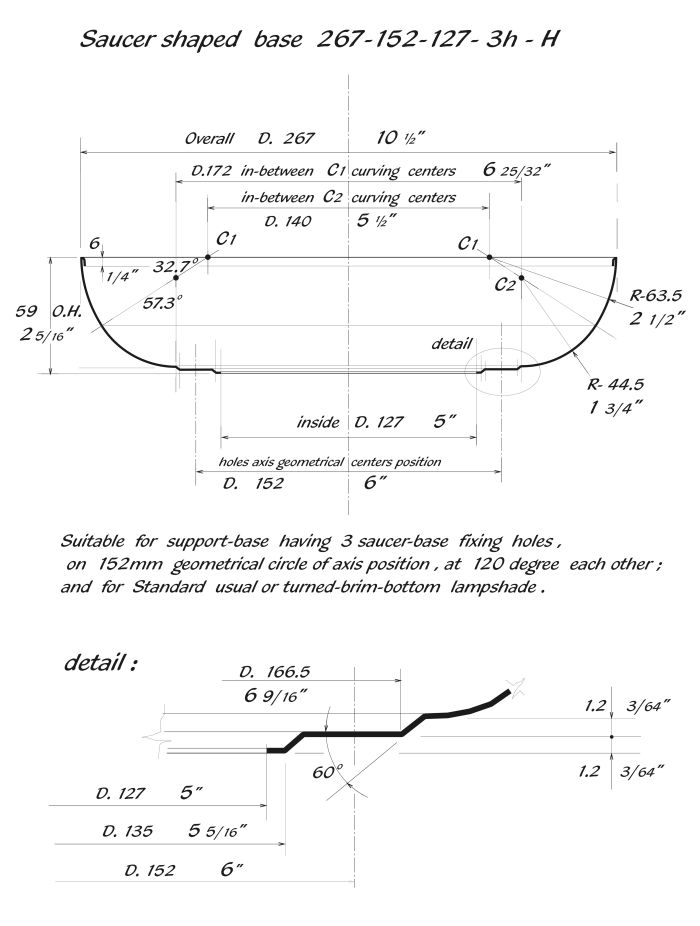

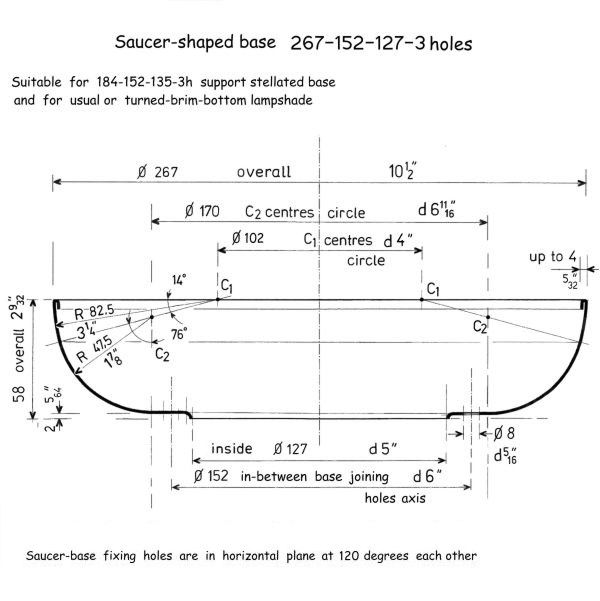

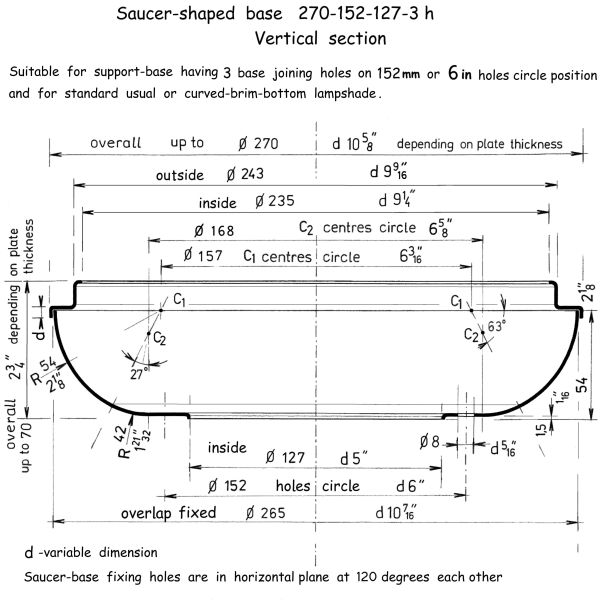

SAUCER SHAPED BASE - 3 fixing screws holes - 152mm holes' center circle

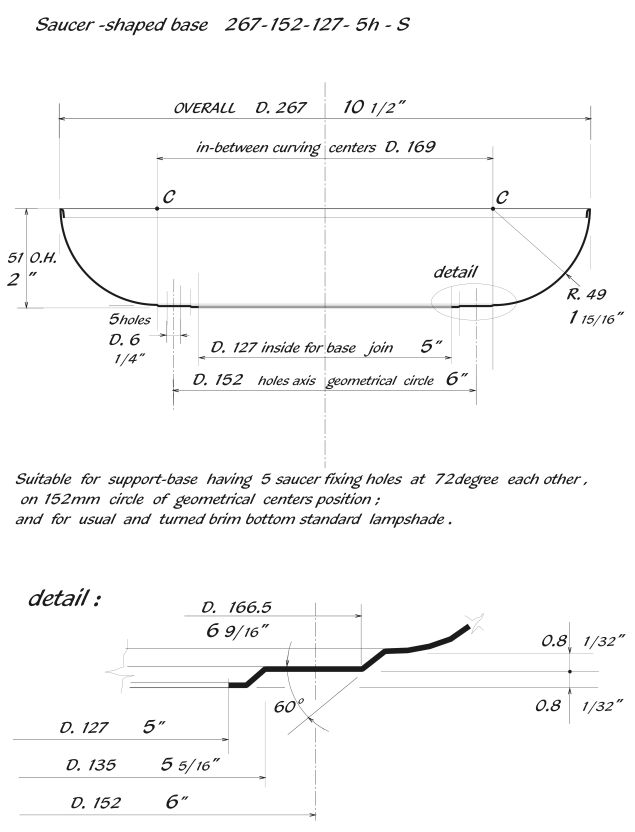

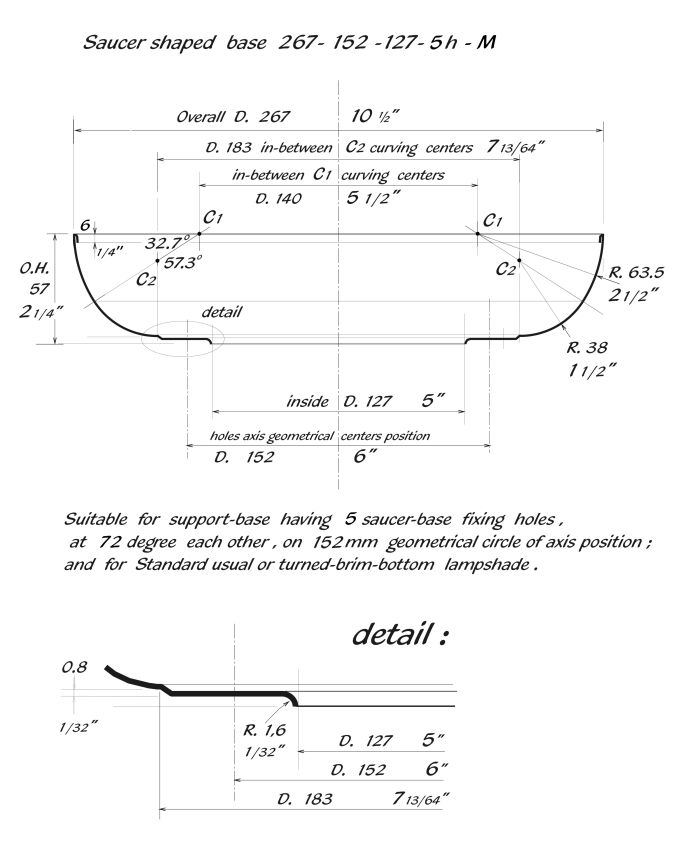

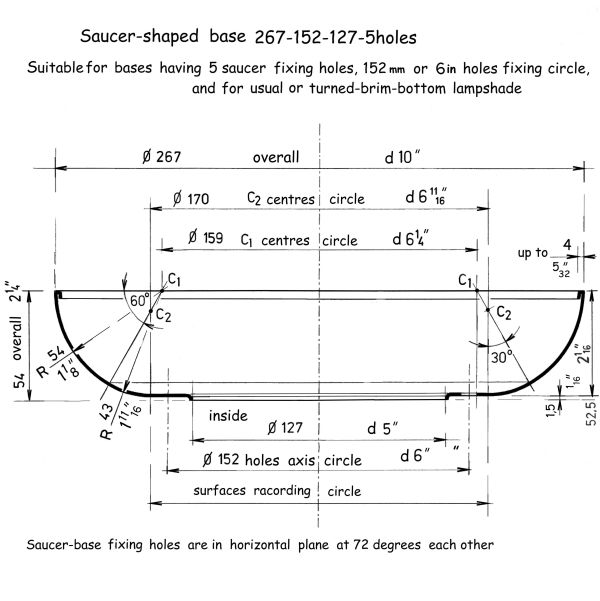

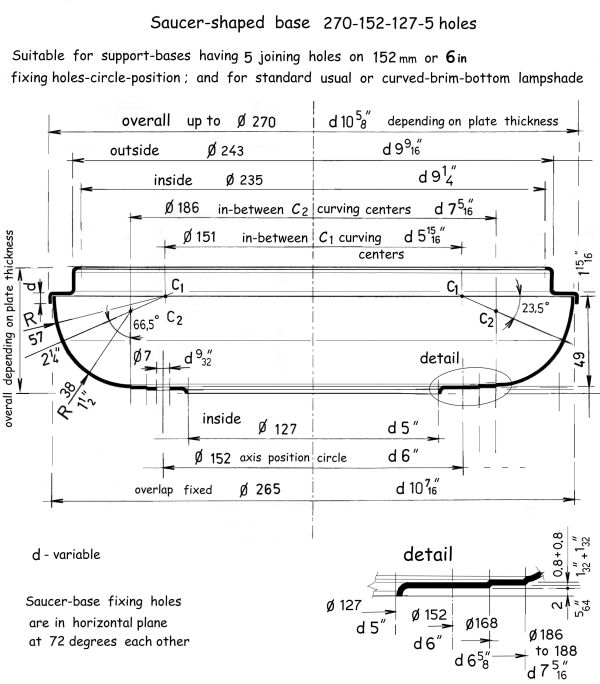

SAUCER SHAPED BASE - 5 fixing screws holes - 152mm holes' centers circle

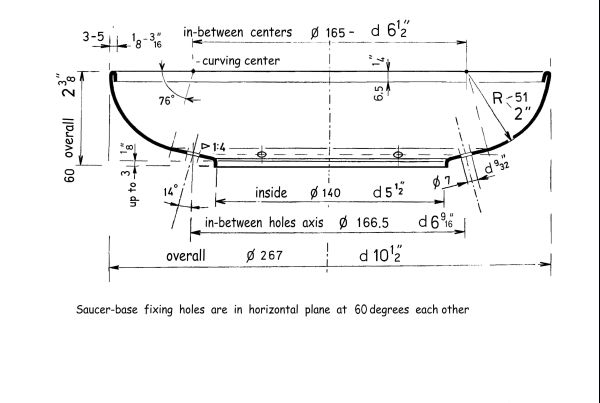

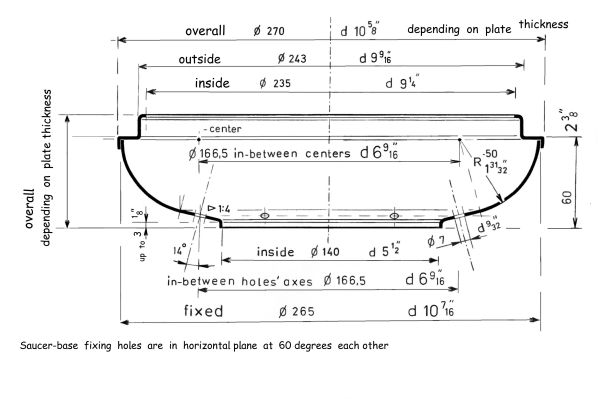

SAUCER SHAPED BASE - 6 fixing screws holes - 166mm holes' center circle

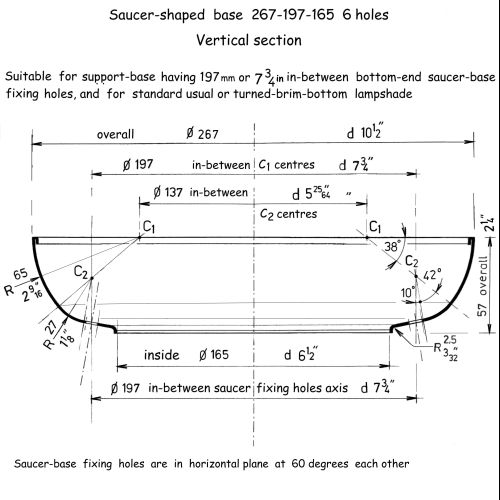

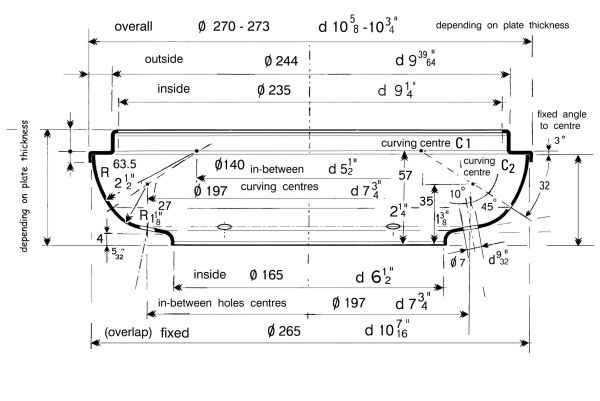

SAUCER SHAPED BASE - 6 fixing screws holes - 197mm holes' center circle
