POST-TOP LUMINAIRES ONE-PIECE BASES - Outside shapes
Lamparas, luminarias, farolas, lamps, luz, light, iluminacion, ilumination, Paneles Solares

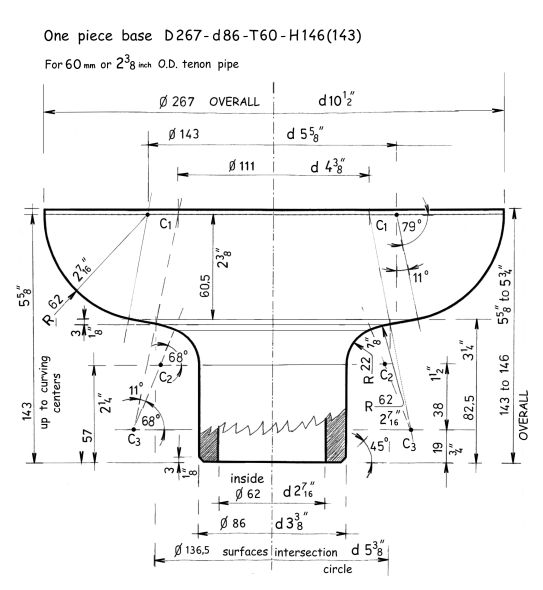

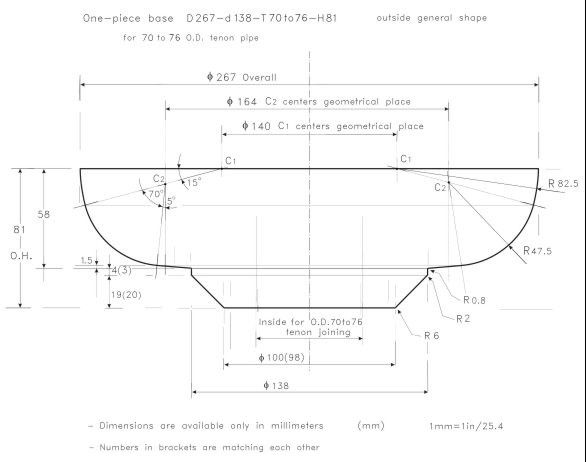

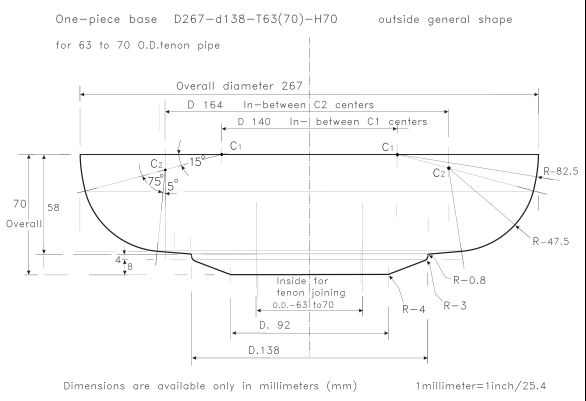

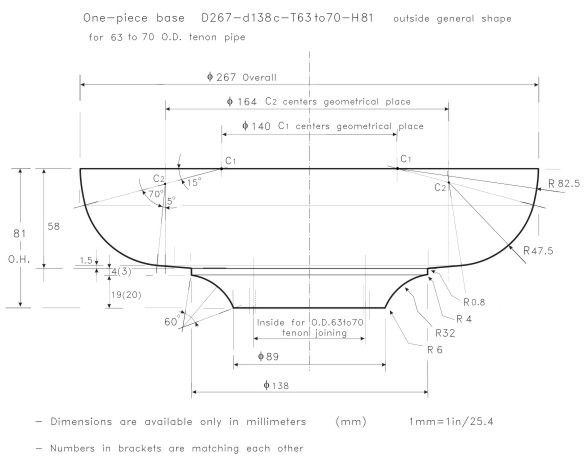

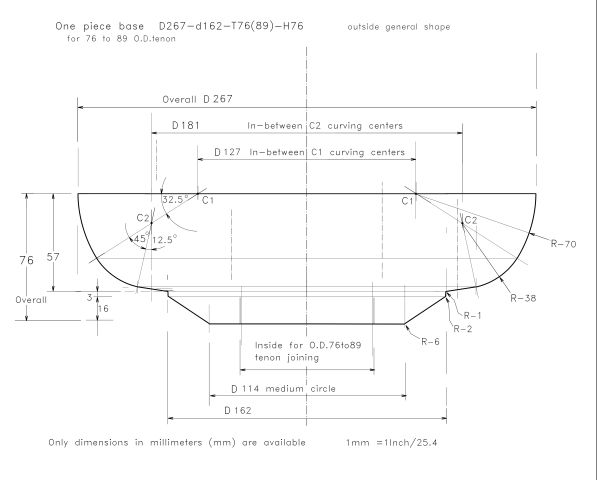

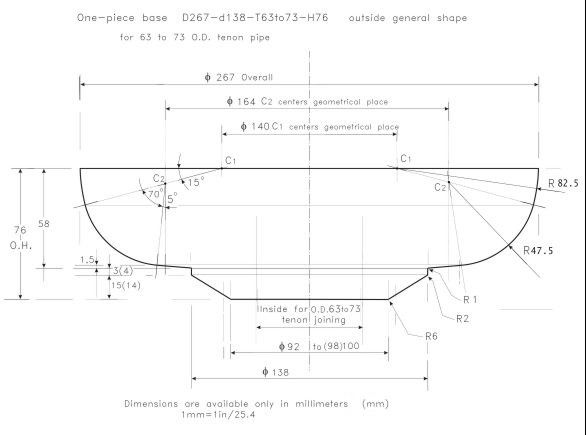

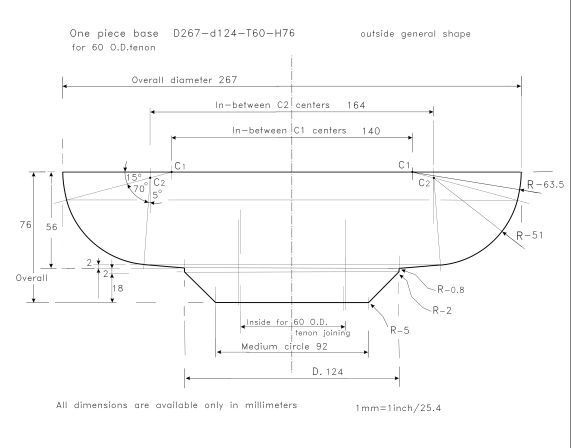

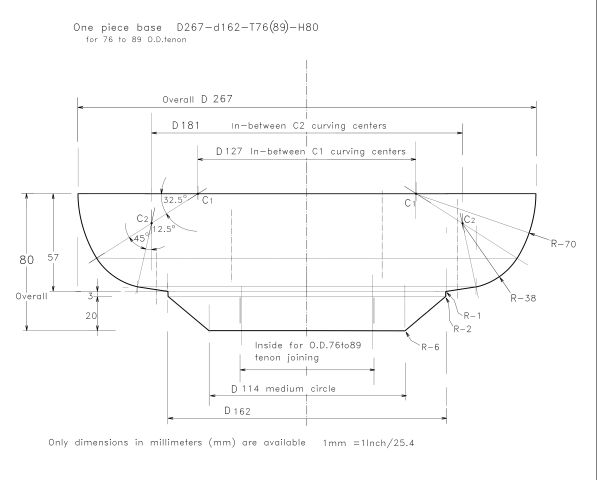

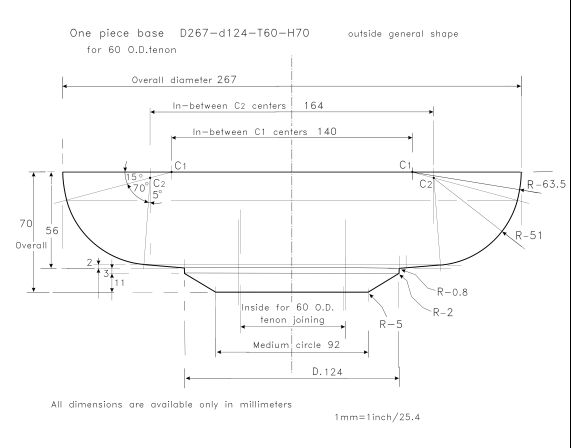

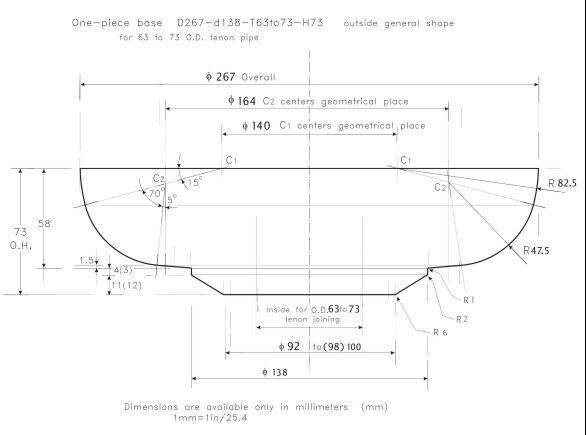

The drawings exposed below may help designing or redesigning One-piece-base starting from the outside (exterior) shape and dimensions.
The design of these pieces may be continued in any way, only if the outside (lateral and below part) shape, and the in-going of tenon (pole top end) diameter interval, are preserved.
Beleuchtungen öffnen freie Projekte, geöffnete Quelle, ausführliches mechanisches Zeichnen
Pieces may be also used in other kind of applications.
