2-3/8" tenon post-top


TYPES of POST-TOP LUMINAIRES - components parts

Suitable for pole's tenon pipe of 60mm, or 2-3/8in .


MAIN FEATURES :

> 2-piece base (for 60mm or 2-3/8" in-going tenon pipe)
> Head diameter of lampshade - 356mm or 14in.
> Height of lampshade - 686...700 mm.
> Bottom joining diameter 235...305mm.


1 - BASES

1.1 - Base-Support pieces
Base 165 - 140 - (3R)130 - 60 - 6H - (screw)

Base 165 - 140 - (3R)130 - R60 - 6H - (screw)


1.2 - Base-'Saucers'

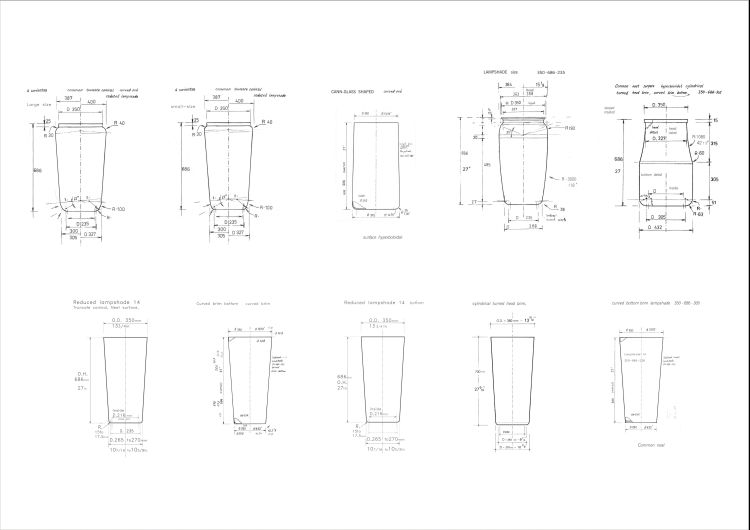

2 - Lampshades



3 - Headshields

3.1 - Headshields of 356mm, or 14in rabbet's inside diameter

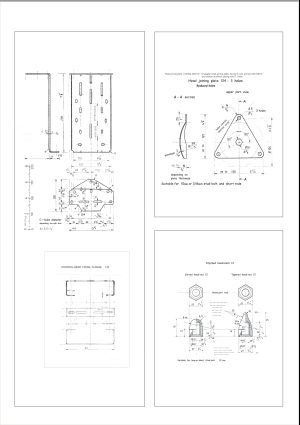

4 - Small pieces and accessories
