Outdoor Post-top Loudspeaker Enclosure - Tommy's Cage - Main component parts


MAIN COMPONENT PARTS
Home page

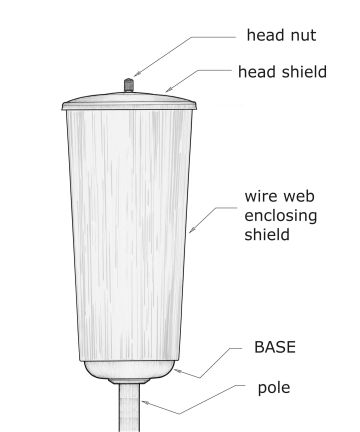

Lateral view

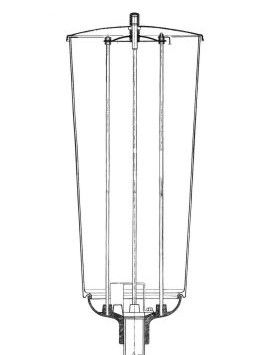

Vertical section of assembling
with interior main components
which are shown in this page.






mechanical drawings of enclosing protective post-top cages and supports for outdoor loudspeakers housing

Base-supports

- Outside shapes



Example of base design suitable for 60mm, or 2.37in, tenon (pole's top end) O.D.



Example of base design suitable for 76mm, or 3in, tenon (poles top end) O.D.



Click to base-supports content page. outdoor, free, open, projects, content, loudspeakers, enclosures, cages, post-top, sound, supports, bases, tommy's, shields, wire, web, microphones, megaphones, tenon, pole, 60mm, 76mm, 89mm, control, gear, environmental, street, residential, landscape, efficiency, building, path, beach

Wire web shields

al aire libre, libre, abierto, proyectos, contenido, altavoces, recintos, jaulas, poste-tapa, sonido, ayudas, bases, tommy's, protectores, alambre, tela, micrófonos, megáfonos, ambientales, calle, residencial, paisaje, eficacia, buena, control, engranaje, edificio, trayectoria, playa

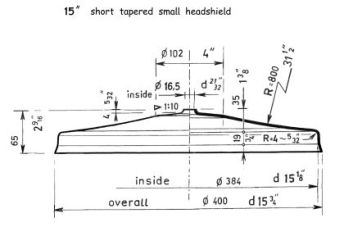

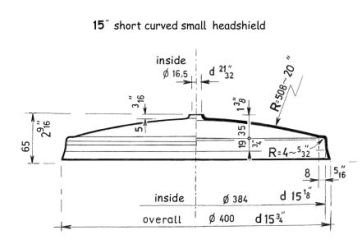

Head shields

im Freien, frei, geöffnet, Projekte, Inhalt, Lautsprecher, Einschließungen, Rahmen, Pfosten-Oberseite, Ton, Unterstützungen, Unterseiten, tommy's, Schilder, Leitung, Netz, Mikrophone, Megaphone, umweltsmäßig, Straße, Wohn, Landschaft, Leistungsfähigkeit, gut, Steuerung, Zahnrad, Gebäude, Weg, Strand

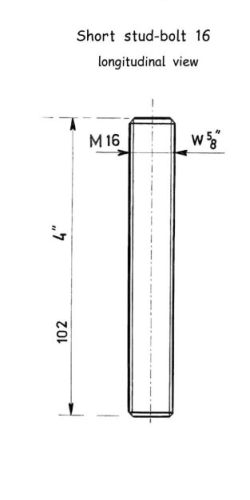

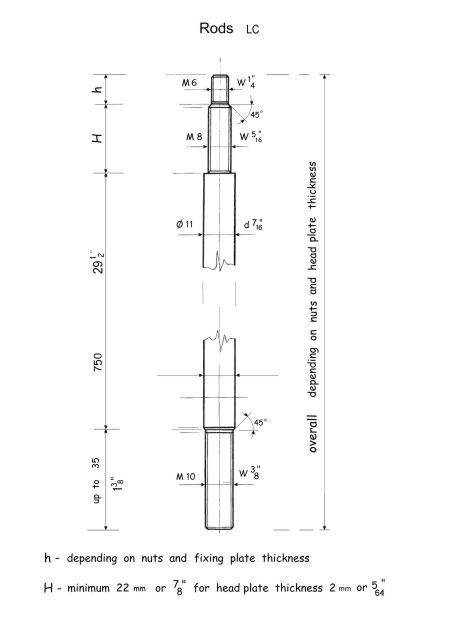

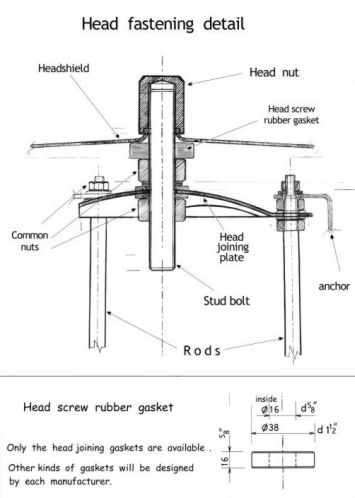

Rods and stud-bolt

extérieur, libre, ouvert, projets, contenu, haut-parleurs, clôtures, camps, poteau-dessus, bruit, appuis, bases, tommy's, boucliers, fil, enchaînement, microphones, mégaphones, ambiants, rue, résidentielle, paysage, efficacité, bonne, commande, vitesse, bâtiment, chemin, plage

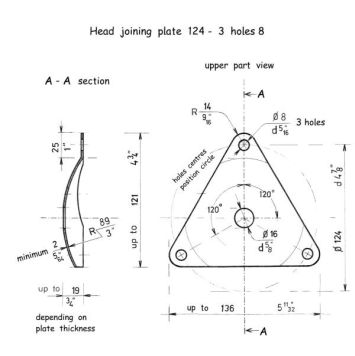

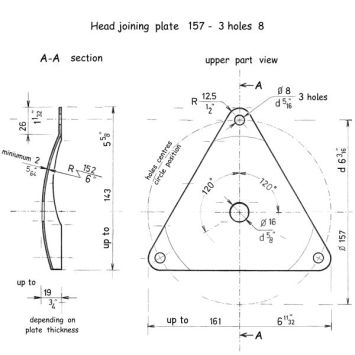

Head plates

ao ar livre, livre, aberto, projetos, índice, loudspeakers, cercos, gaiolas, borne-alto, som, sustentações, bases, tommy's, protetores, fio, correia fotorreceptora, microfones, megaphones, ambientais, rua, residential, paisagem, eficiência, boa, controle, engrenagem, edifício, trajeto, praia

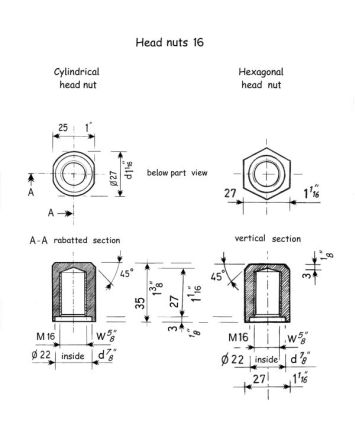

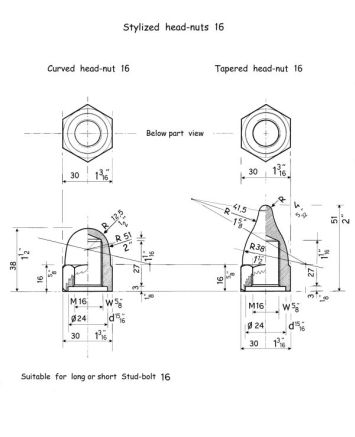

Head nuts

esterno, libero, aperto, progetti, soddisfare, altoparlanti, recinzioni, gabbie, alberino-parte superiore, suono, supporti, basi, tommy's, schermi, legare, fotoricettore, microfoni, megafoni, ambientali, via, residenziale, paesaggio, efficienza, buona, controllo, ingranaggio, costruzione, percorso, spiaggia

Other details

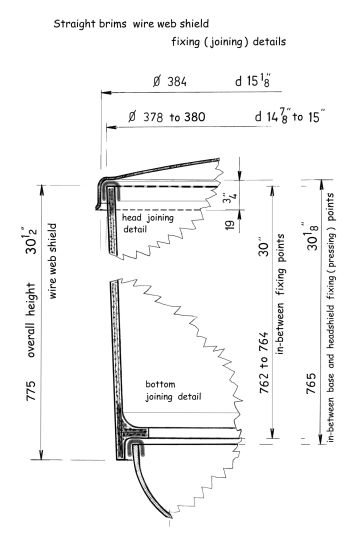

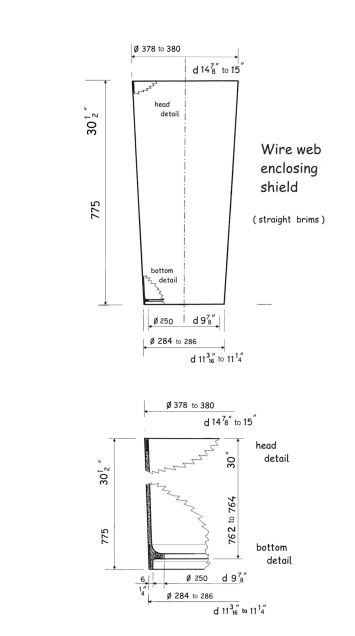

Wire web (straight brims) shield joining

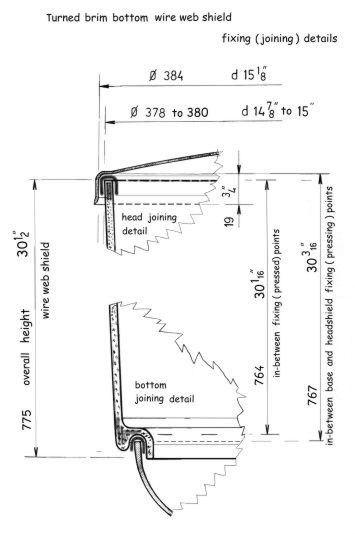

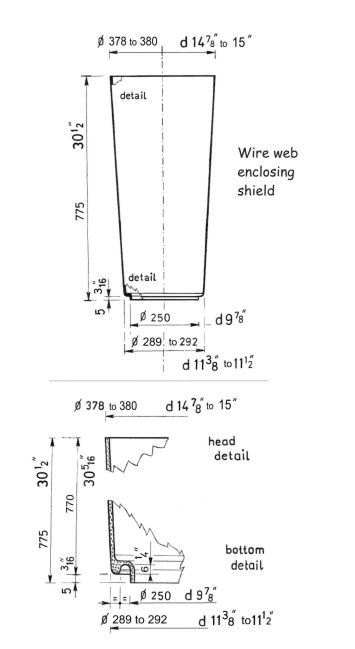

Wire web (turned bottom) shield joining

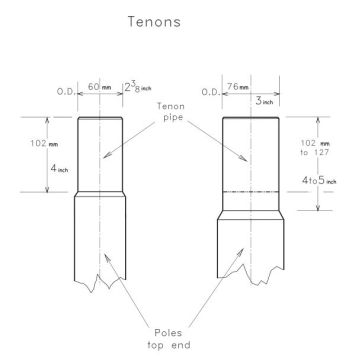

Poles top end (in-going tenon) detail
