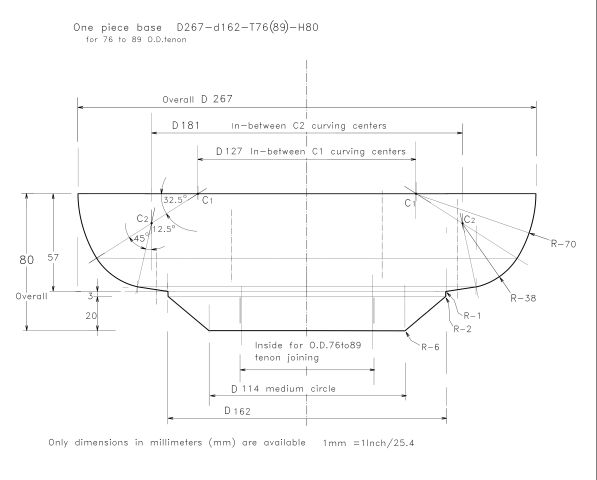

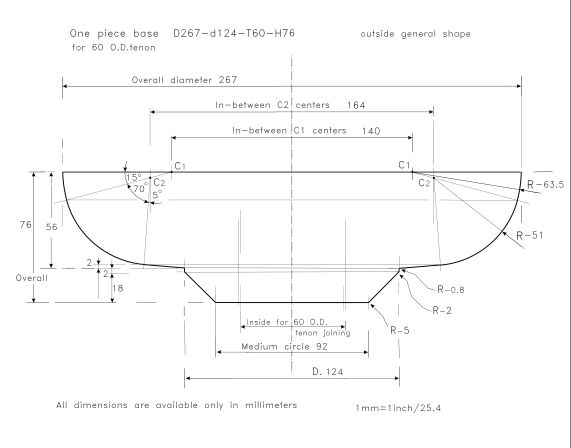

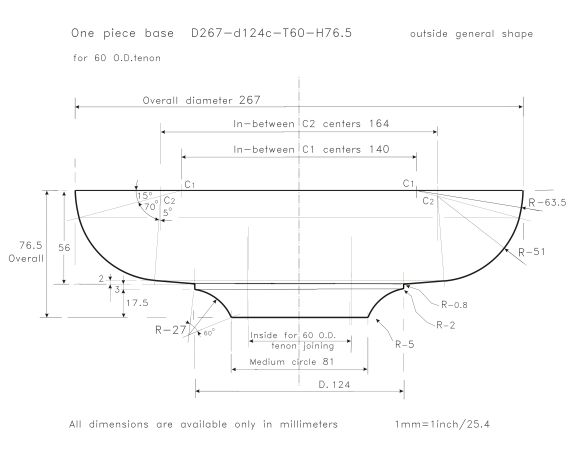

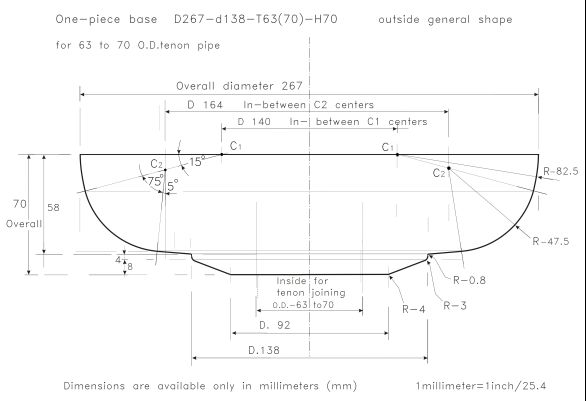

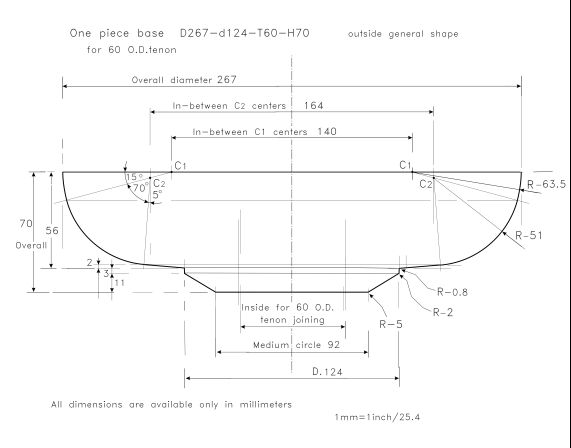

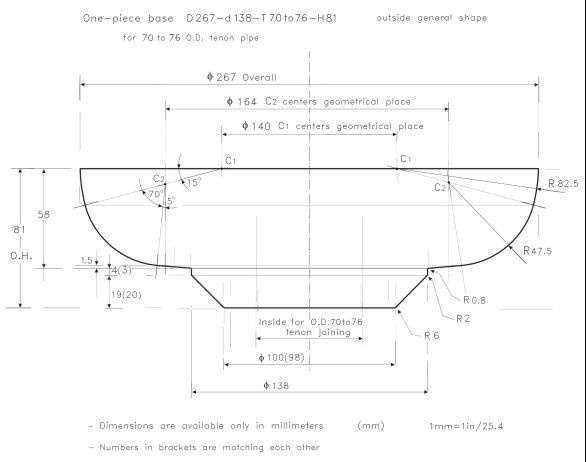

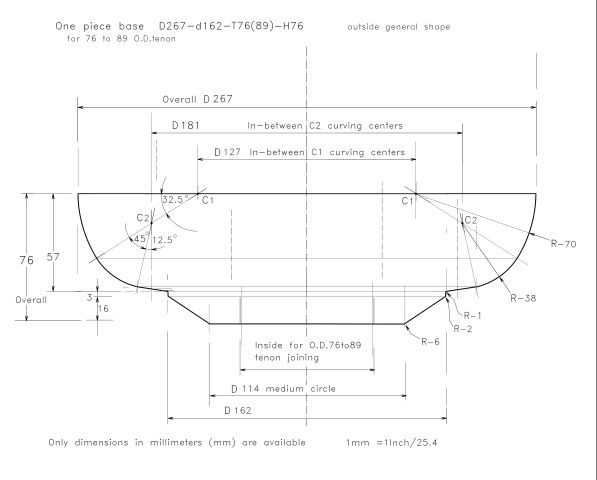

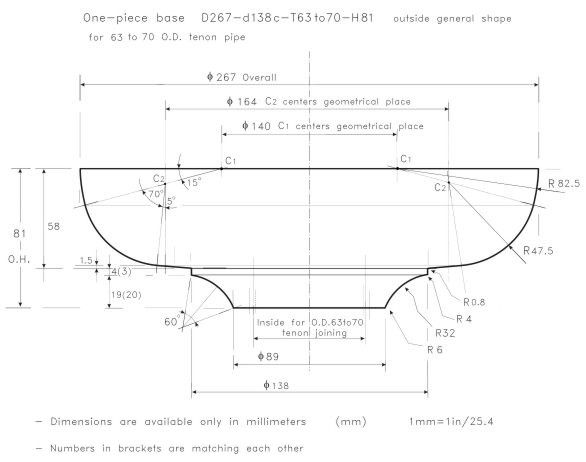

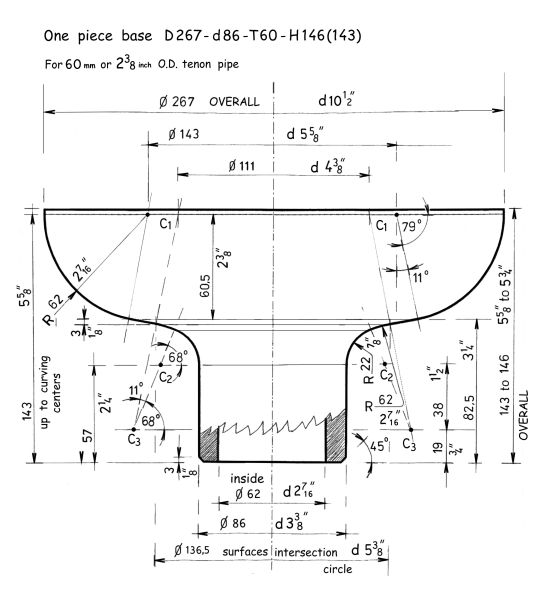

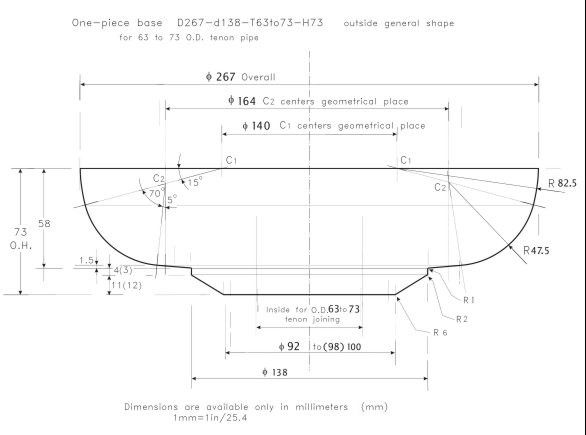

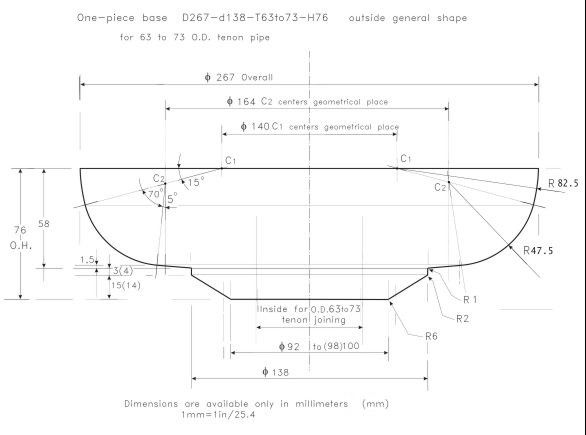

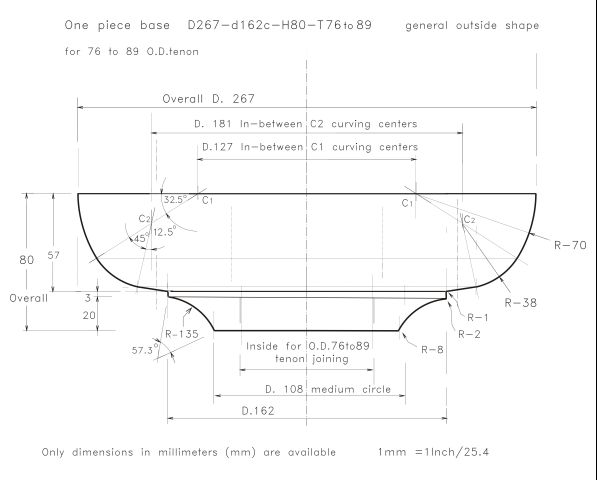

Support-Base outside shapes The drawings exposed below may help designing or redesigning 'One-piece-base' starting from the outside (exterior) shape and dimensions. The design of these pieces may be continued in any way, only if the outside (lateral and below part) shape, and the in-going of tenon (pole top end) diameter interval, are preserved. Pieces may be also used in other kind of applications. |
