Temiskaming and Northern Ontario
Ontario Northland
All photos Jim Parker Collection unless otherwise credited.

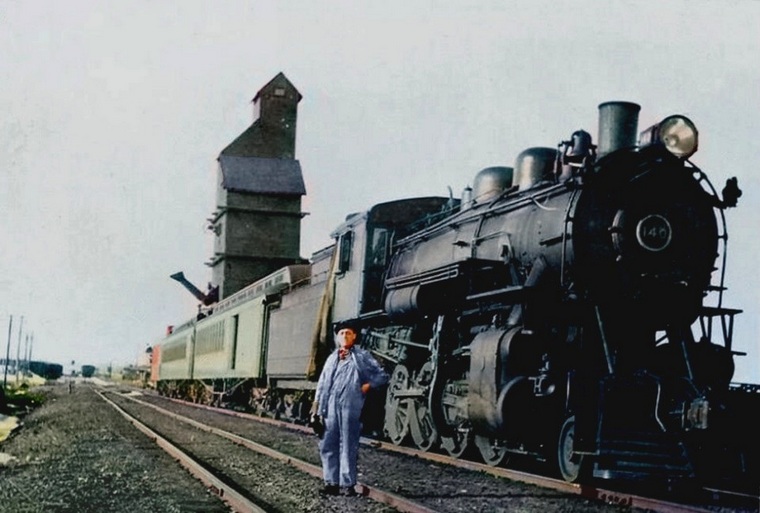

Engineer George Belanger stands beside 140 (CLC 1042 1912) at
Porquis 4/1926 Colourized Steve Woolfrey.

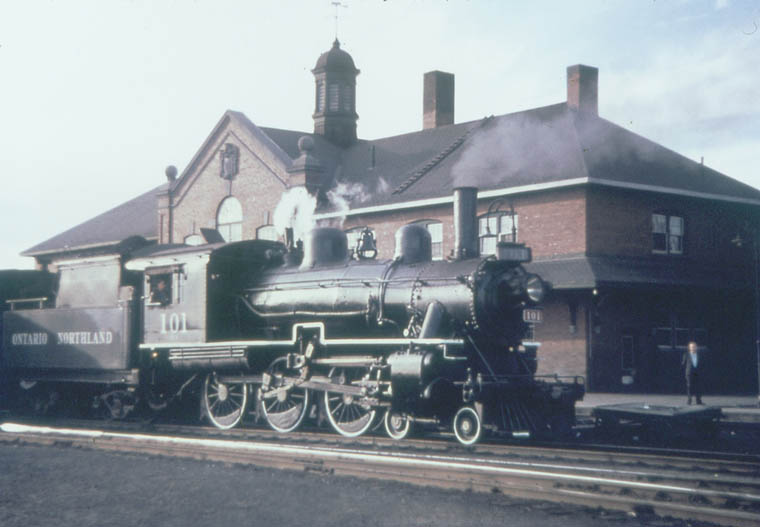

101 at Cochrane. A.C.Kalmbach

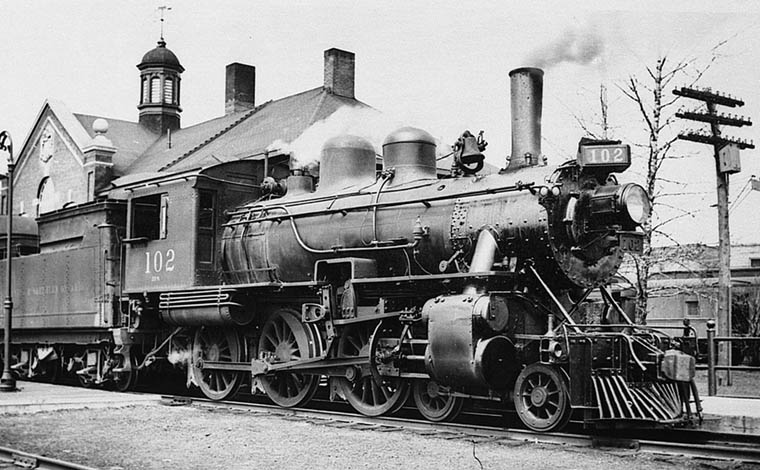

102 in the 1940's.

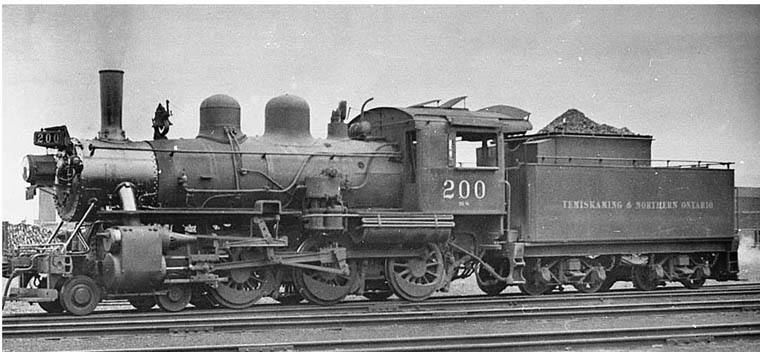

200 one of several Ten-Wheelers that were the mainstay of the
T&NO in its early years.
Cochrane yard engine 204 switching mixed train in the 1940's.

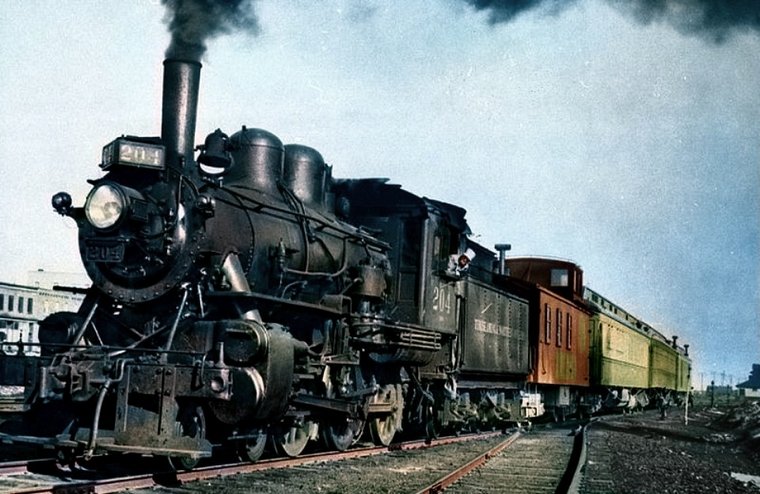

204 colourized by Steve Woolfrey
208 being sanded up. .

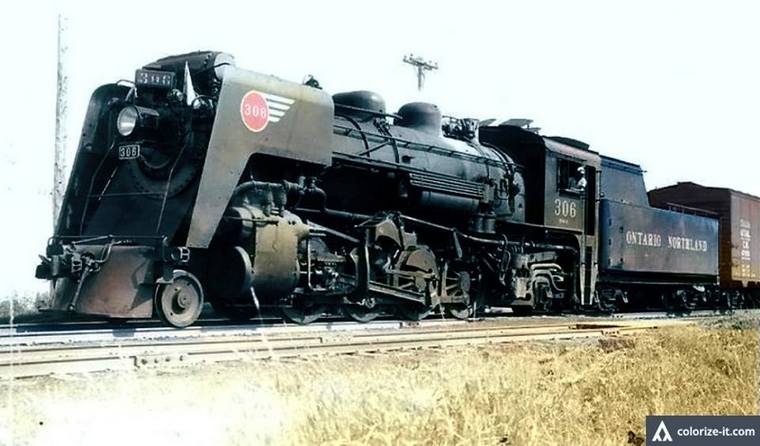

Colour photography was expensive decades ago and slow film speed made
moving photos very difficult.
Here Extra 306 is standing still at unknown location and date.

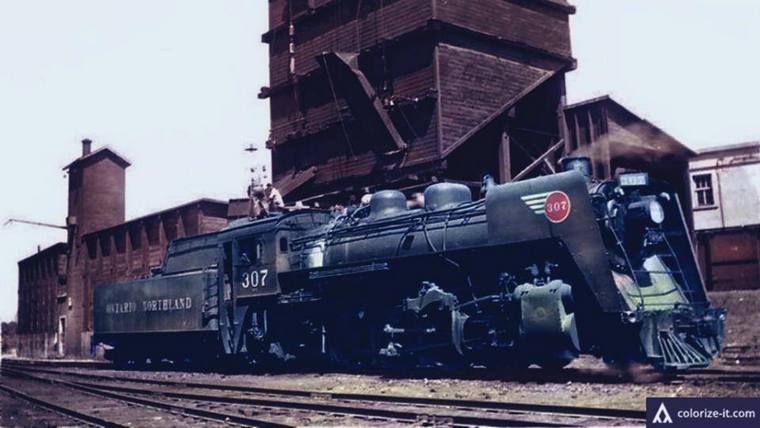

307 is coaling up in North Bay on June 15, 1949. Frank Vollhardt/Colourized
digitally Steve Woolfrey.

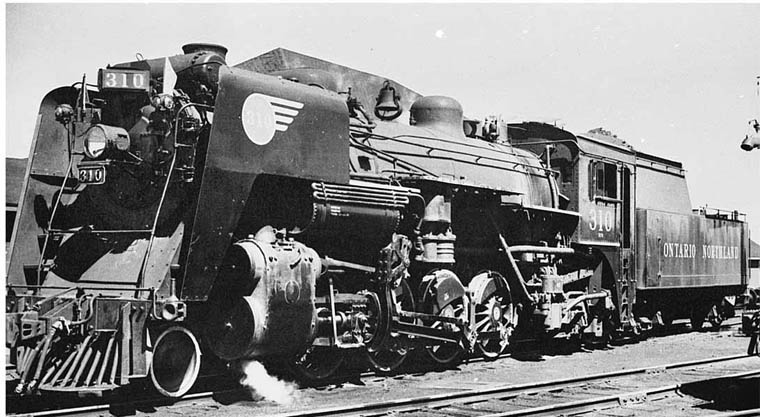

Big power was ONR 310 first of last seven 2-8-2's complete with vestibule
cab. Englehart 1952
Cyl. 25" x 30" Drv. 63" Press. 200 lbs. CLC #1740
1923

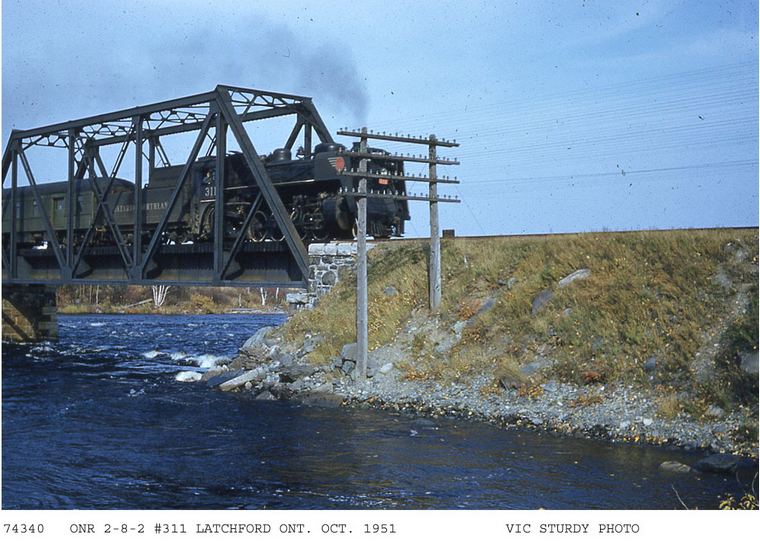

311
313 North Bay 6/1953 Max Miller/Bud
Laws Collection
314 (see below) digitally colourized Steve Woolfrey

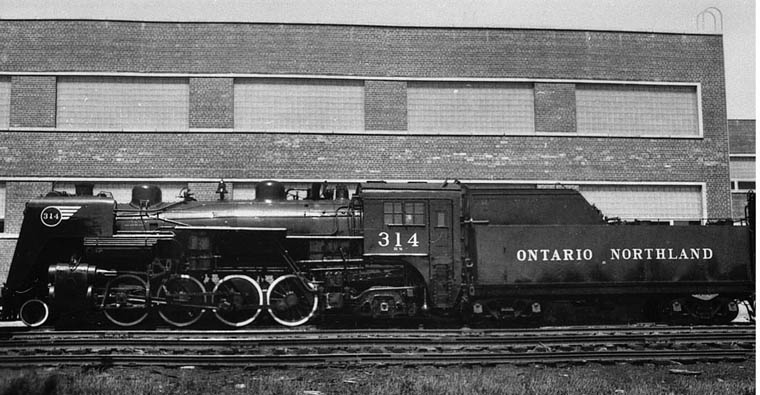

314 North Bay (diesel shop behind) 1950's
502 May 1943 Paul McGrane Collection
"T&NO" 503 long displayed in Lee Park it was relocated
in 2000 to former CPR station.
600 Cyl. 22" x 28" Drv. 69" Press 200 lbs t.e. 33% CLC
961 1911 Scrapped 1955
Note the highly irregular red illuminated number board!
601

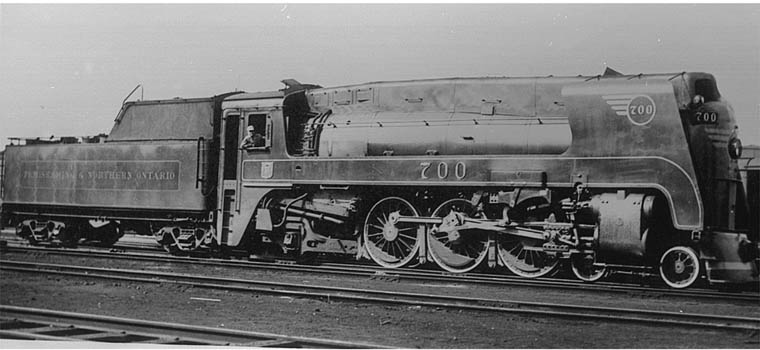

700 after modifications including streamlining and larger tender. Built
with Young valve gear changed to Baker.
200 lbs. 69" drivers. 37% t.e. (with booster 47%) CLC #1692 1921
North Bay 1940's
701 with lettering for first and last runs of steam. June 25, 1957
Photographer unknown
701 relettered back as T&NO. The only steam locomotive preserved.
On display in Englehart. Mahew

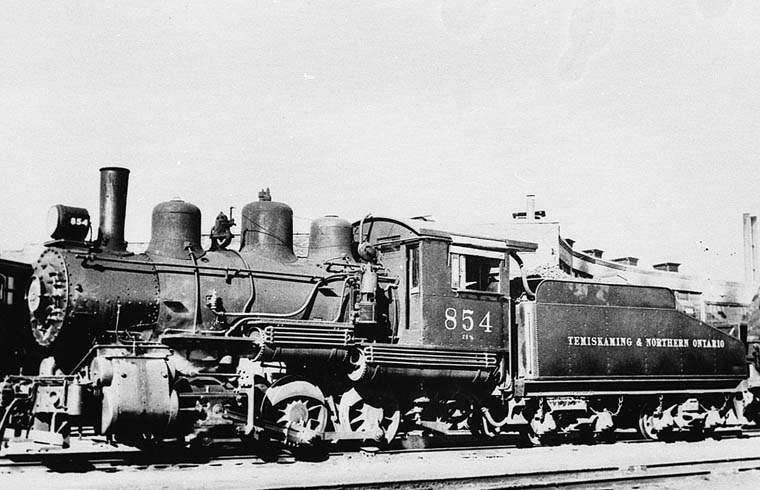

854 Cyl 19" x 26" Drv. 51" Press. 180 lbs. tender 8
tons 4500 gals. CLC 1909
Sold 1941 Abitibi Power & Paper Co. 60

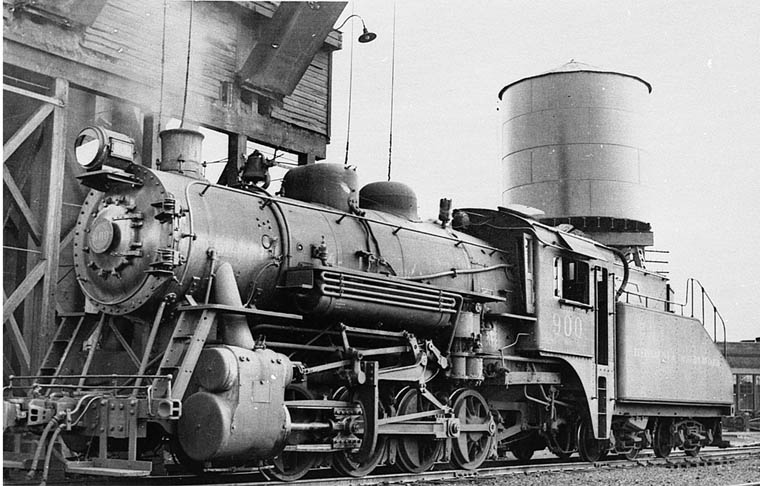

900 one of two 0-8-0's a big improvement over small 0-6-0's. Note the
vestibule cab rare for switch engines.
Young valve gear. Cyl. 23" x 28" Drv. 53" Press. 180
lbs. t.e. 42,570 MLW #62498 1920
900 was assigned to North Bay yard and 901 to Englehart yard.
With arrival of three Alco S-2 diesels 900 was transferred to Cochrane
and 901 became a spare engine at North Bay.

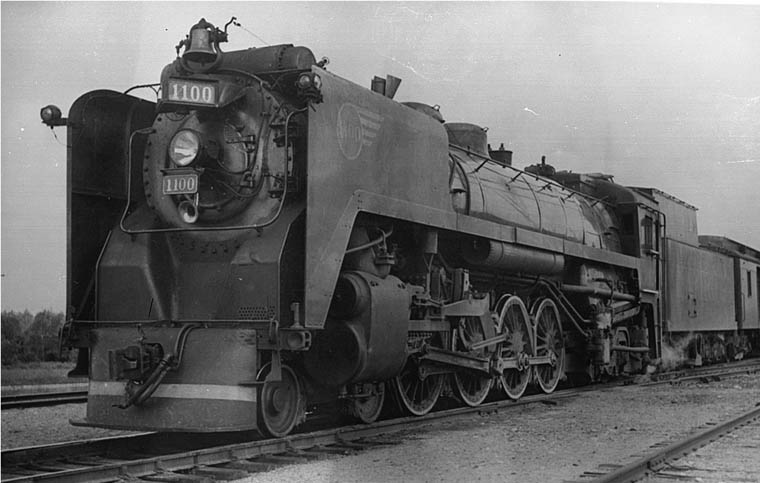

1100 one of four 4-8-4's Cyl. 22 1/2" x 30" Press. 275 lbs.
Drv. 69" Tractive effort 54,500 (64,950 with booster)
Note horn below front number board. CLC #1919 Blt.1936. North Bay 1940's

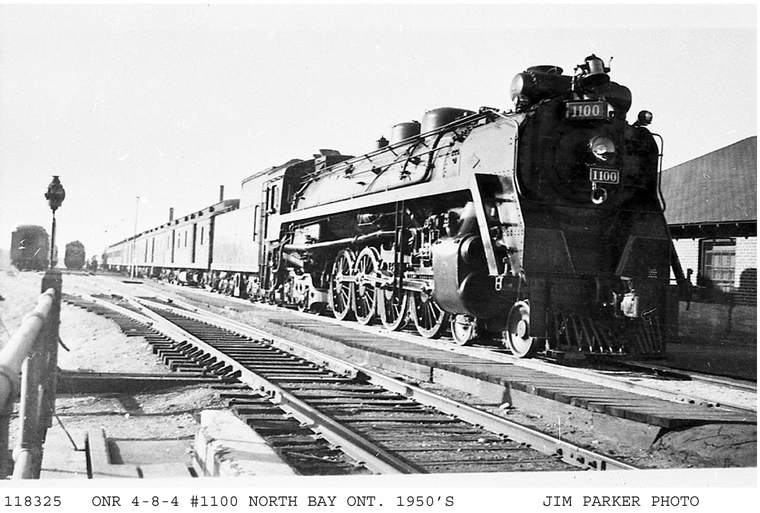

1100 shop track North Bay July 1948 George Harris
T&NO 1100 Quintland . Near
CNR Spadina roundhouse. May 27,1939 Bud Laws
Collection
Quintland was a tourist attraction named for the famed Dionne Quintuplets.
1101 1101 North Bay 1940's

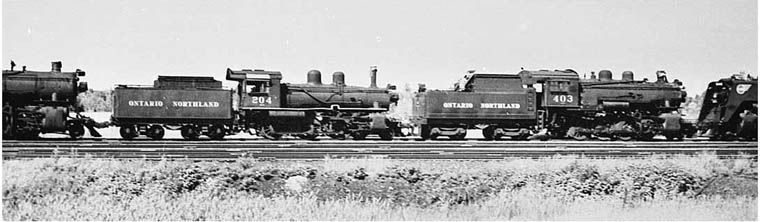

A line of dead engines indicates its all over on one of the earliest
roads to dieselize. North Bay 1950's
ONR operated a steam train as a Centennial (1967) project using a CNR
locomotive acquired for that purpose.
It continued operating at varous times until making its last run in
August of 1972.
"T&NO 137" (ex CNR/CNoR 2164) 2-8-0 CLC 1157 5/1913
Displayed with CNR baggage car, coach and two vans as well as CPR coach.
Cochrane Railway and Pioneer Museum, Cochrane. August 3, 2009
Note: The two vans were fire damaged in 2011 and both scrapped.
