Canadian Pacific Railway

N2 Class 2-8-0

These engines were rebuilt from earlier N3 class 2-8-0's. Many were later rebuilt again into P2 class 2-8-2's.
There were 166 engines in total. 125 built by MLW, 20 by CLC, 10 by Canada Foundry and one by Angus.

3850 was the first N3a CPR Angus 4/1909
3851-3885 ........... MLW 7/1910-9/1910
3840-3849 ............ MLW ............3/1911
3820-3839 ............CLC 8/1911-10/1911
3810-3819 ........... MLW 8/1911-9/1911
3800-3809 ......................MLW 10/1911
3886-3890 ......................MLW 10/1911
3891-3940 N3b .MLW 10/1912-12/1912
3941-3950 N3c.................. MLW 7/1913
3951-3959 ............. CF 11/1913-3/1914

N2a 3600-3690 . . . open cab Tender 5,000 gals. 12 tons
N2b 3691-3740 vestibule cab Tender 10, 000 gals.16 tons
N2c 3741-3760 vestibule cab Tender 5, 000 gals. 12 tons
Note: Some engines had non-standard tenders in latter years including 3716 7,000 gallons water and 2275 gallons oil;
3722 7,000 gallons water.

These N2 locomotives were said to be "under boilered" in that the two "engines" could consume steam faster than the fireman could make it! At least on hand-fired coal burners working the main line with heavy tonnage. Note: Each set of cylinders, motion, rods etc. comprise a separate "engine" that could in fact operate independently in an emergency such as a rod failure allowing the locomotive to keep working albeit at only half power. Note: The N2b's were referred to as Mudhens in Toronto.

N3 class

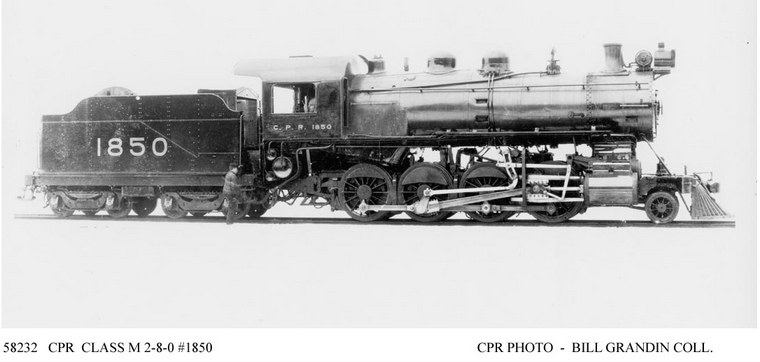

First N3a 1850 CPR 4/1909 Re3 5/1913 3850 Rebuilt 5/1925 3650

Rebuilt with new frame, cylinders and motion.

N2 class

N-2 3602, an oil burner with an extra tender for use on a spur or branch line on the prairies
that did not have access to lots of good water. Winnipeg, 6, 1958 Bruce Chapman Collection

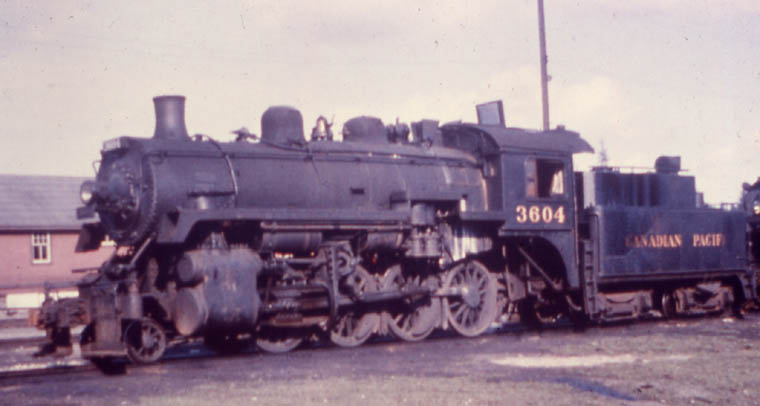

Oil-fired 3604 in yard service Coquitlam 1953 L.B.Chapman collection

N2a class 3610 in yard service. Built as N3a 3810 MLW 50237 8/1911 Rebuilt 3/1925 to 3610
St.Luc 7/14/1951 Bruce Chapman Collection

N2a class 3616 one of twenty engines (3600-3619) built as N3a 3816 by MLW. #50243 9/1911
Rebuilt CPR 7/1928 Rebuilt cyl. 23" x 32" drv. 63" press. 190 lbs. t.e. 43,400 (43%) Bud Laws Collection

This engine was in yard service as can be seen by footboards and fire hose. It is oil-fired.
Note the box on the pilot. It is believed it was for green fusees used by switchmen in heavy fog conditions in Vancouver.

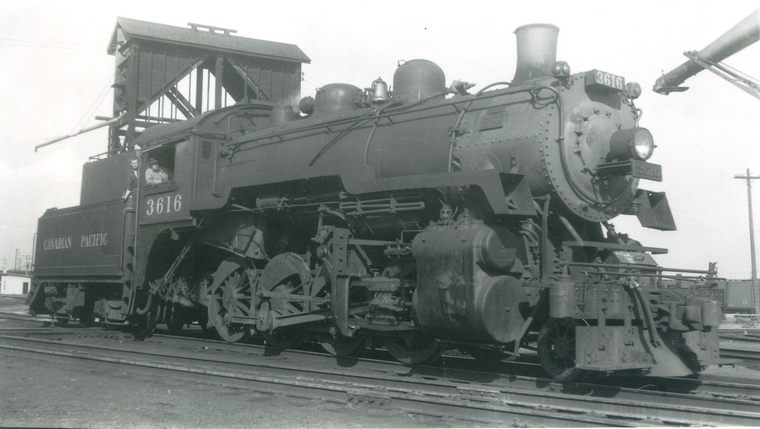

Later view in Vancouver now with combination pilot. June 14, 1955 Bud Laws Collection

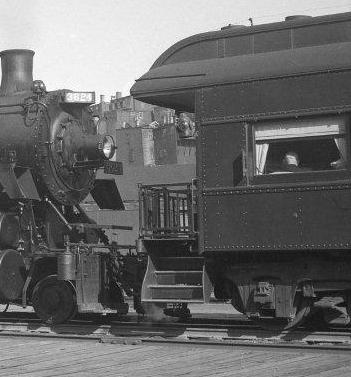

3624 switching a business car on tailend of No.42 The Atlantic at west end of Saint John Union station.
Note the man sitting in left end seat is the official whose car it is.
He sits here because a speedometer is above the rear window and a mirror to look ahead.
A mirror is only located on business cars not ordinary observation cars.
Bruce Chapman Collection

N2a 3624 one of twenty engines (3620-3639) built by CLC Built as 3824. CLC #989 8/1911
Rebuilt by CPR 6/1924 Bud Laws Collection

3624 Lambton circa 1934 Al Paterson/Bud Laws Collection

Note: 1952 assigned Brownville Junction, Maine.

3632 coaling up. Appears to be Port Mc.Nicoll where it was assigned 1958, 1959 until end of steam April 30, 1960.
Bud Laws Collection.

N2a 3642 one of ten engines (3640-3649) long-time regular yard engine at The Glen coach yard. MLW 48700 3/1911
October 1940 Windsor Station, Montreal. Bud Laws Collection

N2a 3650 one-only built by CPR 4/1909
Note the small headlight in front of regular headlight moved to one side. Two more photos below.
Kamloops October 17, 1940 7:30 p.m. Bud Laws Collection

3650 two more views (above and below) of unusual extra headlight.
Kamloops October 12, 1941 Bud Laws Collection

N2a 3651 first of 40 engines (3651-3690) built by MLW 48339 7/1910. Unknown location. Bud Laws Collection
Preserved in Lethbridge. 4/22/2013 Braedan Dunne

N2a 3657 in Toronto. Bud Laws Collection

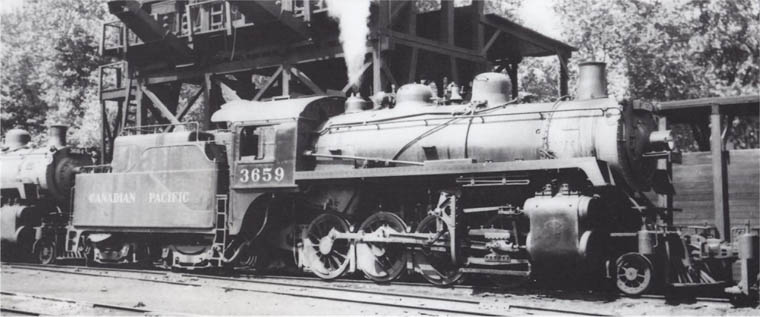

3659 with safety valves popping at the coal chutes it does not need. Oil fired.
Nelson, BC 6/12/1949 Ken Mac Donald/Joseph Testagrose Collection

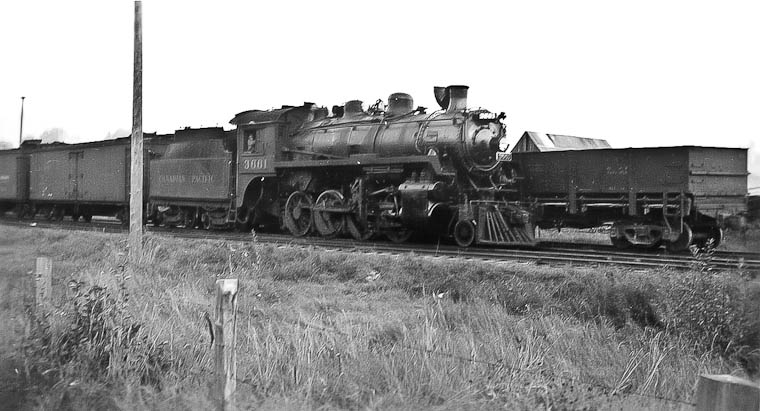

3661 with wood pilot. Armstrong September 19, 1942 Bud Laws Collection

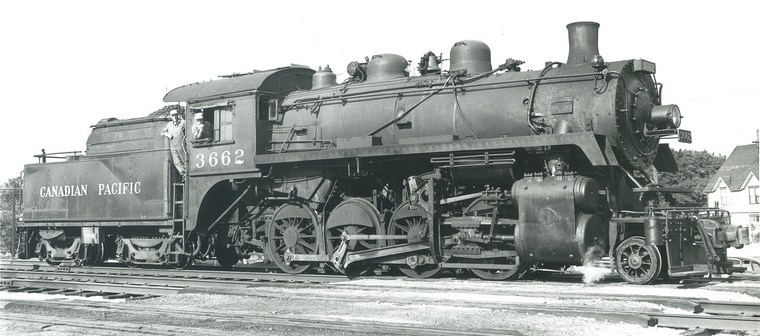

3662 in yard service. Looks like the fireman may be running the engine.
McAdam, NB September 6, 1957 C.T.Felstead/Bud Laws Collection

3663 note the stack deflector used in tunnels. Penticton April 1938 Bud Laws Collection

3665 oil-fired with wood pilot and stack exhaust deflector. Salmon Arm April 2, 1941 Bud Laws Collection

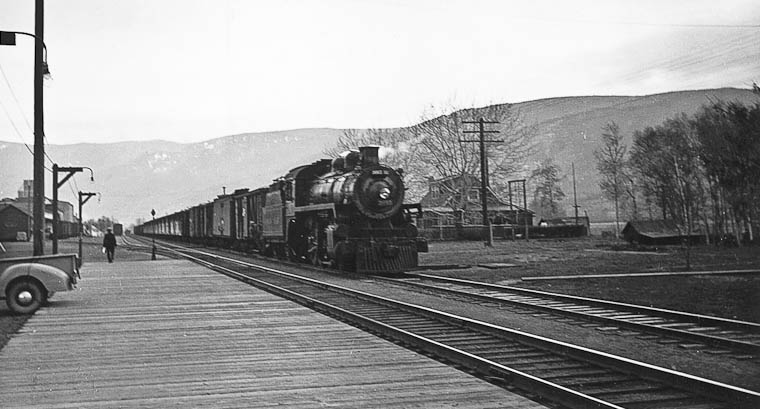

3665 with Kamloops to Revelstoke Way Freight at Salmon Arm April 2, 1941 Bud Laws Collection

3677 is departing from Alyth yard westbound and shows the "west end switchtender" jogging ahead to line switches.
That would be the head end brakeman riding on the pilot beam. c.1925-30 Cyril Littlebury/Steve Morris collection

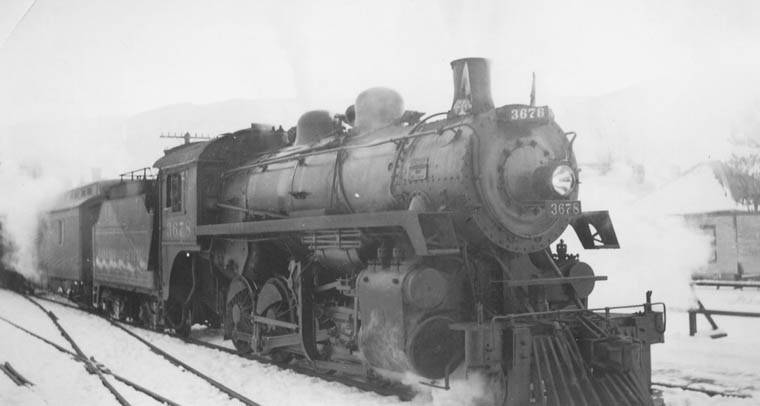

3678 running passenger extra in Armstrong, BC 11/22/1940 Bud Laws Collection

N2a class 2-8-0 3688 built by MLW 10/1911 as N3a class 3888 rebuilt Angus 5/1927
3688 was in yard service as indicated by the footboards and fire hose on the tender.
This engine was converted to oil in 1952. Calgary September 3, 1953
Collection of Howard W. Ameling/Bud Laws Collection

N2b 3691-3740 All built by MLW class N3.

Rebuilt by CPR Many converted to oil. First N2's with vestibule cab.

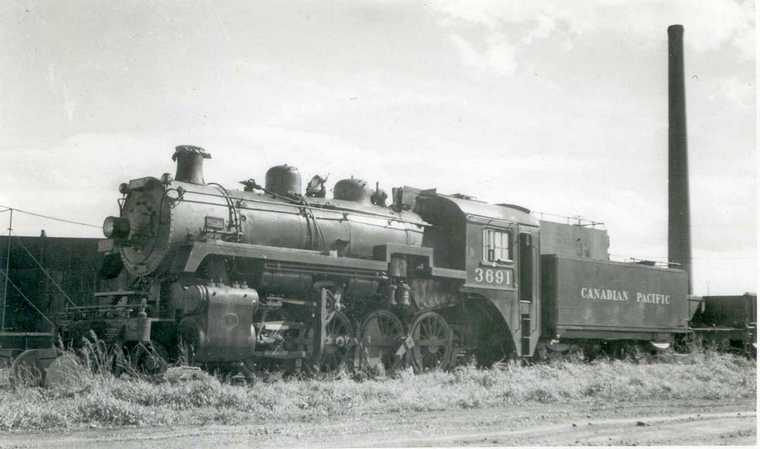

3691 dead with rods off it was retired 5/1960. It had finished up in yard service.
South Edmonton 9/5/1959 Max Miller/Bud Laws Collection

Built as 3891 MLW 51538 10/1912. Rebuilt CPR 3/1926 renumbered 3691.

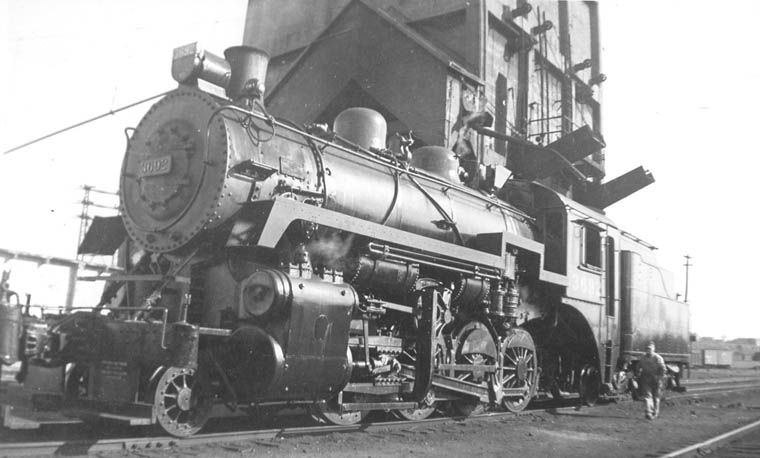

N2b 3692 with vestibule cab. In yard service MLW 51539 10/1912
Montreal 12/1939 Bud Laws Collection

3692 with rear pilot! This would permit speed over 25 mph over unprotected crossings.
There was still a speed restriction of 45 mph with tender leading.
Note rear headlight and spare scoop (shovel).
Outremont 1951 Omer Lavallee/Ron Ritchie collection

Big question is: What was this engine assigned to?

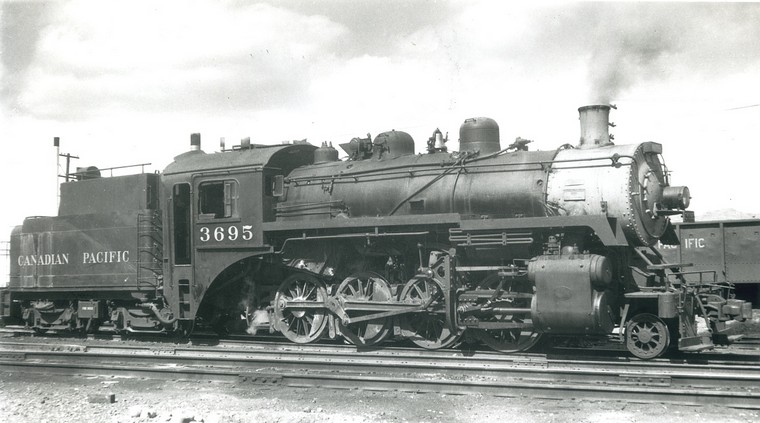

3695 in yard service. Calgary June 26. 1956 Al Paterson/Bud Laws Collection
Western Lines paint scheme includes light grey smokebox.

3696 in an interesting little scene. Note cinder cars at left. Fredericton, NB Bud Laws Collection

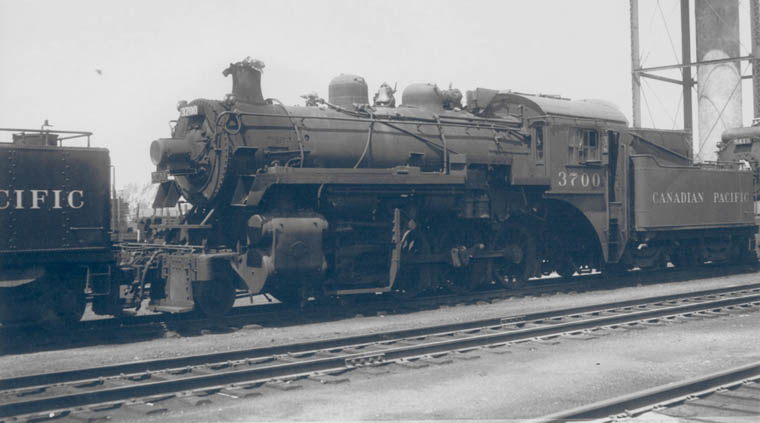

3700 dead with stack covered and rod on running board. Foot boards and tender style indicate yard service.
Bud Laws Collection

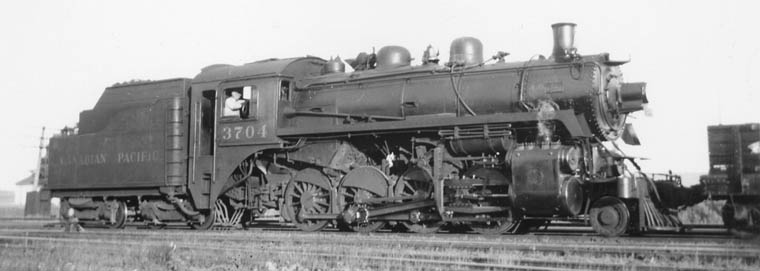

3704 with small tender. Switching at Oshawa July 17, 1940. Bud Laws Collection

3706 oil-fired with big tender. MLW 51553 10/1912 Vancouver October 13, 1951
Walter Edwin Frost/City of Vancouver Archives.

3712 oil-fired with big tender. Typical Western Lines grey smokebox. Winnipeg May 1949 Bud Laws Collection

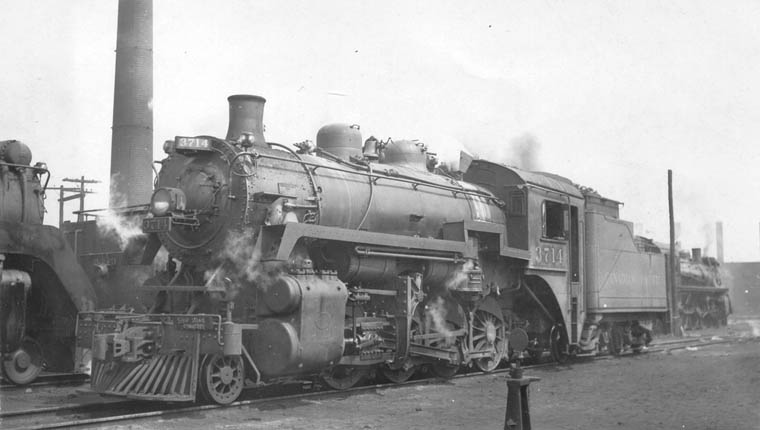

3714 with slanted illuminated number boards. Lambton 1946 Bud Laws Collection

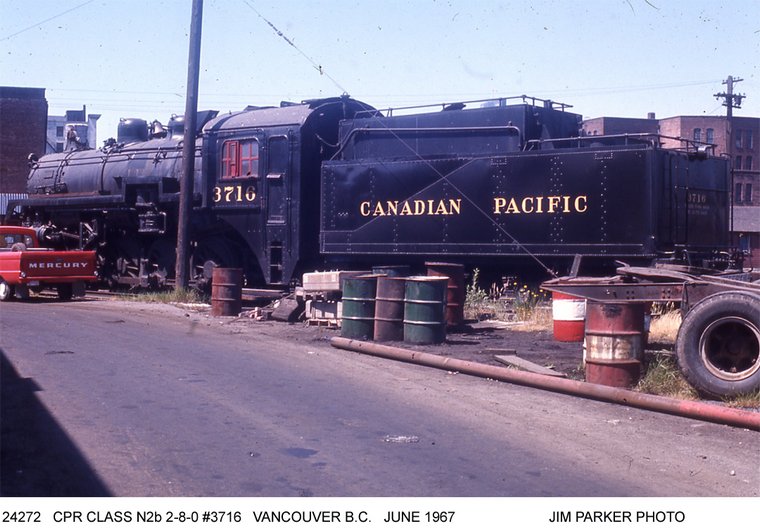

3716 oil-fired. Dead engine. Main rod on running board. Stack covered. Bud Laws Collection
This photo undated and location unknown. Before becoming famous on BC Rail.

N2b 3718 fresh out of Angus. Note how official photograph has background whited out a common practice.
Likely after modification 8/1929 from N3b 3918 and with vestibule cab.
MLW 51630 11/1912 Bud Laws Collection

Note sure what is going on here but check out the Morris Minor!
Oil-fired 3729 on the old Kettle Valley at Brookmere, BC . 8/25/1952
Mod. 9/1928 ex 3929. MLW 51641 11/1912

N2c 3741-3760

Oil-fired 3742 sits with engineer standing in cab doorway looking back with a "What's going on?"
Saskatoon August 24, 1955 C.T.Felstead/Bud Laws Collection
Second of ten engine order 3741-3750 MLW 52688 7/1913

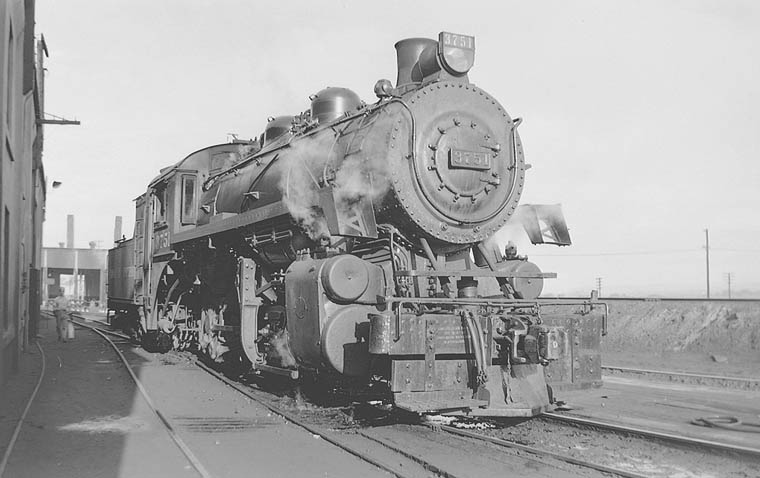

N2C 3751 Canada Foundry 993 11/1913 Ottawa West August 1955 Dr. Richard Leonard

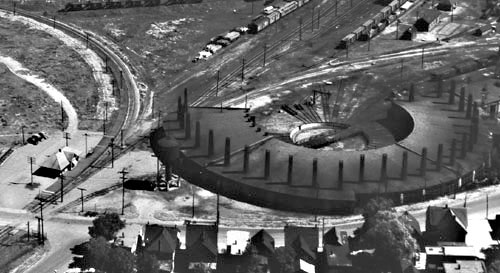

There was only one N2 class engine assigned to Ottawa West and it was assigned to the Buckingham Swing a daily except Sunday local assignment. Normally the term swing refers to a relief job working the days off of various assignments often on different shifts thus the term swing shift. Usually, such an assignment would be called Buckingham Turn, short for turn around. Retired 8/1957 it was replaced by 3701 transferred from Lambton where 3700's were known as "mudhens". Last day for steam on the Buckingham Swing was April 19th.1958 after which 3701 worked a few odd yard jobs etc. then was stored out of service serviceable (OSS) until transferred to the New Brunswick District dead behind 1264 on train No.74 December 22, 1958 L.B.Chapman

3752 dead. It is all over. 3750 and 3752 were the last two steam engines to work in Saint John February 4, 1960.
They were also two of the last steam engines in New Brunswick the last being D-10 986 returning to
Mc.Adam from St.Andrews on April 14, 1960. Walter Pfefferle Collection

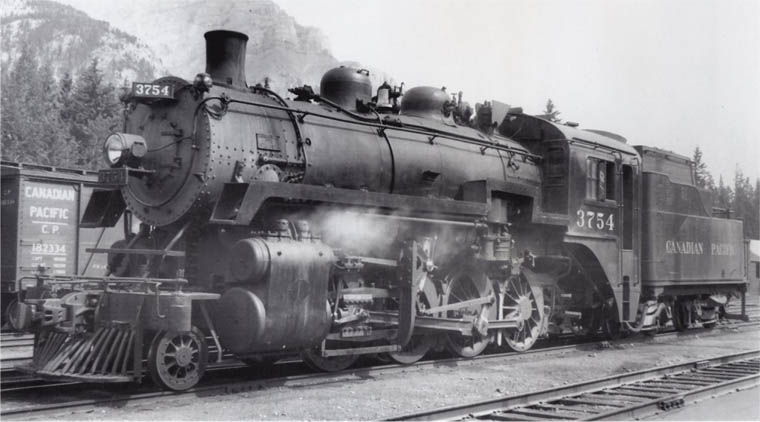

3754 Banff 8/03/1947 W.C.Whittaker/Joseph Testagrose Collection

N2c 3759 CF #1001 3/1914 One of only 10 (3951-3960) built by Canada Foundry in Toronto. Rebuilt Angus 11/1928.
(Note the handy switch broom!) Montreal 1959. Joseph Testagrose collection.

Again, this engine is equipped for yard service with fire hose (red box) and combination pilot. It is likely in transfer service.
3753 was a Lambton engine assigned early 1950's to the Parkdale transfer and was Jack "Windy" Close's "own" engine!
3759 lasted until the end of steam as did 3752 a New Brunswick District engine. Five others had been rebuilt as 5200's.

Note: N3b and c sub-class engines 3891-3960 were built with an all-weather enclosed cab a.k.a. vestibule cab. A few oil-fired 3600's got the new cabs but, most remained open cab until the end.
