Canadian National Railways

Mogul 2-6-0

All photos: Bud Laws Collection unless otherwise credited.

E-10-a class subsequent owners and preserved engines.
Green Mountain, Strasburg, Wilmington & Western, etc.

Hamilton-Port Rowan Mixed in 1955

E-10-a 902-926 (ex GTR 1000-1024) Cyl. 21" x 26" Drv. 63" Press. 170 lbs. t.e. 26% CLC 1910

GTR 1015 2-6-0 Cyl. 19 x 26 Drv. 62" Press.180 t.e. 23,200 engine weight 70 tons working order 134 tons
#928 4/1910 CLC/Don.McQueen collection. Engine 1012 became 90.

CNR 90 E-10 Class Cyl 21 x 26 Drv. 63" pres.170 t.e 26,300 eng. Wt. 71-tons working order, eng and tender 140 tons Tender 14 tons 5,200 gals.Simcoe, Ontario c.1950's Cyril Butcher/Don Mc.Queen Collection

These engines and many other CNR ones retained their Stephenson valve gear to the end,
unlike CPR which standardized on Walschaerts.

One of 25 Mogul type 2-6-0's delivered in 1910, nineteen of which were later modernized with superheating and eventually other features that drastically altered their appearance. They were equipped with a Casey-Cavin power reverser.
Very capable little engines some of these survived into the last years of steam and became familiar sights on Ontario branchlines, many being saved from scrap to be displayed and some even being restored to operation
on tourist railways in the United States.

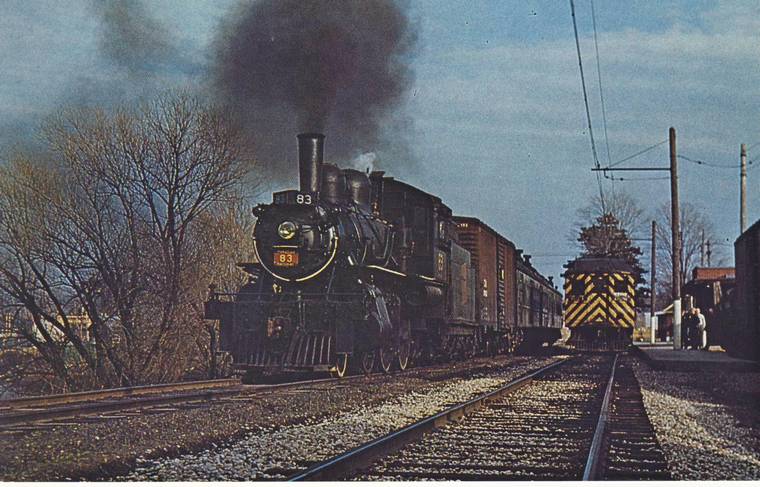

CNR 83 leaving Port Dover with Mixed 235 for Hamilton passes GRR 624 interurban car
about to leave LE&N station for Brantford. April 8,1955 J. Wm. Hood

NOTE See below (scroll to very bottom) for photo of 85 as 907

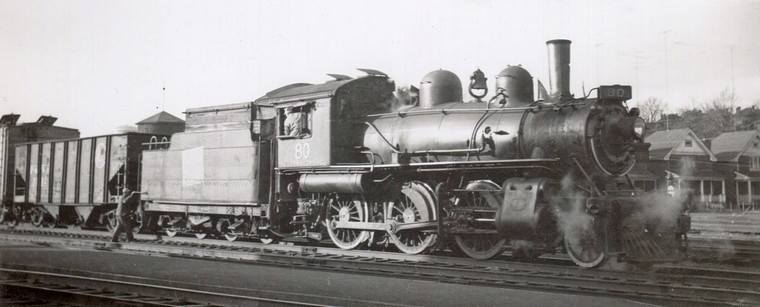

80 Brantford. November 5/1955 Bud Laws Collection

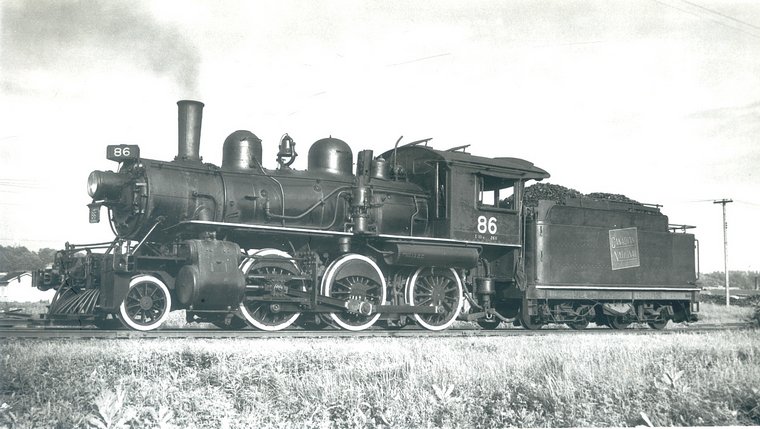

86 sitting at Owen Sound. July 26, 1956 Al Paterson/Bud Laws Collection

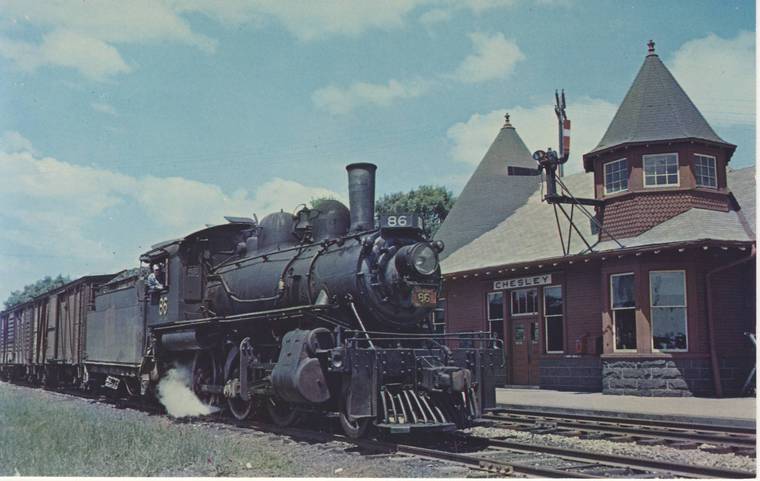

86 on the Owen Sound Way Freight from Palmerston at Chesley July 1957. Don Wood

86 ex 908 nee GTR 1006 CLC 919 1910 Currently displayed in London

E-10-a class 90 in a typical branchline scene where these engines spent much of their lives.
Trenton, Ont. 7/17/1956 W.D. (Bill) Volkmer Collection

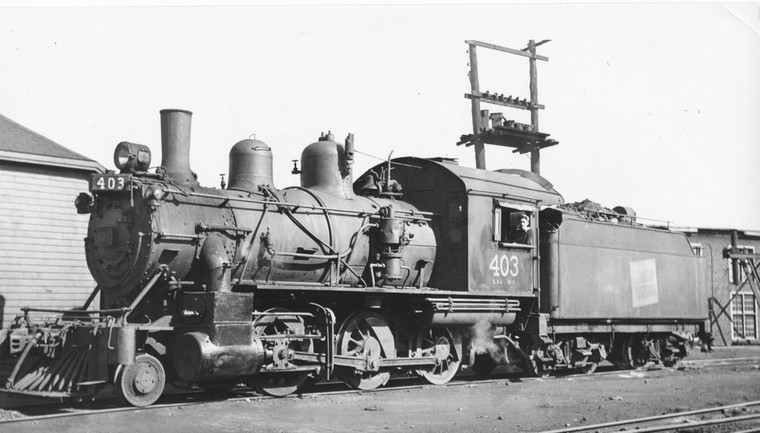

C-3-b 403 ex CGR 4533 MLW 48152 1910
Cyl. 19" x 26" Drv. 50" Press.180 lbs. t.e. 28%

Truro, NS 07/06/1945 Peter Cox/Wolf Kirchmeir Collection

C-5-b class 409 (ex J.D.Mc.Arthur Co. (C) 8) MLW 45887 1909
Cyl. 19" x 26" Drv. 50" Press.180 lbs. t.e. 29%

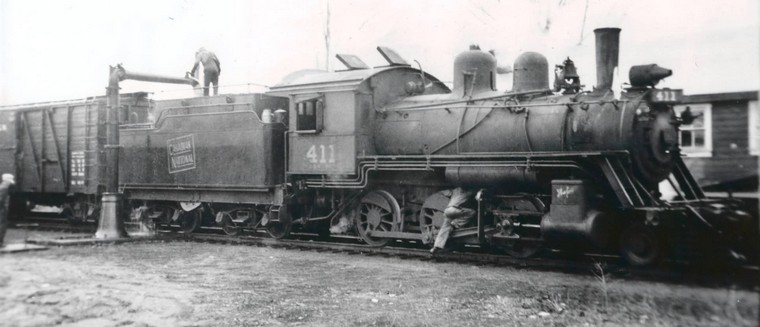

411 (nee J.D.Mc.Arthur (C) 12) taking water in Kelowna, BC 8/11/1943 Peter Cox/Wolf Kirchmeir Collection

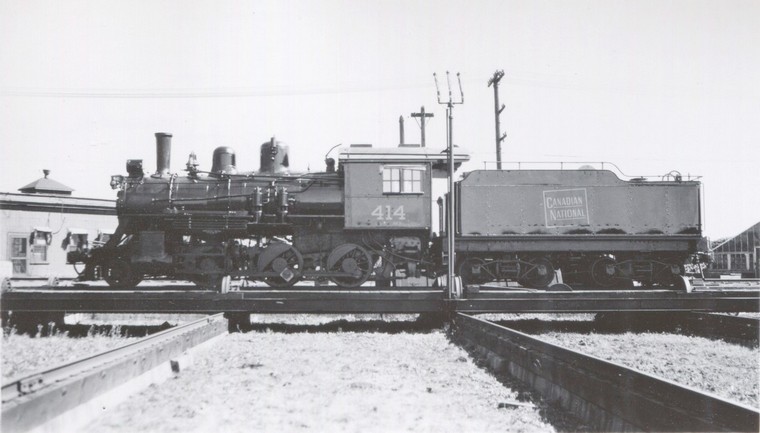

414 (nee J.D.Mc.Arthur 19) MLW 53746 1913
Cyl. 19" x 26" Drv. 50" Press. 180 lbs.

Winnipeg, MB July 1939 Arthur B. Johnson/Bud Laws Collection

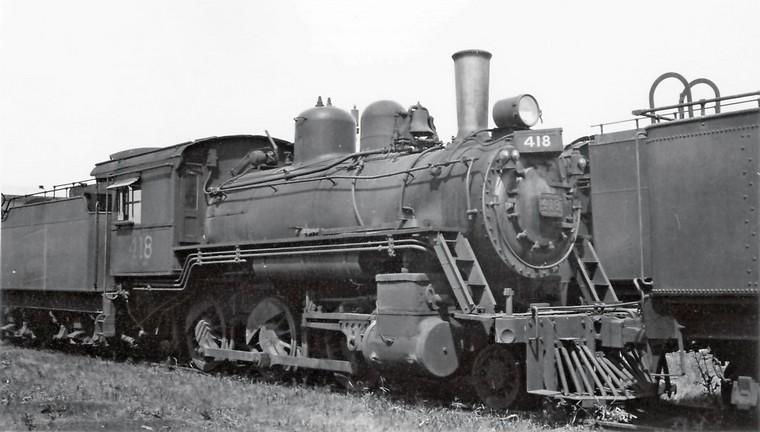

418 (nee J.D.Mc.Arthur 23) CLC 1236 1914
Cyl. 19" x 26" Drv. 51" Press. 180 lbs. t.e.29%

Dead, Winnipeg, MB July 1939 Arthur B. Johnson/Bud Laws Collection

Sold 12/1940 Western Dominion Collieries 418.

C-7-a 422 (ex CGR 4506) CLC 912 1909
Cyl. 18" x 24" Drv. 50" Press. 180 lbs. t.e. 24%

Stellarton, NS March 1939 Bud Laws Collection

Sold 10/1939 Malagash Salt Co. Malagash, NS.

E-6-a 619 (ex GTR 2485 Built GTR 1228 1891)
Cyl. 18" x 26" Drv. 63" Press. 165 lbs. t.e. 19%

Lindsay, ON. 1939 Bud Laws Collection

E-6-a 626 (ex GTR) 2492 Cyl. 18" x 26" Drv. 63" Press. 165 lbs. t.e. 19% GTR PSC #1234 1891
Hamilton 9/1924 Earliest style of lettering.
One of 85 engines 566-650 built 1886-1896 by Pointe St.Charles main shops.
Sold 8/1926 (also 628) to Morrow & Beatty (C) for Smoky Falls Line out of Kapuskasing.

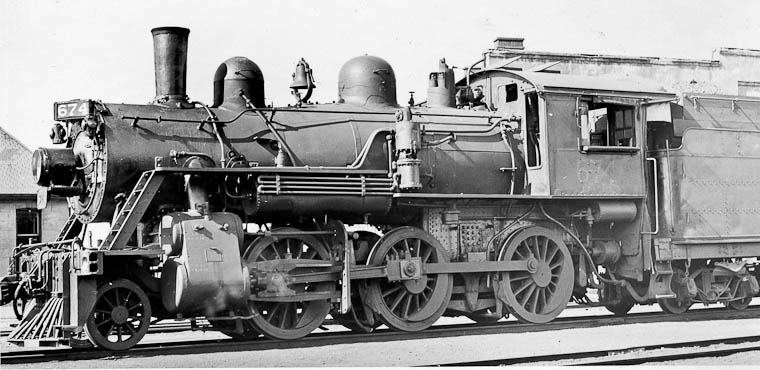

E-7-a 674 (ex GTR 1391) back when it was just another engine.
It would go on to some fame on the CNR Museum Train.
GTR #1299 1899 c.1942

Another view of 674 at unknown location May 5, 1948 Walter Pfefferle Collection

Grand Trunk (Eastern) 713 (nee GTR 922) when it was just another Mogul. GTR #1314 12/1900
Location and date unknown. Bud Laws Collection

Note: For legal reasons lines and equipment in the United States could not be owned by Canadian National Railways which was a Canadian government entity. Therefore, the name Grand Trunk continued in use there. Grand Trunk Western Railroad for lines in Michigan etc.and simply Grand Trunk (unofficially Grand Trunk Eastern) for lines in New England and New York. Central Vermont and Duluth, Winnipeg & Pacific were two additional U.S. subsidiaries.

GT 713 E-7-a (Ex GTR 1396) Running Extra. Lewiston, Maine September 1945

GT 713 with a two wooden car passenger train at unknown location.
Note the trainman looking out from the baggage car watching the conductor.
Edwin Bill Robinson

In July 1957 713 was added to the CNR Museum train which travelled Canada.

Montreal June 23, 1962 Bud Laws Collection

It went to the National Museum of Science and Technology in Ottawa in 1967. Currently it is located at Exporail.

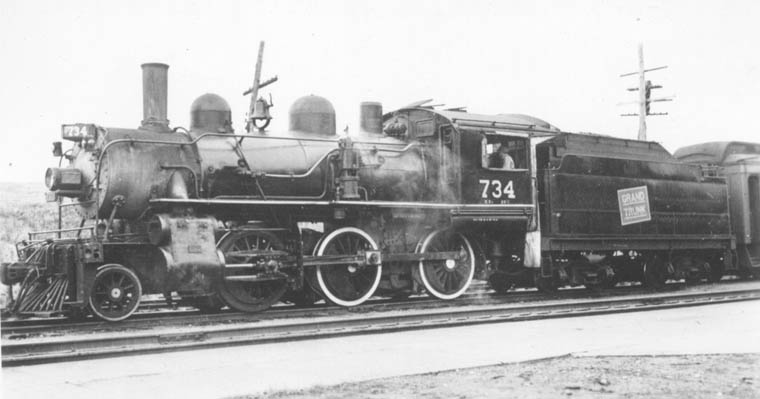

GT 734 (ex 1420 nee GTW 948) Dickson #1189 1900
Danville Junction, Maine 1941

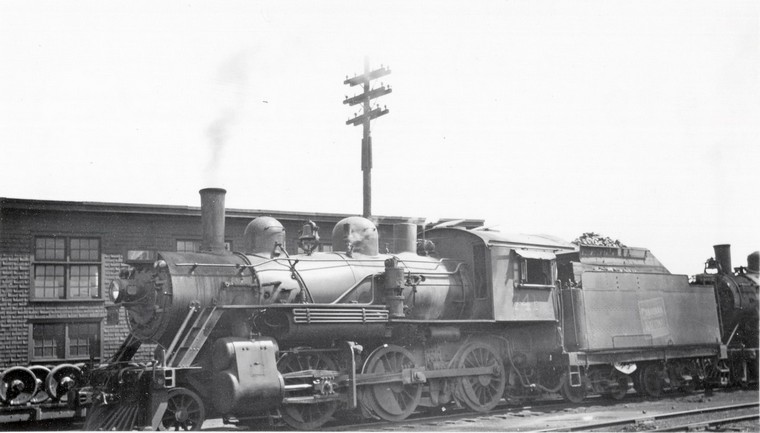

E-7-a 741 (ex GTR 1206) Built GTR 1338 1901.
Cyl. xxxx Drv. 63" t.e. 28%
Truro, NS May 18, 1947 Arthur B, Johnson/Bud Laws Collection

745 (ex GTR 1210) built GTR 1342 1901
Lindsay, Ontario Doug Cummings/Bud Laws Collection

746 (ex GTR 1211) GTR #1343 1901 6/01/1947 Montreal (Turcot)

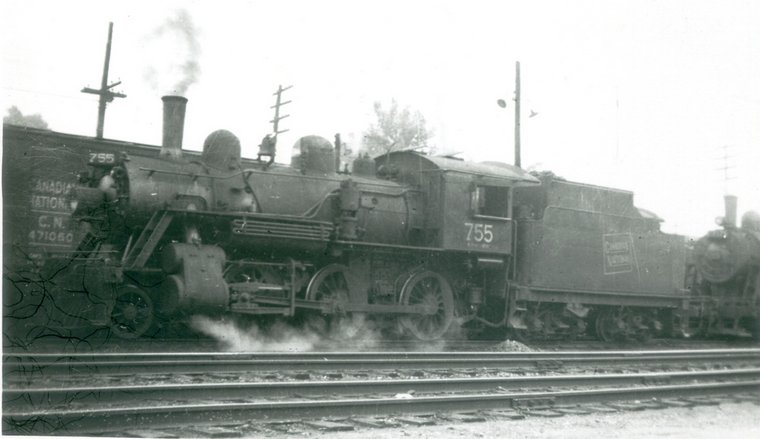

755 unknown location/date

E-7-a 788 (Ex GTR 1251) Drv. 63" t.e. 25% GTR #1407 1903 Oshawa August 15, 1940

E-7-a 816 (ex GTR 1280) GTR #1460 1904 Montreal July 4, 1941

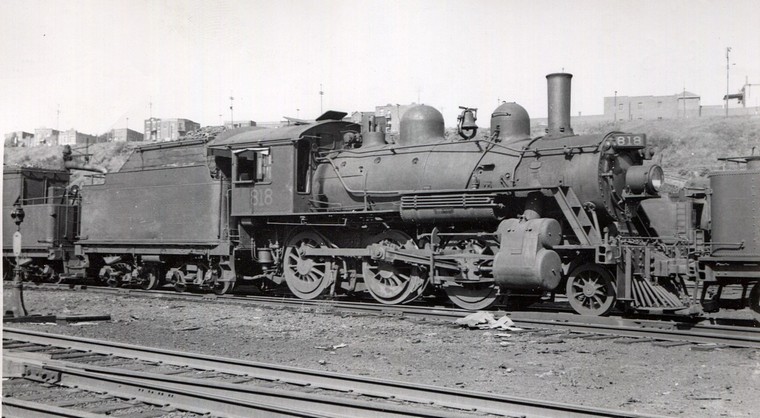

818 (ex GTR 1282) GTR 1462 1904 Montreal September 28, 1939 Bud Laws Collection

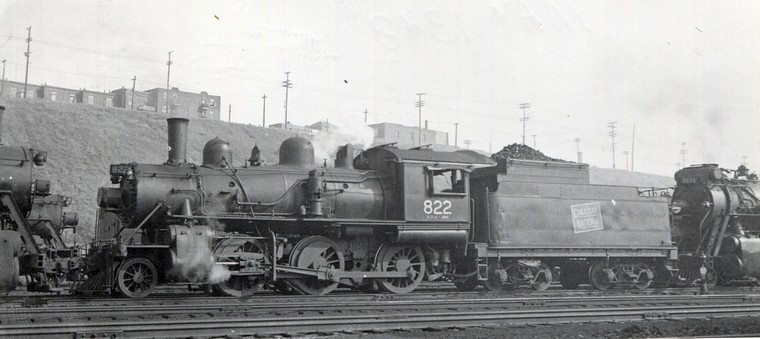

822 (ex GTR 1286) GTR 1466 1904 Montreal May 1948 Bud Laws Collection

830 (ex GTR 1294) GTR #1464 1904 Oshawa June 20, 1940

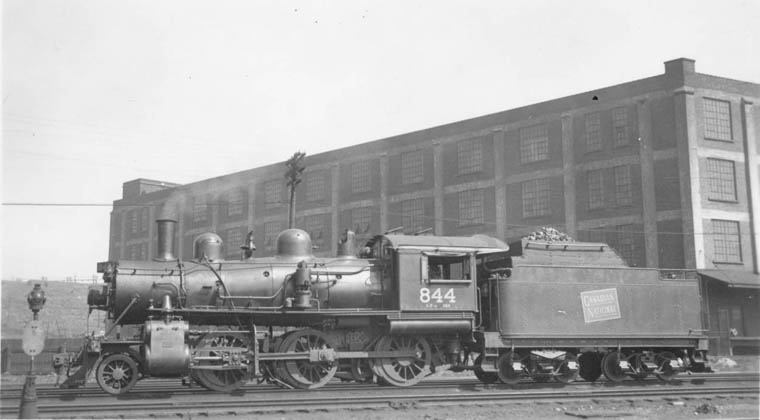

844 (ex GTR 1308) MLW 30687 1905 Montreal June 1941

850 (ex GTR 1314) posing on the table at the end of a branchline believed to be in Coboconk, ON. CLC 669 1905
Andy McCulloch Collection/Walter Pfefferle Collection

E-8-b 877 (ex GTP 210) Cyl. 20" x 26" Drv. 63" Press. 250 lbs. t.e. 28% CLC 888 5/1909
Saskatoon 8/1935 L.A.Stuckey/Jim Booth Collection

E-10a 907 (ex GTR 1005) CLC 918 1910 re# 85 in 10/1951
location/date unknown. James Adams/Bud Laws Collection
