Old Time Trains

Vancouver Wharves Limited

1995 West 1st Street North Vancouver
Mile 2.0 Squamish Subdivision.

Bulk marine terminal of 139 acres on the north shore of Burrard Inlet, it opened in 1960.

Note: Sold 1993 to British Columbia Railway. April 3, 2007 40 year lease to Kinder Morgan Canada Terminals.
Canadian National Railways acquired BC Rail July 14, 2004 following which CN took over all switching.
Only 1 unit 820 retained.

All photographs Mark Forseille unless otherwise credited.

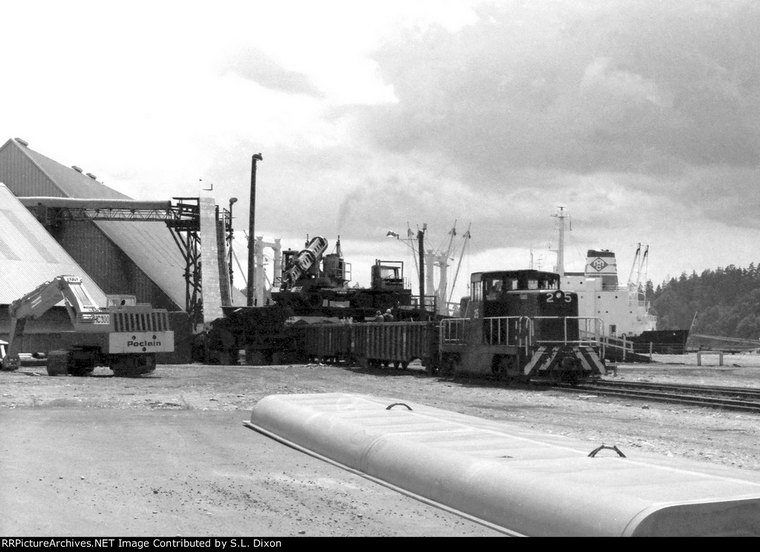

25 switching on the dock. 6/01/1971

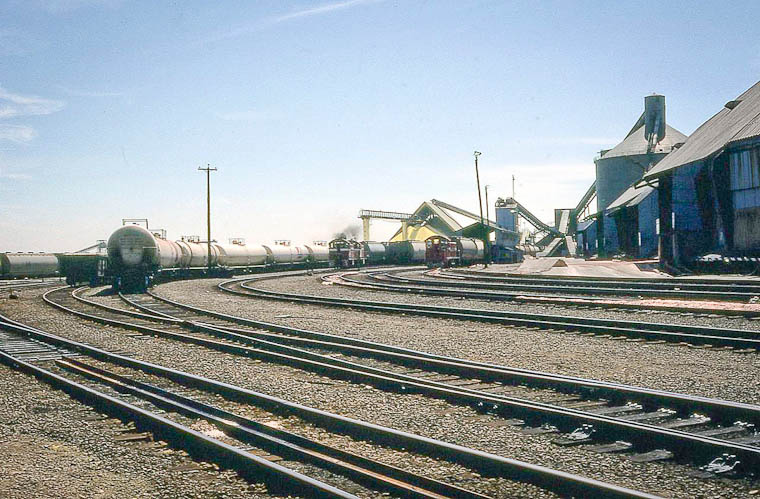

Vancouver Wharves terminal 8/1981.

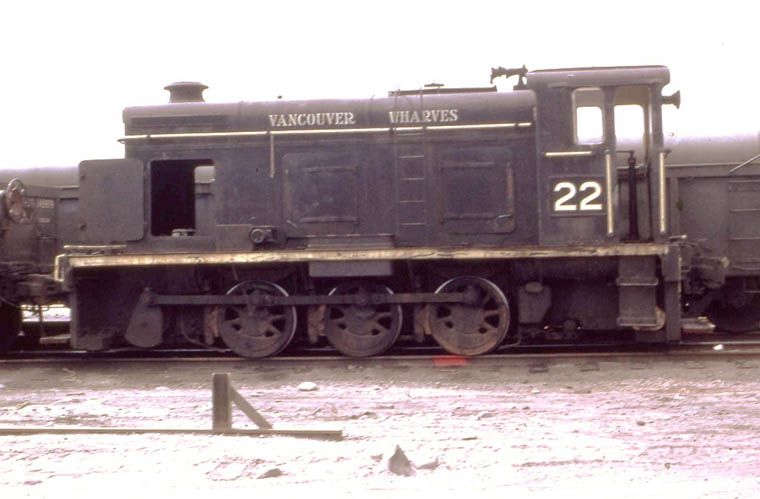

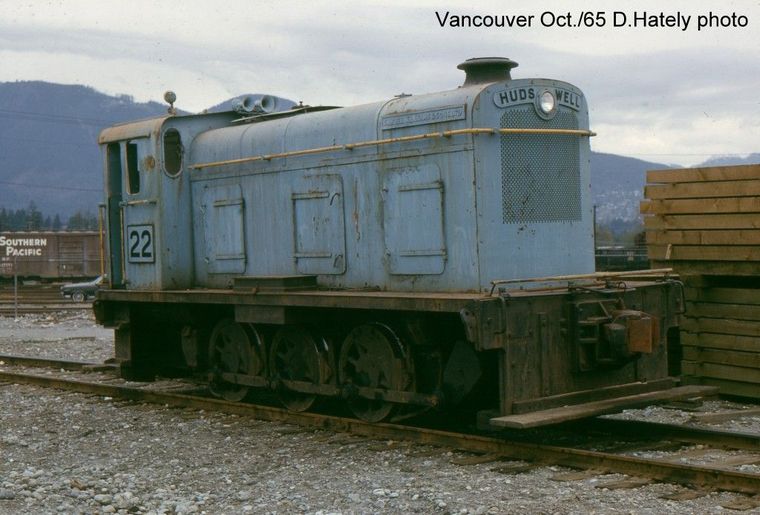

22 is actually number 2. Acquired 5/1960 (ex Samuel Williams & Sons Ltd. 22 Dagenham, England.)
Hudswell Clarke & Co. Leeds, England. #D702 1949. 30 ton 300 hp diesel mechanical (jackshaft drive) 0-6-0
One of two identical units acquired for startup. 1 (21) scrapped 1/1973 for parts. 2 (22) sold 9/1974.
When the workload became too heavy these two small diesels were replaced by two steam locomotives!
January 1974 Douglas Sanford

21:1st sitting at the servicing facility. 6/01/1971

22:1st photographed 6/01/1971

Main gallery

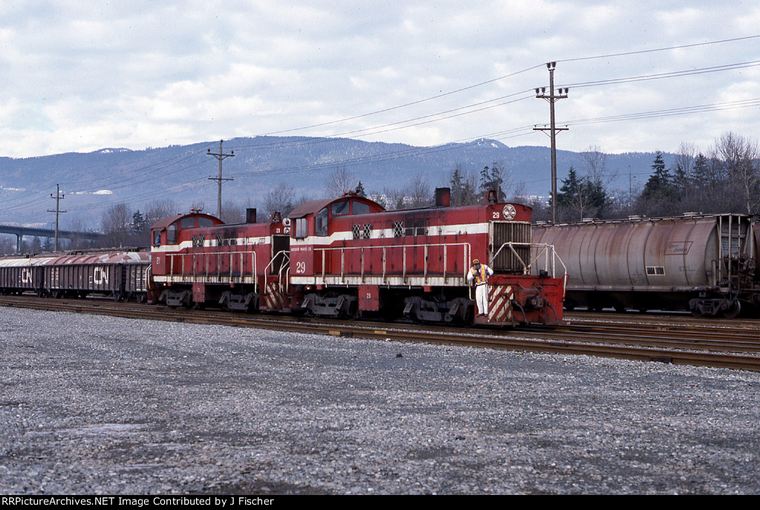

21 and 29 running light through the yard at North Vancouver. 12/26/1987

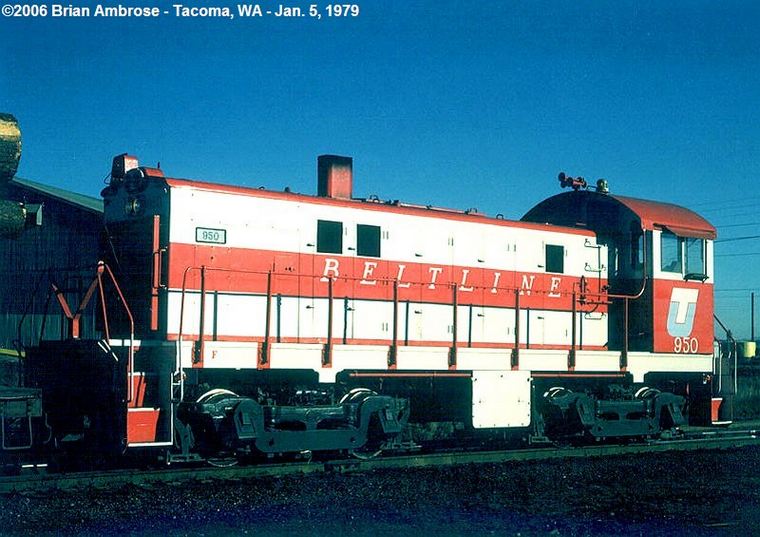

21 (2nd) ex TMBL 950 in Belt Line paint.

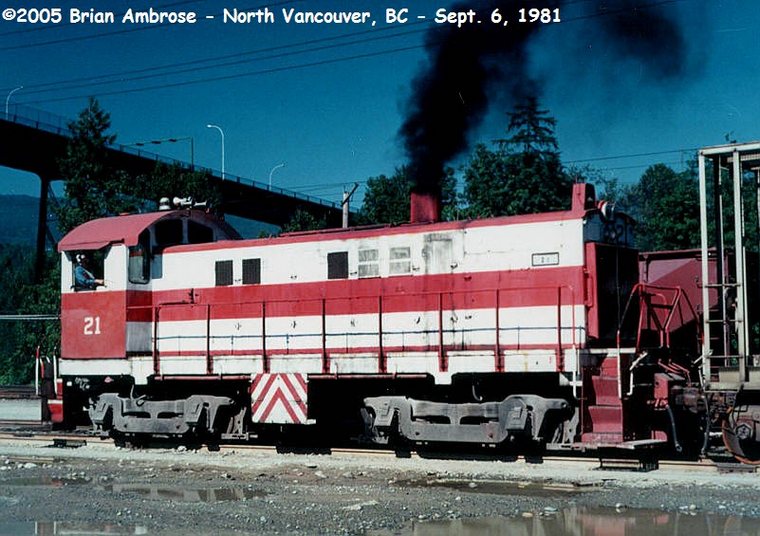

21(2nd) acquired c.9/1980 (ex Tacoma Municipal Belt 950 nee SP 1220). Alco S-6 900 hp #81724 6/1956

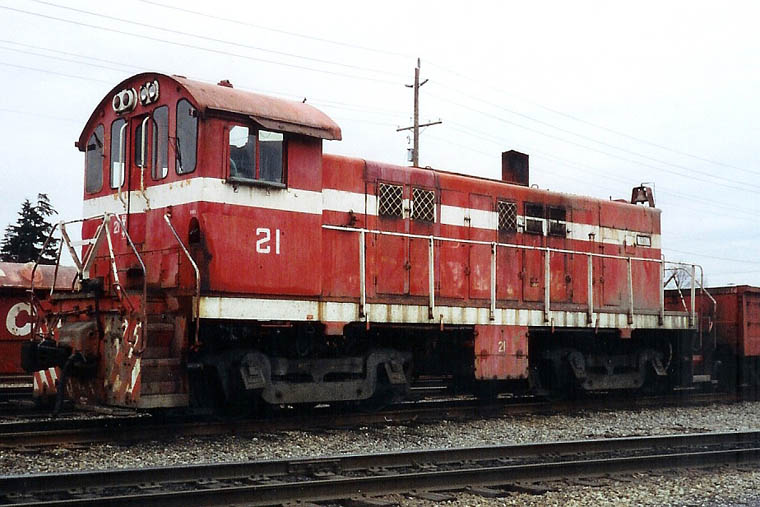

Looking pretty shabby this unit was 25 years old when acquired and nearly 38 years old when photographed March 1994.

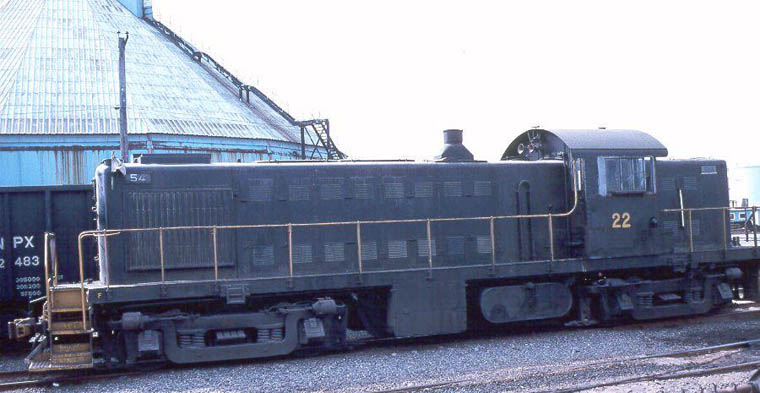

22:2nd acq. 6/1978 (ex Mannix Construction 54, SP&S 54 nee Oregon Electric 54) RS-1 Alco 6/1945
Claude Prutton

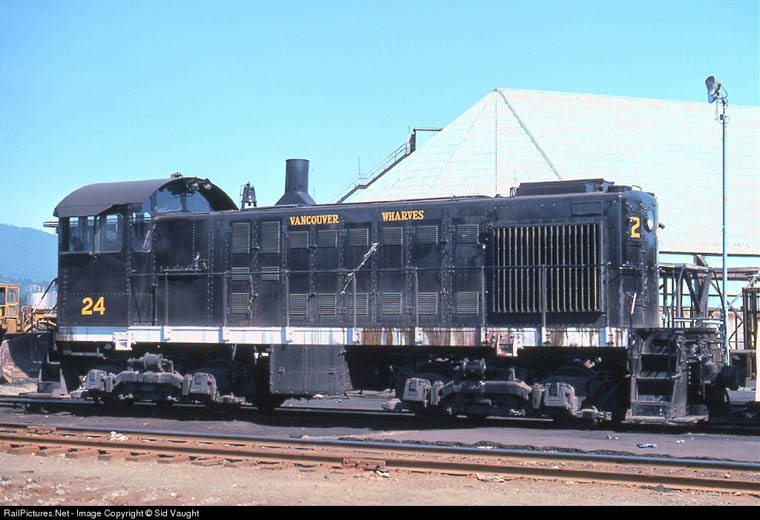

Vancouver Wharves 24 acq. 10/1973 ex CN 8141 S-2 MLW #76468 6/1949 August 12/1975 Sid Vaught

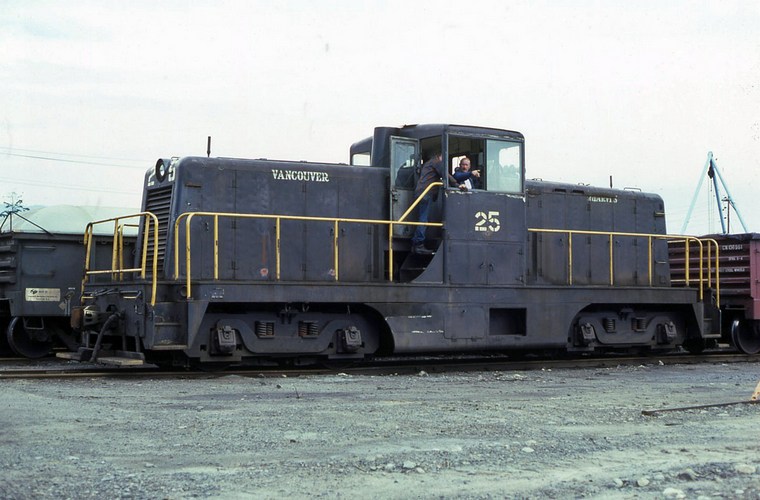

Vancouver Wharves 25 ex CNR 74 nee National Harbours Board 1. 80-tonner GE #28688 3/1947
This was the second diesel in BC. Preserved 1969 by WCRA. 6/15/1966 Peter Cox

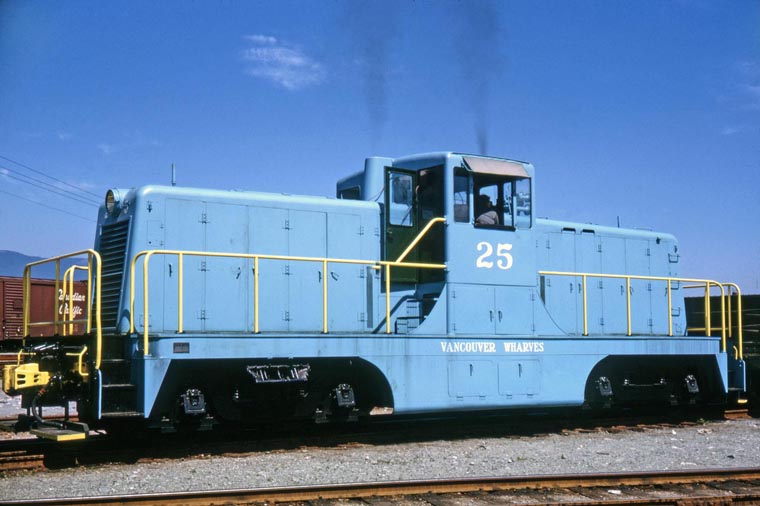

25 repainted in more traditional colour. 9/1976 Paul Mc Grane collection

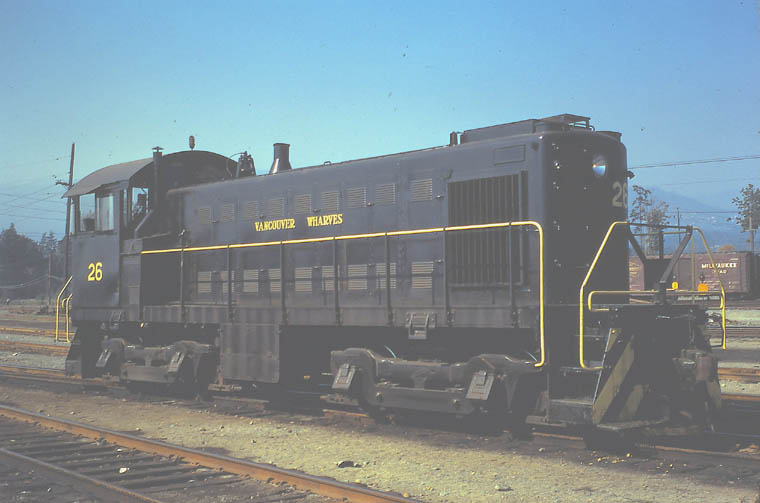

26 (1st) acq. 5/1969 (ex CN 8469 S-3 MLW 79129 5/1953 9/09/1969 Peter Cox

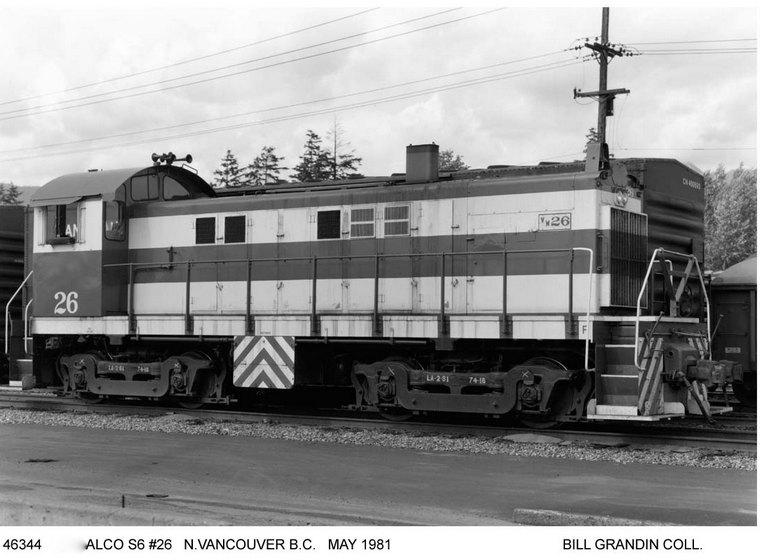

26 (2nd) ex 30:1st in original paint scheme just received from Southern Pacific
Note stencils on trucks. LA 2-81 indicates shop Los Angeles and date also gearing 74:18

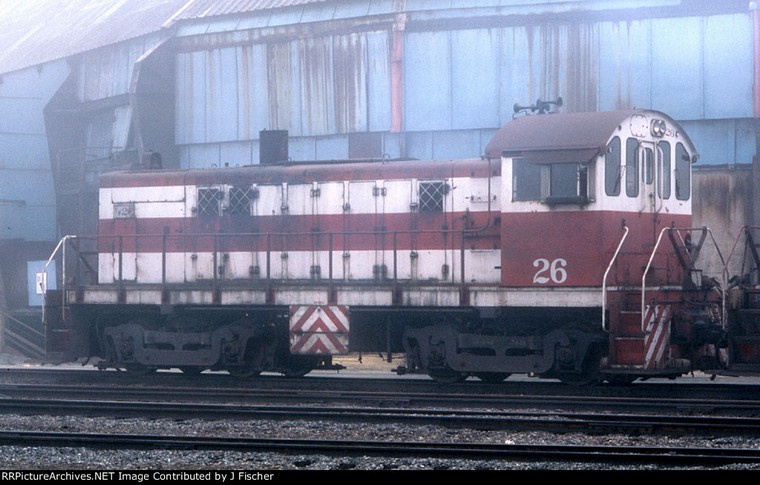

This photos shows colour of visibility marks on side of unit. 12/24/1985

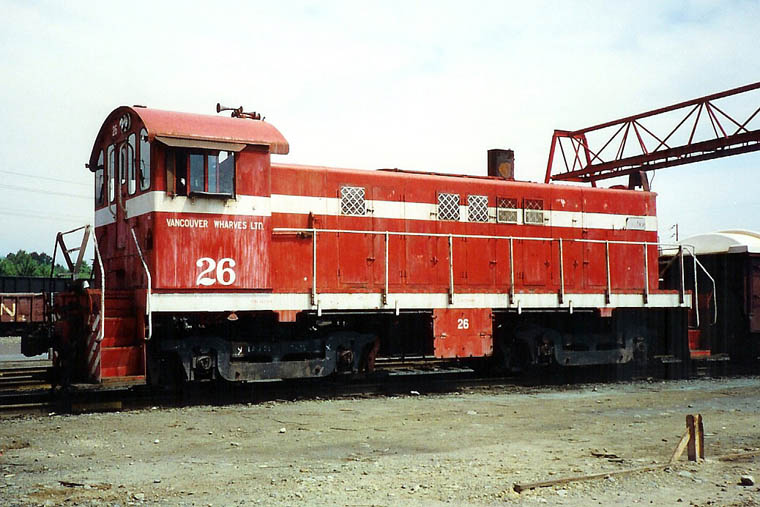

26 (2nd) ex 30 (1st) acq. 2/1981 (ex SP 1232/1065) S-6 900 hp Alco # 81806 8/1956 July 1989

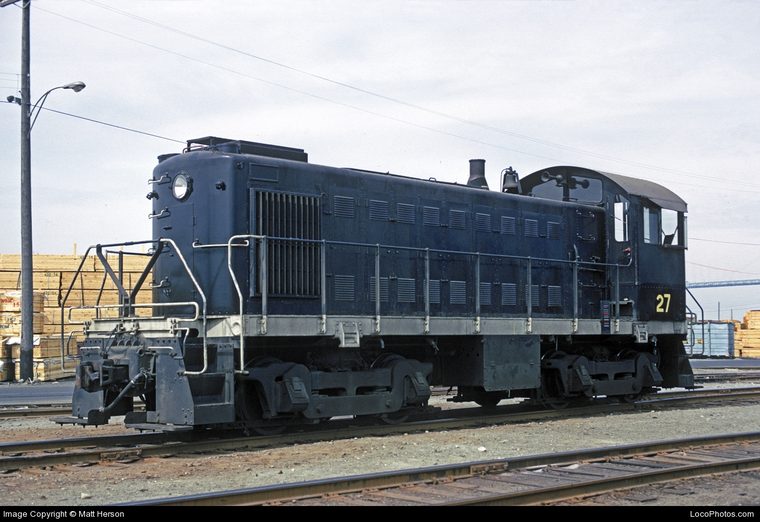

27 (ex CN 8468) S-3 660 hp MLW #77289 3/1953 July 23, 1970

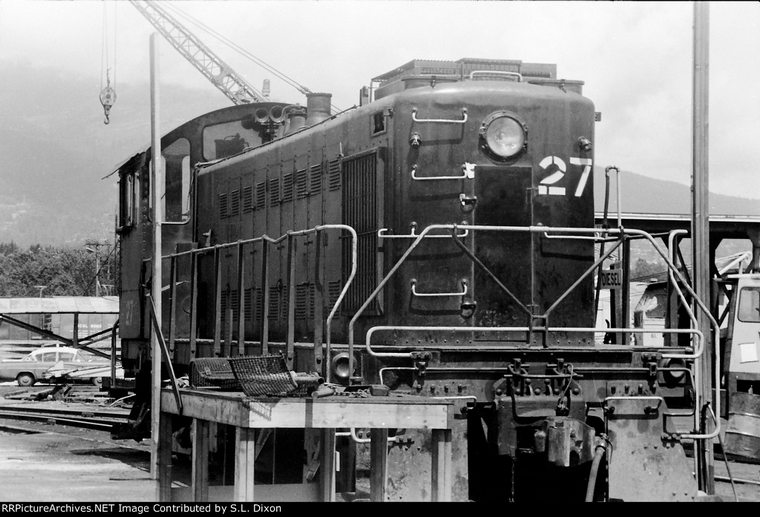

27 ex CN 8/8468 (See below). Sitting at the servicing facility. 6/01/1971

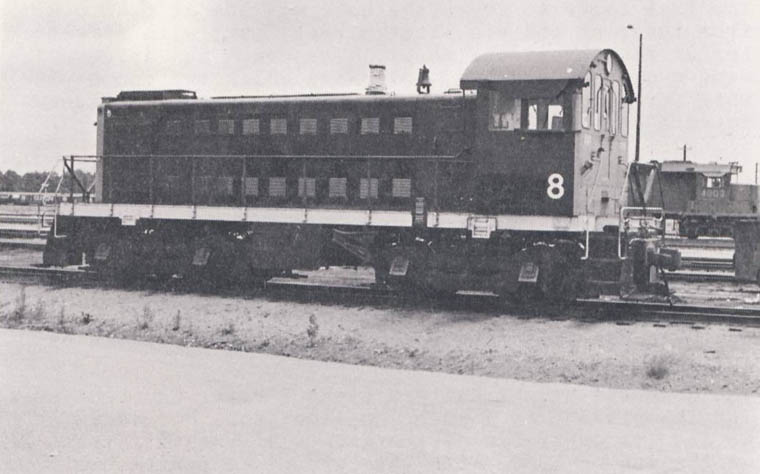

27 acquired 6/1970 as 8 (ex CN 8468) S-3 660 hp MLW #77289 3/1953 CNR Toronto Yard J.Bryce Lee

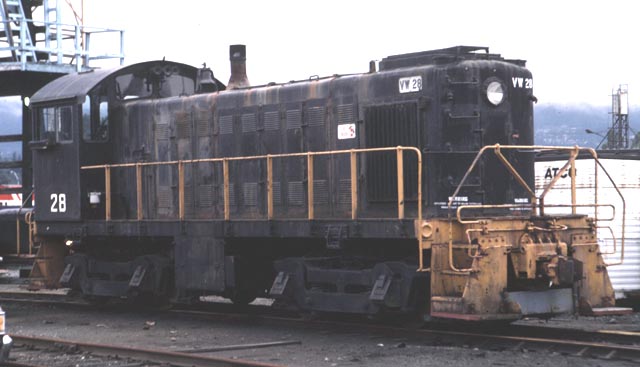

Vancouver Wharves 28 acq. 12/1972 ex CN 8472 S-3 MLW #79132 6/1953 July 1987 Henry Yuen
One of three ex CNR 660 HP S-3's acquired by Vancouver Wharves.

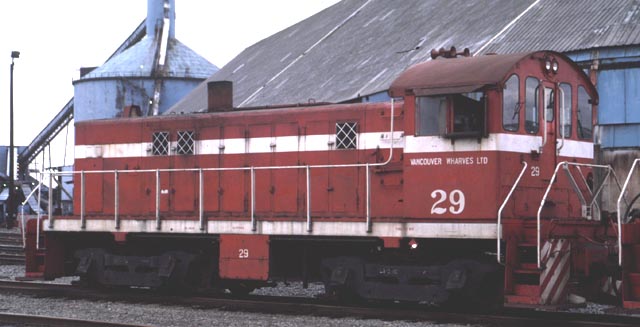

Vancouver Wharves 29 acq. 10/1980 (one of four) ex SP1240 S-6 900 HPAlco #1819 11/1956
July 1987 Henry Yuen Note: In 1996 29 was sold to OSR 500

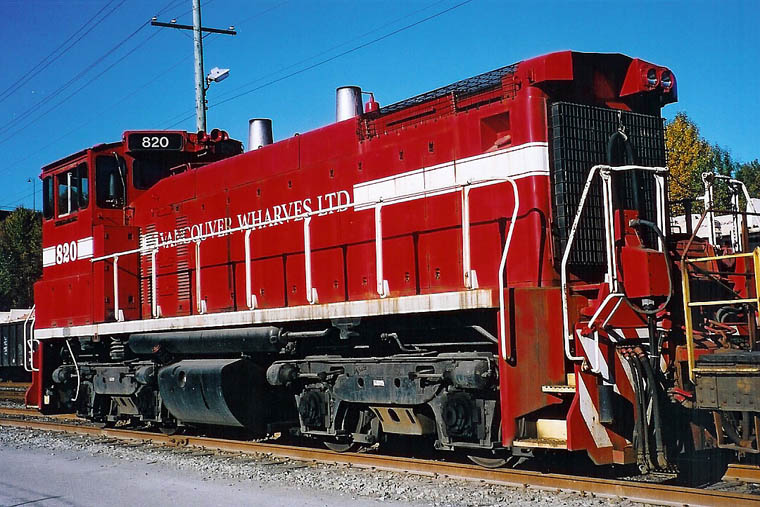

820 acq. 1995 (ex SSW 2582) SW1500 1500 hp EMD #35760 1/1970 November 1, 2002

Finally, some modern power is acquired even though it was already 25 years old!
The number series appears to repeat early units which began at 21 although why 800 series?

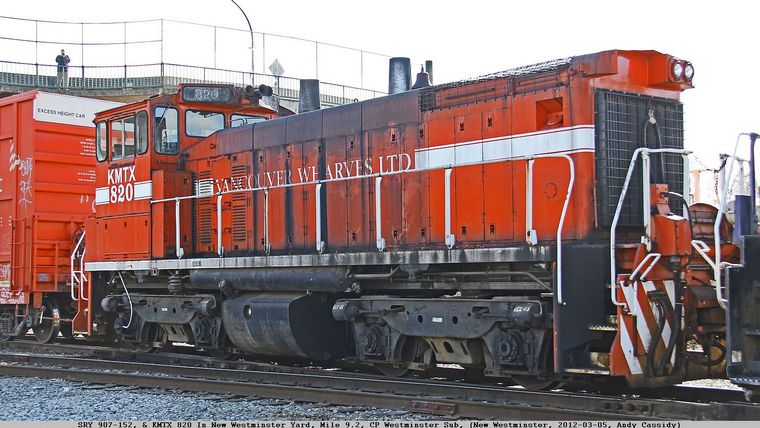

Sold c. 2009 KMTX 820 Kinder Morgan, North Vancouver.

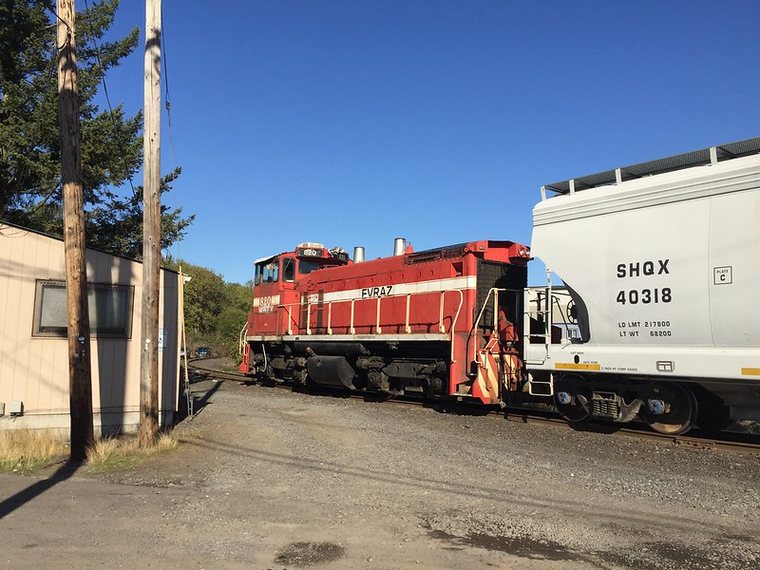

WRIX 820 (D) leased 2/2013 five years EVRAZ Rivergate plant Portland, Oregon
WRIX 820 leased 10/2018 Clackamas Valley 820. Tiny 1.6 mile industrial lead ex UP.

... . (Owned by Progressive Rail)

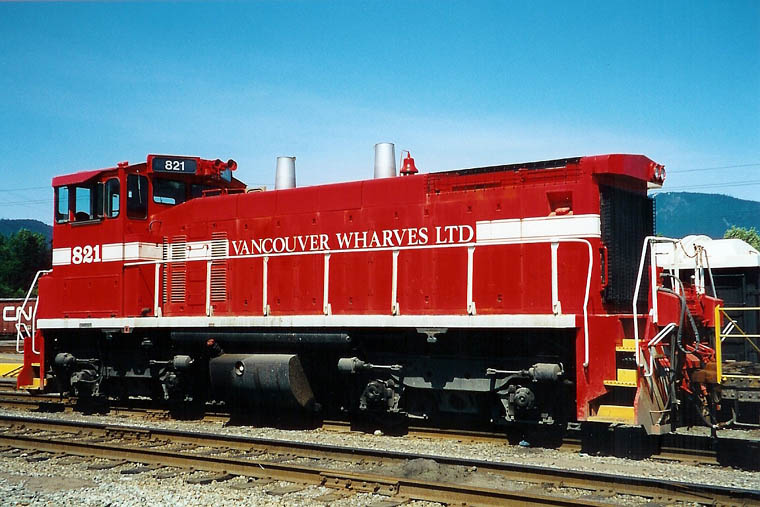

821 acq. 1996 (ex SSW 2491) EMD SW1500 EMD #33622 6/1968 May 10,1997
Sold 10/2006 Modesto and Empire Traction 1500

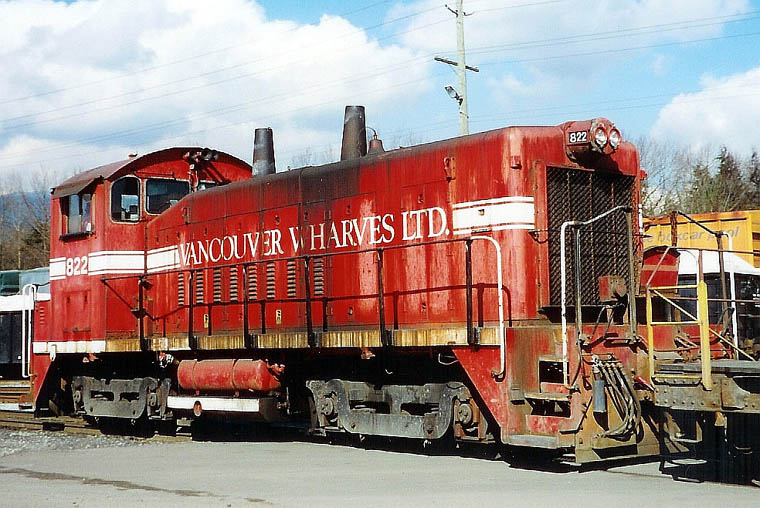

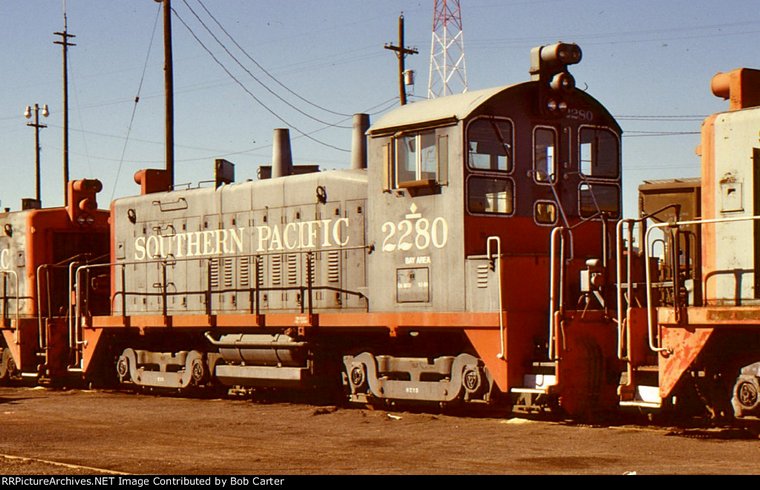

822 acq. 8/1988 (ex SP 2280) SW1200 1200 hp EMD #30247 7/1965 March 6, 2000
A filthy unit with signs of heavy oil loss from the stack testifies to a lack of maintenance
a situation commonplace to industrial units which are often run until they fail before they are fixed.

Sold Joseph Transportation JTPX 822

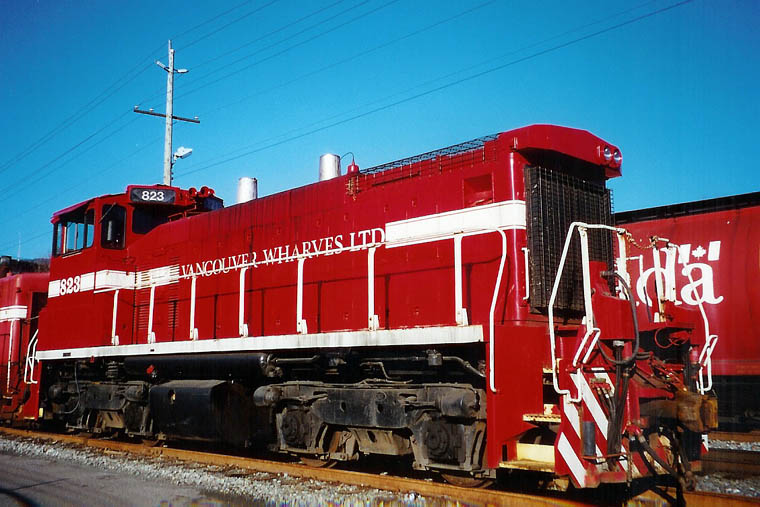

823 acq. 1996 (ex SP 2489) SW1500 EMD #33620 6/1968 December 5, 2000.

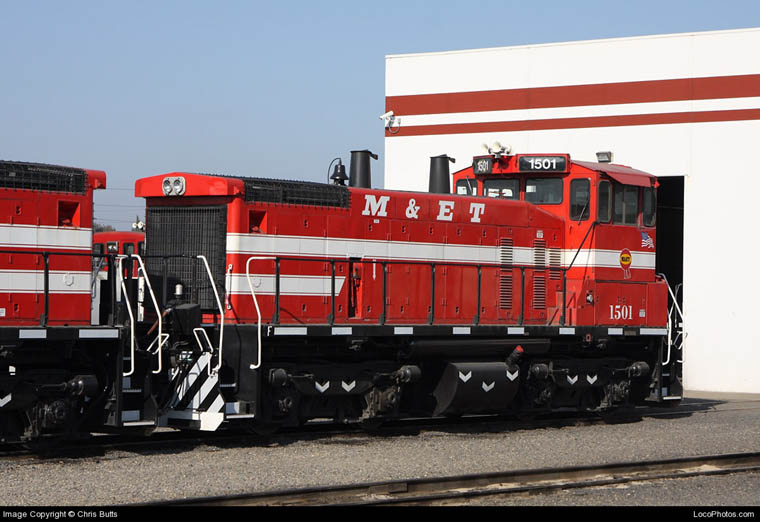

Sold 10/2006 M&ET 1501

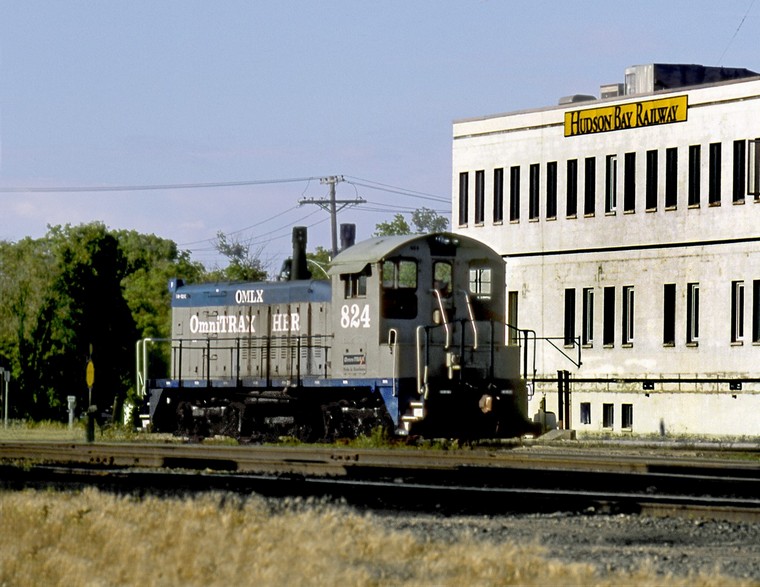

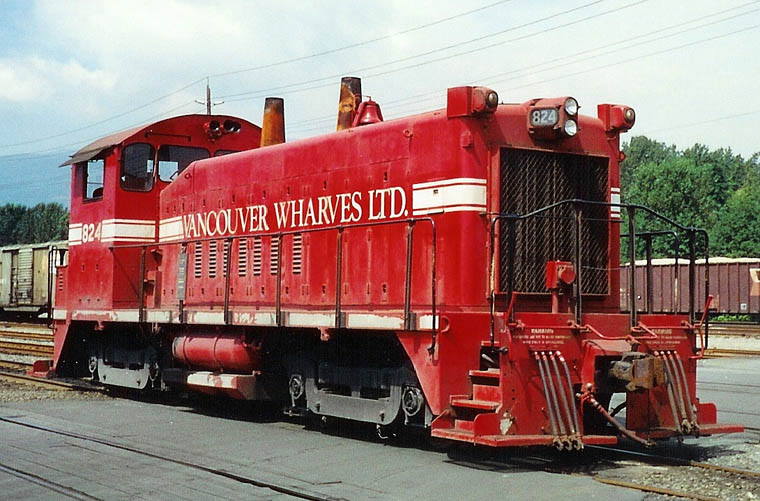

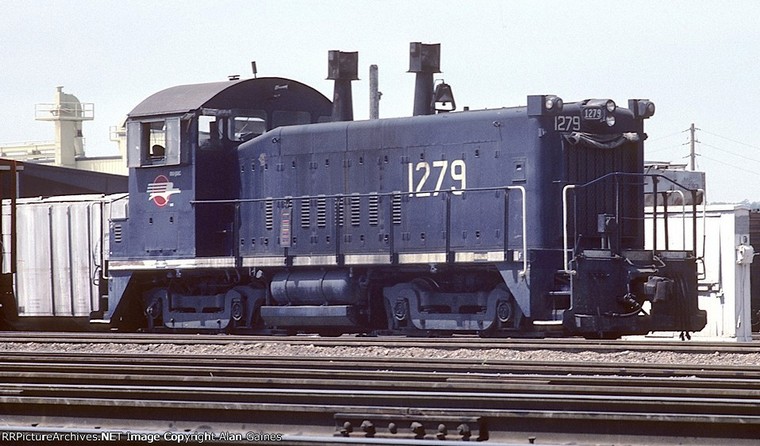

824 acq.12/1986 (ex MP 1279 nee T&P 1279) SW1200 EMD #31237 2/1966 July 1989
Sold 8/1998 Hudson Bay Ry. OMLX 824

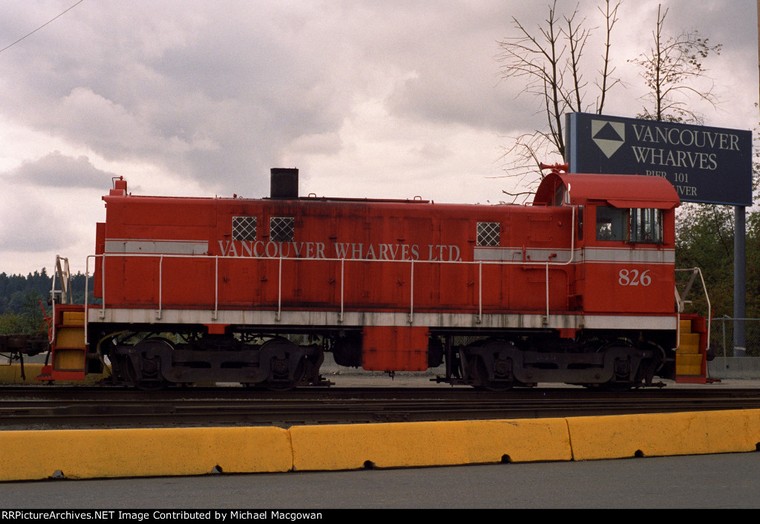

826 (ex 26:2 ex 30:1) S-6 Alco 81806 8/1956 North Van 9/30/1986
Sold 1997 Canadian Railserve later, DOWX 1008

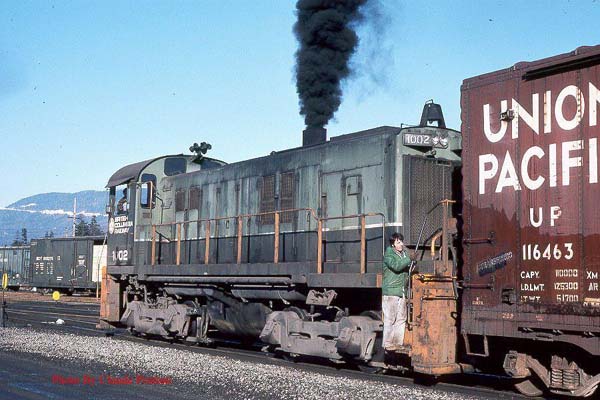

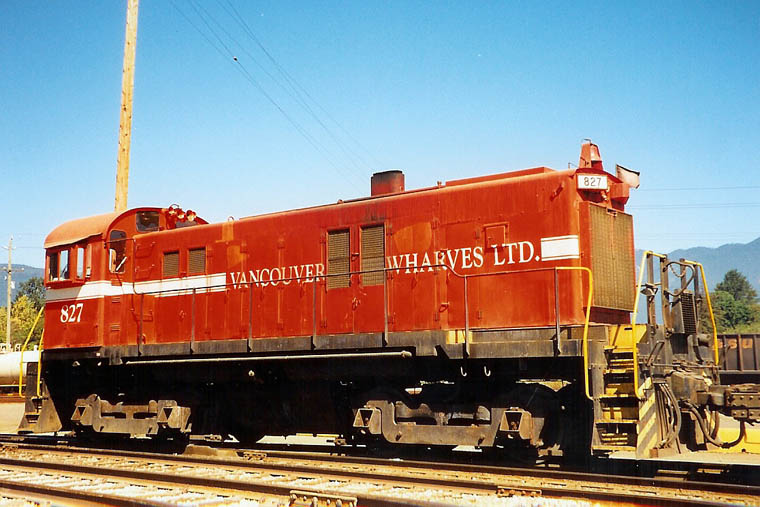

827 acq. 3/1992 (ex BCR 502 nee PGE 1002) S-13 (DL-411) 1000 hp MLW #82549 1/1959 August 29, 1996

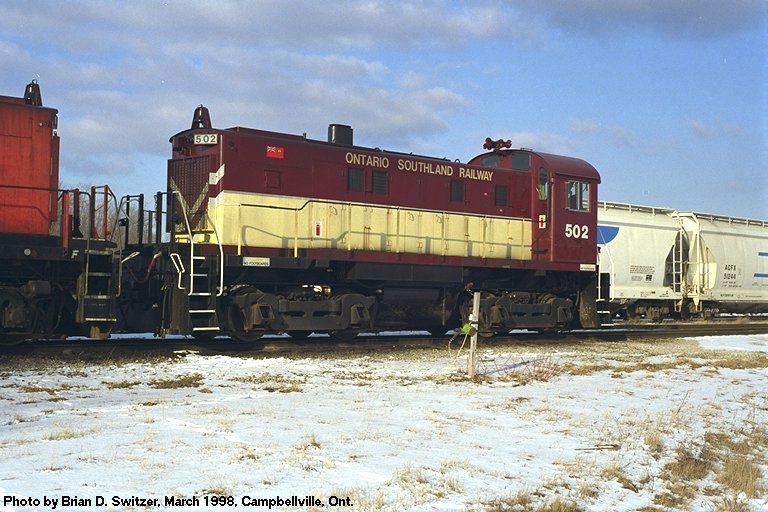

Sold 1996 Ontario Southland 502

Back (Use your browser Back button)
