Connaught Tunnel

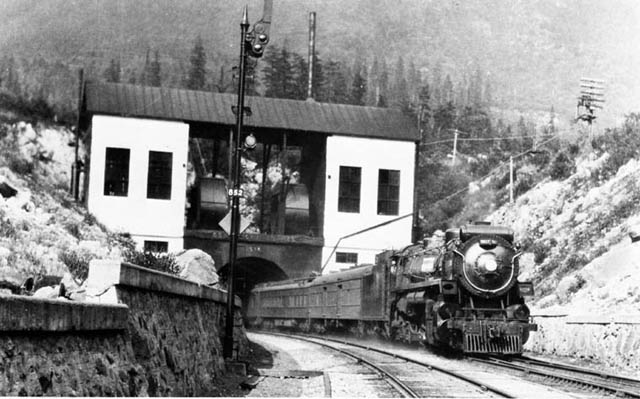

5917 at western portal running left hand, the normal practice through the tunnel giving the engineer a safer view.
Early 1930's. Canadian Pacific

Note: Powerhouse contains two McIntosh & Seymour 500 HP 4-cyl.diesel engines driving fans to clear smoke.
It also provides central heating and electricity to Glacier, a CPR company town population c.80 in 1945.

Connaught Tunnel, in the Selkirk Mountains on the Canadian Pacific Railway main line between Calgary, Alberta, and Revelstoke, British Columbia, at 5.022 miles (8.082 km) long was the longest railway tunnel in North America. Dug under Mount Macdonald (9492 feet or 2893 m) to ease growing traffic experienced between 1910 and 1913, it replaced the dangerous Rogers Pass route. It was named for the Governor General of Canada, Prince Arthur, Duke of Connaught.

Announced in February 1913 the contract was awarded on July 1, 1913, to Foley Bros. Welch and Stewart. A small tunnel was built, from which cross cuts were made to the main tunnel so work could carry on at a number of headings. The sub-contractor guaranteed to drill 900 feet (270 m) of tunnel per month and started on April 2, 1914. Compressed air equipment and narrow gauge locomotives were used inside the tunnel. The company town housed some 300 workers. The tunnel was completed before the original deadline, with operation beginning December 16, 1916. It had a grade of only 0.95 per cent westward and was tangent: light at the other end could be seen although more than five miles away. First trains through the tunnel.

It cost $5.5 million, while a further $3 million were spent on track revision, which saw 14.5 miles (23.3 km) abandoned including the Loops and over four miles (6 km) of snow sheds. In all, the route was shortened by 4.3 miles (6.9 km).

Problems were encountered with ventilation, loose rocks and wet rails, which caused trains to stall. The tunnel was later lined with reinforced concrete and equipped with a better ventilation system.

Originally double tracked, it was realigned with a single track in 1959 to accommodate higher freight cars and remains in operation to this day.

September 22, 1932.

West Portal. Note tank car of OCS diesel fuel for powerhouse. 6/18/1970

Construction of the Rogers Pass Tunnel

History of Connaught Tunnel
