Canadian Northern Railway

R.L.Kennedy


Canada’s third transcontinental railway.

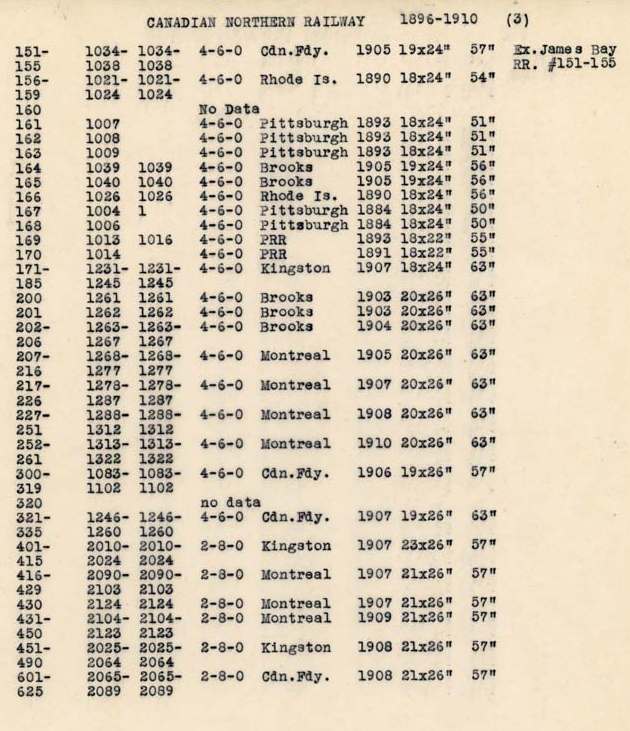

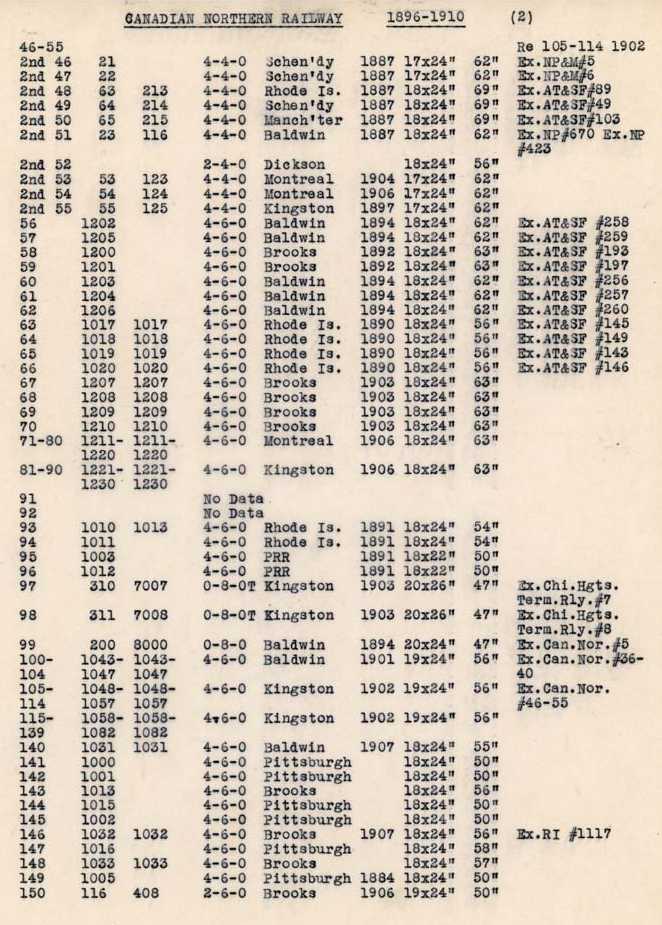

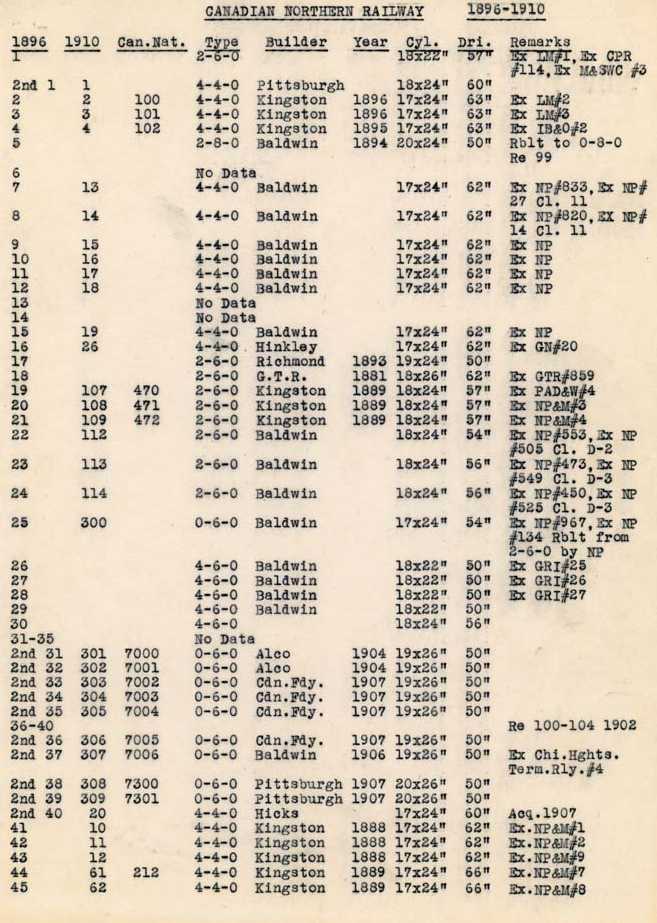

Roster: Page 1 . Page 2 . Page 3



Richard Costello



Long before Can Par, UPS and Amazon etc. Canada's railways delivered your goods!




Western Lines

CNoR Quebec

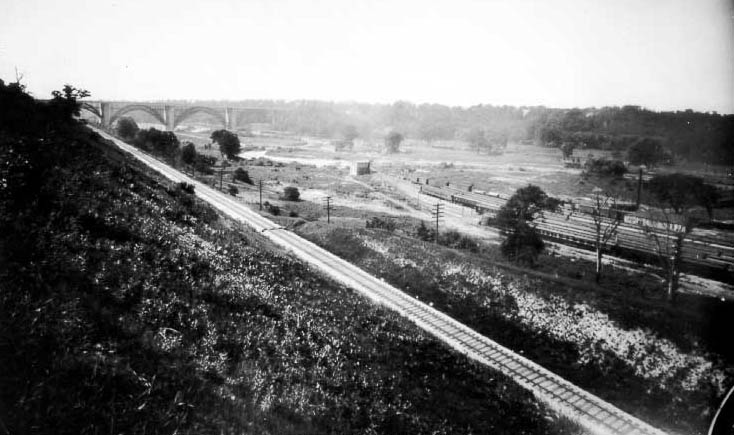

The CNoR entered Toronto from the north (Muskoka Sub. from Capreol) built 1906-07 via what is now the CNR’s Bala Subdivision to Rosedale in the Don Valley (near Bloor Street) where a small yard and rectangular engine house was located. Its east mainline from Ottawa (Orono Sub.) built 1911-13, passed through Scarborough just north of the GTR Danforth yard, to meet with the northern line at new Todmorden, just south of Leaside and about 2 miles from Rosedale and nearly 4 miles from Union station. The CNoR had difficulty getting access to the downtown area being the last railway to enter Toronto, but did eventually manage to secure an agreement to get there over the GTR via the old Toronto Belt Line from Rosedale.

Official opening Toronto-Ottawa passenger

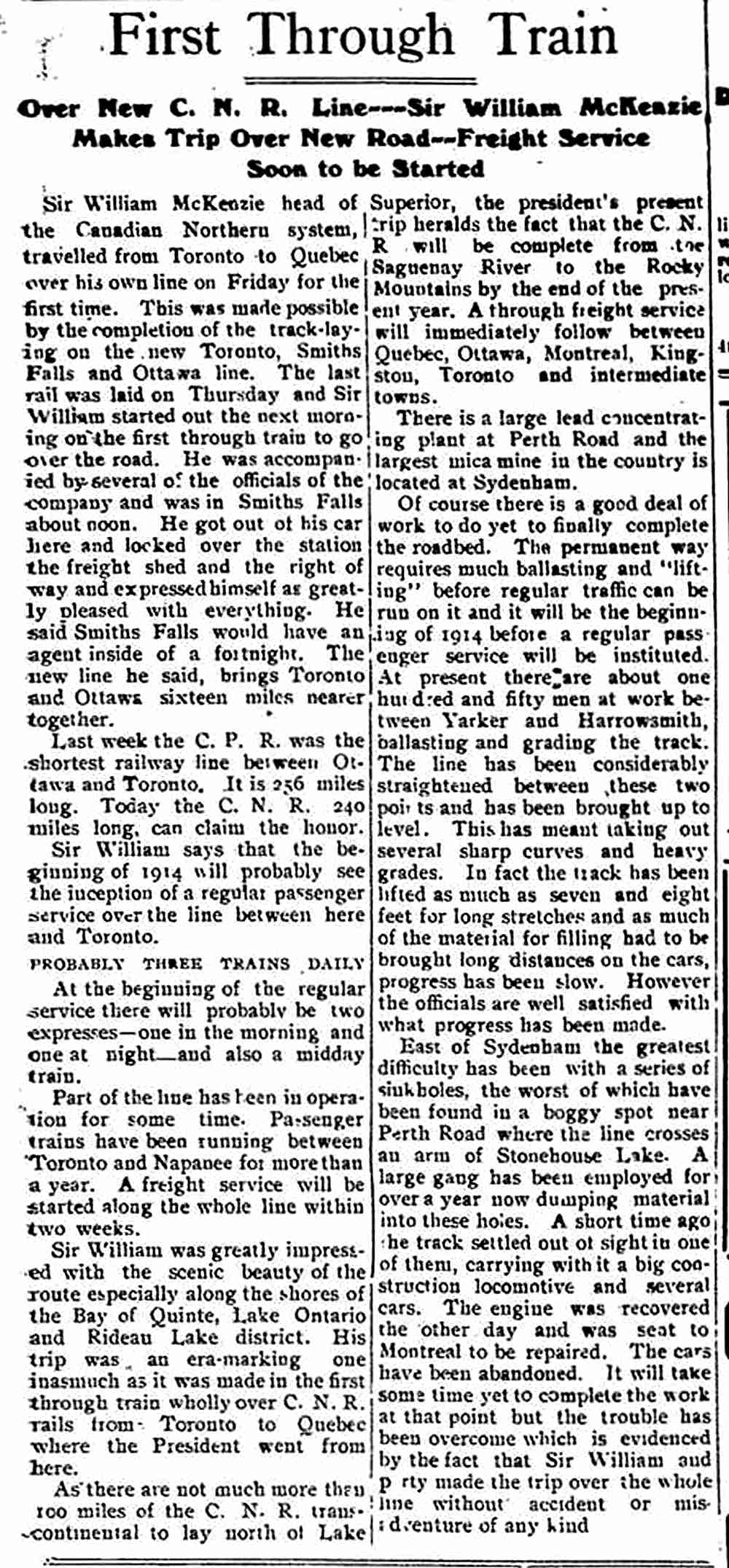

First train Toronto-Ottawa with Sir William McKenzie (news clipping 10/1913).

Click on above image to enlarge and see more images.

Map Leaside

The CNoR needed bigger facilities for Toronto so it built new shops (opened 1919) at Leaside including an erecting shop for locomotives, a coach shop and a (freight) car shop. A small yard was also built. In order to get access to this property it had to build a connection from the Bala line south to Leaside. The line up the Don through Rosedale climbs a grade, crossing well below the CPR before reaching higher land near Oriole. Here a connection was built for southward to westward (or east to north) movements to Donlands (2.2 miles) where it connected with the CPR to reach Leaside another 1.3 miles and completed in June 1917.

It was intended to connect the Ottawa mainline from near Scarboro Village via a four mile long new connection to Donlands and then to Leaside. It needed at 650 foot long viaduct to cross the Don Valley. Disputes over level crossings delayed work and it all ended with the failure of the Canadian Northern and its take over by the Federal Government when nationalized September 6, 1918. It became part of Canadian National Railways January 20, 1923. It was not long before most of the mainline between Toronto and Ottawa was abandoned beginning in 1923, there simply wasn’t a need for four main lines.

Toronto, Niagara & Western was yet another railway that sought entry into Toronto via North Toronto. It was controlled by MacKenzie and Mann of Canadian Northern fame, the same two gentlemen who owned the Toronto Street Railway as well! This was a proposed electric interurban railway sharing the Hydro right-of-way from Niagara Falls to the Bridgman Transformer station (still in use) near Davenport Road and Dupont Street in Toronto. This was the first use in Toronto of "Hydro" electric power generated by water. Prior to this Toronto’s electricity was generated by steam including a large plant of the Toronto Street Railway located at its shops at Front & Frederick Streets in downtown Toronto. Much street and other lighting was by manufactured gas made by burning coke.

Entry into Toronto would have been across the Humber River at Lambton parallel to and north of the old Toronto Belt Line to West Toronto (Keele Street just north of St.Clair Avenue West), where it would have dropped into a cut to underpass both the GTR’s Stratford line and the CPR’s Sudbury line (MacTier Sub.) as well as some streets. Just south of St.Clair Avenue it would have entered a 2360 foot long tunnel under the GTR’s ex Ontario Simcoe & Huron Railway (Ontario’s first railway) at Davenport and exit at Davenport Rd. and St.Clarens Avenue. It would then run parallel to and north of the CPR North Toronto Sub. over to North Toronto (Yonge Street).

Joint Section agreement was reached October 1, 1915 permitting the CNoR use of CPR’s North Toronto station along with joint tracks and common tracks. Nothing ever came of either the TN&W being built nor CNoR trains entering North Toronto due to the financial failure of Canadian Northern. The CNR did operate over the Oriole spur to Donlands and over CPR into Leaside to reach local industries there as well as the railway shops. It also had use of common tracks from Leaside to North Toronto and over the north service track along with exclusive rights to traffic from local industries on the north side between Avenue Road and Dovercourt Road. It retained this arrangement for many years afterwards. The last CNR employee timetable to refer to these "common tracks" across North Toronto was April 1969. (It was no longer shown in the October 1969 timetable.) The last few industries on what remained of the north service track were thereafter served by the CPR. The one still remaining is the TTC Hillcrest shops, the last use of which was several years ago to ship out several old PCC streetcars to the US.


Longo's Leaside Village


Port Arthur

Port Arthur depot and terminal including grain elevator and coal dock.


CNoR 500 Article 1912

CNoR 500 Wason Mfg. Co. (sub. of Brill, Springfield, Mass.) CGE 3718 October 1911.
Canadian National 15064A

This 74 passenger gas-electric 57 foot combine had an open rear platform.
Canadian Northern was the first railway in Canada to have a self-propelled passenger car
with an internal combustion engine. It was the only one Canadian Northern had.
CNoR was the first Canadian and sixth customer of GE-Wason cars.
Less than 100 in grand total were built.
500 operated between Toronto and Trenton on April 13, 1912 follwoing which
it operated 32 miles on the Central Ontario between Trenton and Picton in April 1912.
Summer 1912 it ran between Quebec City and Lake St.Joseph
(where there was a railway-owned hotel)
on Quebec and Lake St.John a CNoR subsidiary.
Fall 1912 it returned to CNoR between Napanee-Trenton-Picton.
Car had a fire in 1915 at Trenton. Rebuilt 1916 by CC&F in Montreal.
June 1, 1920 operated a frequent local service between Winnipeg and Transcona.

1921 became CNR 15800, in 1923 rebuilt by NS&T to battery-electric.
1931 rebuilt to 87 passenger trailer re# 15748. Scrapped 11/1940 at Leaside.



This car was a pioneer effort for the new Canadian National Railways and a long line of self-propelled cars by a number of builders followed and carried on for many years. Like many railways throughout North America these self-propelled cars were an effort to reduce operting costs on light traffic lines or runs. Potential savings were significant not only for coal and other costs to operate a steam locomotive pulling one or two cars but primarily crew wages would could be reduced from five men to two. The earliest cars were gas-mechanical and proved very unreliable. Steam and even battery-electric cars were built. Newer ones were gas-electric and oil-electric. They were often more successful but still were less reliable than a steam locomotive. It wasn't until 1949 and the Budd company's Rail Diesel Car ( R.D.C. ) that a really successful self-propelled car came along. Some still continue in use 60 years later thanks in part to their stainless steel construction.


CNoR mainline Toronto-Ottawa

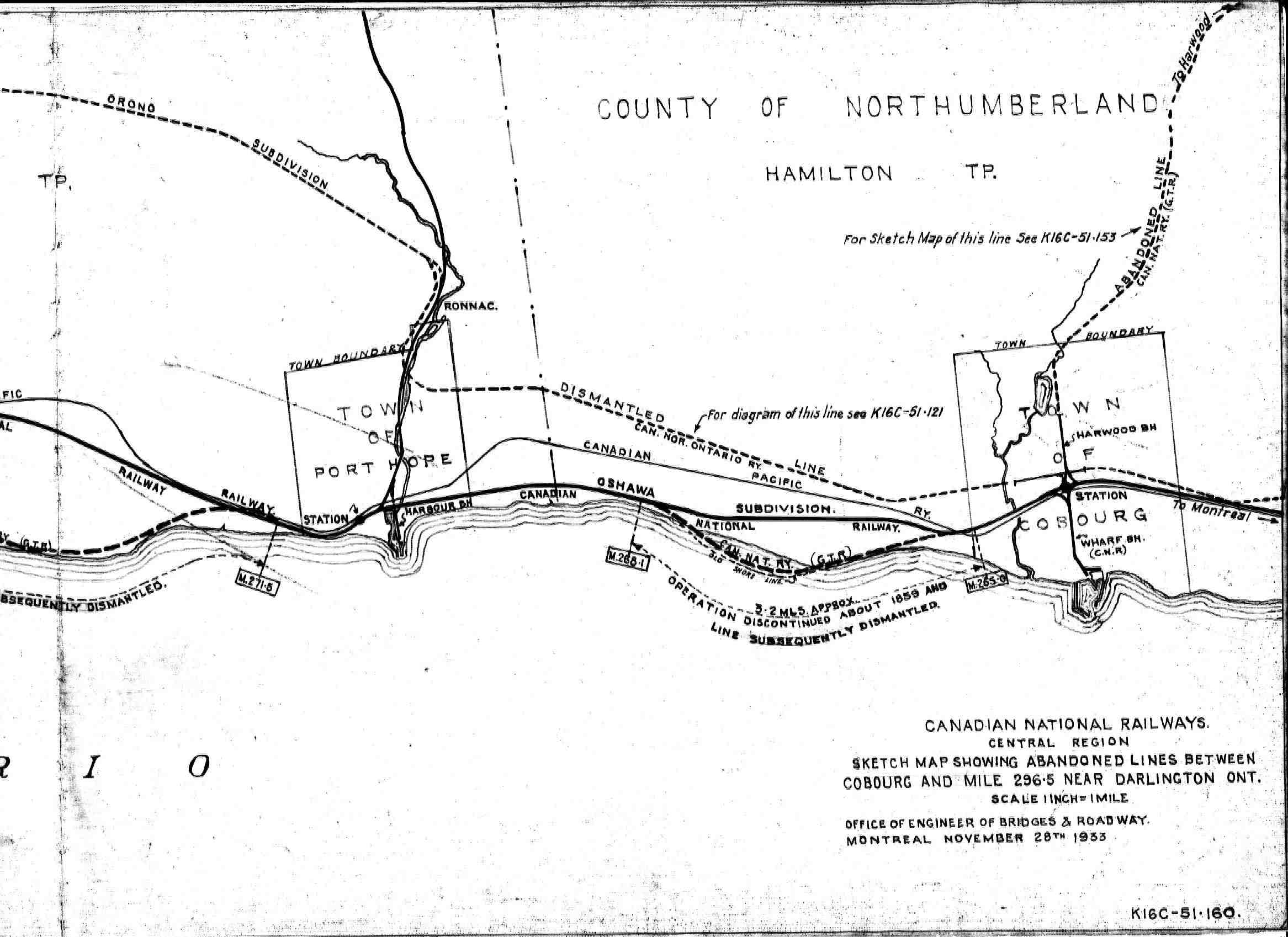

Map showing all railways between Port Hope and Cobourg
including abandoned main line of former CNoR. 1933

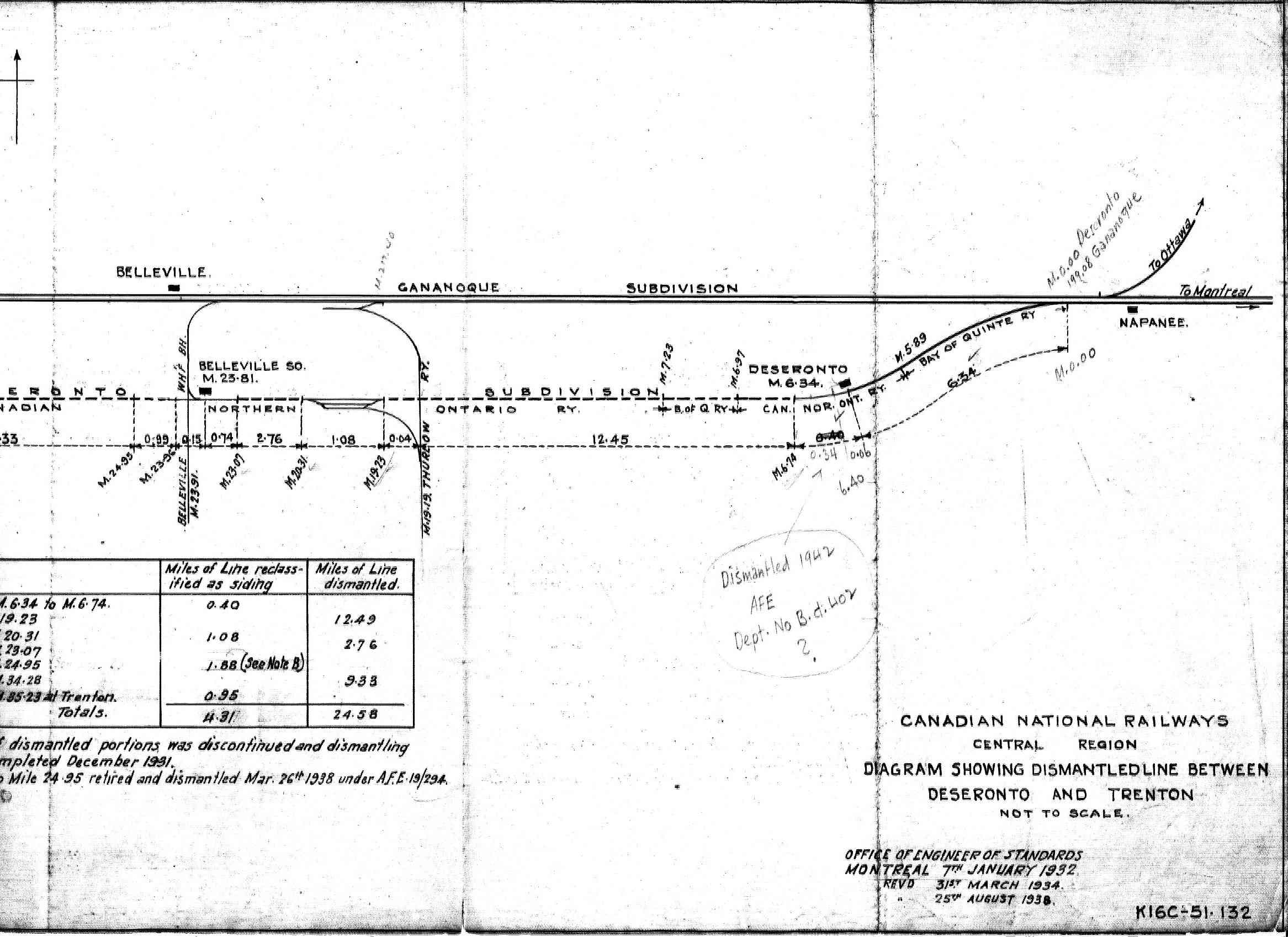

Map Deseronto Sub. dismantling 1932.
Deseronto to Belleville portion

Former CNoR Todmorden station (Toronto). CNR train 634 passing on May 22, 1955.
Toronto Reference Library/J.V.Salmon Collection

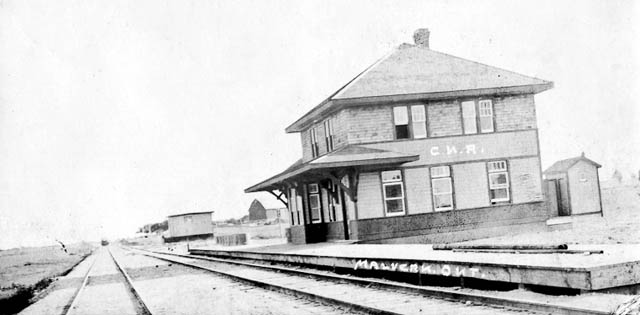

Malvern near what became Sheppard Avenue and Markham Road.
Old postcard 1912, Arnold Mooney collection

Brooklin, shown still under construction in this old postcard view. Collection of Doug Birchill

Oshawa station relocated nearby at 66-68 Wayne Avenue as residences. 2018

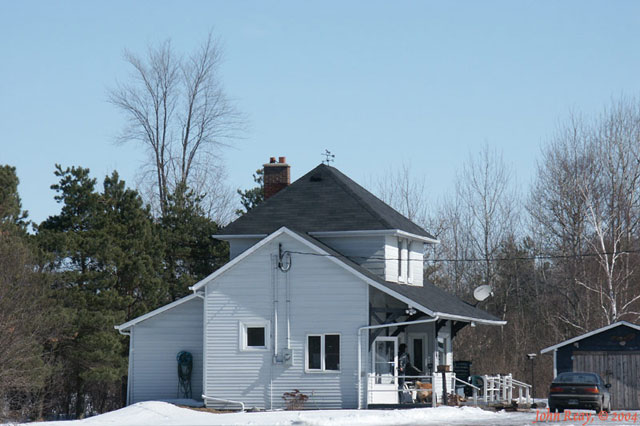

Former Solina station still in use as a residence on orginal abandoned right of way. 2004 John Reay

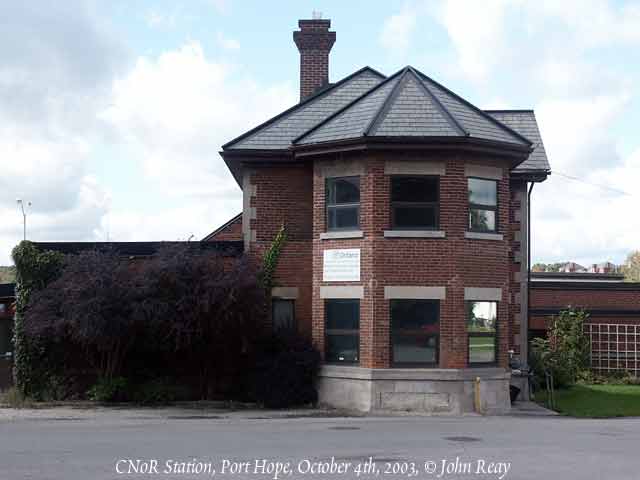

Undated early view of Port Hope station with westbound passenger train on the Toronto-Ottawa mainline.

The above three photographs were taken by special request.

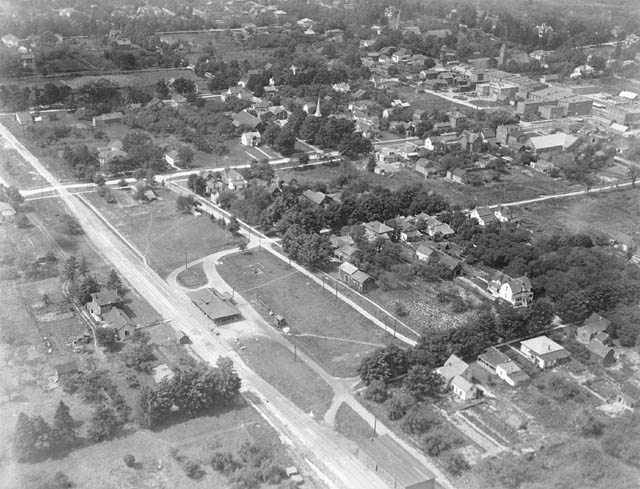

Brighton. c.1912 Mile 111.5. Aerial view 1920

CNoR 278 4-6-0 with first passenger train for Toronto. October 9,1911 Trenton.
National Archives PA 212597

Newly opened Belleville station before CPR shared it and a joint section of track.
Library & Archives Canada/Collections Canada PA-012539 Wm. J. Topley

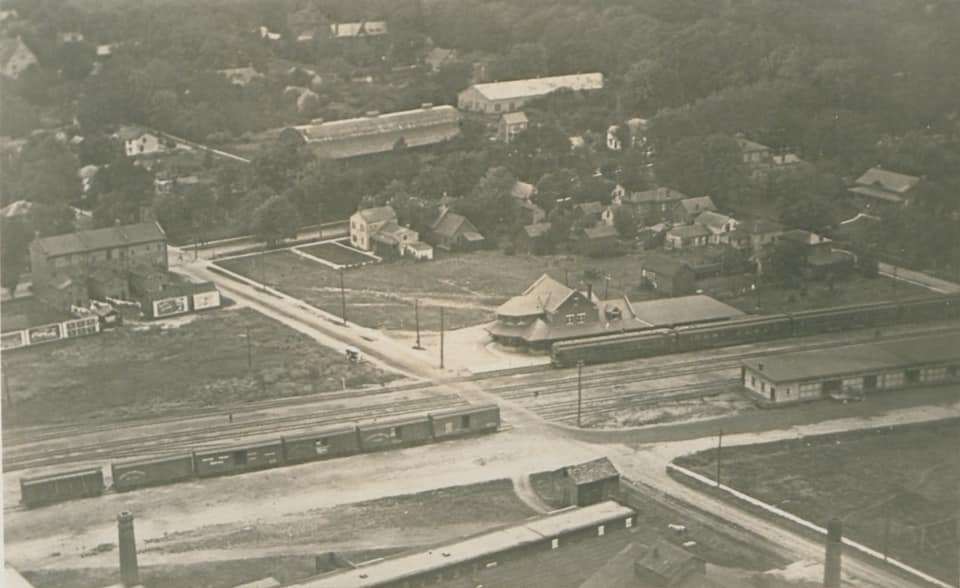

AERIAL Belleville Yard

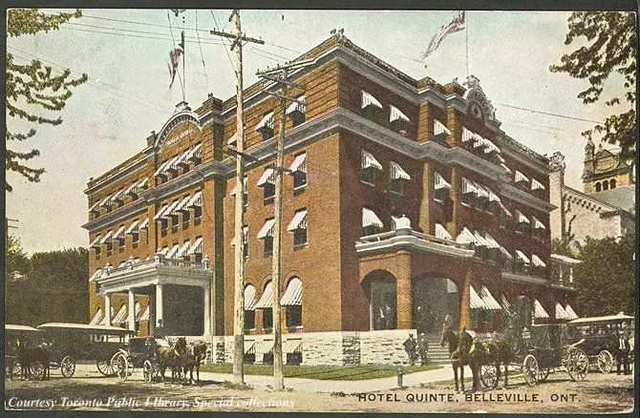

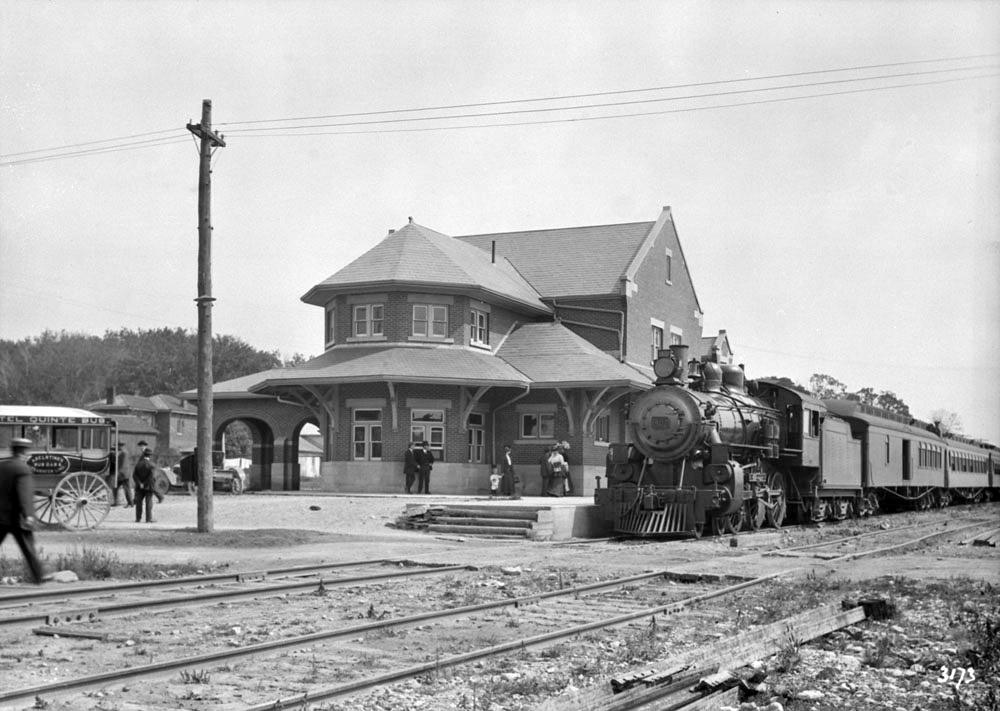

CNoR 1407 nearly new (MLW 52602 April 1913) and a horse-drawn bus from Hotel Quinte,
Belleville August 1913. Public Archives 12554 William J. Topley

ENLARGE

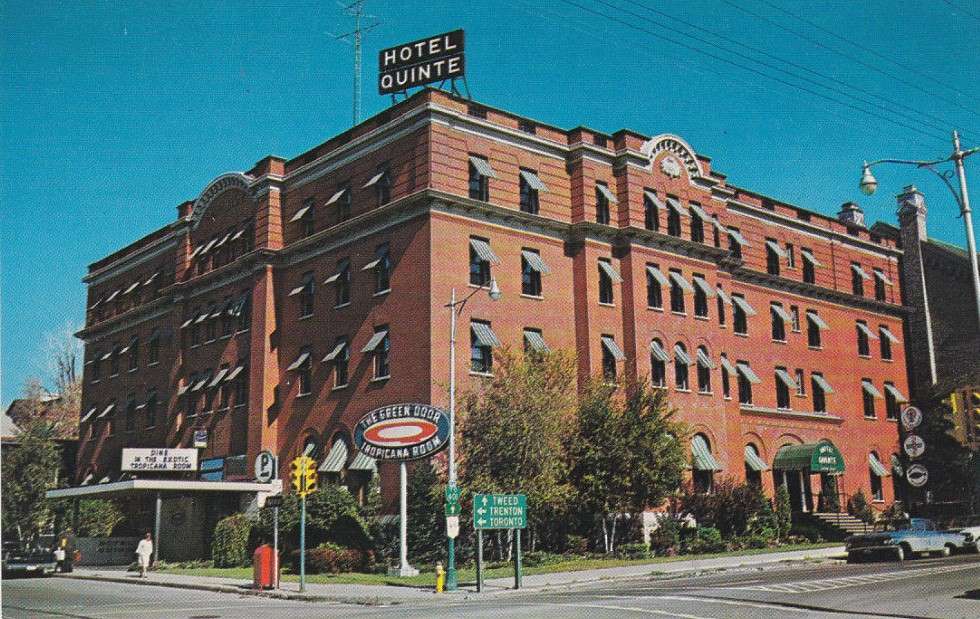

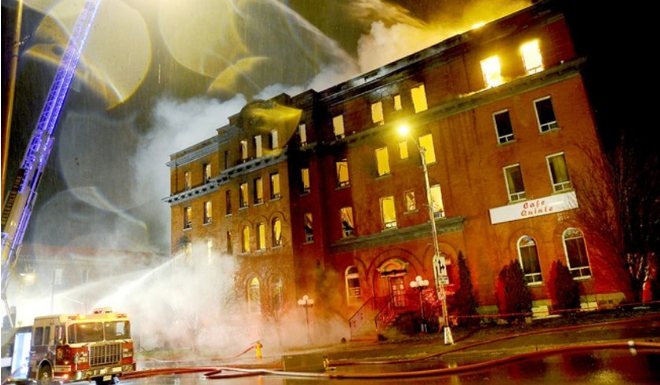

Built 1895, fire 1907 rebuilt 1908. Photo circa 1978. Destroyed by fire December 21, 2012).

Smiths Falls station is another of the sturdy Canadian Northern brick stations that survived.
It last served passengers trains in 1979 and following abandonment of the Canadian National through
here in 1983 it was acquired by the Smiths Falls Railway Museum. May 2002. Tom Caine JBC Visuals

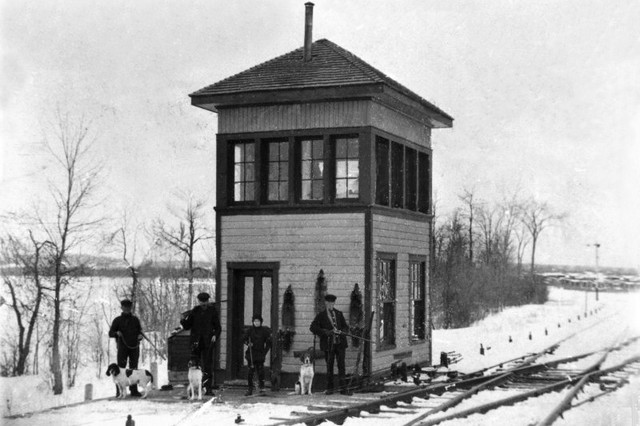

Rockland tower controlling GTR branch built 1888 off the mainline at Limoges to McCaul Point where a large sawmill was operated by W.C.Edwards Sawmill Co. Arrival of the CNOR in 1908 provided competition for the GTR. William Cameron Edwards of Thurso, Quebec held the timber rights in the area and built a sawmill at McCaul Point c.1869. He was also the postmaster and is said to have named Rockland for its rocky land. The mill changed hands twice and eventually closed in 1926 causing much loss of population. Note the moveable points an unusual feature for a diamond. (Hay's "Railroad Engineering" book says that moveable points should be used where crossings are at an angle of 9 deg 30' or less. This is to prevent derailments caused by a very long frog throat (i.e. gap) that occurs at decreasing angles. Dave Page)
Circa 1915 Ian Walker Collection Digital restoration by Ron Visockis

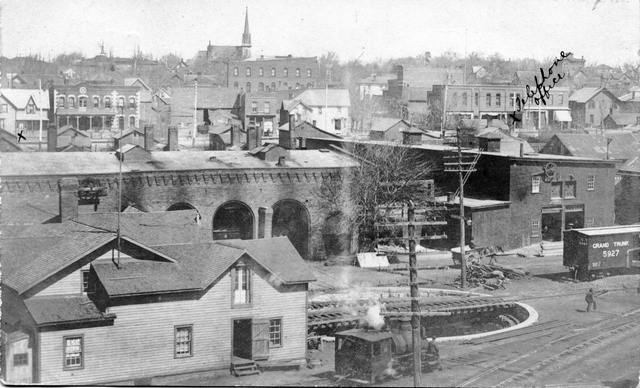

Bay of Quinte

The section from Tweed to Bannockburn was shut down in 1935,
followed by Yarker to Tweed in 1941. Last train ran May 31, 1941.
Line dismantled December 1941.

Deseronto to Napanee lasted until 1986.

ENLARGE

ENLARGE


Note: Alphabetical order below.

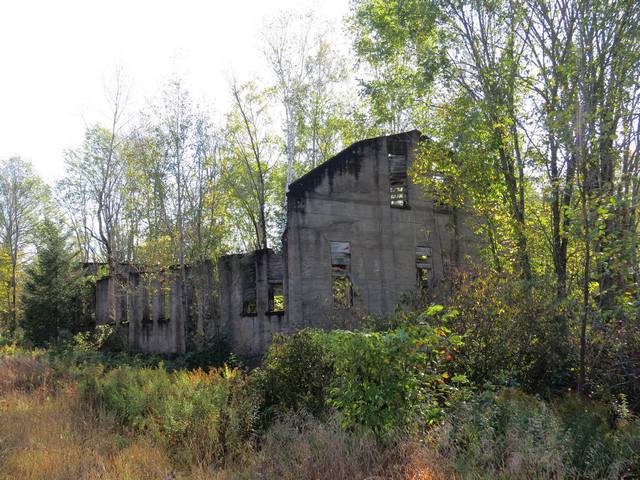

Bannockburn enginehouse (2 stall). Turntable, water tower, station, scales were all built 1903.
Steve Manders 2017

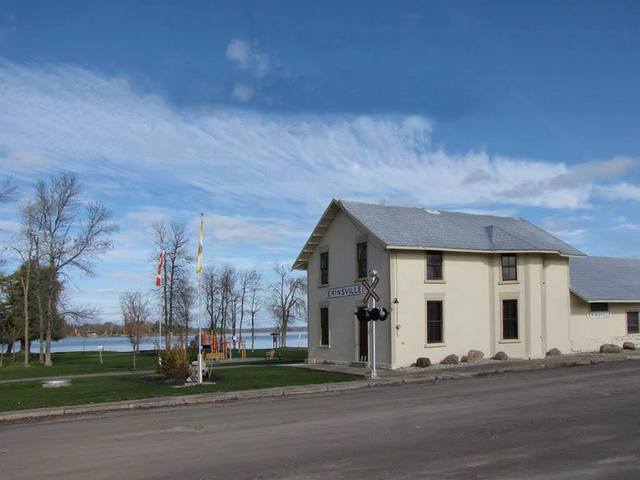

Erinsville station 1889-1941. Beaver Lake Lions Park. Steve Manders 2017
Preserved insitu it was for some time a highway works yard and more recently a hall.

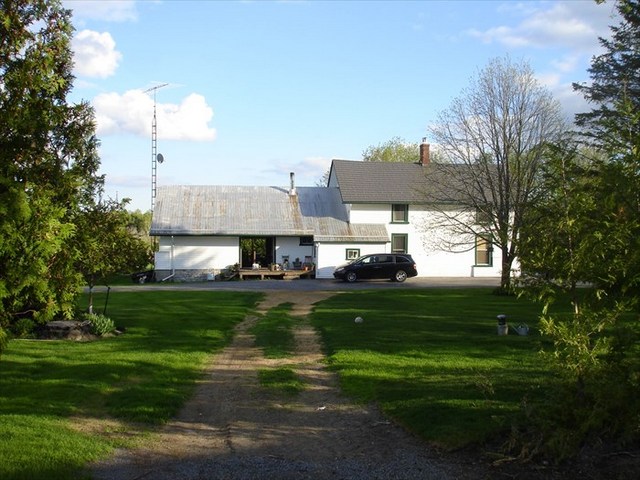

Marlbank as a residence.

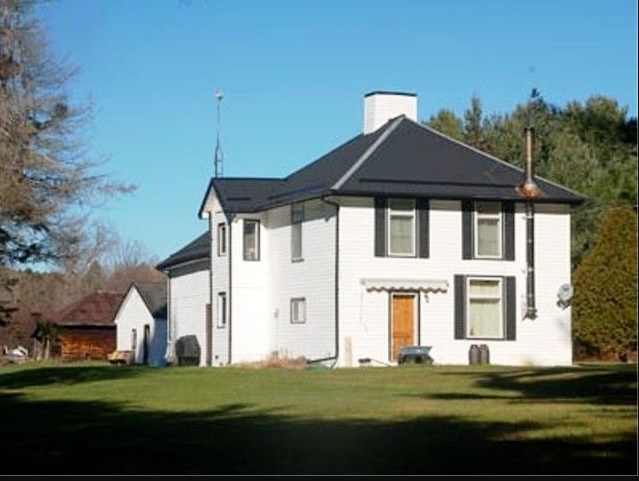

Queensboro as a residence.

Two views of former Stoco station as a residence.



Tamworth as a residence.

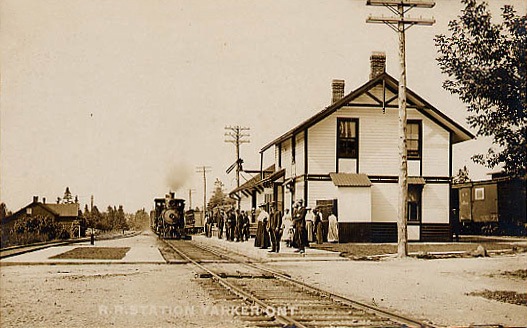

Yarker c. 1915 Post card view courtesy of canada-rail.com




Former Brockville, Westport and North-Western



Former Central Ontario

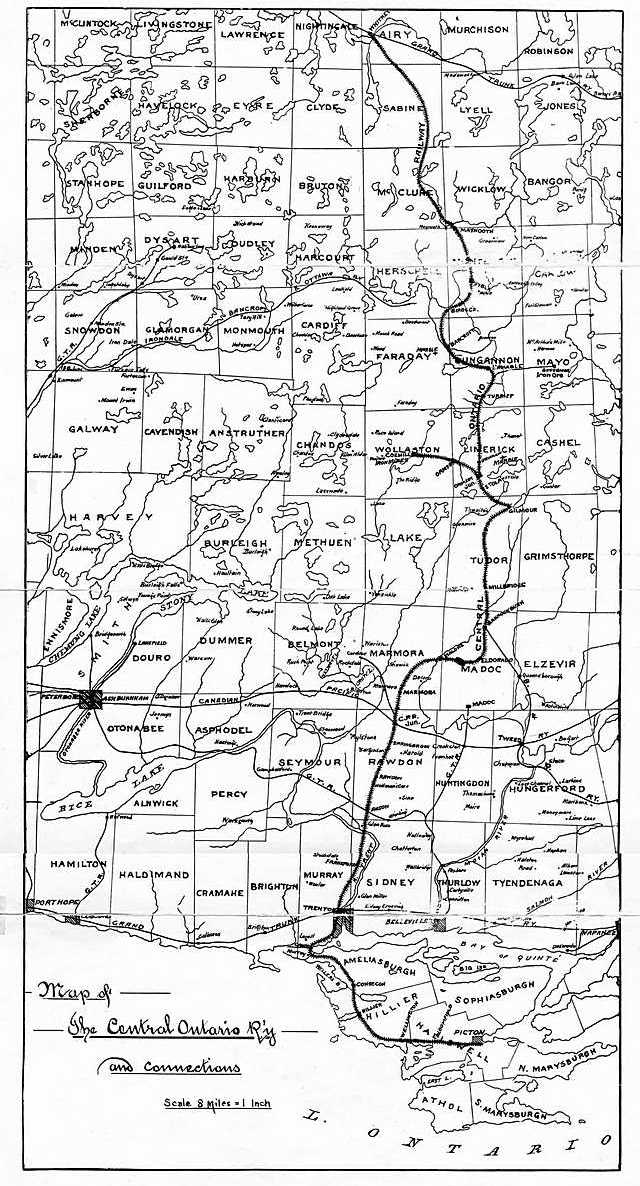

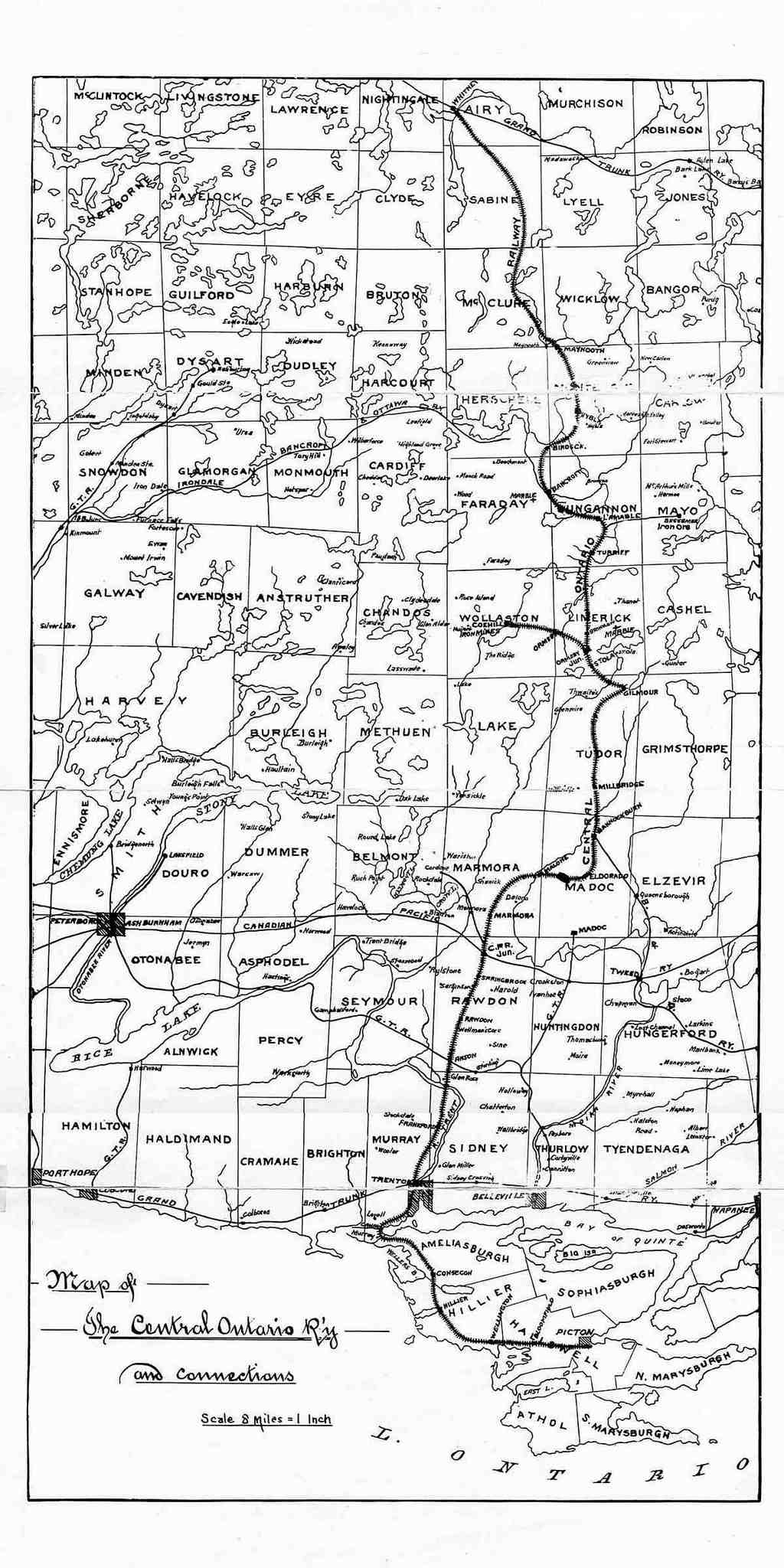

Map 1910 NEW

ENLARGE

pdf Extra large size map

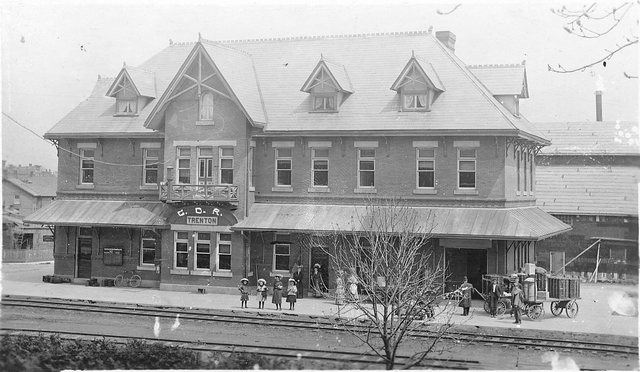

Two early views of COR Trenton station.



Picton 1879

The view is looking north at the rear end of CNR mixed train 313, stopped to load some express at
Bonarlaw on March 27, 1959, fouling the diamond as it does so. I was riding the train and took advantage

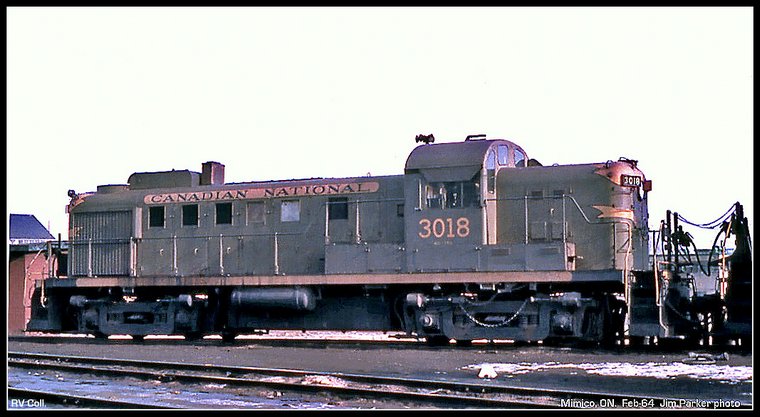

of the stop to grab this shot. On the head end was CNR's RS-3 3018 with Percy McTaggart as engineer.
That lower-quadrant order board is actually aligned for the CPR. The two railways crossed at
an acute angle with the station situated in the northeast quadrant of the diamond. MAP
As it faced both lines it had a very angular footprint. It's all bicycle trails to-day. Bob Sandusky

Former Canadian Northern station at Bonarlaw (Mile 24.98 Maynooth Sub.) was situated right at the diamond with the CPR (O&Q) old mainline (Mile 80.4 Havelock Sub.) and was used by both railways. Originally built for the Central Ontario, it finally became part of Canadian National Railways. The train is Trenton-Bancroft CNR Mixed 313 due at 9.05 a.m. on Friday August the 8th. 1958. Note the large sign leaning against the station advertising the Canadian National Exhibition in Toronto. Al Paterson

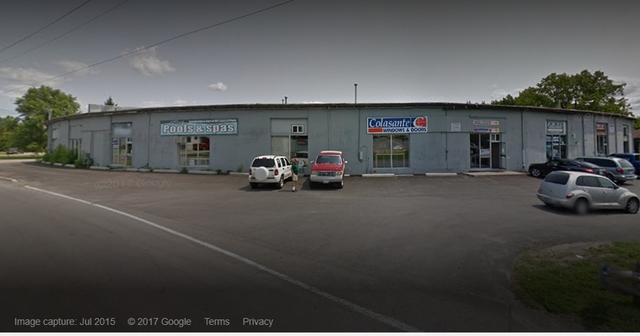

COR former roundhouse Trenton long in use for various commercial businesses including;
Colasante Windows and Doors, Trent Pools & Spas, etc.
81 Dufferin Avenue (County Road 33 south of highway 2), Quinte West.

05/02/2015


Ottawa - Brent - Capreol

Pembroke

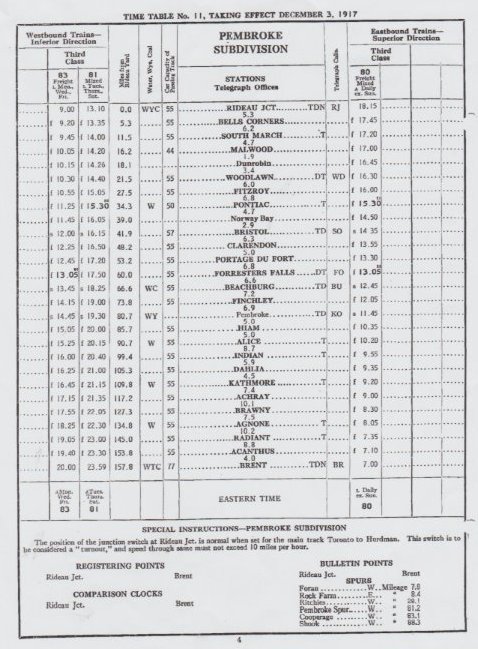

Pembroke Subdivision

Note: Rideau Jct. later became Federal under Canadian National.


ENLARGE click twice

ENLARGE click twice





Sudbury station shared by Algoma Eastern.
