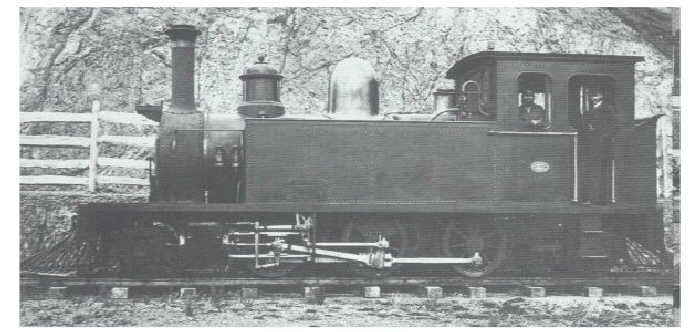

Wh Class
CLASS  Wh    2-6-2 T

Introduced: 1884 Number in Class: 3

Wh Class Register

Locomotive Specifications

   Manning Wardle & Co. Ltd., Leeds, England

Engine Weight:
32.9 tons
Tender Weight:     Total Weight:    32.9 tons Adhesive Weight:
23.9 tons
Length over Buffers:
29' 6"
Total Wheelbase:    21' 2" Engine Wheelbase:    21' 2" Coupled Wheelbase:
9' 6"
Tender Wheelbase:     Driver Wheel Dia.:    37" Cylinders HP:
Two - 12" x 18"
Cylinders LP:
Grate Area:    12.0 sq ft Evaporative Area:
680 sq ft
Superheated Area:     Working Pressure:
140 psig
Tractive Effort:
7846 lbs f
Coal Capacity:    1.5 tons Oil Capacity:     Water Capacity:
600 gals

Remarks:     These small tank engines were the Manawatu Railway's first "main-line" locomotives. They were useful engines and after assisting with construction work, were assigned to Wellington and Paekakariki with a spare engine at Longburn. For the next two years, until the arrival of the first Baldwin "Consolidations", they worked all traffic and on the heaviest turns of duty as many as three would be required to lift a single train over the steep grades. Eventually they were superceded by more powerful locomotives and relegated to shunting and banking duties, and to the haulage of ballast trains. By the turn of the century, two had been sold off and when the Government took over the company, the remaining three were inducted into the NZR system and given the class 'Wh'.
Ex Wellington & Manawatu Railway Co. #'s 1 - 5
