NZR Stores Branch
Introduced: 1928
Number in Class: 1
Locomotive Specifications
A & G Price Ltd., Thames, New Zealand |
| Engine Weight: 20.0 tons |
Tender Weight: | Total Weight: 20.0 tons | Adhesive Weight: 20.0 tons |
| Length over Buffers: 31'-7" |
Total Wheelbase: 24'-4" | Engine Wheelbase: 24'-4" | Coupled Wheelbase: 2'-6" |
| Tender Wheelbase: | Driver Wheel Dia.: 24" | Cylinders HP: Two - 7.5" x 10" |
Cylinders LP: |
| Grate Area: 8 sq.ft. | Evaporative Area: 192 sq.ft. | Superheated Area: | Working Pressure: 140 psig |
| Tractive Effort: |
Coal Capacity: Wood fuel | Oil Capacity: | Water Capacity: 450 gals. |

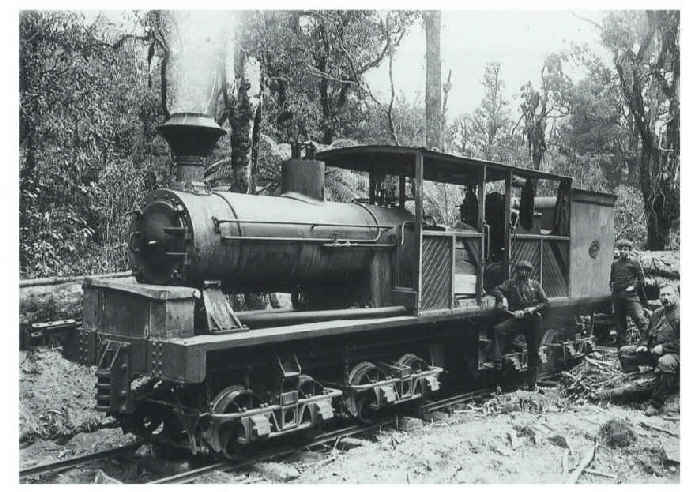

| Remarks: When the NZR Stores Branch took over the Mountain Rimu Timber Co's mill and tramway at Mamaku, near Rotorua, it aquired this locomotive. Driven by a two-cylinder vertical steam engine in the cab, the drive was taken down through a spur gear arrangement to a longitudinal line shaft where skewed bevel gears transmitted power to each of eight axles. The locomotive could negotiate a 99-feet radius curve. In 1928 the loco was sold to the Marton Sash & Door co. |
