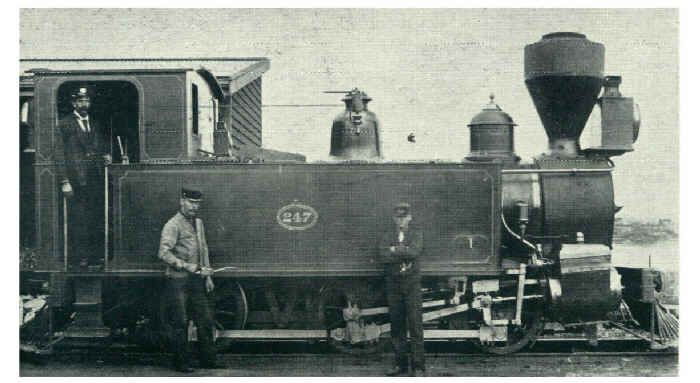

Fa Class
CLASS  Fa    0-6-2 T


Introduced: 1903 Number in Class: 13

Fa Class Register




Locomotive Specifications

Builders:
   NZR Newmarket (4)
   NZR Petone (4)
   NZR Addington (5)

Engine Weight:
29.3 tons
Tender Weight:     Total Weight:    29.3 tons Adhesive Weight:
25.2 tons
Length over Buffers:
27' 3"
Total Wheelbase:    16' 6" Engine Wheelbase:    16' 6" Coupled Wheelbase:
10' 6"
Tender Wheelbase:     Driver Wheel Dia.:    36½" Cylinders HP:
Two - 12" x 18"
Cylinders LP:
Grate Area:    10.7 sq ft Evaporative Area:
530 sq ft
Superheated Area:     Working Pressure:
160 psig
Tractive Effort:
9090 lbs f
Coal Capacity:    1.6 tons Oil Capacity:     Water Capacity:    800 gals

Remarks:    Seven of the Fa's were built new, others rebuilt from class 'F'. NZR Addington. In 1892 a start was made with the rebuilding of a number of 'F' class saddle tank locomotives into'Fa' class 0-6-0 side tank locomotives, with new larger boilers and larger cylinders. The locomotive weight was increased from the 19.5 tons then quoted for an 'F' to 24.0 tons for the 'Fa'. Although the water capacity was substantially increased, the coal bunkers remained small, which limited the range of operations. The locomotives were then further modified with piston valves and an added trailing truck to support a larger coal bunker. During this process they were classified as 'Fb' (refer Fb).

Preserved Locomotive
  Goldfields Railway,    Waihi -     Fa 250,     NZR Addington #5/1892   Restoring
