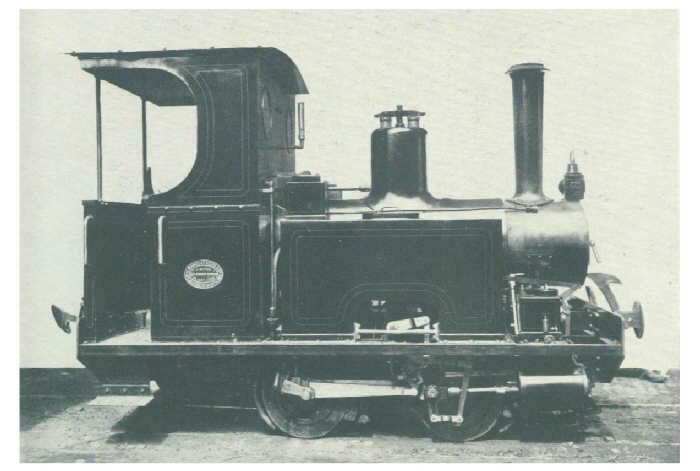

Barclay 0-4-0 T
Barclay    0-4-0 T

NZR Way & Works Branch

Introduced: 1938 Number in Class: 2

Way & Works Register

Locomotive Specifications

    Andrew Barclay, Sons & Co., Scotland

Engine Weight:
7.5 tons
Tender Weight:     Total Weight:    7.5 tons Adhesive Weight:
7.5 tons
Length over Buffers:
Total Wheelbase:     Engine Wheelbase:     Coupled Wheelbase:
Tender Wheelbase:     Driver Wheel Dia.:    22" Cylinders HP:
Two - 6" x 10"
Cylinders LP:
Grate Area:     Evaporative Area:
Superheated Area:     Working Pressure:
160 psig
Tractive Effort:
3072 lbs f
Coal Capacity:     Oil Capacity:     Water Capacity:

Remarks:     Originally purchased by the Public Works Department, the NZR took over two of these locomotives in 1938 and 1939 and were used on various line construction and improvement projects. Both locomotives were withdrawn from service around 1948 and scrapped in 1954.

Preserved Locomotive
  Hawkes Bay Steam Society Inc., Napier -     PWD 531,     Barclay #1749
