| Series | 290000-291730 | ||
| Former Number | Unk | Former Series | Unk |
| Built | Unk | Rebuilt | 3/79 |
| Car Manufacturer | Pacific Car & Foundry | Location | Renton, WA |
| Car Re-builder | Southern Pacific | Location | Unk |
| Lot Number | Unk | Plate | C |
| AAR Class | XMI | RR Class | Unk |
| IL | 50-6 | IW | 9-0 |
| IH | 10-11 | Dr W | 10-6 |
| Dr H | 10-3 | Door Type | YSD V-Latch |
| Cuft | 4961 | Ld Limit | 150,900 |
| End | 4/4 IDN, riveted | Cushioning | Hydra-Cushion |
| Truck | Unk | Wheel Diameter | 33" |
| Hand Brake | Unk | Date Painted | 3/79 (TUC) |

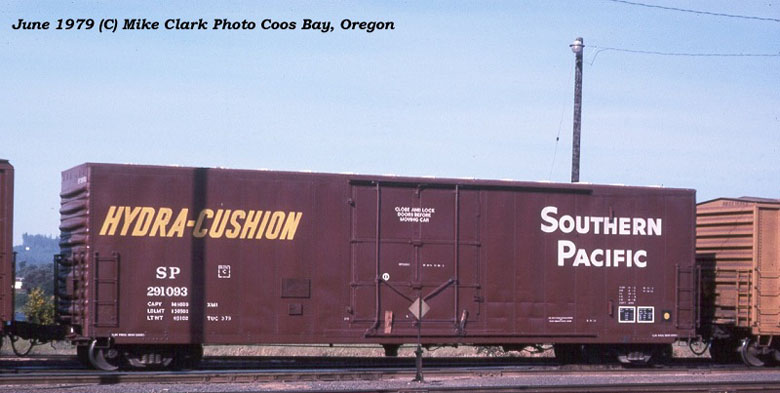

| Photo Location | Coos Bay, OR (SP) | Photo Date | 6/79 |
| Photographer | Mike Clark | Remarks | |
| Resources | Commodity |
