Series | 242900-243370 | ||
Former Number | N/A | Former Series | N/A |
Built | 3/73 | Rebuilt | N/A |
Car Manufacturer | Gunderson Bros Engineering Co | Location | Portland, OR |
Lot Number | Unk | Plate | C |
AAR Class | XM | RR Class | B-70-67 |
IL | 50-7 | IW | 9-6 |
IH | 10-11 | Dr W | 8-0+8-0 |
Dr H | 10-4 | Door Type | YSD 6/6/6 |
Cuft | 5283 | Ld Limit | 152,000 |
End | 3/3 corrugated, welded | Cushioning | Hydra-Cushion |
Truck | Unk | Wheel Diameter | 33" |
Hand Brake | Unk | Date Painted | 3/73 (New) |

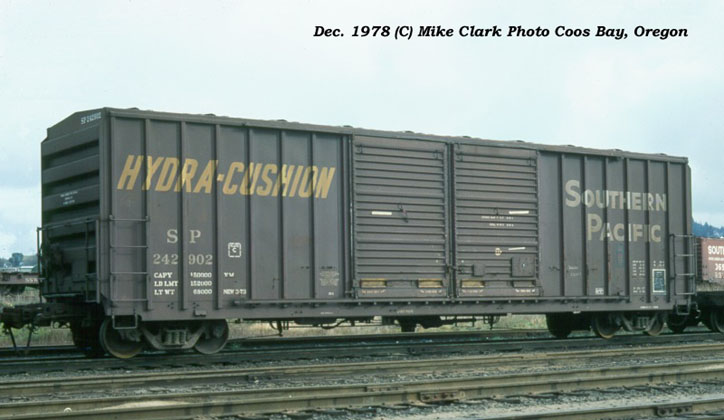

Photo Location | Coos Bay, OR (SP) | Photo Date | 12/78 |
Photographer | Mike Clark | Remarks | |
Resources | Commodity |
