Series | 30000-30499 | ||
Former Number | N/A | Former Series | N/A |
Built | 7/79 | Rebuilt | N/A |
Car Manufacturer | ACF Industries | Location | St Louis, MO |
Lot Number | 11-06854? | Plate | C |
AAR Class | XM | RR Class | XAF20A |
IL | 50-6 | IW | 9-6 |
IH | 11-0 | Dr W | 10-4 |
Dr H | 10-4 | Door Type | YSD 6/6/6 |
End | 3/3 corrugated | ||
Cuft | 5290 | Ld Limit | 157,400 |
Truck | Unk | Wheel Diameter | 33" |
Hand Brake | Unk | Date Painted | 7/79 |

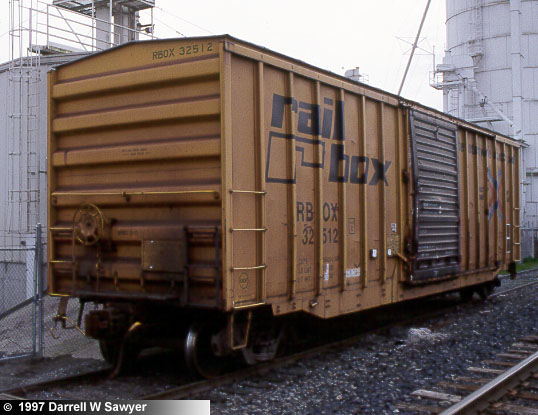

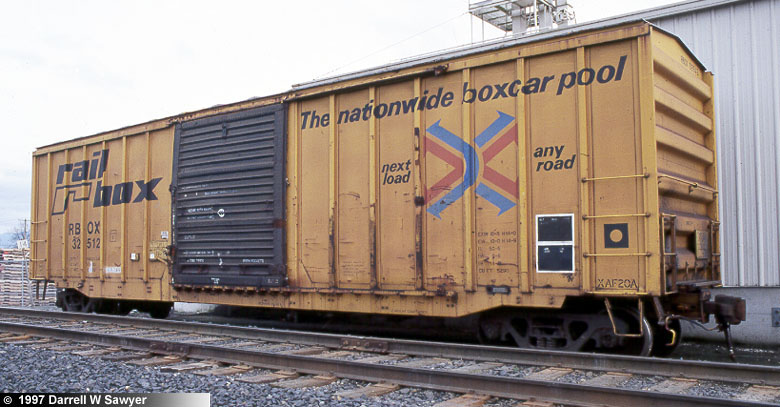

Photo Location | Burlington, WA (BNSF) | Photo Date | 3/16/97 |
Photographer | Darrell Sawyer | Remarks | Cargill Nutrena Feeds |
Resources | Commodity | Cottonseed (note the bulging door) |
