A-Unit
E-Unit
D-Unit
C-Unit
B-Unit
| Series | 525030-525099 | ||
| Former Number | N/A | Former Series | N/A |
| Built | 5/89 | Rebuilt | N/A |
| Manufacturer | National Steel Car | Location | Hamilton, ON |
| Lot Number | Unk | Plate | C |
| AAR Class | - | RR Class | - |
| IL | 48-0 | IW | 8-6 |
| OL | 251-8 | OW | 9-8 |
| OH | 6-3 | Ld Limit | *106,000 |
| Truck | Dofasco Barber S-2 | Wheel Diameter | 33" |
| Hand Brake | Peacock | Date Painted | 5/89 |

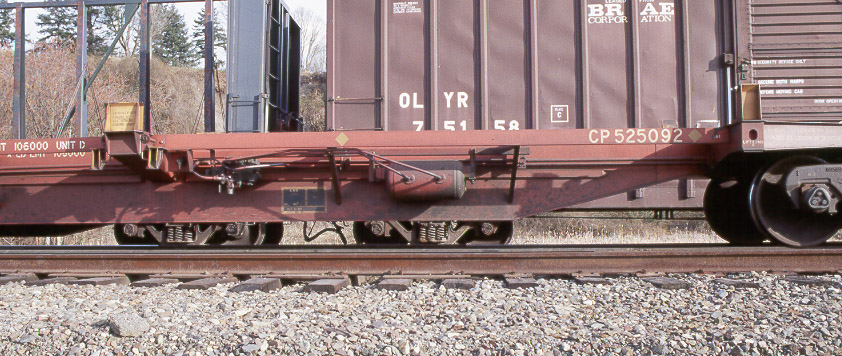

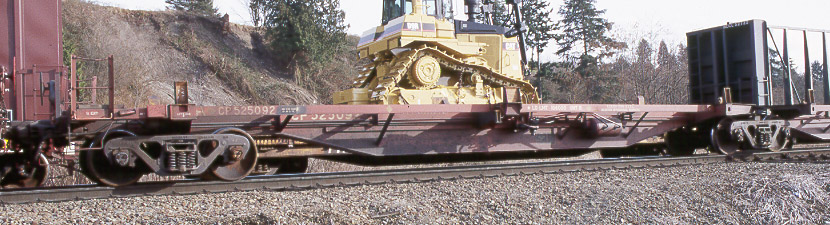

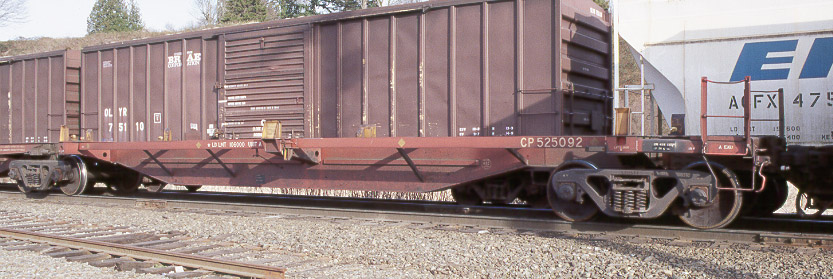

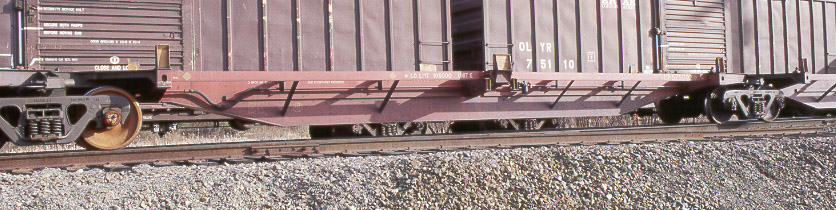

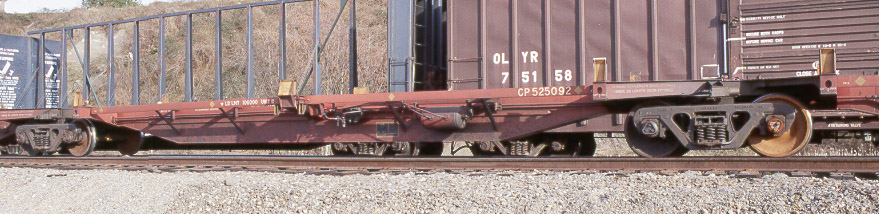

| Photo Location | Bayside Yard (Everett), WA (BNSF) | Photo Date | 3/14/97 |
| Photograher | Darrell Sawyer | Remarks | 5-Unit articulated |
| Resources | MRG 12/97 |
